Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

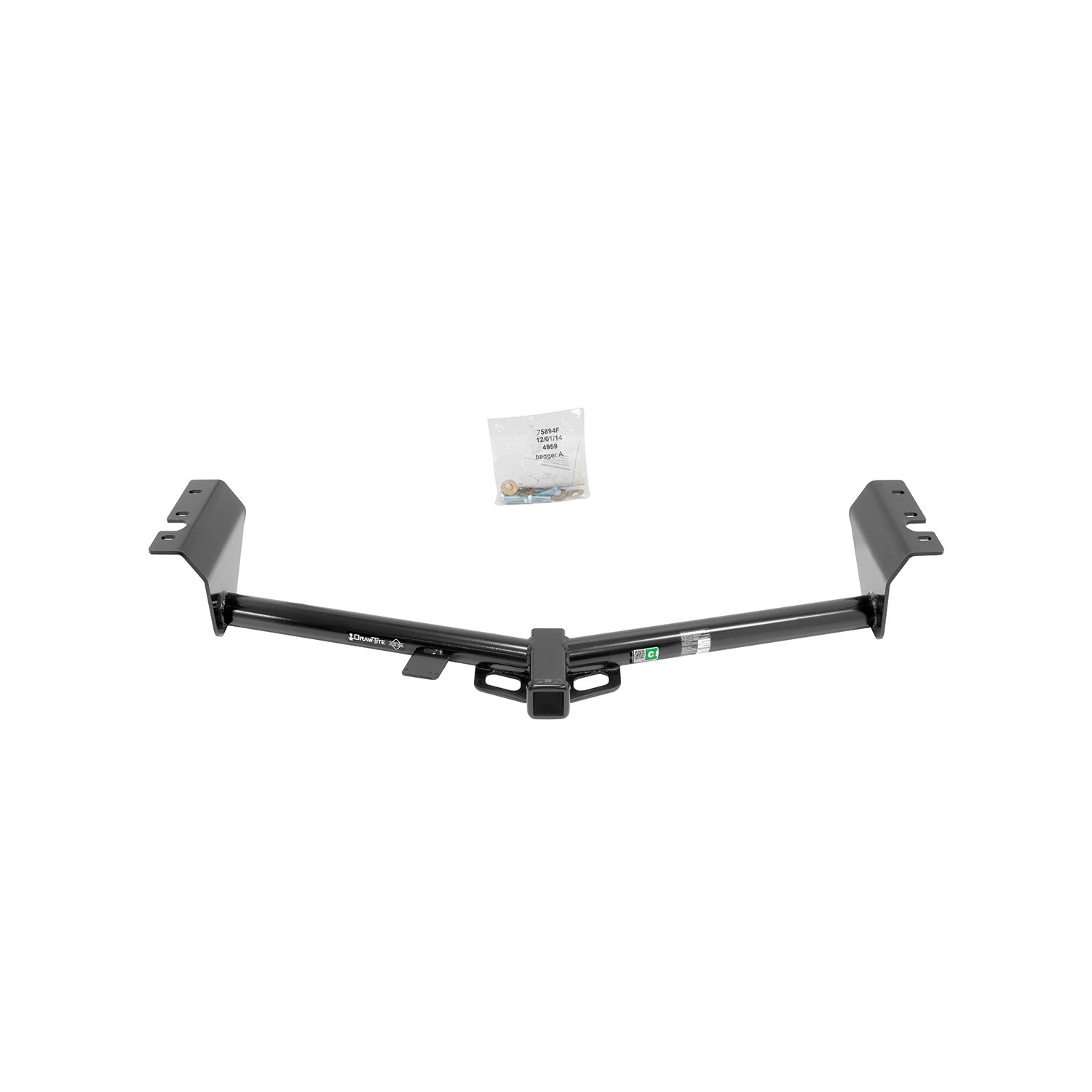

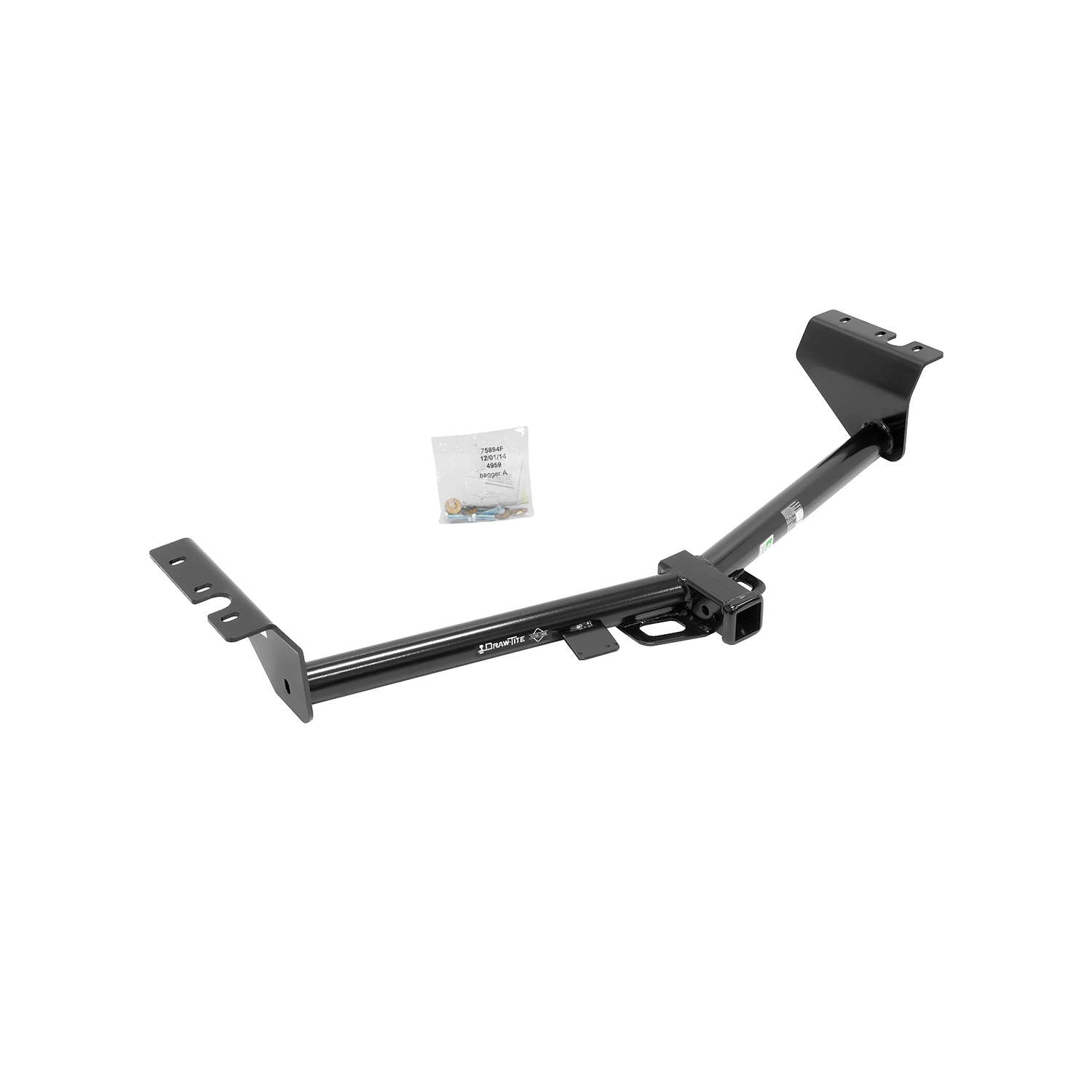

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 400 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75894 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 45 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 400 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 400 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2021 | Kia Sedona | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Sedona 75894 (Part #DT75894) fits the following vehicles: 2015-2021 Kia Sedona. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Sedona 75894 (Part #DT75894) fits 2015-2021 Kia Sedona models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Sedona 75894 (Part #DT75894) is designed to fit the 2015-2021 Kia Sedona.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Sedona 75894 (Part #DT75894) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75894 is designed for the Kia Sedona. However, the manual does not specify which model years are compatible. Contact the manufacturer or your retailer to confirm fitment for your specific year.
The maximum gross trailer weight is 4000 lb (1816 kg) and the maximum tongue weight is 400 lb (182 kg). However, you must not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
You will need a small Phillips tip screwdriver, a 19mm wrench, lubricant or soapy water, and a spiral wire brush. No drill bits are required because no drilling is necessary for this installation.

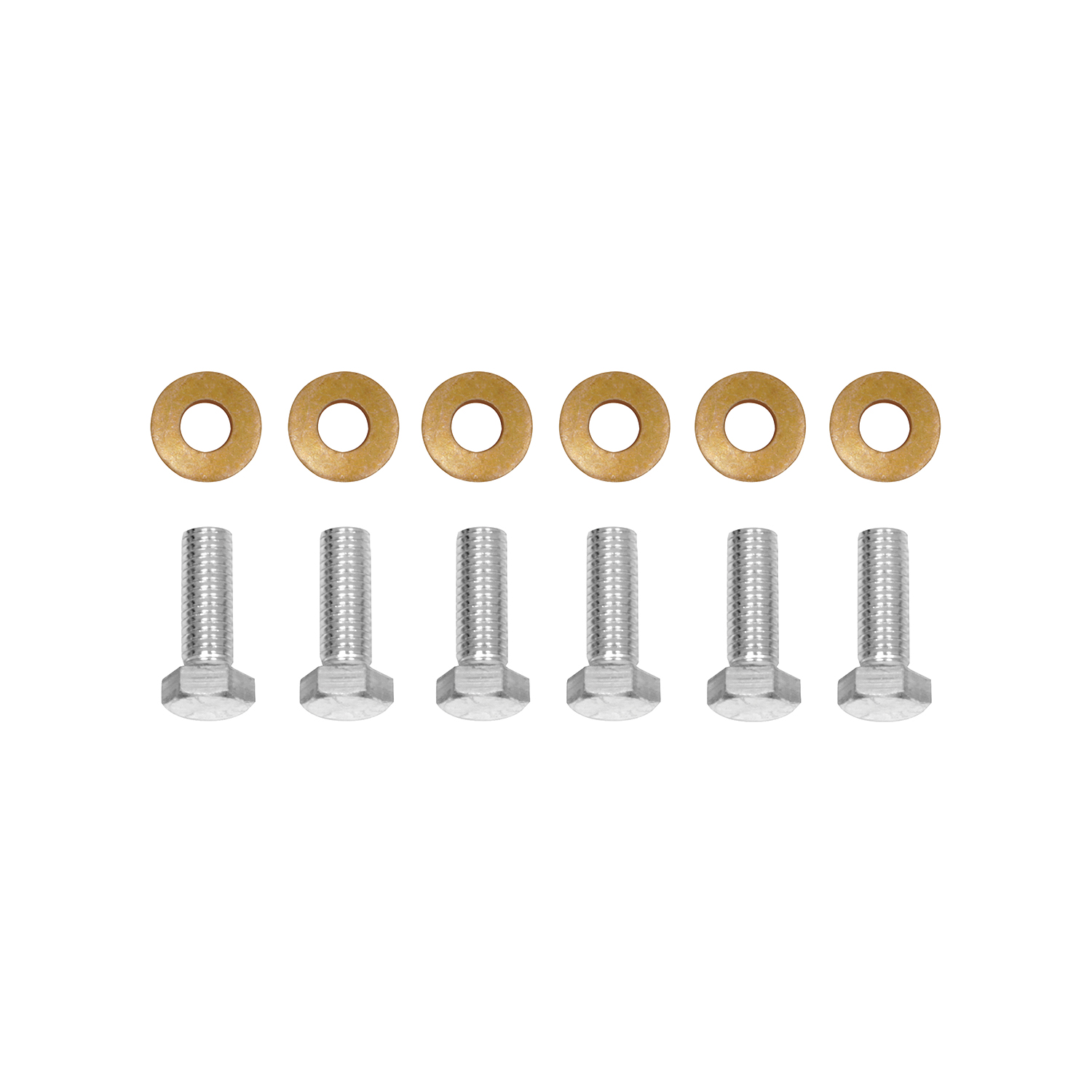

The fastener kit 75894F includes 6 hex bolts M12×1.25×35 CL8.8 and 6 conical washers 1/2 inch. These bolts attach the hitch to the existing weldnuts on the vehicle frame.
The appearance panel on the driver's side must be removed if present. It is held by plastic rivets and plastic screws. Use a small Phillips screwdriver to unscrew the plastic screws, then pull out the remaining plastic rivets. Return these parts to the vehicle owner after installation.
Yes. The exhaust must be lowered by removing the rubber isolators from the muffler hangers. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The hitch is then raised over the exhaust pipe and rotated into position. After installation, the exhaust hangers are reattached.
1. Remove the driver's side appearance panel if present. 2. Lower the exhaust by removing rubber isolators from muffler hangers. 3. Raise the hitch on the passenger side over the exhaust pipe and rotate it into position. 4. Loosely install all bolts. 5. Center the hitch on the vehicle, ensuring clearance with the exhaust. 6. Tighten all fasteners to the required torque specification. 7. Reattach the exhaust hangers.
All M12 CL8.8 fasteners must be tightened to 76 lb-ft (103 N·m) using a torque wrench.
Yes. If necessary, clean the threads on the existing weldnuts. Carefully run the M12 bolts into the weldnuts, or use a spiral wire brush to clean the threads before installation.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
No. The manual specifies that no drill bits are required. The hitch uses existing weldnuts on the Kia Sedona frame for attachment.
Both weight distributing and weight carrying configurations have the same maximum gross trailer weight (4000 lb / 1816 kg) and maximum tongue weight (400 lb / 182 kg). The manual does not provide further details on the functional differences between these types.
Yes, the 75894 is designed for the Kia Sedona. Confirm your model year with the manufacturer.
You need a small Phillips screwdriver, 19mm wrench, lubricant or soapy water, and a spiral wire brush. No drilling is required.
Tighten all M12 CL8.8 bolts to 76 lb-ft (103 N·m) with a torque wrench.
Maximum gross trailer weight is 4000 lb (1816 kg) and maximum tongue weight is 400 lb (182 kg), but do not exceed your vehicle manufacturer's rating.
Yes, remove the rubber isolators from the muffler hangers to lower the exhaust, then raise the hitch over the exhaust pipe and rotate it into position. Reattach the hangers after installation.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry. Wear eye protection and observe safety precautions when working beneath the vehicle.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
