Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

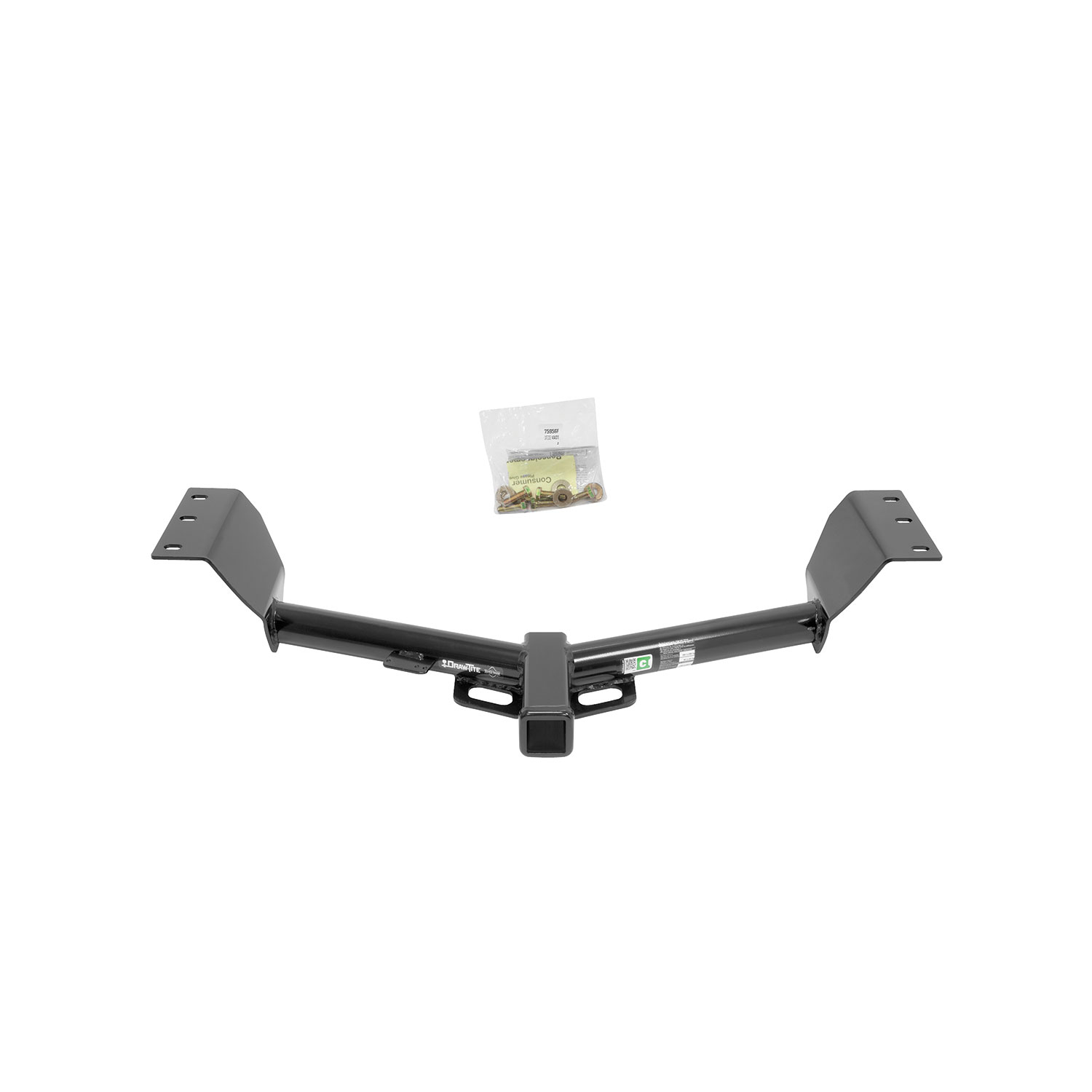

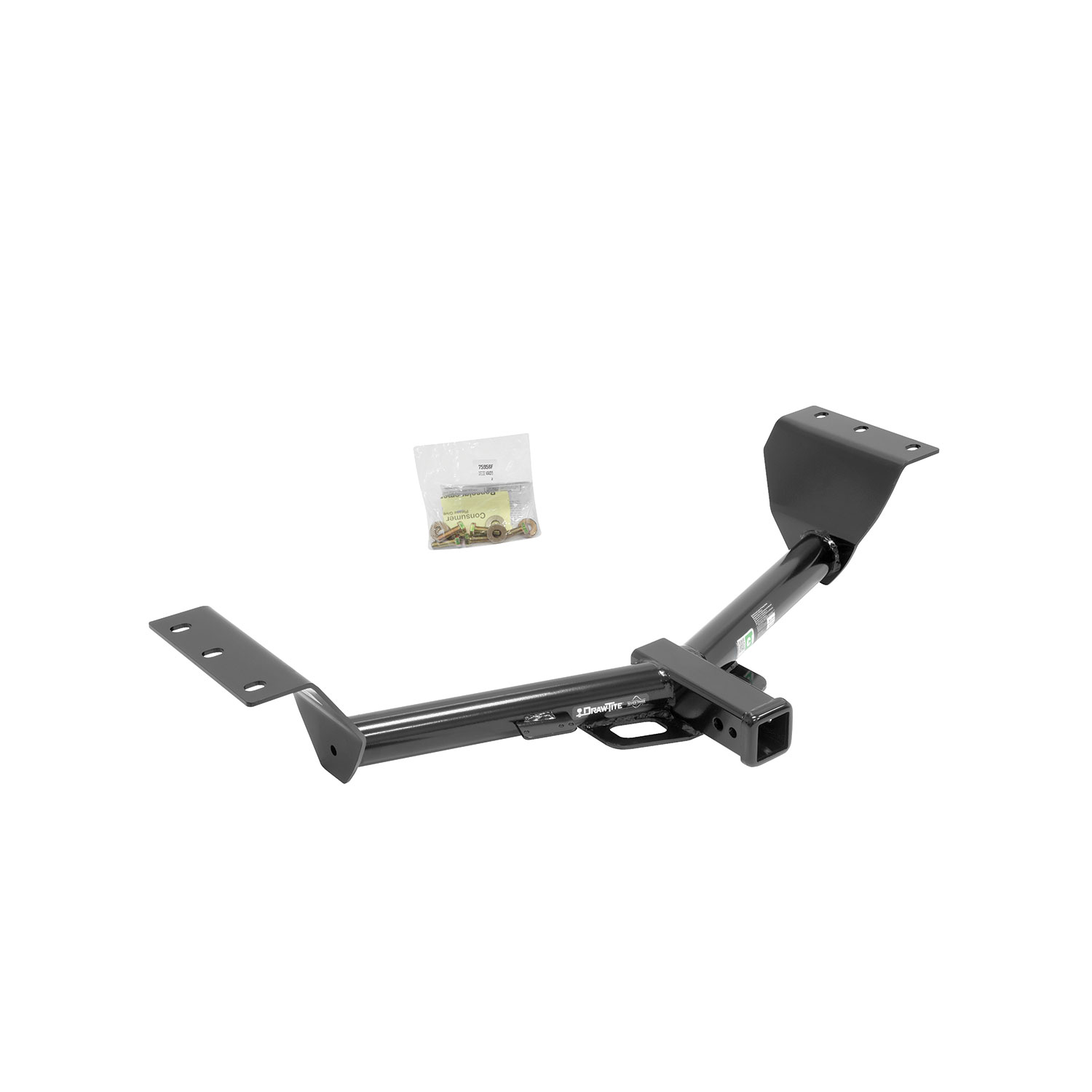

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 400 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75956 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 37 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 400 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus NX200t, Lexus NX300, Lexus NX300h 75956 (Part #DT75956) fits 2015-2017 Lexus NX200t models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus NX200t, Lexus NX300, Lexus NX300h 75956 (Part #DT75956) fits the following vehicles: 2015-2017 Lexus NX200t; 2018-2021 Lexus NX300; 2015-2021 Lexus NX300h. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus NX200t, Lexus NX300, Lexus NX300h 75956 (Part #DT75956) is designed to fit the 2015-2017 Lexus NX200t.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus NX200t, Lexus NX300, Lexus NX300h 75956 (Part #DT75956) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 75956 fits 2015-2017 Lexus NX200t and 2018-current Lexus NX300. For the most up-to-date information regarding specific application years and trim levels, visit www.horizonglobal.com.
The maximum towing capacity depends on hitch type. Weight Carrying hitches support a maximum gross trailer weight of 3500 lb (1589 kg) with a maximum tongue weight of 350 lb (159 kg). Weight Distributing hitches support a maximum gross trailer weight of 4000 lb (1816 kg) with a maximum tongue weight of 400 lb (182 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools are: ratchet, torque wrench, safety glasses, sockets (17 mm and 18 mm), 3-inch socket extension, and Phillips screwdriver. An exhaust support stand is also required to prevent damaging the muffler during installation.
The manual states that installation time is 35 minutes for professional installers. If you do not feel comfortable performing the installation on your own or are in need of assistance, contact a professional installer.
Yes. Step 2 of the installation requires lowering the exhaust by removing two M12 bolts from the exhaust hanger bracket on each side. Use an exhaust support stand to prevent damaging the muffler. The exhaust bolts are returned to the vehicle owner after installation.

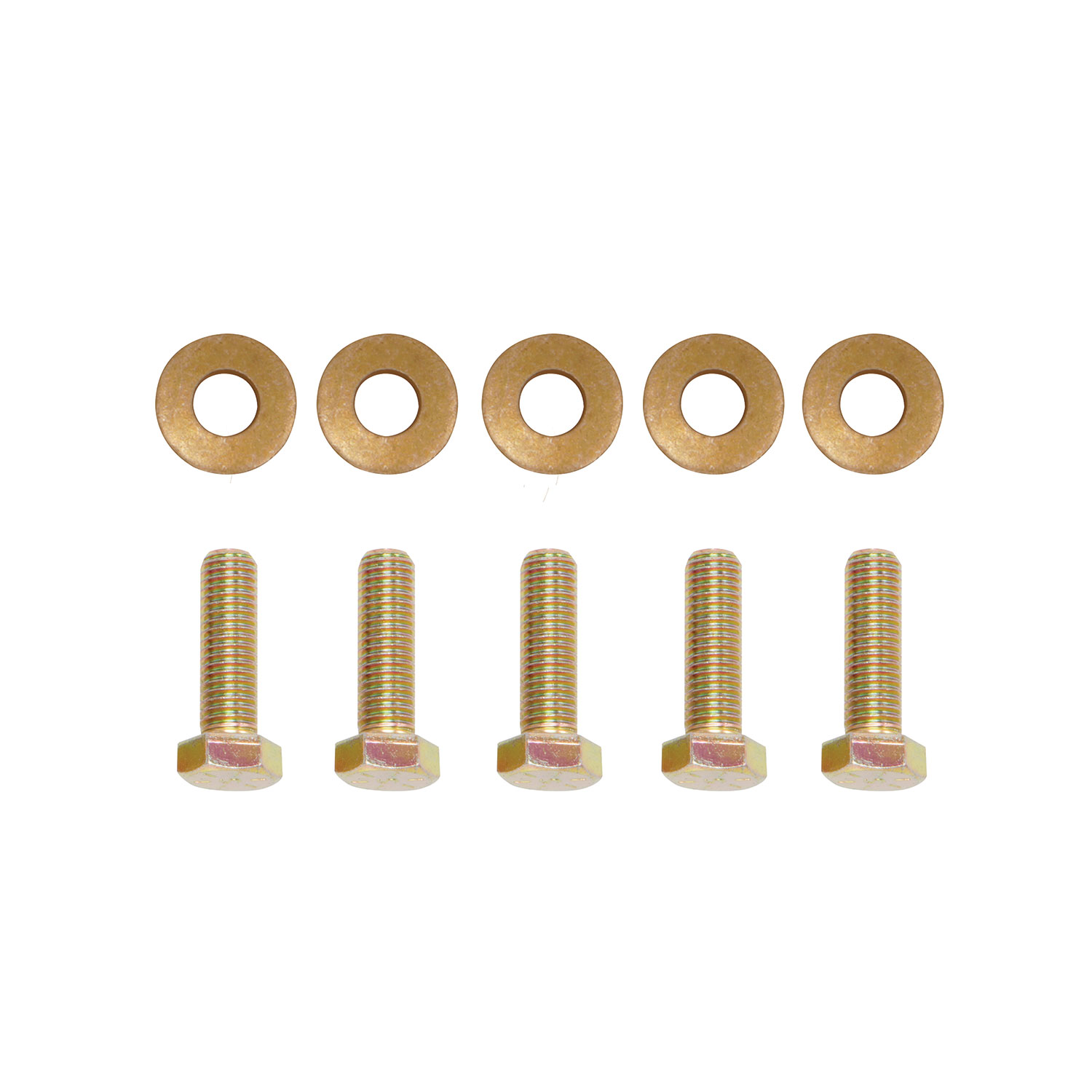

The fastener kit 75956F includes five M12 1.25x40 CL10.9 bolts and five conical washers (½ inch, part number 01292008). These fasteners sandwich the hitch bracket between the exhaust hanger bracket and frame rail on both sides.
All M12-1.25 CL 10.9 fasteners must be tightened with a torque wrench to 76 lb-ft (103 Nm). Proper torque is essential to keep the hitch secure to the vehicle when towing.
Fasteners should be installed loosely first. Step 3 instructs to loosely install the M12 bolt and conical washer at the foremost slot on the driver side, then loosely install the rest of the fasteners to the exhaust hanger bracket on both sides. All fasteners are then tightened together in Step 4 to the specified torque of 76 lb-ft (103 Nm).
Start from the driver side. Raise and slide the hitch into position starting from the driver side, then loosely install the M12 bolt and conical washer at the foremost slot on the driver side before installing fasteners on the passenger side.
Conical washers (½ inch, part number 01292008) are used with the M12 bolts to sandwich the hitch bracket between the exhaust hanger bracket and frame rail on both sides of the vehicle. Five conical washers are included in fastener kit 75956F.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check frequently that all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing, and recommends periodic checks to ensure all fasteners remain tight.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch weight limits.
No. The manual explicitly states: DO NOT cut, weld or modify this receiver. Do not cut access or attachment holes with a torch.
Check all fasteners periodically to ensure your hitch is securely mounted to your vehicle. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
The product includes a Limited Lifetime Warranty covering material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the alleged defects are material and not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained and used in accordance with the instructions. Product replacement is the sole and exclusive remedy. Contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com.
Contact Horizon Global at: Website: www.horizonglobal.com, Technical Assistance: 800-632-3290, Email: TechnicalSupport@horizonglobal.com.
Yes, if you have a 2015-2017 NX200t or 2018-current NX300. Check www.horizonglobal.com for the most current trim level information.
Torque wrench, ratchet, 17mm and 18mm sockets, 3-inch socket extension, Phillips screwdriver, safety glasses, and an exhaust support stand.
Yes. You must remove two M12 bolts from the exhaust hanger bracket on each side and use an exhaust support stand to prevent muffler damage.
Tighten all M12-1.25 CL 10.9 fasteners to 76 lb-ft (103 Nm) using a torque wrench.
Weight Carrying: 3500 lb gross trailer weight, 350 lb tongue weight. Weight Distributing: 4000 lb gross trailer weight, 400 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Remove your foot from the gas pedal and hold the steering wheel as steady as possible. Do not apply brakes and do not speed up.
Check all fasteners periodically to ensure the hitch is securely mounted to your vehicle. The manual emphasizes that proper torque is essential to keep the hitch secure when towing.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2017 | Lexus NX200t | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2018 - 2021 | Lexus NX300 | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2015 - 2021 | Lexus NX300h | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
