Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2023 - 2025 Lexus RX350
Confirmed to Fit
2023 - 2025 Lexus RX350h
Confirmed to Fit
2023 - 2025 Lexus RX500h
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

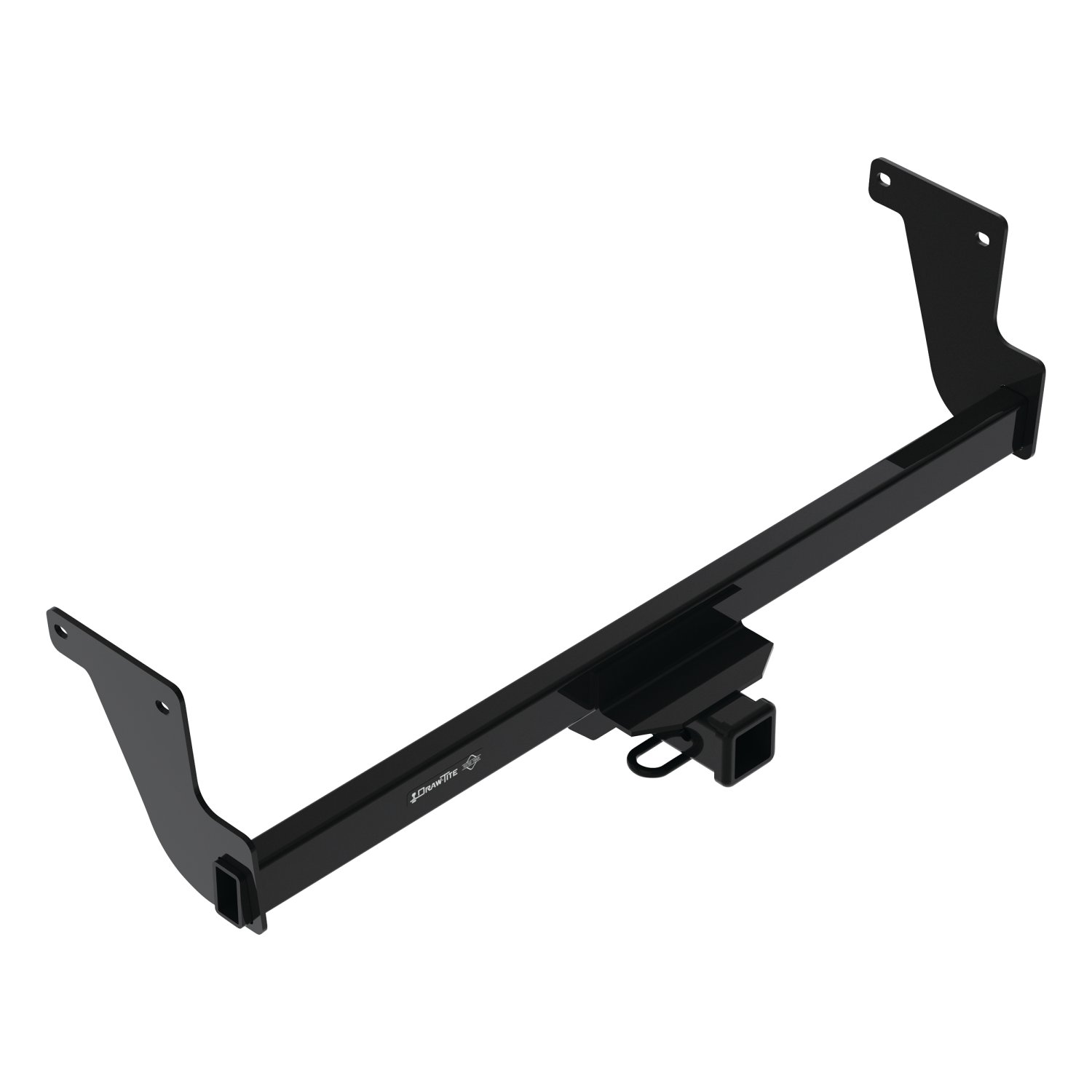

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 3,500 lbs. weight distribution (WD) and 525 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76635 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 34 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 3,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 525 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2025 | Lexus RX350 | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 525/3,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2023 - 2025 | Lexus RX350h | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 525/3,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2023 - 2025 | Lexus RX500h | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 525/3,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus RX350, Lexus RX350h, Lexus RX500h 76635 (Part #DT76635) is designed to fit the 2023-2025 Lexus RX350.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus RX350, Lexus RX350h, Lexus RX500h 76635 (Part #DT76635) fits 2023-2025 Lexus RX350 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus RX350, Lexus RX350h, Lexus RX500h 76635 (Part #DT76635) fits the following vehicles: 2023-2025 Lexus RX350; 2023-2025 Lexus RX350h; 2023-2025 Lexus RX500h. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus RX350, Lexus RX350h, Lexus RX500h 76635 (Part #DT76635) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part numbers 76635, 84635, and CQT76635 are designed for the Lexus RX 350/h. However, the manual does not specify which model years are supported. Visit the Horizon Global website for the most up-to-date information regarding application years, sub-models, and trim levels to confirm fitment for your specific vehicle.
The maximum gross trailer weight (GTW) is 3500 lb. (1587 kg) and the maximum tongue weight is 525 lb. (238 kg) for both weight carrying and weight distributing hitch types. However, the lowest capacity of any component in your towing system—including your vehicle, trailer, and hitch—determines the maximum load you can safely tow. Never exceed your vehicle manufacturer's recommended towing capacity.
You will need: a flat head screwdriver, 19mm sockets, socket extensions, a ratchet wrench, a torque wrench, safety glasses, and a wire brush. Blue thread locker is supplied with the hitch.
Fastener kit 76635F is supplied and includes: (4) M12 X 1.25 X 40 CL10.9 bolts and (4) conical washers 1/2". Blue thread locker is also supplied.
You must remove (2) plastic plugs from the passenger side frame rail using a flat head screwdriver, then repeat for the opposite side. The manual does not indicate that any other components need to be removed.
1. Remove (2) plastic plugs from the passenger side frame rail using a flat head screwdriver; repeat for the opposite side. 2. Raise the hitch into position. Apply blue thread locker to the bolts, then loosely install (4) M12 bolts and conical toothed washers as shown in Figure 1. It may be necessary to clean debris from existing weldnuts in the frame using a wire brush. 3. Tighten all M12 CL10.9 fasteners with a torque wrench to 76 Lb.-Ft. (103 N*M).
All M12 CL10.9 fasteners must be tightened to 76 Lb.-Ft. (103 N*M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Yes. Apply blue thread locker to the bolts before loosely installing the (4) M12 bolts and conical toothed washers. Blue thread locker is supplied with the hitch.
The teeth side of the conical washer must be oriented against the hitch, as shown in Figure 1. Install (4) conical washers 1/2" along with the M12 bolts.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the trailer hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regularly verify that all fasteners are tight and that the hitch is securely mounted to your vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regularly verify that all fasteners are tight and that the hitch is securely mounted to your vehicle. The manual does not specify an exact interval.
No. During step 2, loosely install the (4) M12 bolts and conical toothed washers. Tighten them to the specified torque of 76 Lb.-Ft. (103 N*M) only in step 3 using a torque wrench.
Clean debris from existing weldnuts in the frame using a wire brush before installing the bolts. This is noted as a necessary step in the installation instructions.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
The manual does not specify what to do with the holes after the plugs are removed. However, it does state that if the hitch is removed, all holes in the trunk pan or other body panels should be plugged to prevent entry of water and exhaust fumes.
The manual does not specify whether a ball is included with the hitch or must be purchased separately.
Yes, part numbers 76635, 84635, and CQT76635 are designed for the Lexus RX 350/h. Check the Horizon Global website to confirm your specific model year, sub-model, and trim level are supported.
You need: flat head screwdriver, 19mm sockets, socket extensions, ratchet wrench, torque wrench, safety glasses, and wire brush. Blue thread locker is supplied.
Tighten all M12 CL10.9 fasteners to 76 Lb.-Ft. (103 N*M) using a torque wrench.
Maximum gross trailer weight is 3500 lb. (1587 kg) and maximum tongue weight is 525 lb. (238 kg). Never exceed your vehicle manufacturer's recommended towing capacity.
Yes. Apply blue thread locker (supplied) to the bolts before loosely installing the (4) M12 bolts and conical toothed washers.
Always wear safety glasses. Do not cut, weld, or modify the hitch. Do not cut access holes with a torch. Observe safety precautions when working beneath a vehicle.
Check frequently that all fasteners and the ball are properly tightened. Regularly verify the hitch is securely mounted to your vehicle.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
