Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

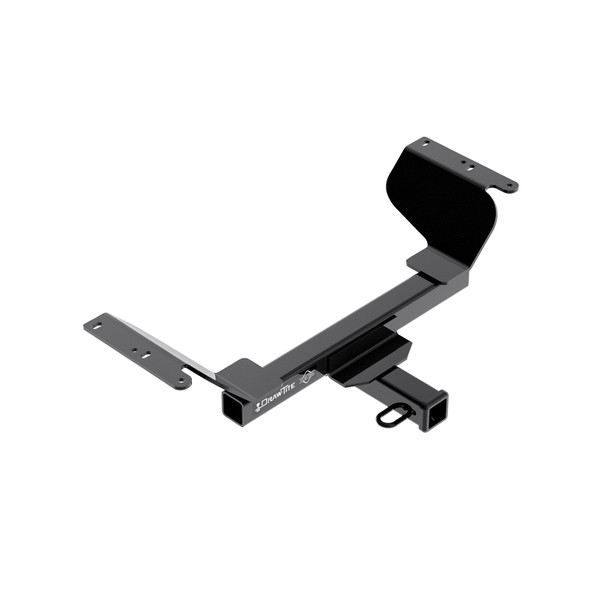

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,500 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76419 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 42 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 675 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2025 | Chevrolet Equinox | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/4,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2018 - 2024 | GMC Terrain | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/4,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Equinox, GMC Terrain 76419 (Part #DT76419) fits 2018-2025 Chevrolet Equinox models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Equinox, GMC Terrain 76419 (Part #DT76419) is designed to fit the 2018-2025 Chevrolet Equinox.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Equinox, GMC Terrain 76419 (Part #DT76419) fits the following vehicles: 2018-2025 Chevrolet Equinox; 2018-2024 GMC Terrain. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Equinox, GMC Terrain 76419 (Part #DT76419) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76419, 84419, and CQT76419 are designed for 2018-Current Chevrolet Equinox models. Visit the Cequent website for the most up-to-date information regarding specific trim levels and model years.
Yes, part numbers 76419, 84419, and CQT76419 fit 2018-Current GMC Terrain models, which includes 2020 models. Check the Cequent website for the most current information on specific trim levels.
The maximum gross trailer weight is 4500 lb (2043 kg) and the maximum tongue weight is 675 lb (306 kg) for both weight-carrying and weight-distributing hitch types. Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools are: ratchet, torque wrench, 15 mm socket, 6" socket extension, T15 Torx bit socket, exhaust removal pliers, and safety glasses. A torque wrench is essential because proper torque (50 ft-lb) is needed to keep the hitch secure when towing.
Yes, the exhaust must be lowered. Step 1 requires removing two screws from the rear fascia, removing bolts from the rear exhaust hanger brackets, removing the rubber isolator, and lowering the exhaust one side at a time. The exhaust is then raised back into place after the hitch is installed (Step 4).
Yes. The manual states: "If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer." The average installation time for professional installers is 35 minutes.
The installation sequence is: (1) Lower the muffler and exhaust; (2) Install hardware using pull wire to feed fasteners through frame attachment holes (3 per side); (3) Raise the hitch into place and loosely install items 3 and 4; (4) Raise the muffler back into place; (5) Torque all 7/16-14 Gr5 hardware to 50 ft-lb (68 N·m).
Three fasteners are installed per side (6 total). Each fastener consists of a 7/16-14 x 1.5 GR5 carriage bolt, a 1/4 x 7/8 x 3 block, a 7/16 conical tooth washer, and a 7/16-14 hex nut.
All 7/16-14 Grade 5 hardware must be torqued to 50 ft-lb (68 N·m). Proper torque is essential to keep the hitch secure to the vehicle when towing.
The pull wire (part number 5481, 7/16 inch) is used to feed the hardware through the frame attachment holes and pull it into place. The coiled end is fed through an attachment hole in the frame and out of the access hole, with items 1 and 2 (the block and conical washer) attached. Leaving the pull wire attached until the hitch is raised into place helps prevent the hardware from being pushed back into the frame.
No. When raising the hitch into place in Step 3, items 3 and 4 should be installed loosely. All fasteners are fully torqued to 50 ft-lb (68 N·m) only in Step 5, after the muffler has been raised back into place.
The conical tooth washer (7/16 inch, part number 01292007) must be installed with the teeth side against the hitch. This is shown in Figure 1 of the installation instructions.
The manual recommends spraying lubricant on the rubber hangers to make them slide off the metal pins more easily. The specific type of lubricant is not specified in the manual.
If extra clearance is needed, pull the wire harness off the passenger side frame. The manual notes that this harness must be reinstalled after the hitch is in place.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Be careful that the exhaust is supported before removing rubber hangers. Raise the exhaust one side at a time to maintain support.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The maximum tongue weight is 675 lb (306 kg) for both weight-carrying and weight-distributing hitch types. Do not exceed this limit or your towing vehicle manufacturer's rating, whichever is lower.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
No. The manual explicitly states: "DO NOT cut, weld or modify this receiver." Modifications will compromise the structural integrity and safety of the hitch.
Cequent Performance Products, Inc. provides a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are returned for inspection, defects are not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or 1-800-632-3290 to make a warranty claim.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes. Part numbers 76419, 84419, and CQT76419 fit 2018-Current Chevrolet Equinox and GMC Terrain. Check the Cequent website for specific trim level compatibility.
Maximum gross trailer weight is 4500 lb (2043 kg); maximum tongue weight is 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Ratchet, torque wrench, 15 mm socket, 6" socket extension, T15 Torx bit socket, exhaust removal pliers, and safety glasses.
Yes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer. Average installation time is 35 minutes for professionals.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is essential for safe towing.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
