Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

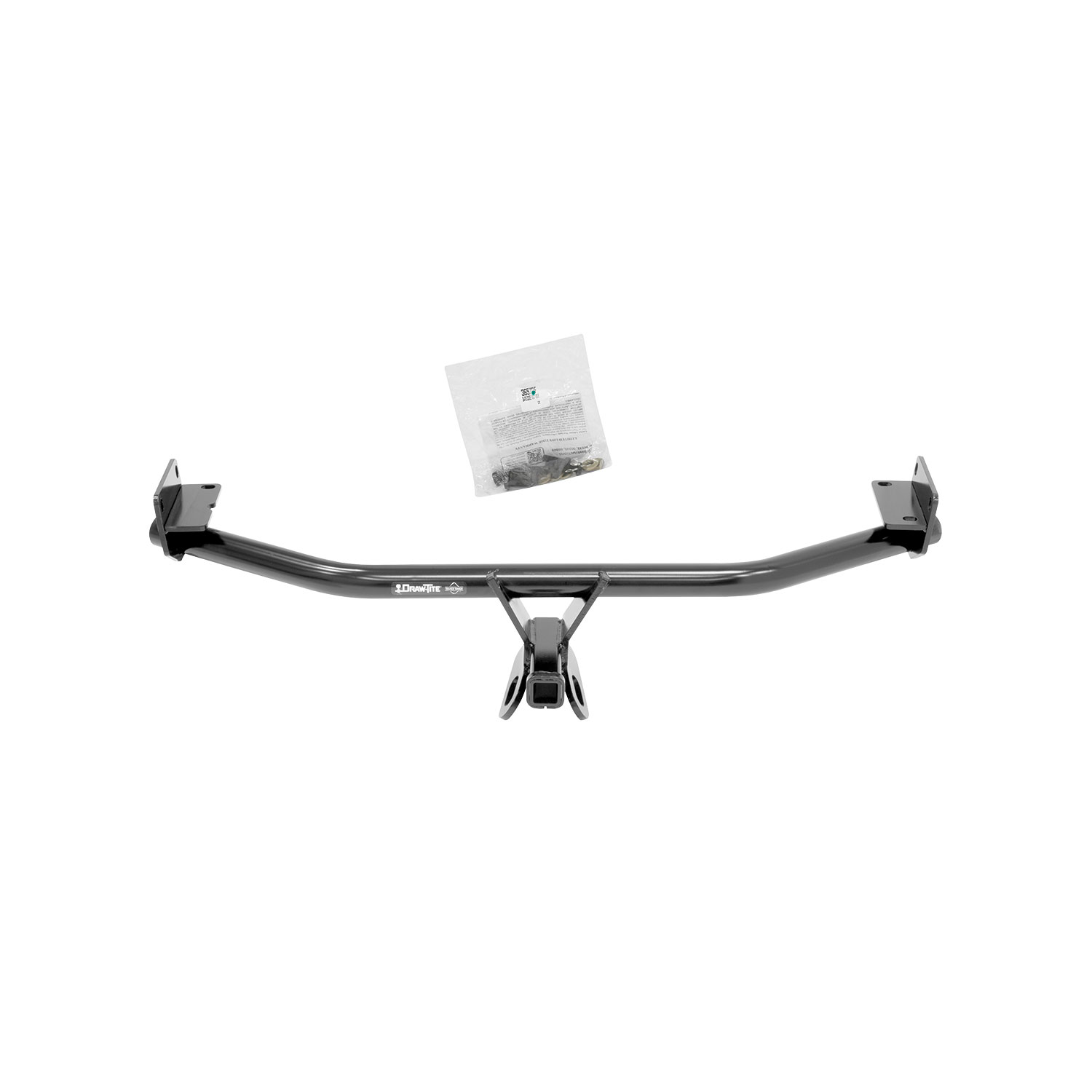

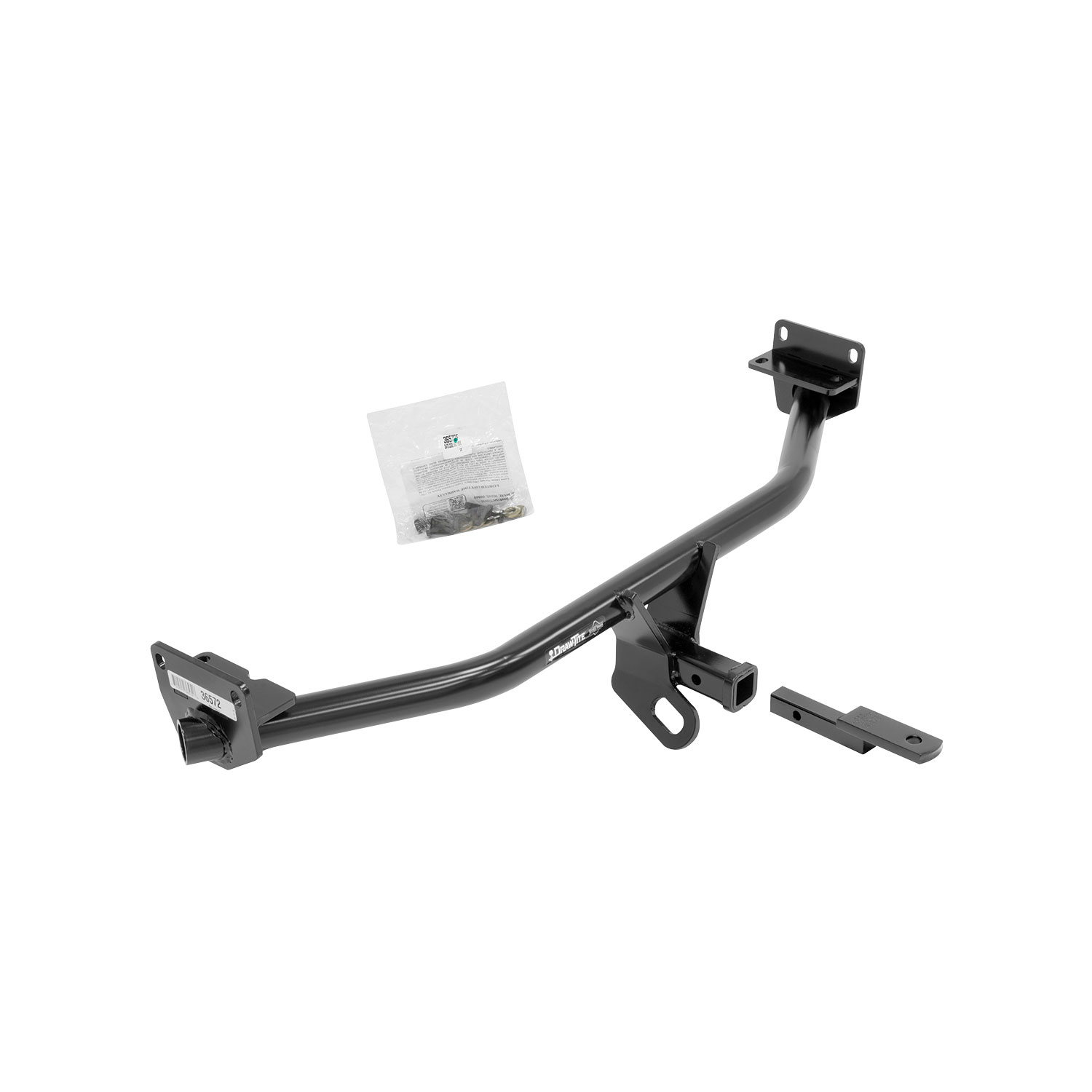

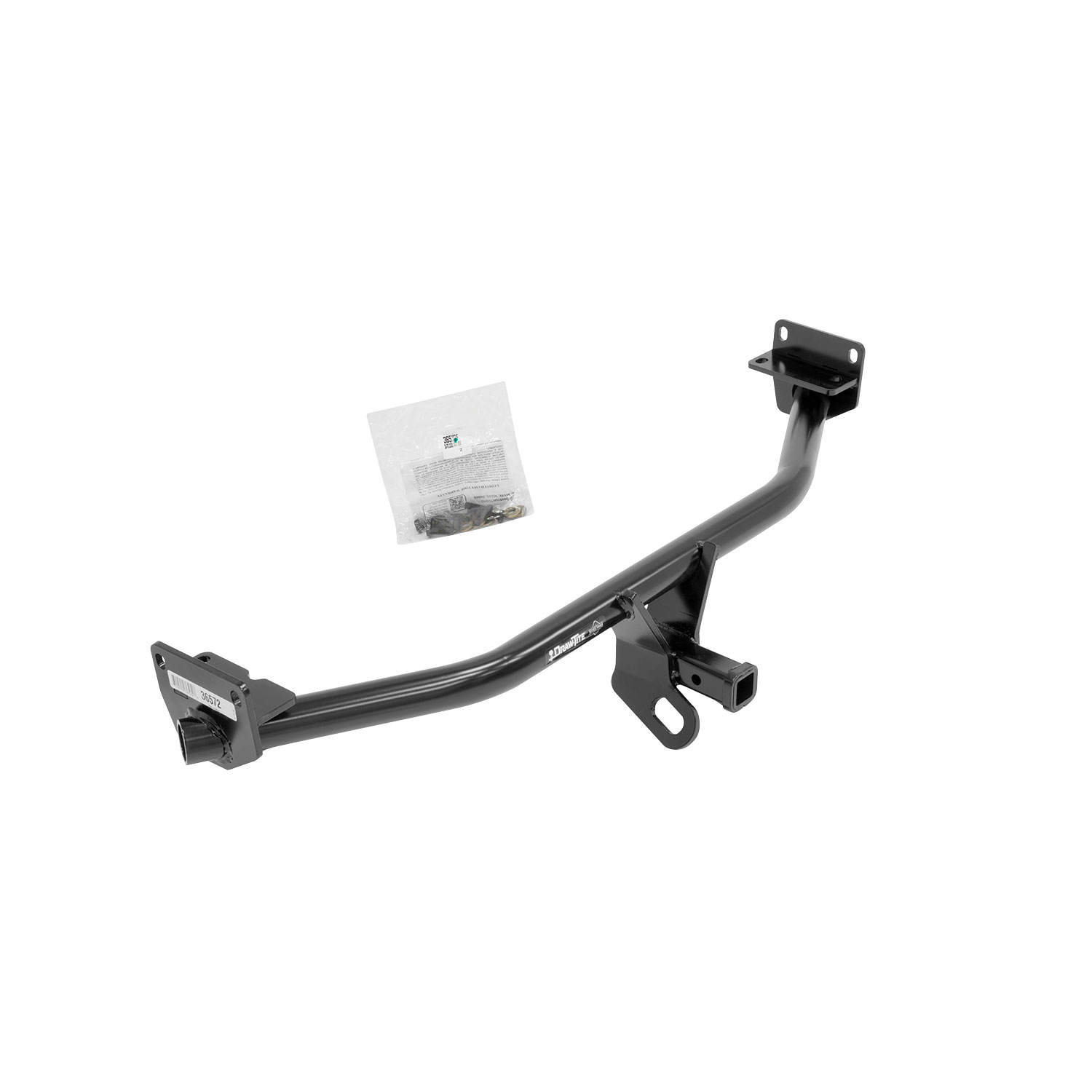

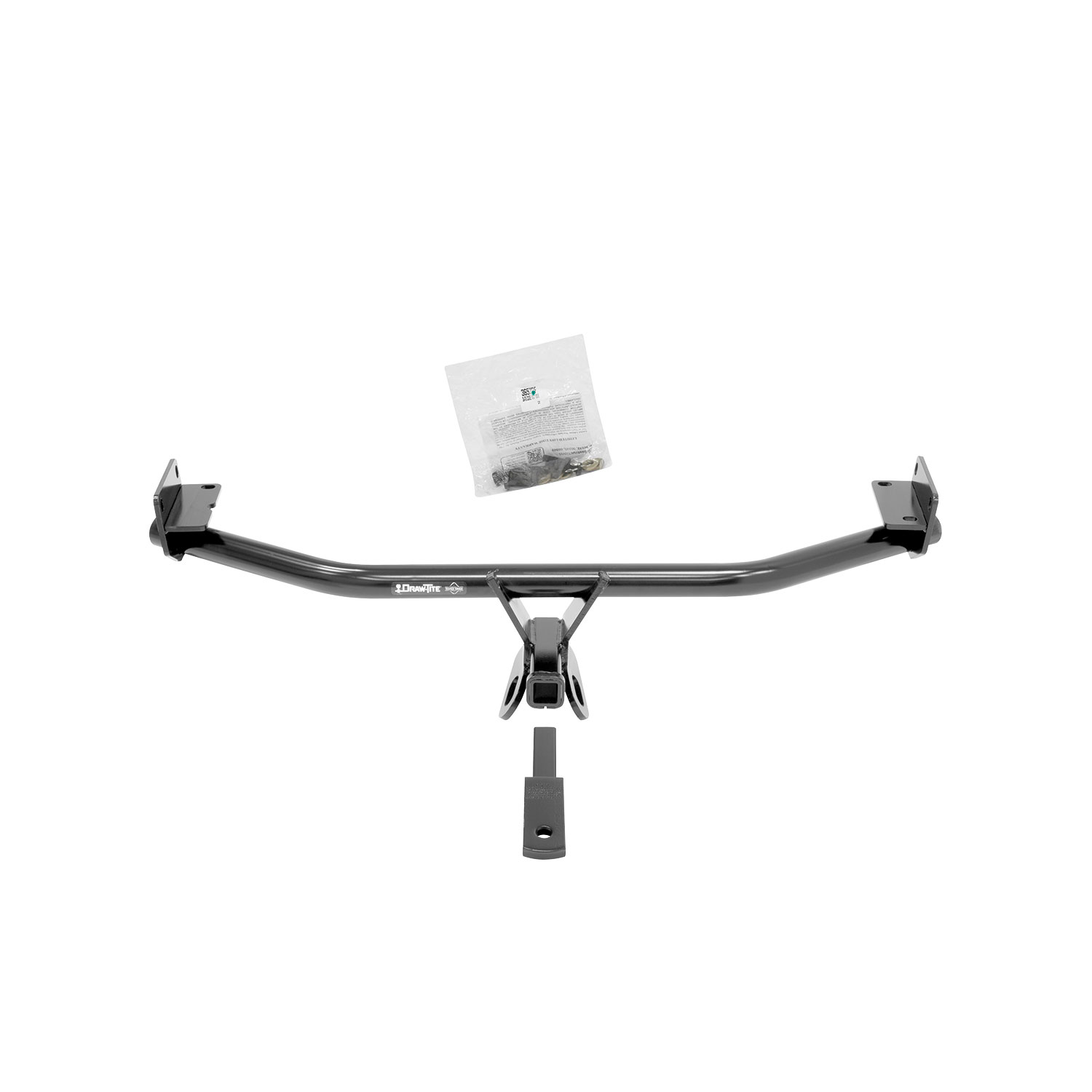

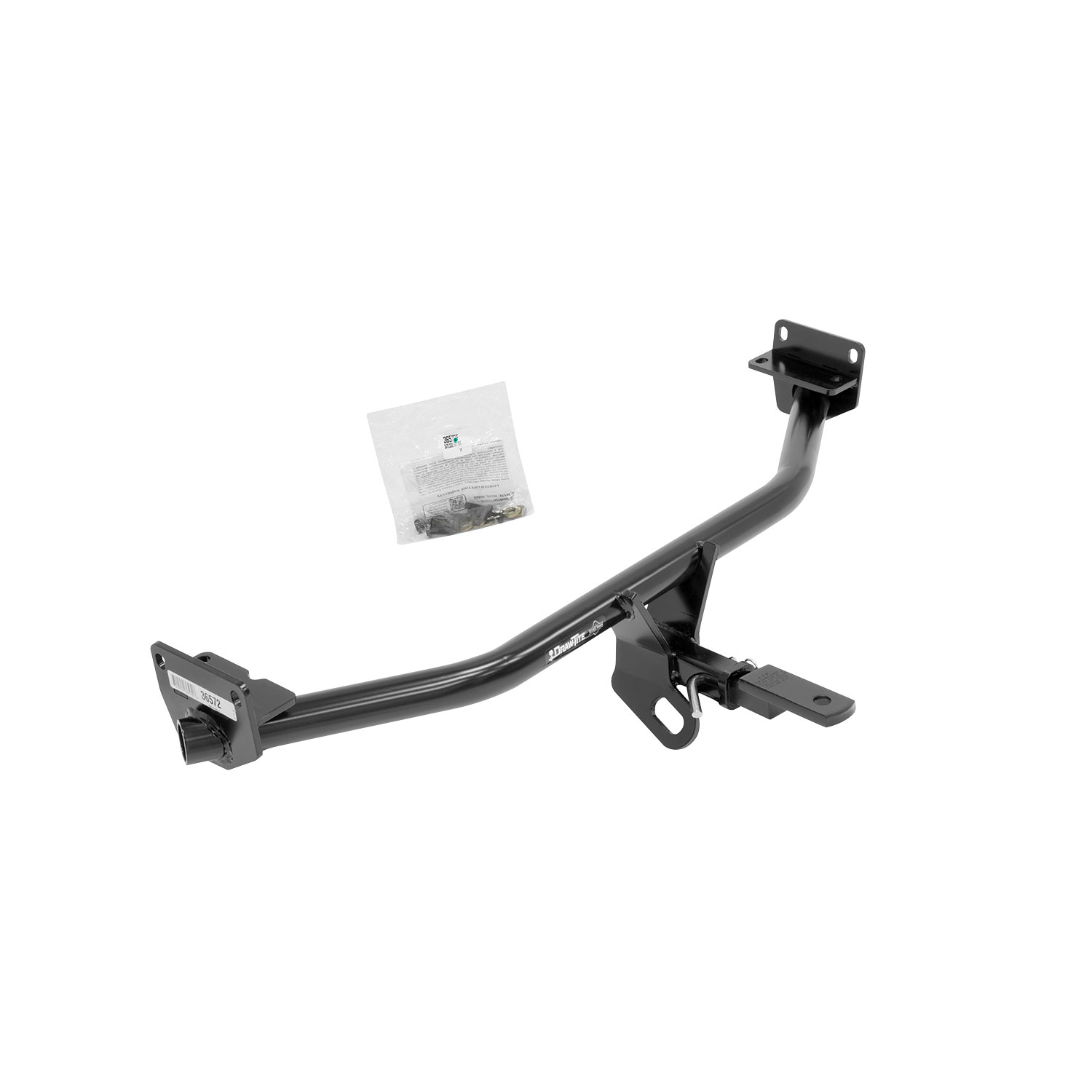

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36572 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 26.85 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |

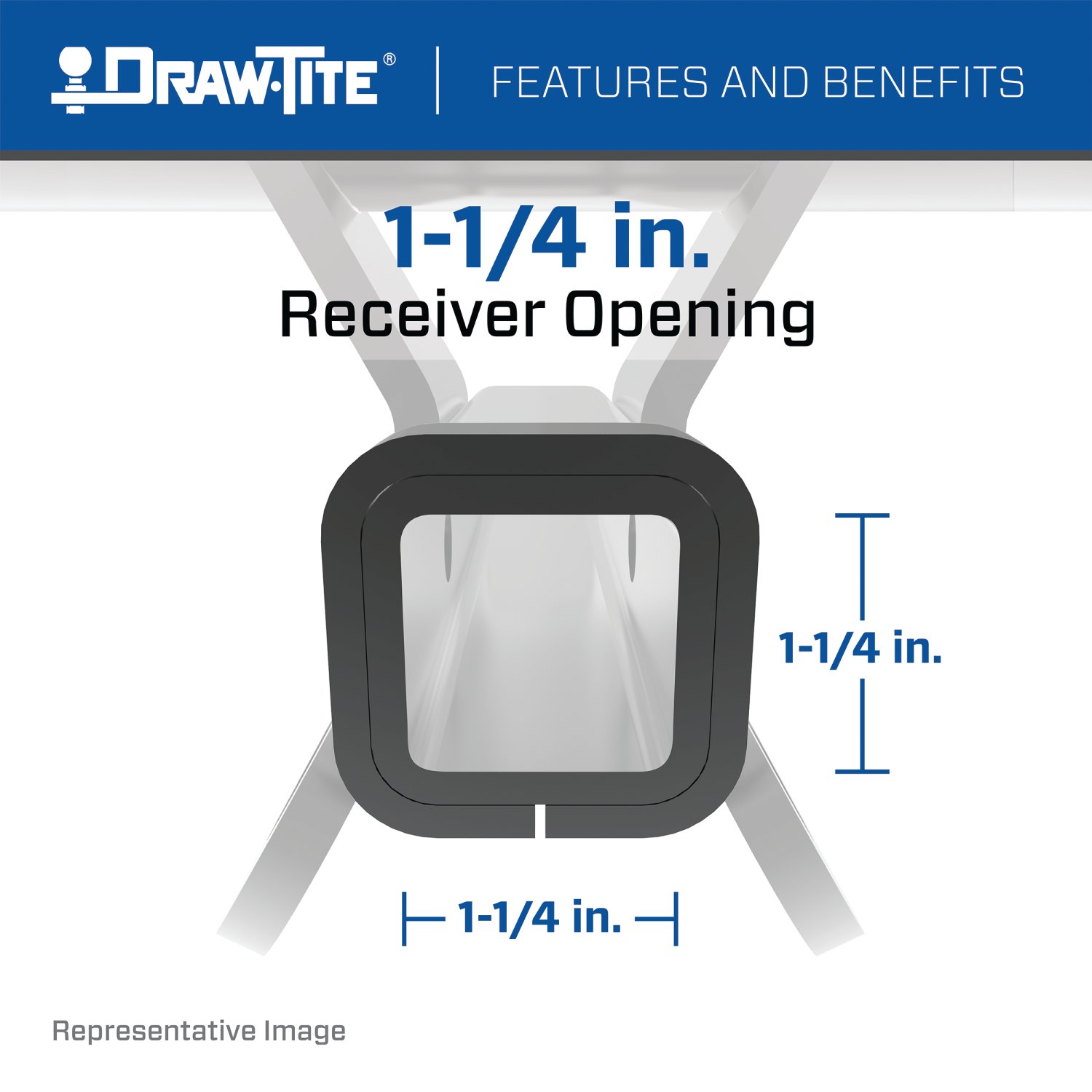

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.

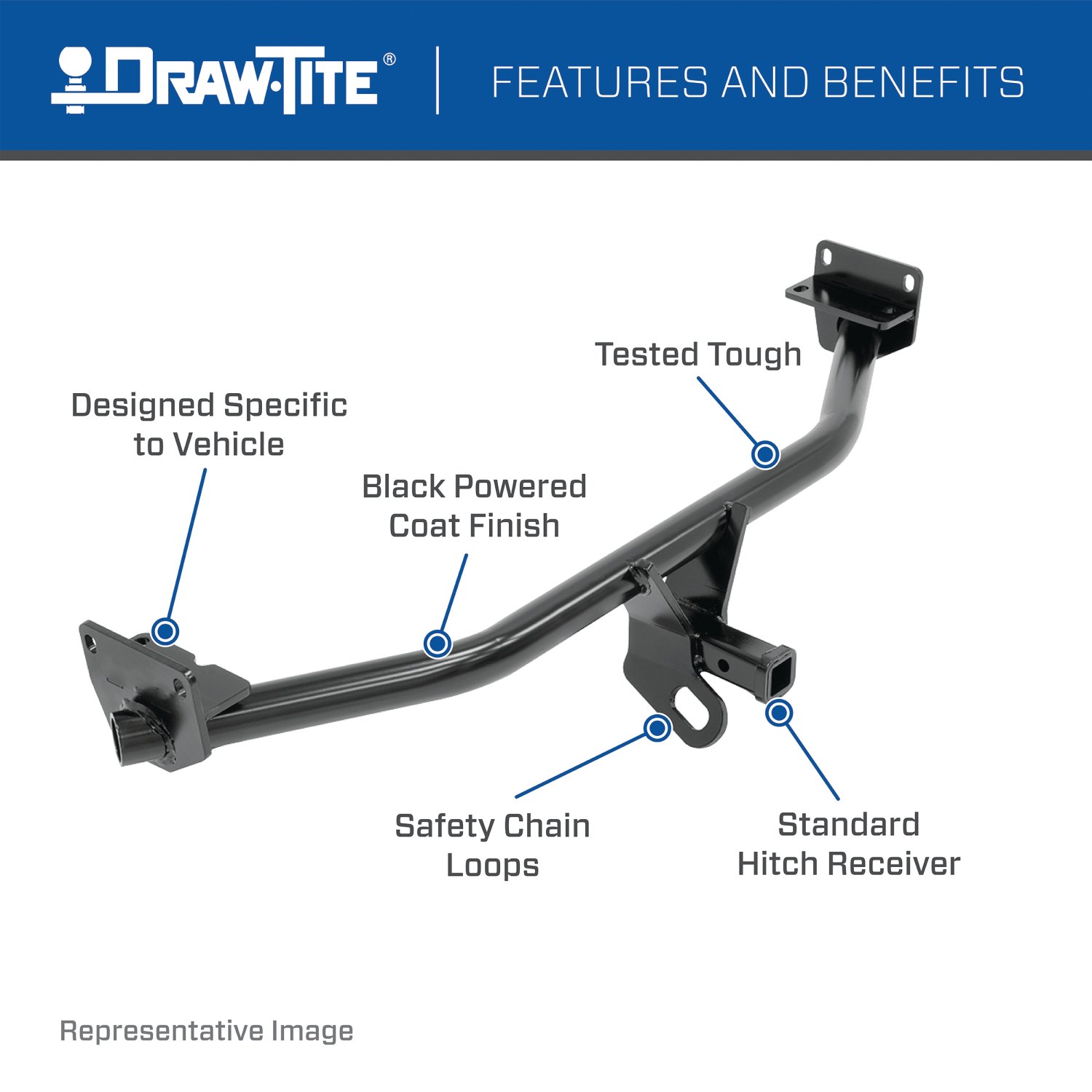

Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2021 | Hyundai Tucson | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 2016 - 2018 | Hyundai Tucson | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson 36572 (Part #DT36572) fits the following vehicles: 2016-2021 Hyundai Tucson. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson 36572 (Part #DT36572) is designed to fit the 2016-2021 Hyundai Tucson.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson 36572 (Part #DT36572) fits 2016-2021 Hyundai Tucson models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson 36572 (Part #DT36572) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 36572 is designed for 2016-current Hyundai Tucson models. Visit the Horizon Global website for the most up-to-date information regarding specific trim levels and application years.
The manual lists the 36572 as compatible with 2016-current Hyundai Tucson models but recommends visiting the Horizon Global website for the most up-to-date information regarding specific trim levels, as compatibility may vary by trim.
The 36572 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 300 lb (136 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
No. The 36572 is a weight-carrying hitch only. Weight-distributing capability is not supported, as indicated by the 'X' in the weight-distributing row of the specifications table.
You will need: a ratchet, torque wrench, safety glasses, sockets, a flat-head screwdriver, and a 16 mm socket. A torque wrench is essential for tightening fasteners to the correct specification.

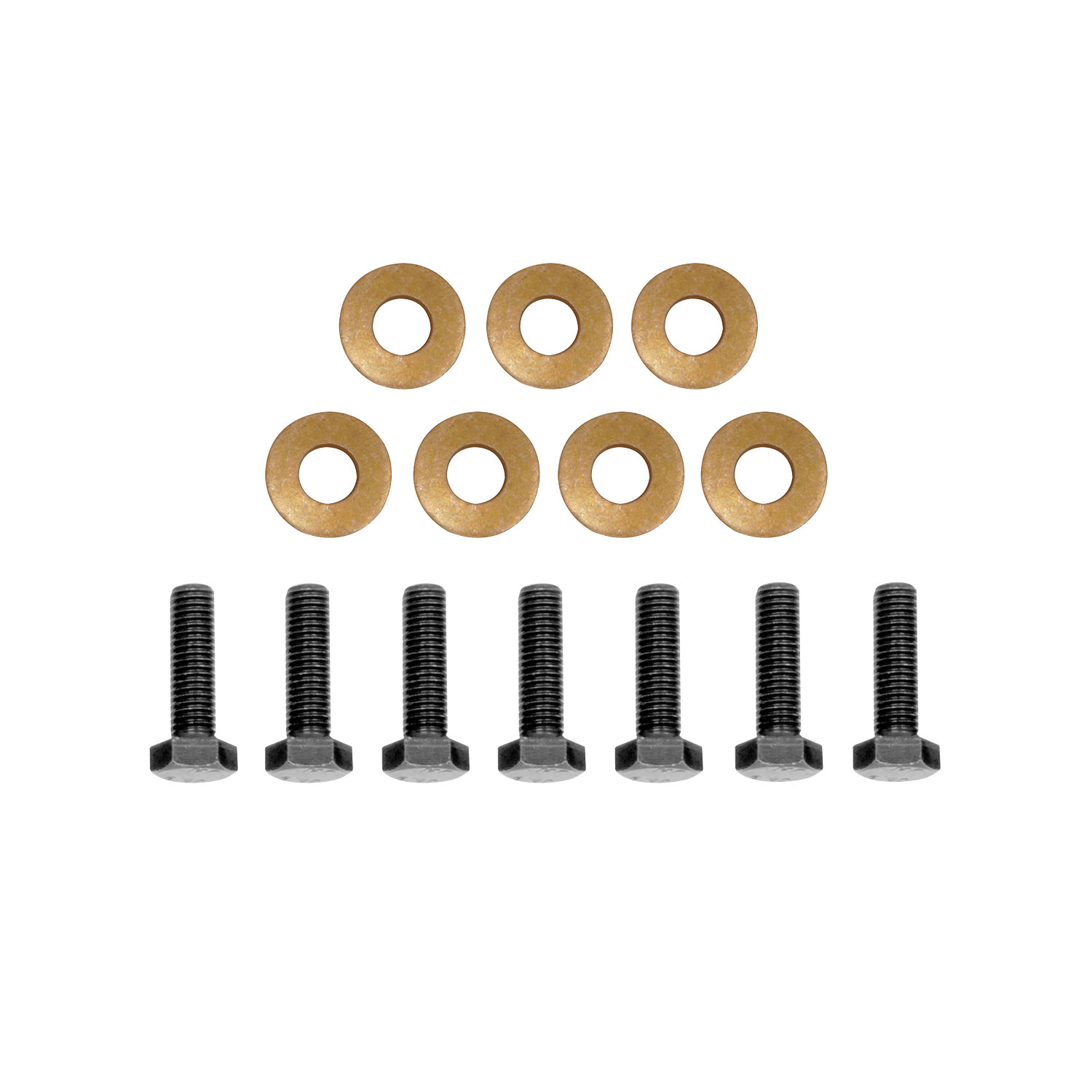

The fastener kit 36572F includes 7 M10 x 1.25 x 30 mm CL10.9 bolts and 7 conical tooth washers (3/8"). Four bolts and washers are installed on the passenger side and three on the driver side.
Yes, if equipped, you must remove two plastic underbody panels (one on each side) located under the rear bumper and behind the rear wheels. Remove the three plastic expansion fasteners from each panel and set the panels aside for reinstallation after hitch installation.
The manual does not require exhaust removal. However, it notes that removing the rubber isolators and lowering the exhaust may make insertion of the hitch over the tailpipe easier. Consult a professional installer if you are unsure whether to perform this step.
Professional installation is not required but is recommended. The manual states: 'If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.' The estimated installation time for professional installers is 30 minutes.
Install 4 M10 x 1.25 x 30 mm CL10.9 bolts with conical tooth washers on the passenger side and 3 bolts with washers on the driver side, for a total of 7 bolts.
The teeth side of the conical tooth washers must face against the hitch. This is shown in Figure 1 and stated in the installation instructions: 'conical toothed washers (teeth side against hitch)'.
All M10 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
The hitch uses M10 x 1.25 x 30 mm CL10.9 bolts. Seven bolts total are required: four on the passenger side and three on the driver side.
1. Remove the two plastic underbody panels (if equipped) by removing three plastic expansion fasteners from each panel. 2. Insert the hitch over the tailpipe on the passenger side, rotate and raise into position. 3. Install four M10 bolts and conical tooth washers on the passenger side and three on the driver side (teeth facing the hitch). 4. Tighten all M10 fasteners to 42 Lb.-Ft. (57 N·M) with a torque wrench. 5. Reinstall the plastic panels.
The maximum tongue weight is 300 lb (136 kg). Do not exceed this limit or the lower of your vehicle manufacturer's towing rating.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in the front. This helps with stability and proper weight distribution on the hitch.
Always wear safety glasses when installing the hitch. The manual also recommends observing safety precautions when working beneath a vehicle.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Verify that the ball is properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners and the ball remain properly tightened.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking but does not specify an exact interval.
Set the plastic underbody panels aside during installation. After tightening all fasteners and completing the hitch installation, reinstall the two plastic panels in their original locations.
The conical tooth washers (3/8") are used with the M10 bolts to secure the hitch to the vehicle frame. The teeth grip against the hitch to prevent loosening during towing. They must be installed with the teeth side facing the hitch.
The authorized drawbar kit is part number 36051 (sold separately). The drawbar must be used in the RISE position only.
No. Do not cut, weld, or modify the receiver. Doing so may compromise the structural integrity and safety of the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
The manual does not mention disconnecting the battery. No electrical work is required for this hitch installation.
No drilling is required. The hitch bolts to existing frame mounting points on the 2016-current Hyundai Tucson.
The 36572 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
