Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

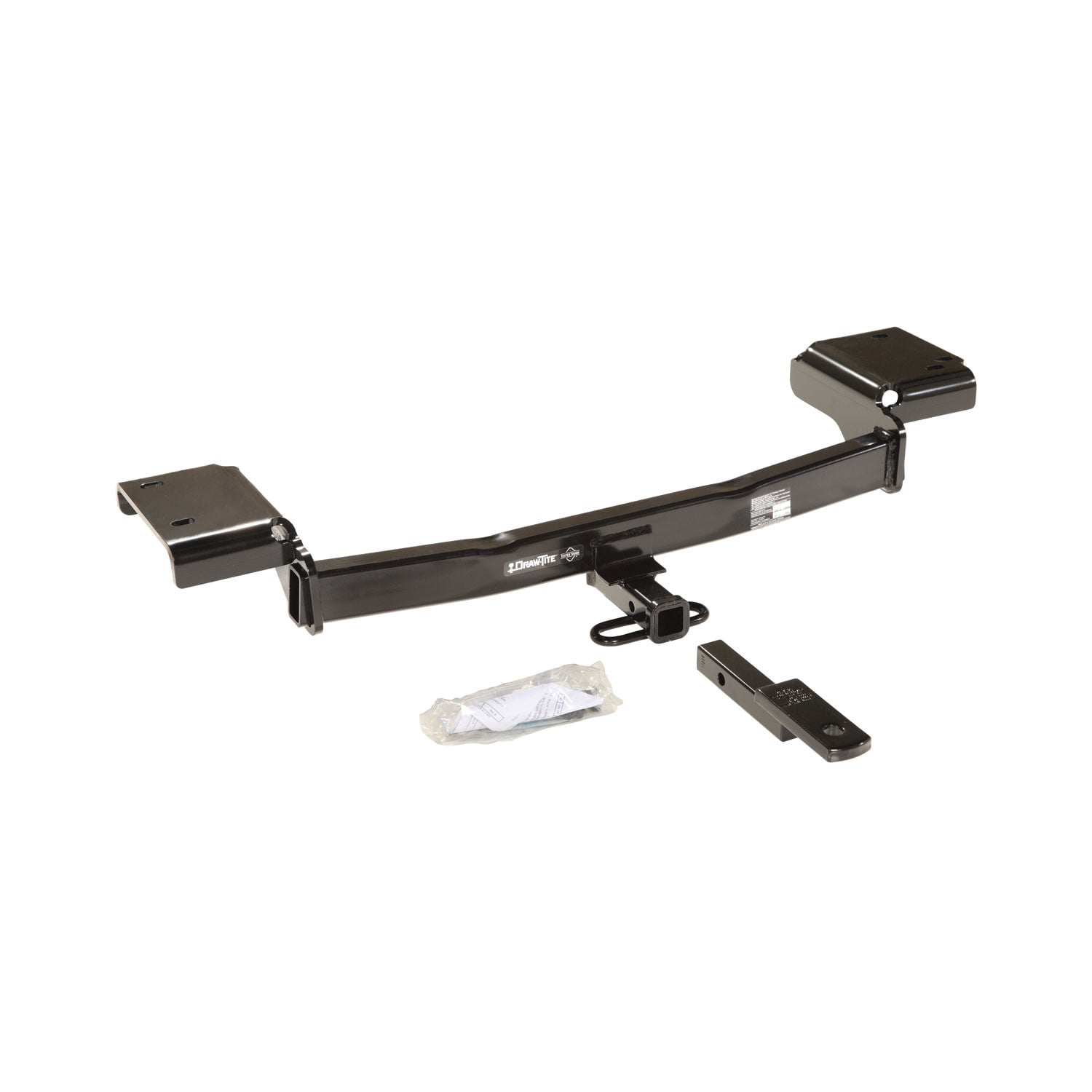

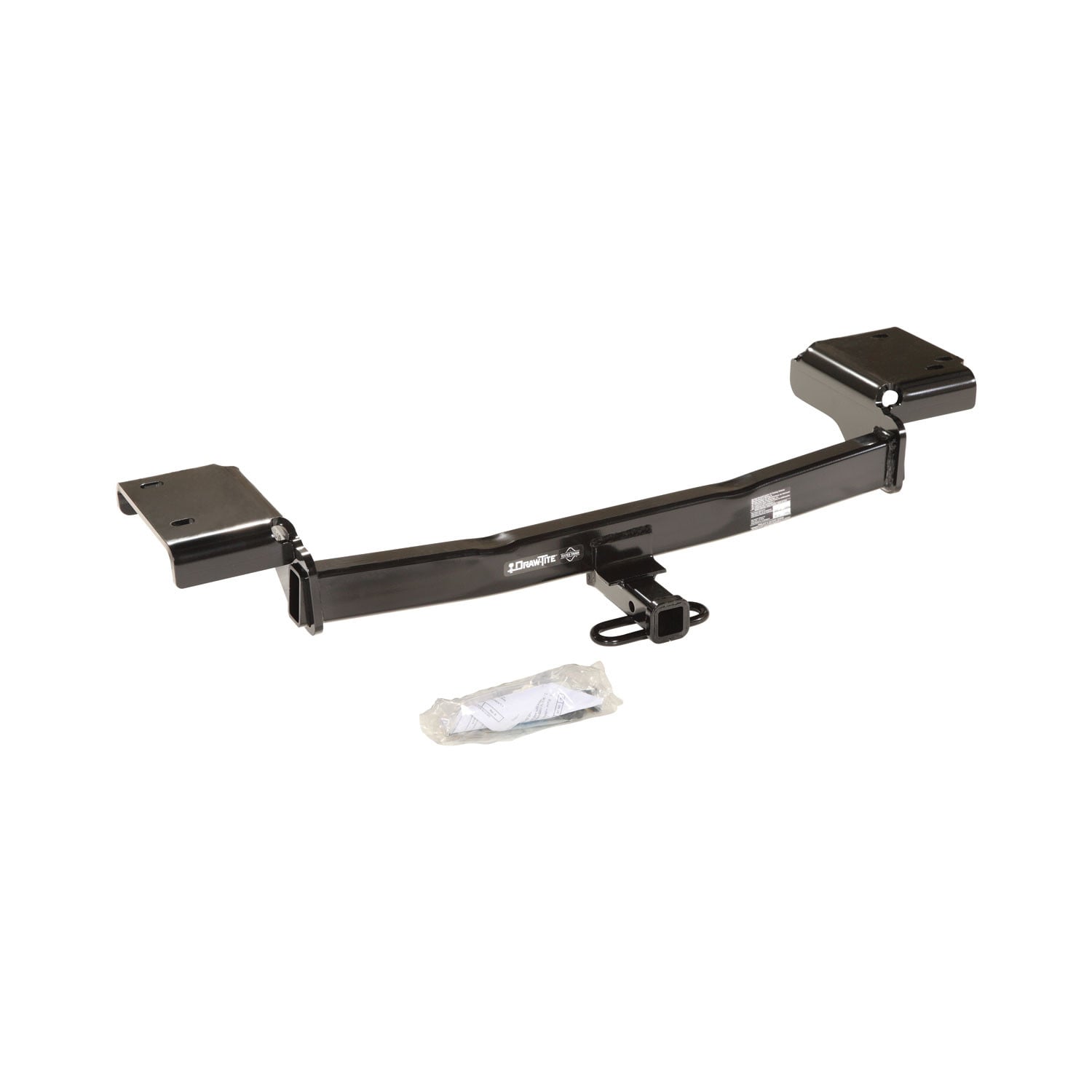

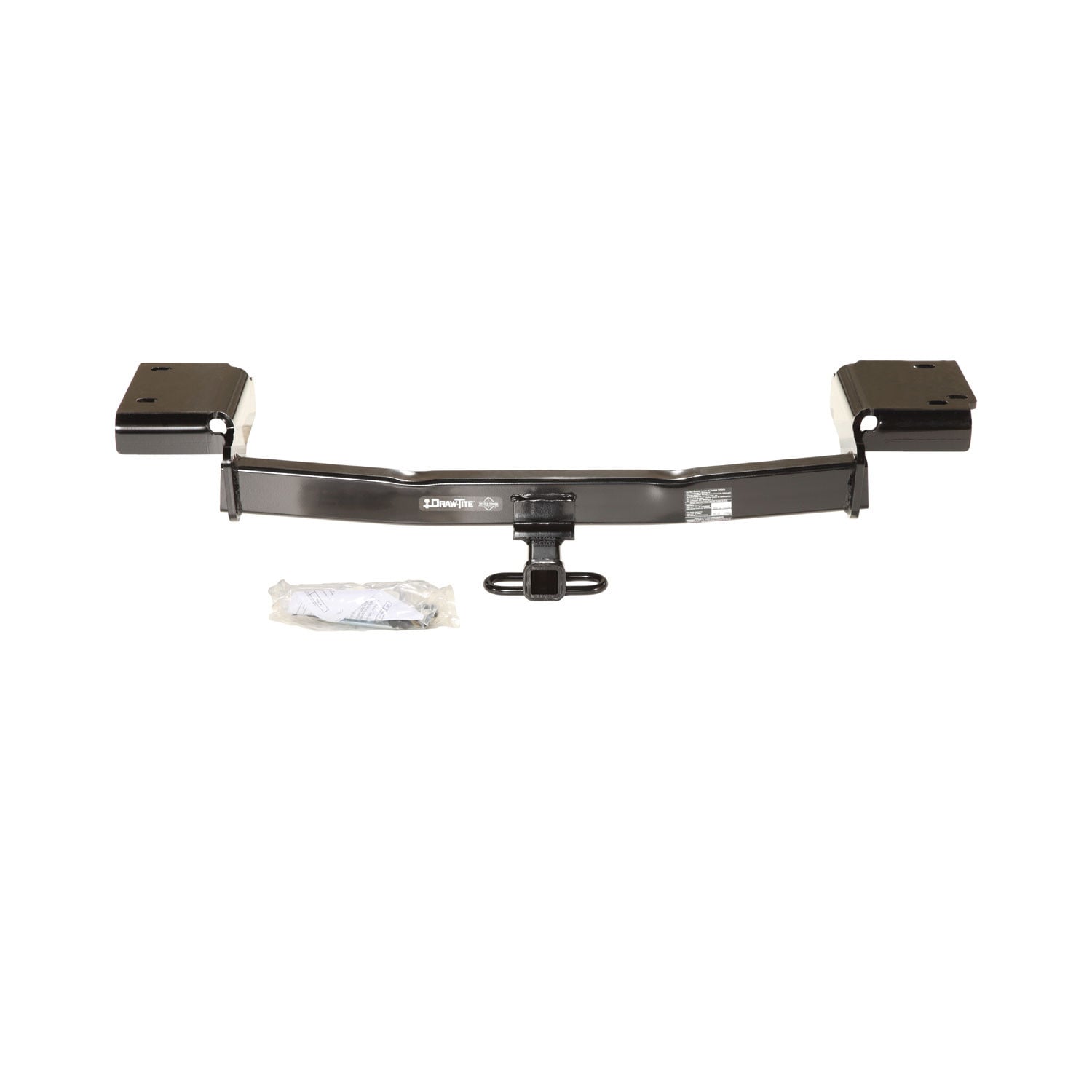

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36510 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 32.7 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2015 | Hyundai Tucson | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2011 - 2016 | Kia Sportage | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 36510 (Part #DT36510) is designed to fit the 2010-2015 Hyundai Tucson.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 36510 (Part #DT36510) fits 2010-2015 Hyundai Tucson models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 36510 (Part #DT36510) fits the following vehicles: 2010-2015 Hyundai Tucson; 2011-2016 Kia Sportage. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 36510 (Part #DT36510) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 36510 is designed for 2011, 2012, and 2015 Hyundai Tucson models. The hitch aligns with existing weld nuts in the frame and positions over the muffler tips.
Yes, part number 36510 is designed for 2011 and 2012 Kia Sportage models. The hitch aligns with existing weld nuts in the frame and positions over the muffler tips.
The manual does not confirm fitment for 2015 Kia Sportage. It lists 2011 and 2012 Sportage models. Contact the manufacturer or a fitment database to verify compatibility with 2015 Sportage.
The hitch is rated for a maximum gross trailer weight of 3500 lb (1589 kg) and a maximum tongue weight of 300 lb (136 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these fastener kit limits.

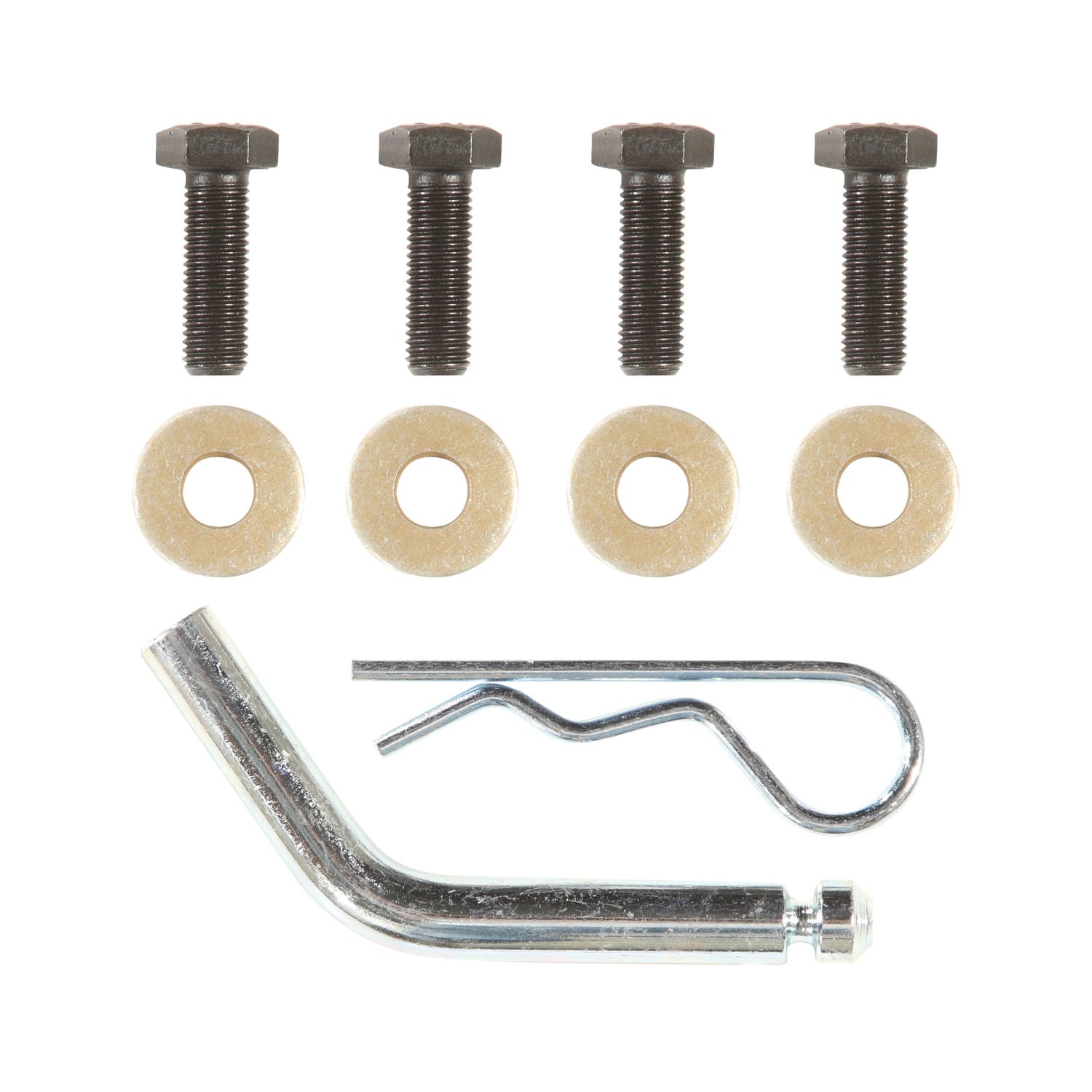

The kit includes four M10 x 1.25 x 30mm CL 10.9 hex bolts and four 3/8" conical washers. These fasteners attach the hitch to the existing weld nuts in the vehicle frame. The fastener kit is part number 36510F.
You will need a 16mm wrench and a torque wrench. No drill bits are required; the hitch uses existing frame weld nuts and does not require drilling. A vehicle hoist or ramps are needed for underside access.
Yes. The first installation step requires raising the vehicle with a hoist or ramps to access the underside where the hitch attaches to the frame.
Yes. You must support the exhaust, remove the rear hangers, and lower the exhaust system until the hitch can be positioned over the muffler tips and aligned with the existing weld nuts in the frame. After installation, the rear exhaust hangers are reinstalled.
Position the hitch over the muffler tips and align the slots in the hitch with the existing weld nuts in the bottom of the frame on both sides. The diagram shows the hitch in proper position relative to the frame and fascia.
No. Install the four M10 hex bolts with conical washers loosely first. Only after all four bolts are in place should you tighten them with a torque wrench to the specified value.
Tighten all M10 CL 10.9 fasteners with a torque wrench to 42 lb.-ft. (57 N·m).
You need a 16mm wrench to tighten the M10 hex bolts. However, a torque wrench is required to tighten them to the correct specification of 42 lb.-ft. (57 N·m).
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection as part of ongoing maintenance.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes regular inspection.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
No. The drawbar kit (part number 36001) is sold separately and is not included with the hitch assembly.
Yes, for 2011, 2012, and 2015 Hyundai Tucson, and 2011 and 2012 Kia Sportage. The hitch uses existing frame weld nuts and does not require drilling.
A 16mm wrench, a torque wrench, and a vehicle hoist or ramps. No drilling is required.
Yes, you must lower the exhaust system to position the hitch over the muffler tips and align it with the frame weld nuts. The exhaust is reinstalled after the hitch is secured.
Tighten all M10 CL 10.9 bolts to 42 lb.-ft. (57 N·m) using a torque wrench.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg). Do not exceed the vehicle manufacturer's towing rating.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry.
