Draw-Tite Hardware Kit For Class 3 Trailer Hitch, 2 Inch 76547 For 2022-2026 Volkswagen Taos Draw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2022 - 2026 Volkswagen Taos
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

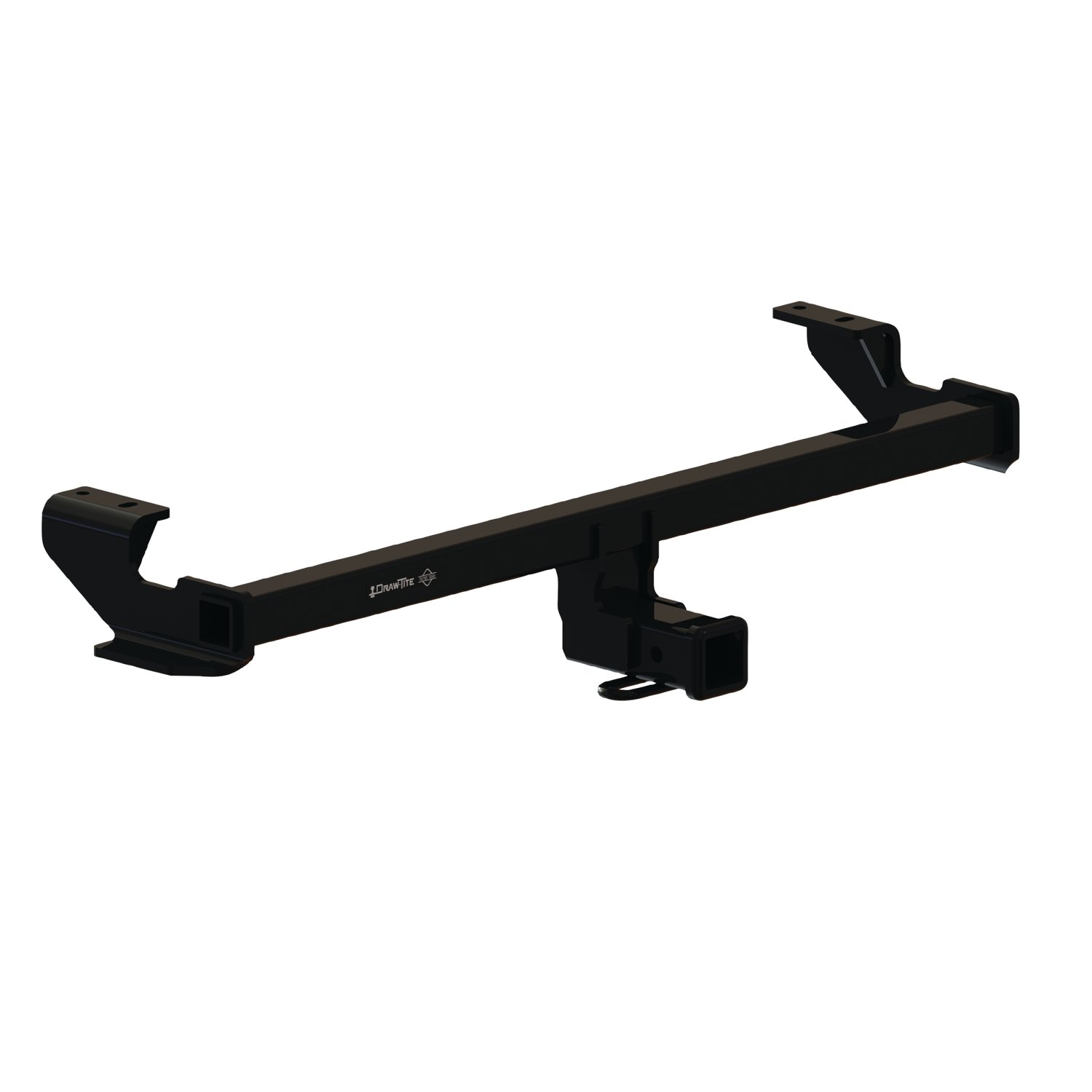

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76547 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 36.25 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2026 | Volkswagen Taos | Class 3 Trailer Hitch: 2000 lbs 300/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Taos 76547 (Part #DT76547) fits the following vehicles: 2022-2026 Volkswagen Taos. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Taos 76547 (Part #DT76547) fits 2022-2026 Volkswagen Taos models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Taos 76547 (Part #DT76547) is designed to fit the 2022-2026 Volkswagen Taos.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Taos 76547 (Part #DT76547) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76547, 84547, and CQT76547 are designed for 2022-Current Volkswagen Taos models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The 76547 is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb. (907 kg) and maximum tongue weight of 300 lb. (136 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, safety glasses, 10mm and 3/4" sockets, 6" socket extension, T15, T20, and T25 Torx bit sockets, plastic trim tools, marker, die grinder, tape measure, tape, and flat head screwdriver. A T30 Torx bit is also needed for one step. Safety glasses must always be worn during installation.
Fastener kit 76547F includes: (4) carriage bolts ½-13x1¾" GR5, (2) spacers ¼"x1"x3", (2) spacers ¼"x1"x2", (4) conical washers 1/2", (4) hex nuts 1/2" GR5, and (4) pull wires 1/2"-13.
Yes. The installation requires removal of both driver and passenger side taillight covers and taillights. Use plastic trim tools to remove the covers, then T25 Torx bits to remove the screws behind each cover. Gently disconnect the taillights and set them aside. They are reinstalled in the final step.
Yes. The fascia must be removed to access the frame rails and install the hitch. It is removed in Step 5 using plastic trim tools, starting at the outer edges near the wheel wells, and carefully set aside for reinstallation. The fascia is trimmed and reinstalled in the final steps.
No drilling is required. However, a die grinder is used to enlarge an existing access hole so the hardware will fit. The fascia must be trimmed with a die grinder to cut a 4.75" x 4.25" notch in the bottom. Before trimming, ensure the area is clear of all electrical wiring.
The notch must be 4.75" wide by 4.25" tall, cut in the bottom center of the fascia. Use a tape measure, marker, and die grinder to cut it. Before trimming, verify the area is clear of all electrical wiring.
All 1/2-13 Gr5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
Using pull wires, feed the carriage bolt and spacer into the frame rails and bracket holes from the access hole. Raise the hitch into position and align the holes with the holes in the frame rail. Remove the pull wires and loosely install conical washers and hex nuts to the hitch. The conical washer teeth side must face against the hitch. Kink the pull wire to keep the spacer independent of the bolt.
No. During Step 6, the conical washers and hex nuts are installed loosely to the hitch. They are only fully tightened in Step 7 using a torque wrench to 75 Lb.-Ft. (102 N·M).
Yes. The wheel well liners must be loosened on both driver and passenger sides. Use T25 Torx bits to remove (2) screws from the bottom, (4) screws from the side, and (1) screw from inside each wheel well liner. This is Step 2 of the installation.
The average installation time is 90 minutes for professional installers. If you do not feel comfortable performing this installation on your own or need assistance, contact a professional installer.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to your vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball that has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Yes. Before removing the fascia, you must first remove screws from the fascia using a T15 Torx bit (2 screws with clips from the bottom). If an underbody panel is present, remove (3) plastic nuts from the forward edge using an M10 socket and (4) screws from the rearward edge using a T25 Torx bit. This is Step 1.
Yes. Use a flat head screwdriver to remove the plastic cover below the driver side taillight, then use a T30 Torx bit to remove (1) screw from under the cover. Repeat this process for the passenger side. This is Step 4.
The maximum tongue weight is 300 lb. (136 kg). Do not exceed this limit or the lower of your towing vehicle manufacturer's rating.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Yes, the 76547 is designed for 2022-Current Volkswagen Taos. Check the manufacturer's website for specific trim level compatibility.
Maximum 2000 lb. gross trailer weight and 300 lb. tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. A 4.75" x 4.25" notch must be permanently cut in the bottom of the fascia using a die grinder. This modification cannot be reversed.
Yes. A die grinder is required to enlarge the access hole and to cut the 4.75" x 4.25" notch in the fascia.
Tighten all 1/2-13 Gr5 fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
2000 lb. (907 kg). Do not exceed this limit or your vehicle manufacturer's towing rating, whichever is lower.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted.
Use a die grinder to enlarge the access hole so the hardware will fit. The access hole must be large enough to accommodate the carriage bolts and spacers. Also remove excess caulk from the frame rail to ensure proper fit.
Raise the hitch into position and carefully align the holes with the holes in the frame rail. If alignment is difficult, verify that the carriage bolts and spacers are fully inserted through the frame rails and that excess caulk has been removed from the frame rail area.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
