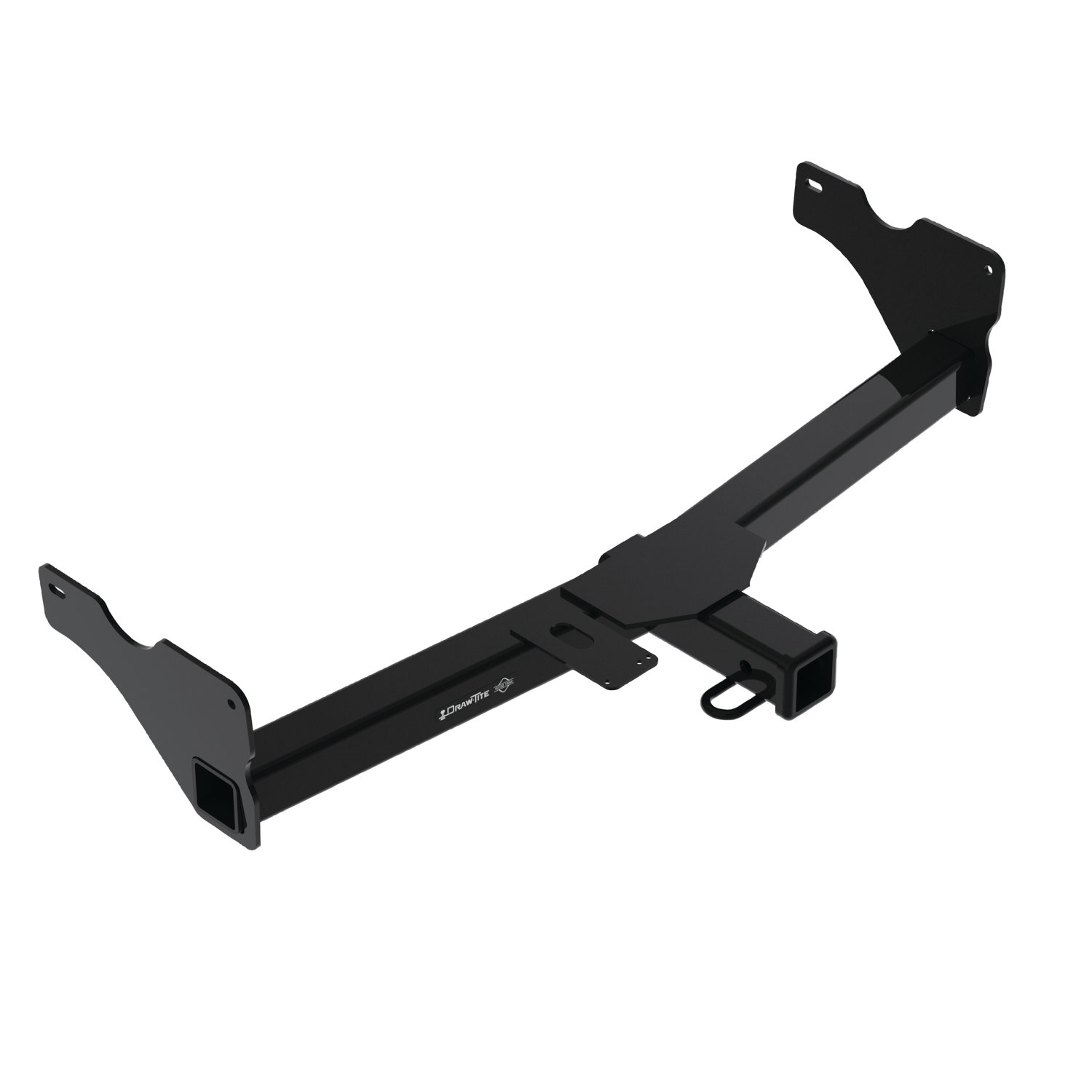

Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Tiguan 76192Draw-titeOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2024 Volkswagen Tiguan
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,500 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76551 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 4,500 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2024 | Volkswagen Tiguan | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/4,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Tiguan 76551 (Part #DT76551) is designed to fit the 2018-2024 Volkswagen Tiguan.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Tiguan 76551 (Part #DT76551) fits the following vehicles: 2018-2024 Volkswagen Tiguan. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Tiguan 76551 (Part #DT76551) fits 2018-2024 Volkswagen Tiguan models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Tiguan 76551 (Part #DT76551) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 76551 hitch is designed for 2018-Current Volkswagen Tiguan models. However, visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
The 76551 hitch has a maximum gross trailer weight rating of 4500 lb (2043 kg) and a maximum tongue weight of 675 lb (306 kg) for both weight-carrying and weight-distributing configurations. However, do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: ratchet, torque wrench, safety glasses, sockets (10mm, 13mm, 16mm, 11/16"), 6" socket extension, tape measure, marker, utility knife, tin snips, and T20 star drivers. The manual notes that if you do not feel comfortable performing the installation yourself or need assistance, you should contact a professional installer.
Yes, if present. Using a T20 star driver, remove 5 screws from the underbody panel. Using a 10mm socket, loosen 2 nuts from under the body panel. Gently remove the panel and return it to the owner.
Yes. Lower the exhaust by removing 2 bolts from each rear exhaust hanger bracket (1 per side) using a 13mm socket. Remove 4 M10x1.5x40mm bolts from the outside of the frame rails (2 per side) using a 16mm socket. Make sure the exhaust is supported after lowering. The exhaust is reinstalled after the hitch is mounted.
Yes. Using a tape measure and marker, measure to find the center of the fascia and mark a centerline on the bottom. Trim as shown in Figure 2. Mark a centerline on the vertical portion of the fascia and trim as shown in Figure 3. Do not trim away the bottom edge. Dimensions are approximate and may be adjusted for fit and aesthetics.
Yes. The installation procedure depends on whether your vehicle has existing weldnuts on the side frame rails. For vehicles with existing weldnuts, you install the hitch directly using the existing M10x1.5x40mm bolts and tighten to 53 Lb.-Ft. (72 N·M). For vehicles without existing weldnuts, you use carriage bolts, spacers, conical washers, and hex nuts (7/16") installed through the frame using pull wires, tightened to 50 Lb.-Ft. (68 N·M).
Tighten the M10 fasteners with a torque wrench to 53 Lb.-Ft. (72 N·M). This applies to vehicles with existing weldnuts on the frame rails.
Tighten the 7/16" fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M). This applies to vehicles without existing weldnuts on the frame rails.
The 76551F fastener kit includes: 4 carriage bolts (7/16"-14 x 1.75, GR5), 4 spacers (.875 x 2.00 x .109), 4 conical washers (7/16"), 4 hex nuts (7/16"-14 GR2), and 4 pull wires (7/16"). These are used for vehicles without existing weldnuts on the frame rails.
Using the pull wire, feed 2 carriage bolts and 2 spacers through the access hole (both sides), leaving pull wires attached to hardware and hardware inside the frame temporarily. Raise the hitch and feed the pull wire previously installed through the hitch bracket slot. Remove pull wires and loosely install the conical washer and hex nut to the hitch. The conical washer teeth side must be against the hitch. Then tighten the 7/16" fasteners to 50 Lb.-Ft. (68 N·M).
Raise the hitch into position over the exhaust and forward enough so that the receiver clears the bottom edge of the fascia. Align the holes in the hitch with the vehicle's existing weldnuts and install the M10x1.5x40mm bolts that were removed earlier. Tighten the M10 fasteners to 53 Lb.-Ft. (72 N·M).
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut access or attachment holes with a torch. Use a utility knife or tin snips as specified in the equipment required.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch's maximum gross trailer weight of 4500 lb (2043 kg) and maximum tongue weight of 675 lb (306 kg).
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
Yes, the 76551 is designed for 2018-Current Volkswagen Tiguan. Check the Horizon Global website for the most current trim-level compatibility.
Maximum gross trailer weight is 4500 lb (2043 kg) and maximum tongue weight is 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. The bumper fascia must be trimmed on the bottom and vertical portions as shown in the installation figures. Do not trim the bottom edge.
Yes. Lower the exhaust by removing 2 bolts per side from the rear exhaust hanger brackets using a 13mm socket, and remove 4 M10x1.5x40mm bolts from the frame rails using a 16mm socket. Support the exhaust after lowering.
M10 fasteners (vehicles with existing weldnuts): 53 Lb.-Ft. (72 N·M). 7/16" fasteners (vehicles without weldnuts): 50 Lb.-Ft. (68 N·M). Use a torque wrench for proper installation.
Ratchet, torque wrench, safety glasses, sockets (10mm, 13mm, 16mm, 11/16"), 6" socket extension, tape measure, marker, utility knife, tin snips, and T20 star drivers.
Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. Load the trailer heavier in front. If excess sway occurs, take your foot off the gas and hold the steering wheel steady; do not brake or speed up. Always wear safety glasses during installation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is essential to keep the hitch secure during towing.
Ensure the hitch is raised high enough into position so that the receiver clears the bottom edge of the fascia. If it does not clear, verify that the bumper fascia has been trimmed correctly according to Figures 2 and 3, and that the hitch is positioned far enough forward.
Check all fasteners periodically to ensure they are properly tightened. If fasteners have loosened, retighten them to the correct torque specification: 53 Lb.-Ft. (72 N·M) for M10 fasteners on vehicles with existing weldnuts, or 50 Lb.-Ft. (68 N·M) for 7/16" fasteners on vehicles without weldnuts.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
