Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2003 Dodge Ram 1500
Confirmed to Fit
2004 - 2010 Dodge Ram 1500
Confirmed to Fit
2003 - 2009 Dodge Ram 2500
Confirmed to Fit
2003 - 2009 Dodge Ram 3500
Confirmed to Fit
2019 - 2022 Ram 1500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

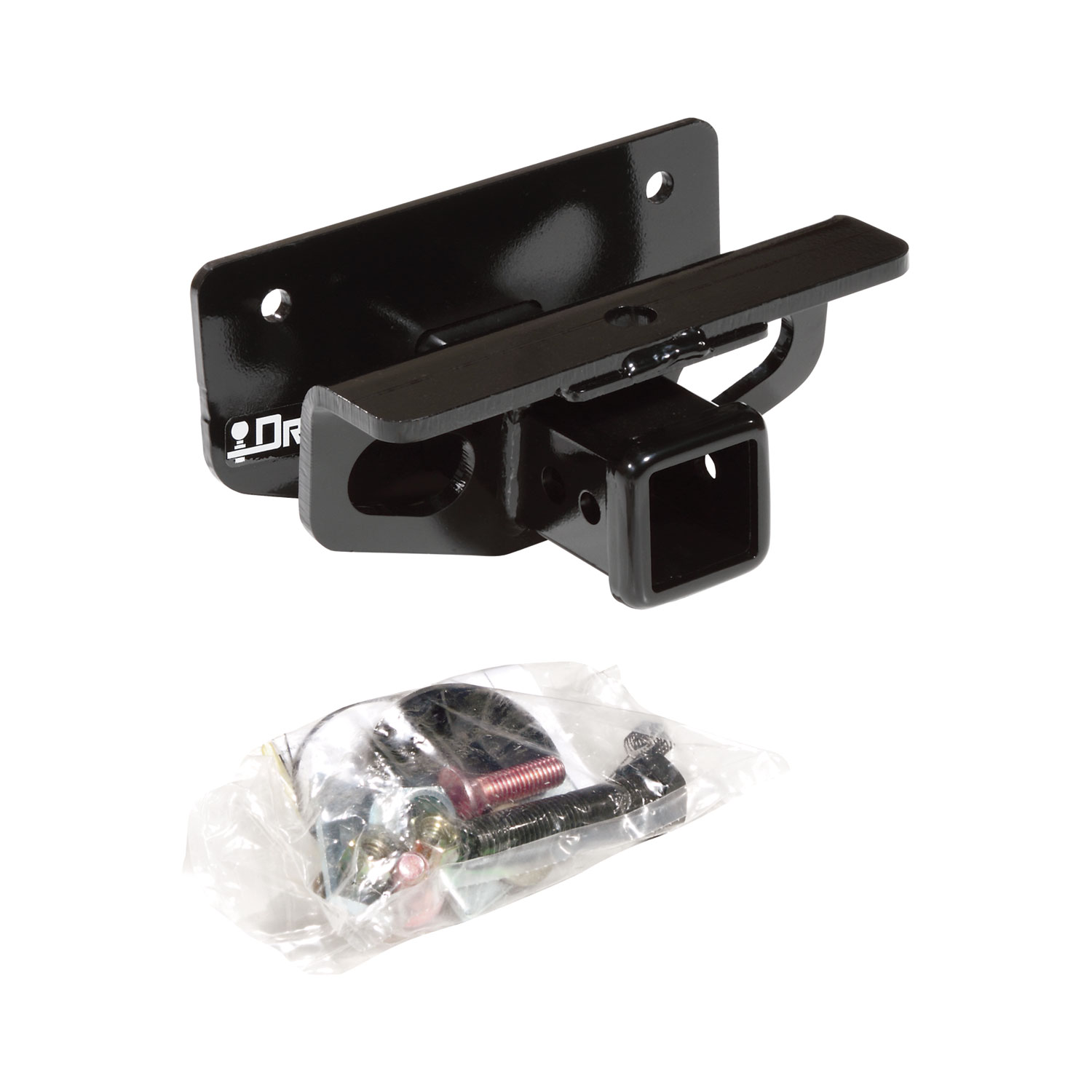

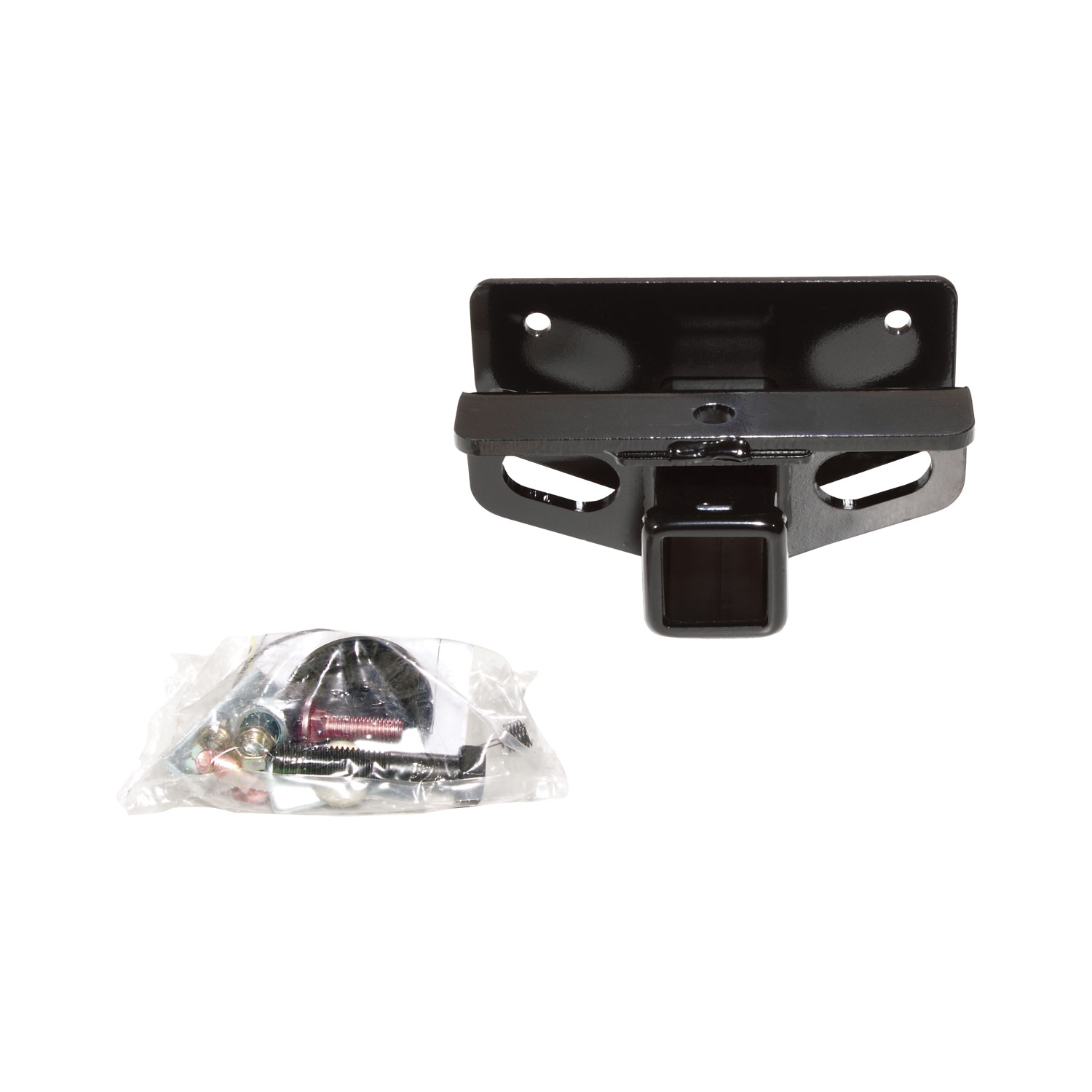

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 10,000 lbs. weight distribution (WD) and 1,000 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75662 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 16.3 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |

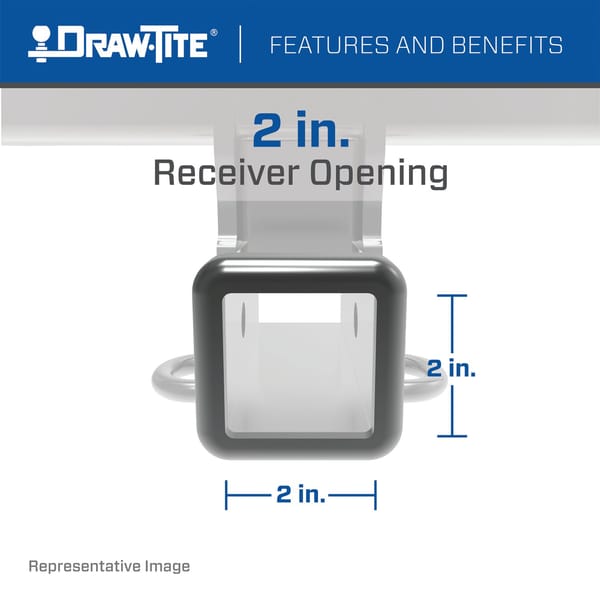

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 10,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,000 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Dodge Ram 1500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes 2003 models with Build date after 11/2002 Without Factory Installed Receiver |
| 2004 - 2010 | Dodge Ram 1500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes Without Factory Installed Receiver |
| 2003 - 2009 | Dodge Ram 2500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes Without Factory Installed Receiver |
| 2003 - 2009 | Dodge Ram 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes Without Factory Installed Receiver |
| 2019 - 2022 | Ram 1500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, RAM 1500, RAM 1500 Classic 75662 (Part #DT75662) fits the following vehicles: 2003-2010 Dodge Ram 1500; 2003-2009 Dodge Ram 2500; 2003-2009 Dodge Ram 3500; 2019-2022 Ram 1500. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, RAM 1500, RAM 1500 Classic 75662 (Part #DT75662) is designed to fit the 2003-2010 Dodge Ram 1500.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, RAM 1500, RAM 1500 Classic 75662 (Part #DT75662) fits 2003-2010 Dodge Ram 1500 models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, RAM 1500, RAM 1500 Classic 75662 (Part #DT75662) Drilling is required for installation. Basic hand tools are typically all you need.
Part number 75662 is designed for Dodge Ram vehicles equipped with a step bumper. The hitch is specifically engineered for step bumper applications. Confirm your vehicle has a step bumper before purchasing. If you are unsure whether your Dodge Ram has a step bumper, consult your vehicle documentation or contact the manufacturer.
Yes. The manual states "Step bumper required" and notes that the hitch is "designed for Step bumper." This hitch will not fit Dodge Ram vehicles without a step bumper.
The hitch has two capacity ratings depending on the type of ball mount used: Weight Distributing ball mount supports a maximum gross trailer weight of 10,000 lb (4,540 kg) and maximum tongue weight of 1,000 lb (454 kg). Weight Carrying ball mount supports a maximum gross trailer weight of 6,000 lb (2,724 kg) and maximum tongue weight of 600 lb (272 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch specifications.
You will need two wrenches: a 3/4" wrench and a 1-1/8" wrench. A torque wrench is also required to tighten fasteners to the specified torque values of 260 Lb.-Ft. for 3/4-10 GR5 fasteners and 110 Lb.-Ft. for 1/2-13 GR8 fasteners.

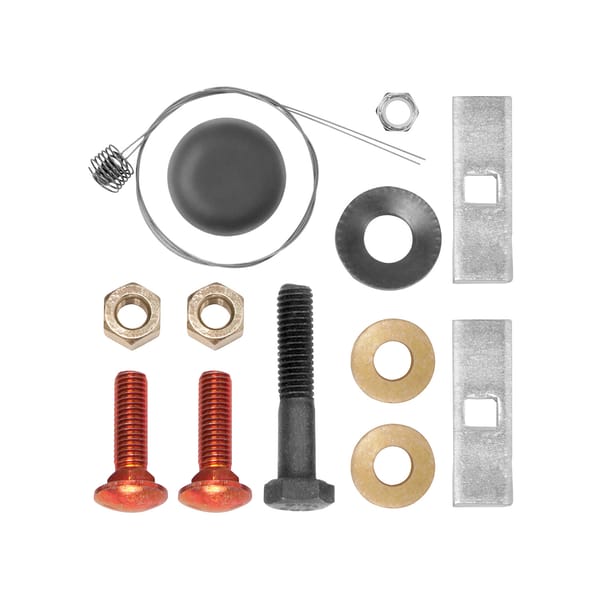

The hitch includes: one 3/4-10 GR5 hex bolt (3.5" long), one 3/4" conical washer, one 3/4-10 hex nut, two 1/2-13 GR8 carriage bolts, two 1/2" conical washers, two 1/2-13 hex nuts, two spacers, and two pull wires. If fasteners are missing or damaged, the Fastener Kit 75662F is available separately.
No. The manual states that removal of the spare tire can make installation easier, however, removal is not necessary. You may choose to remove it to improve access, but it is optional.
Follow these steps in order: (1) Remove the trailer ball cover cap from the center of the bumper. (2) Install the conical washer and 3/4" hex bolt into the trailer hitch ball attachment hole in the vehicle bumper. (3) Raise the hitch into position. (4) Slide the 3/4" hex nut into position under the rear attachment and hand tighten only until all fasteners are installed. (5) Feed the pull wire through the cross member, attach the spacer to the carriage bolt, and pull fasteners through the vehicle cross tube into position. (6) Loosely install conical washers and nuts onto the carriage bolts. (7) Torque all fasteners to specifications.
Set the 3/4" hex nut into the cut out on the strap to assist installation. This positioning helps support the hitch during the installation process. The nut should be hand tightened only until all fasteners are installed; final torquing comes after all fasteners are in place.
Tighten all 3/4-10 GR5 fasteners with a torque wrench to 260 Lb.-Ft. (353 N·M).
Tighten all 1/2-13 GR8 fasteners with a torque wrench to 110 Lb.-Ft. (149 N·M).
Hand tighten the 3/4" hex nut only until all fasteners are installed. Loosely install the conical washers and nuts onto the carriage bolts. Only after all fasteners are in place should you use a torque wrench to tighten all fasteners to their final specifications: 260 Lb.-Ft. for 3/4-10 GR5 fasteners and 110 Lb.-Ft. for 1/2-13 GR8 fasteners.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual recommends regular inspection to ensure the installation remains secure.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to maintain safety and security.
The pull wire is used to feed through the cross member and help position the carriage bolts. You attach the spacer to the carriage bolt and use the pull wire to pull the fasteners through the vehicle cross tube into position as shown in the diagram.
The spacers (Item 5) are attached to the carriage bolts and help position the fasteners correctly through the vehicle cross tube. Two spacers are included in the hardware kit.
Install the conical washer before the 3/4" hex bolt into the trailer hitch ball attachment hole in the vehicle bumper. The conical washer helps distribute the load and secure the bolt properly.
Yes, if your Dodge Ram has a step bumper. This hitch is designed specifically for Dodge Ram vehicles with step bumpers and will not fit without one.
You need a 3/4" wrench, a 1-1/8" wrench, and a torque wrench to tighten fasteners to 260 Lb.-Ft. and 110 Lb.-Ft. as specified.
No, removal is optional. The manual states that removing the spare tire can make installation easier, but it is not necessary.
Tighten 3/4-10 GR5 fasteners to 260 Lb.-Ft. (353 N·M) and 1/2-13 GR8 fasteners to 110 Lb.-Ft. (149 N·M) using a torque wrench.
Weight Distributing: 10,000 lb gross trailer weight, 1,000 lb tongue weight. Weight Carrying: 6,000 lb gross trailer weight, 600 lb tongue weight. Do not exceed the lower of the vehicle manufacturer's rating or these limits.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Inspect regularly to maintain safety and security.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
