Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2022 Chevrolet Colorado
Confirmed to Fit
2015 - 2022 GMC Canyon
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

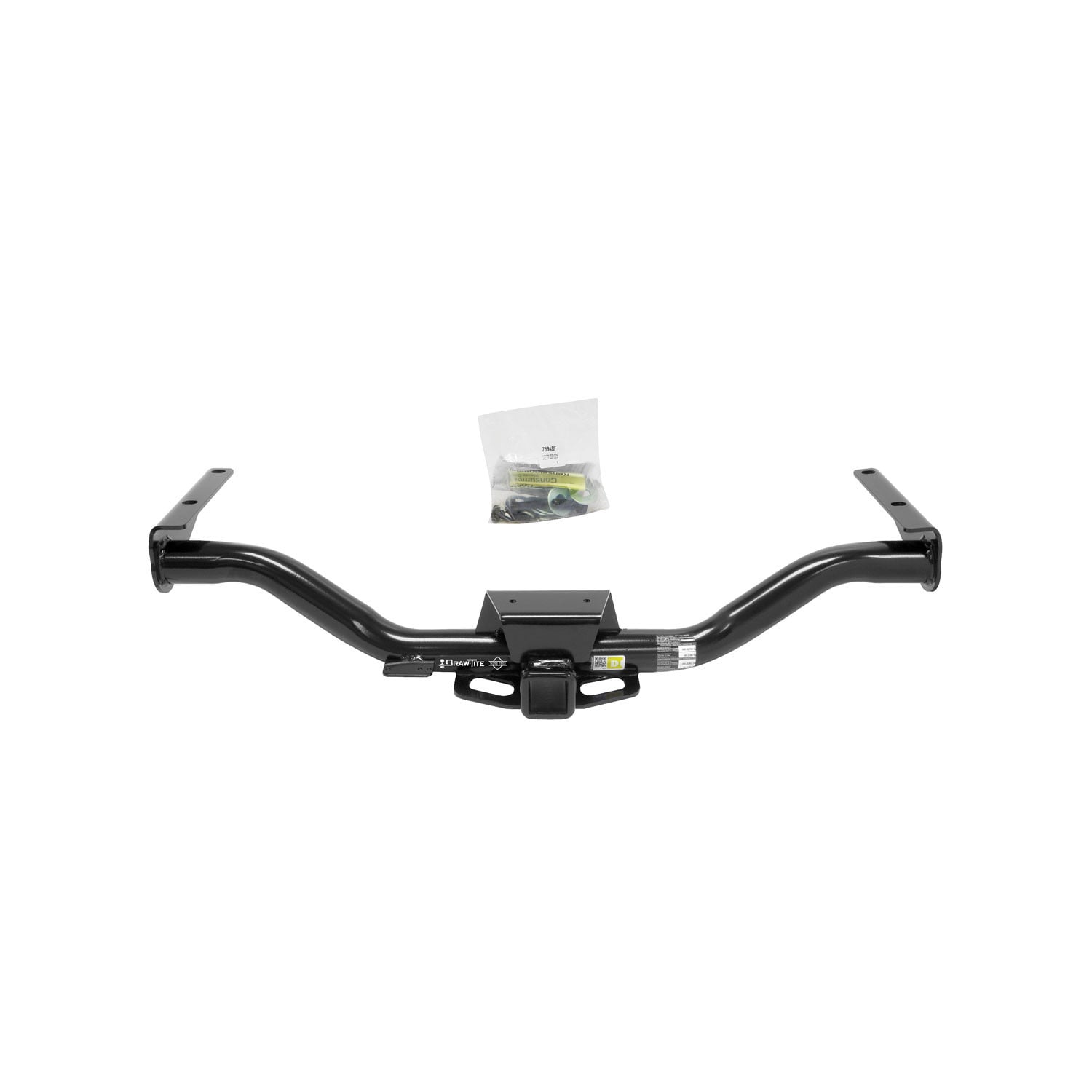

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 800 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 800 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75948 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 800 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 8,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 800 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2022 | Chevrolet Colorado | Class 4 Trailer Hitch: 6000 lbs 800/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 800/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2015 - 2022 | GMC Canyon | Class 4 Trailer Hitch: 6000 lbs 800/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 800/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
Yes. Part numbers 75948, 87675, and 44757 are designed for Chevrolet Colorado and GMC Canyon vehicles.
No. You cannot tow with a step bumper after this hitch is installed. The step bumper must be removed and not reinstalled.
You will need wrenches in 10mm, 13mm, 21mm, and 22mm sizes, tape, and a torque wrench. No drill bits are required.
No. No drilling is required for this installation.
All M14 CL10.9 fasteners must be tightened to 100 Lb.-Ft. (136 N*M) using a torque wrench.
Maximum towing capacity depends on hitch type: Weight Distributing hitches support 8000 lbs (3632 kg) gross trailer weight with 800 lbs (363 kg) tongue weight; Weight Carrying Ball Mount hitches support 6000 lbs (2723 kg) gross trailer weight with 800 lbs (363 kg) tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Yes. The spare tire cradle is removed during installation and then reinstalled using the original fasteners. The manual notes that removing the spare tire can make installation easier, but the cradle is reinstalled afterward.
The manual requires disconnecting electrical plugs during bumper removal but does not explicitly state whether the battery must be disconnected. Consult the vehicle service manual or a qualified technician for battery disconnection requirements.
The fastener kit 75948F includes: (4) M14 X 2.00 X 45mm CL10.9 bolts, (4) 9/16" lockwashers, (4) 9/16" flat washers, and (4) 1/2" flat washers. These are installed symmetrically on both sides of the frame rails.
Eight bolts hold the vehicle impact and bumper structure. These must be removed in step 1 and the impact structure returned to the vehicle owner after installation.
Two bolts secure the spare tire cradle. These must be removed in step 1 and kept to reinstall in step 4 using the original fasteners.
Flat washers (item 4) are taped to both frame rails before raising the hitch into position. This positions the washers so they are properly aligned when the hitch fasteners are installed.
Follow these steps in order: (1) Remove impact and bumper structure and spare tire cradle bolts, disconnect electrical plugs; (2) Tape flat washers to frame rails on both sides; (3) Raise hitch into position and install provided fasteners; (4) Reinstall spare tire cradle with original fasteners; (5) Reinstall bumper with original side fasteners; (6) Tighten all fasteners to torque specification; (7) Raise spare tire back into position if required; (8) Return impact structure to vehicle owner.
Yes. In step 5, reinstall the bumper using the original side fasteners. The original fasteners from the spare tire cradle (step 1) are also reused in step 4.
All M14 CL10.9 bolts must be tightened to 100 Lb.-Ft. (136 N*M). The manual does not specify torque values for the original bumper side fasteners or spare tire cradle fasteners; reinstall these with their original tightness.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The wiring access location is PU3.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
