Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

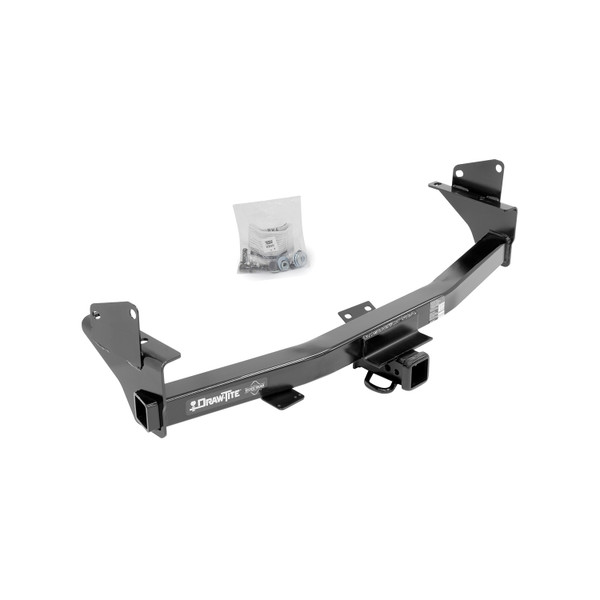

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 8,000 lbs. gross trailer weight (GTW) and up to 800 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 10,000 lbs. weight distribution (WD) and 1,000 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76004 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 46 LBS |
| GROSS TOWING WEIGHT: | 8,000 LBS. |
| GROSS TONGUE WEIGHT: | 800 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 10,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,000 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2022 | Chevrolet Colorado | Class 4 Trailer Hitch: 8000 lbs 800/8,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2015 - 2022 | GMC Canyon | Class 4 Trailer Hitch: 8000 lbs 800/8,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon 76004 (Part #DT76004) fits 2015-2022 Chevrolet Colorado models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon 76004 (Part #DT76004) fits the following vehicles: 2015-2022 Chevrolet Colorado; 2015-2022 GMC Canyon. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon 76004 (Part #DT76004) is designed to fit the 2015-2022 Chevrolet Colorado.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Colorado, GMC Canyon 76004 (Part #DT76004) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76004 is designed for 2015-Current Chevrolet Colorado and 2015-Current GMC Canyon. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
No. The manual explicitly states: CANNOT TOW WITH STEP BUMPER AFTER HITCH IS INSTALLED. The factory step bumper must be removed during installation and cannot be reinstalled for towing use.
Required tools: ratchet, torque wrench, safety glasses, sockets (12 mm, 21 mm, 22 mm), flat-head screwdriver, and socket extension. A torque wrench is essential for proper installation.
Fastener Kit 76004F includes: (4) M14 hex bolts 2.00 x 45 mm, CL10.9; (4) flat washers 9/16 inch; (4) lock washers 9/16 inch. The M8 bolts for the spare tire cradle are reused from the factory bumper support.
All M14 CL10.9 fasteners must be tightened with a torque wrench to 100 Lb.-Ft. (136 N·M). This is the final torque specification applied in step 10 of installation.
The M8 bolts for the spare tire cradle must be tightened to 20 Lb.-Ft. (28 N·M). These are the original factory fasteners that are reused during reinstallation.
The hitch has two ratings depending on type: Weight Carrying: 8,000 lb. (3,632 kg) gross trailer weight, 800 lb. (363 kg) tongue weight. Weight Distributing: 10,000 lb. (4,540 kg) gross trailer weight, 1,000 lb. (454 kg) tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
The manual does not specify whether the battery must be disconnected. However, the installation does involve disconnecting and reconnecting electrical plugs from the bumper support structure. Consult your vehicle's service manual or a professional installer for guidance on battery disconnection.
Cequent Performance Products offers a Limited Lifetime Warranty to the original consumer purchaser only. The warranty covers material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are returned for inspection and testing, the defect was not caused by misuse, neglect, improper installation, unsuitable storage, improper repair, alteration, or accident, and the product was installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@cequentgroup.com.
No. The manual specifies that part number 76004 is designed for 2015-Current Chevrolet Colorado and 2015-Current GMC Canyon only. The 2014 model year is not listed as compatible. Contact the manufacturer or visit their website for information about hitch options for 2014 models.
Yes. Part number 76004 is designed for 2015-Current GMC Canyon. For the most up-to-date information regarding specific application years and trim levels, visit the manufacturer's website at www.cequentgroup.com.
The factory step bumper and bumper support must be removed. Specifically: (1) Disconnect electrical plugs and remove the wire retainer from the bumper support structure. (2) Remove the step bumper by removing two bolts on each side of the bumper brackets (four bolts total). (3) Remove the bumper support by removing four bolts from the bottom of the frame and two M8 bolts at the spare tire cradle. Keep the M8 bolts for reinstallation. The bumper support and four factory bolts are returned to the owner after installation.
Follow these steps in order: (1) Disconnect electrical plugs and remove wire retainer from bumper support. (2) Remove step bumper (two bolts per side). (3) Remove bumper support (four frame bolts and two M8 spare tire cradle bolts; keep M8 bolts). (4) Raise hitch into position and install M14 hex bolts, lock washers, and flat washers into the four existing frame weldnuts. (5) Reinstall spare tire cradle using original fasteners; tighten M8 bolts to 20 Lb.-Ft. (28 N·M). (6) Reinstall step bumper using original four side fasteners; align plastic tube for spare tire mechanism. (7) Reconnect all electrical plugs. (8) Raise spare tire back into position if required. (9) Return bumper support and four factory bolts to owner. (10) Tighten all M14 CL10.9 fasteners to 100 Lb.-Ft. (136 N·M) with torque wrench.
Final torque to 100 Lb.-Ft. (136 N·M) is applied in step 10, after all other installation steps are complete, including reinstallation of the spare tire cradle, step bumper, and electrical connections. Do not fully tighten the M14 bolts until the final step.
Yes. The manual explicitly states to keep the two M8 bolts from the bumper support and reuse them when reinstalling the spare tire cradle. These original fasteners must be tightened to 20 Lb.-Ft. (28 N·M).
Return the vehicle bumper support and the four factory bolts removed from the bottom of the frame to the vehicle owner. These components are not part of the hitch installation and should be retained by the owner.
When reinstalling the step bumper in step 6, ensure the plastic tube for the spare tire mechanism is properly aligned with the bumper. The manual notes: "Be sure to align the plastic tube for spare tire mechanism." Refer to Figure 1 in the installation instructions for proper alignment.
No. The hitch uses four existing weldnuts in the vehicle frame. No drilling is required. The manual explicitly warns: "Do not cut access or attachment holes with a torch."
No. The manual explicitly states: "DO NOT cut, weld or modify this receiver." Any modifications will void the warranty and compromise the structural integrity and safety of the hitch.
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. The manual also recommends contacting a professional installer if you do not feel comfortable performing the installation yourself or are in need of assistance.
If excess sway occurs while towing, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do NOT apply your brakes and do NOT speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and improves towing stability.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Verify that the plastic tube for the spare tire mechanism is properly aligned. Ensure all electrical plugs are reconnected and the spare tire is back in position if it was raised during installation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes periodic checking. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
The average installation time is 35 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The 76004 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The M14 hitch bolts are CL10.9 grade, measuring 2.00 x 45 mm. They must be tightened to 100 Lb.-Ft. (136 N·M) with a torque wrench.
The fastener kit includes flat washers and lock washers, both 9/16 inch in size. Four of each are provided for the four M14 bolts.
If the plastic tube for the spare tire mechanism is not properly aligned with the bumper during step 6 reinstallation, loosen the step bumper fasteners, realign the plastic tube, and retighten the four side fasteners. Proper alignment is critical for spare tire operation.
Check all fasteners frequently to ensure they remain tight. If fasteners are found to be loose, retighten them to the proper torque specifications: M14 bolts to 100 Lb.-Ft. (136 N·M) and M8 bolts to 20 Lb.-Ft. (28 N·M). Use a torque wrench to ensure proper tightness. Loose fasteners can compromise the safety of the hitch installation.
A hitch or ball that has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Contact the manufacturer or a professional installer for replacement options.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
