Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

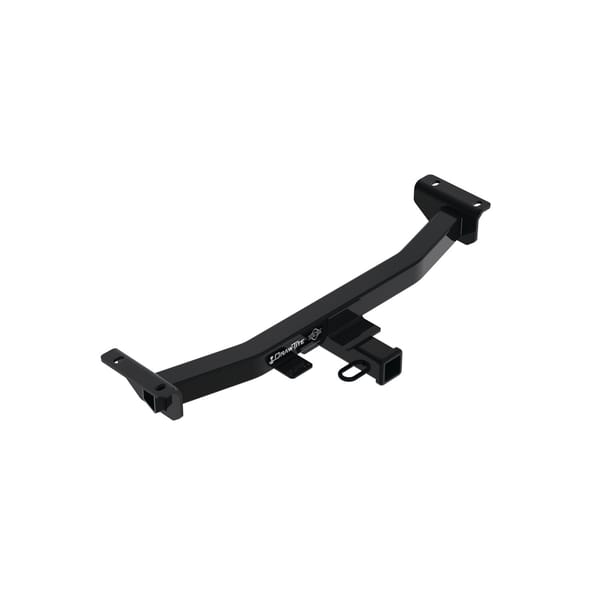

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 7,500 lbs. gross trailer weight (GTW) and up to 1,125 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 1,200 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76642 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 36 LBS |
| GROSS TOWING WEIGHT: | 7,500 LBS. |
| GROSS TONGUE WEIGHT: | 1,125 LBS. |

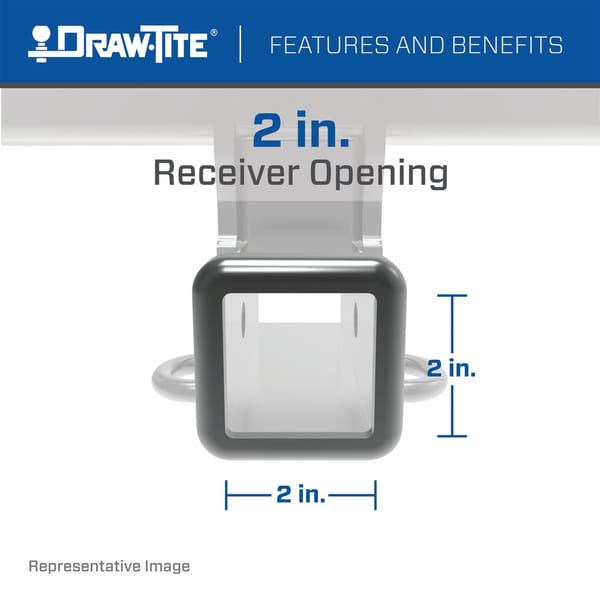

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 - 2026 | Ford Ranger | Class 4 Trailer Hitch: 7500 lbs 1,125/7,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger 76642 (Part #DT76642) fits 2024-2026 Ford Ranger models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger 76642 (Part #DT76642) fits the following vehicles: 2024-2026 Ford Ranger. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger 76642 (Part #DT76642) is designed to fit the 2024-2026 Ford Ranger.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger 76642 (Part #DT76642) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76642, 84642, and CQT76642 are designed for the 2024 Ford Ranger. Visit the manufacturer's website for the most up-to-date information regarding application years and trim levels.
The maximum gross trailer weight is 7500 lb. (3401 kg) and the maximum tongue weight is 1125 lb. (510 kg) for a weight-carrying hitch. However, do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
The maximum gross trailer weight is 8000 lb. (3628 kg) and the maximum tongue weight is 1200 lb. (544 kg) for a weight-distributing hitch. However, do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need a ratchet, torque wrench, safety glasses, 21 mm socket, 6 inch socket extension, and 2 C-clamps.
Yes. A torque wrench is required to properly tighten the M16 fasteners to the specified torque of 146 Lb.-Ft. (195 N·M). Proper torque is necessary to keep the hitch secure to the vehicle when towing.
All M16 fasteners must be tightened to 146 Lb.-Ft. (195 N·M) using a torque wrench.
Yes. The first step is to lower the spare tire. Refer to your vehicle owner's manual for the procedure. The spare tire is reinstalled in the final step after the hitch is secured.
The hitch uses (4) M16 factory bolts that hold the bumper brackets to the vehicle frame. These factory fasteners are removed, then reused to secure the hitch in place.
The 2 C-clamps are used to clamp the bumper tabs to the matching tabs directly above (1 clamp on each side). This prevents the bumper from coming down when you remove the factory M16 fasteners holding it to the vehicle frame.
A 21 mm socket is required to remove and reinstall the (4) M16 factory bolts that hold the bumper brackets to the vehicle frame.
No. The hitch uses existing factory holes in the bumper bracket and frame rail. No drilling is required.
No. The fastener kit (76642F) is referenced but does not contain fasteners. The installation reuses the factory M16 bolts that originally held the bumper brackets to the vehicle frame.
The average installation time is 30 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to ensure the hitch remains securely mounted to your vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
No. Do not cut, weld or modify this receiver. Modification may compromise the structural integrity and safety of the hitch.
The product includes a Limited Lifetime Warranty covering material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the defect is not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained and used in accordance with the instructions. Product replacement is the sole and exclusive remedy. Contact Horizon Global Corporation at 127 Public Square Suite 5300, Cleveland, OH 44114, 1-800-632-3290 to make a warranty claim.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes. Always wear your seatbelt when towing.
Slow down when towing and never exceed any posted speed limit.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
