Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black 41938
Draw-tite
Free Shipping
click to zoom in

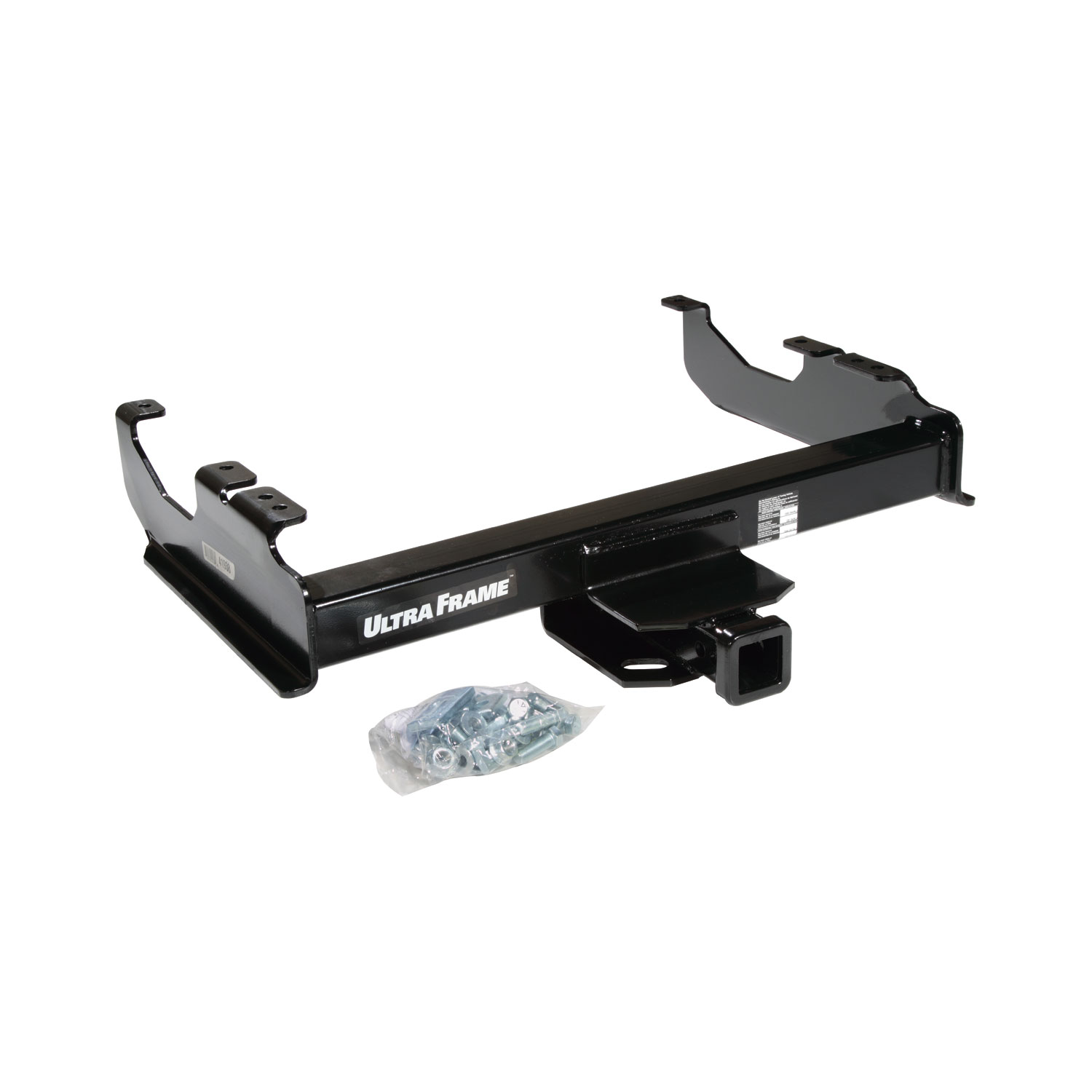

Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black 41938
1,269
Write a Review
MSRP:
$448.75
$331.61
In-Stock
You save
$117.14
!
SKU:
DT41938
Condition:
New
Ships via Freight:
False
Class:
Class 5
Includes:

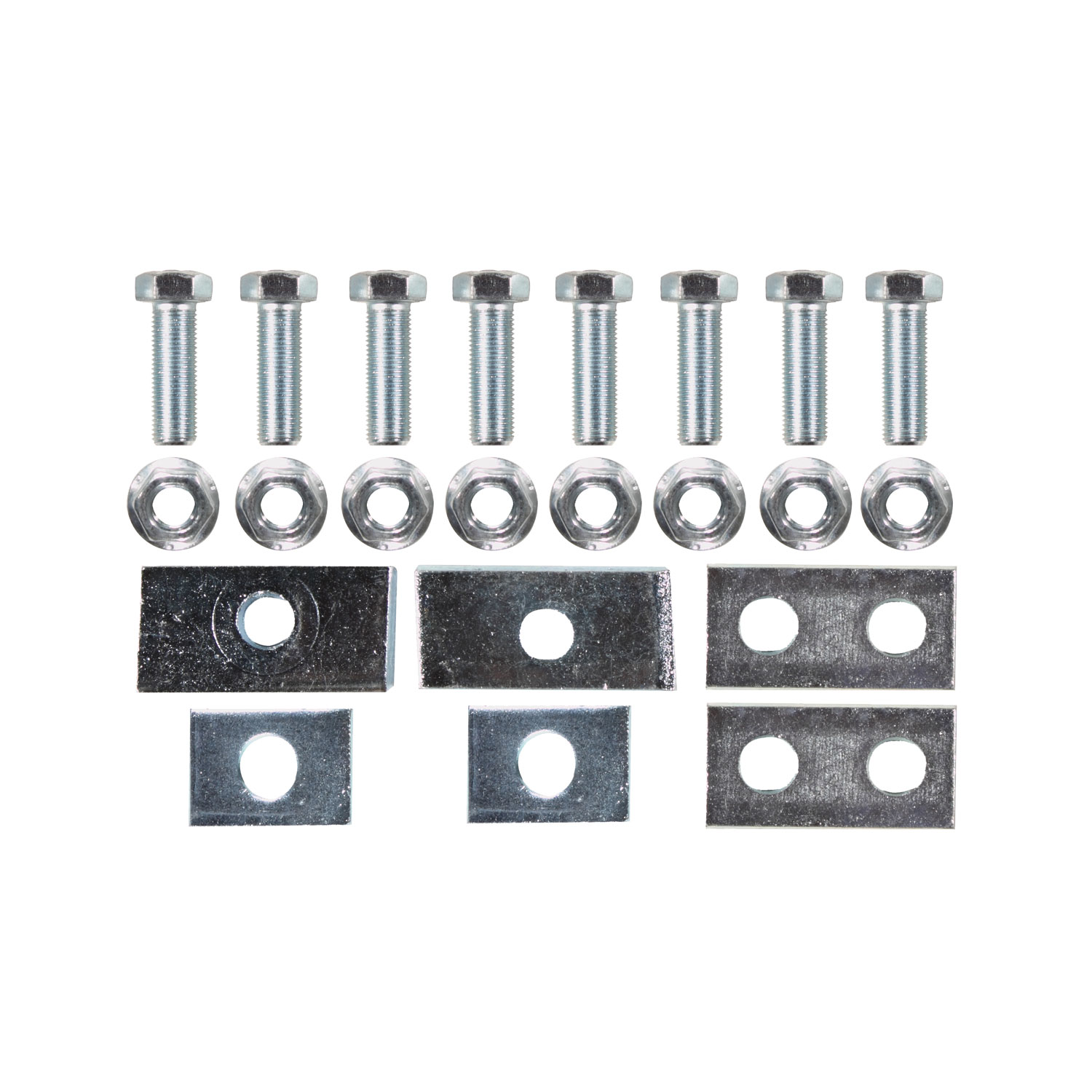

Trailer Hitch + Hardware
Attachment Location:
Rear
Drilling Required:
Yes
Tongue Weight:
1,200 lbs.
Install Time:
40
Receiver Size:
2"
GTW:
12,000 lbs.
QUICK SHIP
Hurry, Order now!
47 customers are viewing this product
Experts Available Now!
888-634-9494
Ask an Expert-
-
In-House Experts
We know our products
-
Added Value
Quality Products
-
Nationwide Delivery
Ships free over $99
Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black 41938
MSRP:
$448.75
$331.61
In-Stock
You save
$117.14
!
Ultra Frame Class 5 Trailer Hitch, 2 Inch Square Receiver, Black
Description
DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 12,000 lbs. gross trailer weight (GTW) and up to 1,200 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 15,000 lbs. weight distribution (WD) and 1,500 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
- CUSTOM DESIGNS: DRAW-TITE Class 5 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
- STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
- TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
- CAPACITY: Rated for up to 12,000 lbs. GTW and up to 1,200 lbs. TW. For use with Weight Distribution systems of up to 15,000 lbs. WD and 1,500 lbs. WDTW.
Specifications
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41938 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 73 LBS |
| GROSS TOWING WEIGHT: | 12,000 LBS. |
| GROSS TONGUE WEIGHT: | 1,200 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | V |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 15,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,500 LBS. |
Product Video
Fits the following vehicles:
Vehicle Specific- 1963 - 1984 Chevrolet C10 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986 Chevrolet C10 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1963 - 1984 Chevrolet C20 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986 Chevrolet C20 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1988 - 1991 Chevrolet C2500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1963 - 1984 Chevrolet C30 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986 Chevrolet C30 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1988 - 1991 Chevrolet C3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1963 - 1984 Chevrolet K10 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986 Chevrolet K10 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1963 - 1984 Chevrolet K20 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986 Chevrolet K20 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
Show 31 more compatible vehicles
- 1988 - 1991 Chevrolet K2500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1973 - 1974, 1977 - 1984 Chevrolet K30 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986 Chevrolet K30 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1988 - 1991 Chevrolet K3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 2001 - 2007 Chevrolet Silverado 3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 2007 - 2025 Chevrolet Silverado 3500 HD — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1999 - 2000 Ford F-350 Super Duty — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1963 - 1965 GMC 1000 Series — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1963 - 1965 GMC 1500 Series — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1963 - 1965 GMC 2500 Series — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1975 - 1978 GMC C15 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1967 - 1974 GMC C15/C1500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1979 - 1984 GMC C1500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986, 1988 - 1999 GMC C1500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1967 - 1978 GMC C25 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1979 - 1984 GMC C2500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986, 1988 - 2000 GMC C2500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1967 - 1978 GMC C35 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1979 - 1984 GMC C3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986, 1988 - 2000 GMC C3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1967 - 1978 GMC K15 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1979 - 1984 GMC K1500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986, 1988 - 1999 GMC K1500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1967 - 1978 GMC K25 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1979 - 1984 GMC K2500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986, 1988 - 2000 GMC K2500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 1968 - 1974, 1977 - 1978 GMC K35 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1979 - 1984 GMC K3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes
- 1985 - 1986, 1988 - 2000 GMC K3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 2001 - 2007 GMC Sierra 3500 — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Requires minimum of 19 in. from end of frame rail to spring shackle bracket
- 2007 - 2024 GMC Sierra 3500 HD — Class 5 Trailer Hitch: 12000 lbs • 1,200/12,000 lbs. Weight Carrying (tongue weight/gross trailer weight) • 1,500/15,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) • Drilling Required • Install Time is 40 minutes • Cab & Chassis Only
