DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 15,000 lbs. gross trailer weight (GTW) and up to 1,700 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 17,000 lbs. weight distribution (WD) and 1,700 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41950 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 72 LBS |
| GROSS TOWING WEIGHT: | 15,000 LBS. |
| GROSS TONGUE WEIGHT: | 1,700 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | V |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 17,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,700 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Chevrolet Silverado 2500 HD | Class 5 Trailer Hitch: 15000 lbs 1,700/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,700/17,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes |
| 2015 - 2019 | Chevrolet Silverado 3500 HD | Class 5 Trailer Hitch: 15000 lbs 1,700/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,700/17,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes |
| 2015 - 2019 | GMC Sierra 2500 HD | Class 5 Trailer Hitch: 15000 lbs 1,700/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,700/17,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes Installation requires OEM bumper and brackets Requires removal of factory hitch if equipped |
| 2015 - 2019 | GMC Sierra 3500 HD | Class 5 Trailer Hitch: 15000 lbs 1,700/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,700/17,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes Installation requires OEM bumper and brackets Requires removal of factory hitch if equipped |
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Aug 29 - Tue, Sep 1
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

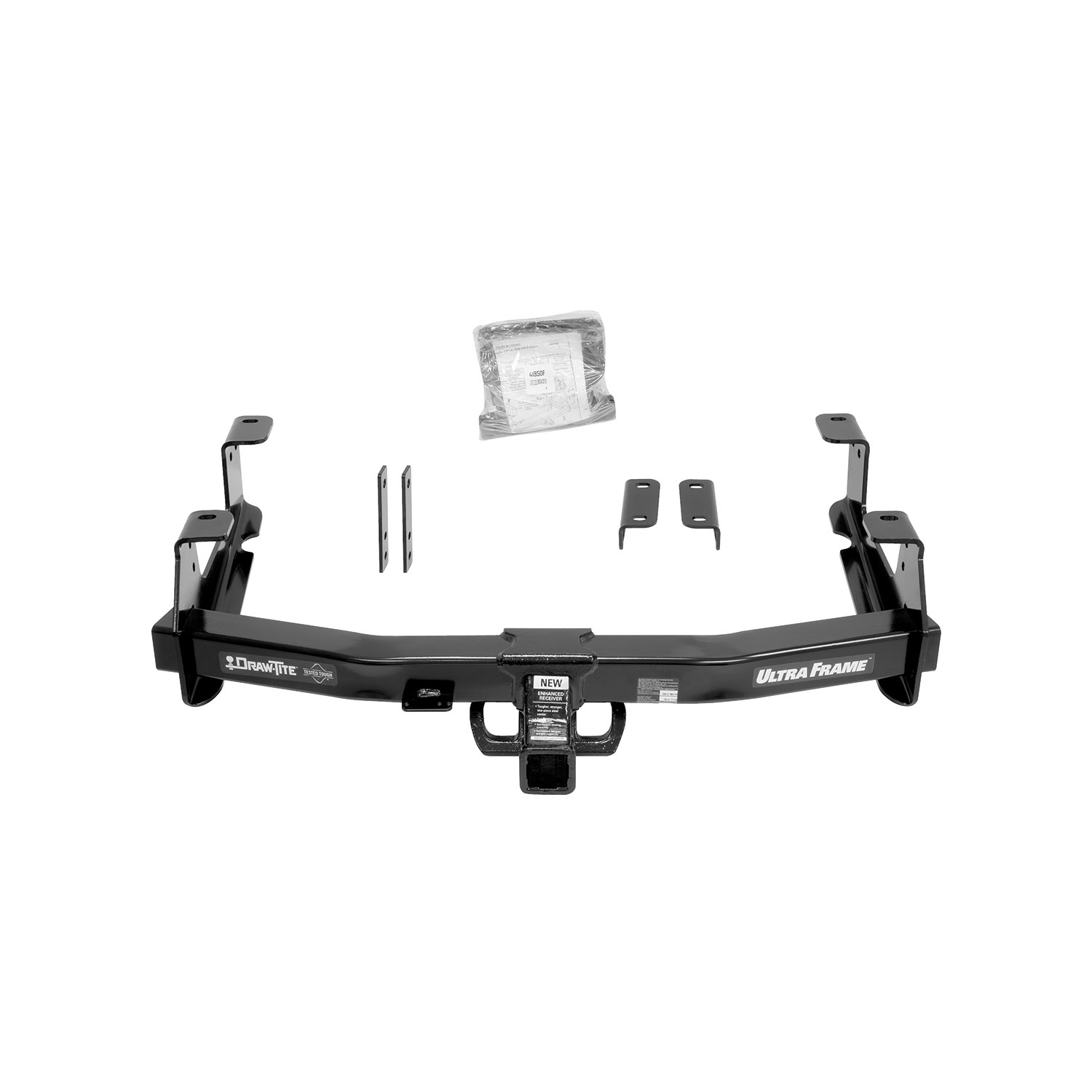

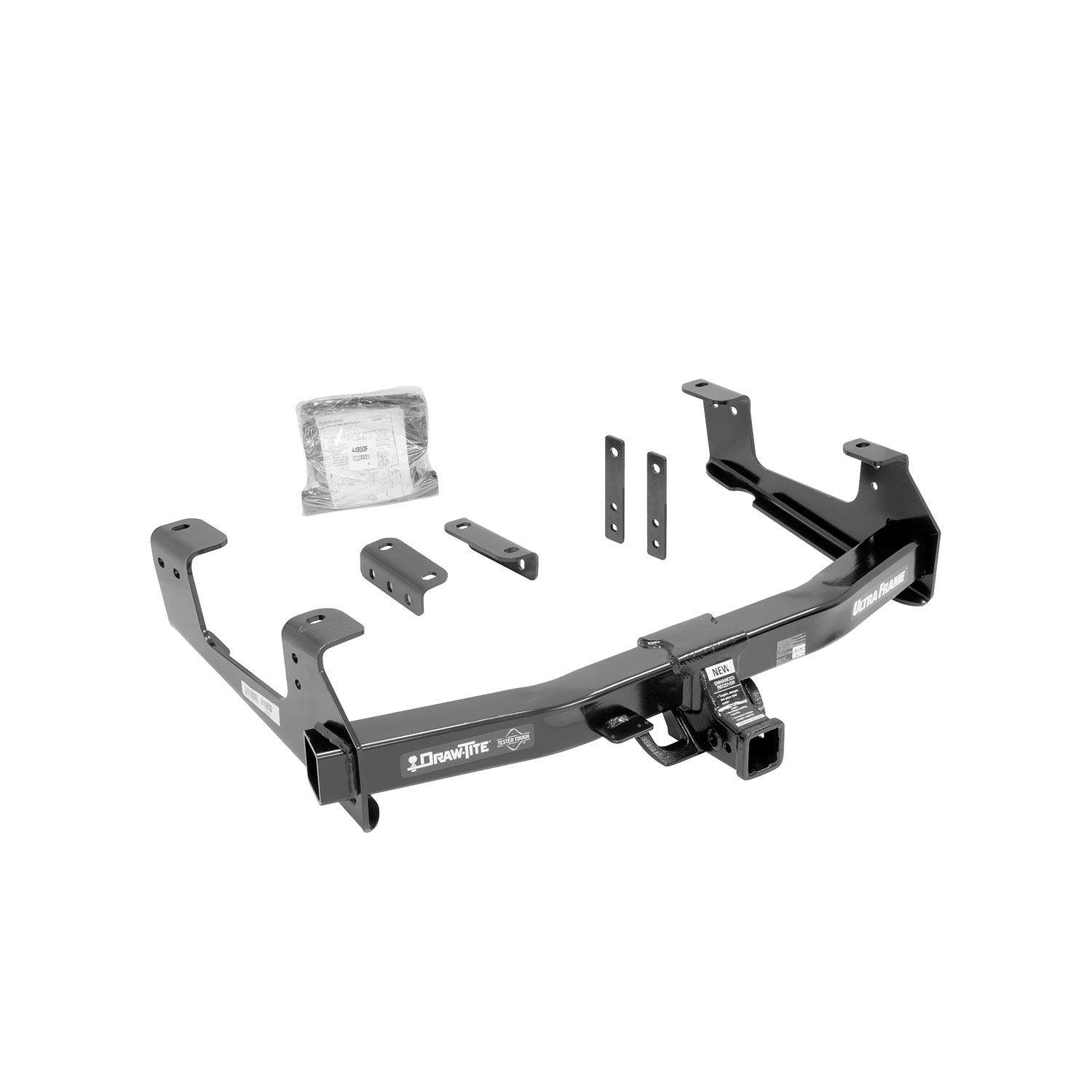

The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, GMC Sierra 3500 HD 41950 (Part #DT41950) fits the following vehicles: 2015-2019 Chevrolet Silverado 2500 HD; 2015-2019 Chevrolet Silverado 3500 HD; 2015-2019 GMC Sierra 2500 HD; 2015-2019 GMC Sierra 3500 HD. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, GMC Sierra 3500 HD 41950 (Part #DT41950) is designed to fit the 2015-2019 Chevrolet Silverado 2500 HD.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, GMC Sierra 3500 HD 41950 (Part #DT41950) fits 2015-2019 Chevrolet Silverado 2500 HD models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, GMC Sierra 3500 HD 41950 (Part #DT41950) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 41950 is designed for both GMC Sierra and Chevrolet Silverado 2500 & 3500 HD pickups. However, installation differs based on bed length: short-bed trucks require bolt-on brackets and heat shield modification, while long-bed trucks do not use the bolt-on brackets.
Yes, the 41950 is compatible with 2015 and newer GMC Sierra and Chevrolet Silverado 2500 & 3500 HD pickups. If your truck is 2015 or newer and does not already have a hitch, you will need to remove the OEM bumper mount hitch before installing the 41950.
No. The bolt-on brackets are supplied with the hitch but are only for short-bed trucks. For long-bed (8-foot bed) trucks, you should discard the bolt-on brackets or give them to the vehicle owner, as they are not needed for 8-foot bed applications.
The spare tire must be lowered from underneath the truck before installation to allow access. After installation, the spare tire is raised back into place. On short-bed trucks, the plastic heat shield is sandwiched between the hitch and frame on the passenger side, and the rearmost 8mm bolt holding the heat shield is removed. The heat shield remains in place to protect the hitch.
You will need wrenches in the following sizes: 13mm, 21mm, 22mm, 3/4", and 7/8". A torque wrench is also required to tighten fasteners to the specified torque values.
No, drilling is not required. The hitch uses existing weldnuts in the truck bumper and frame rails for attachment.

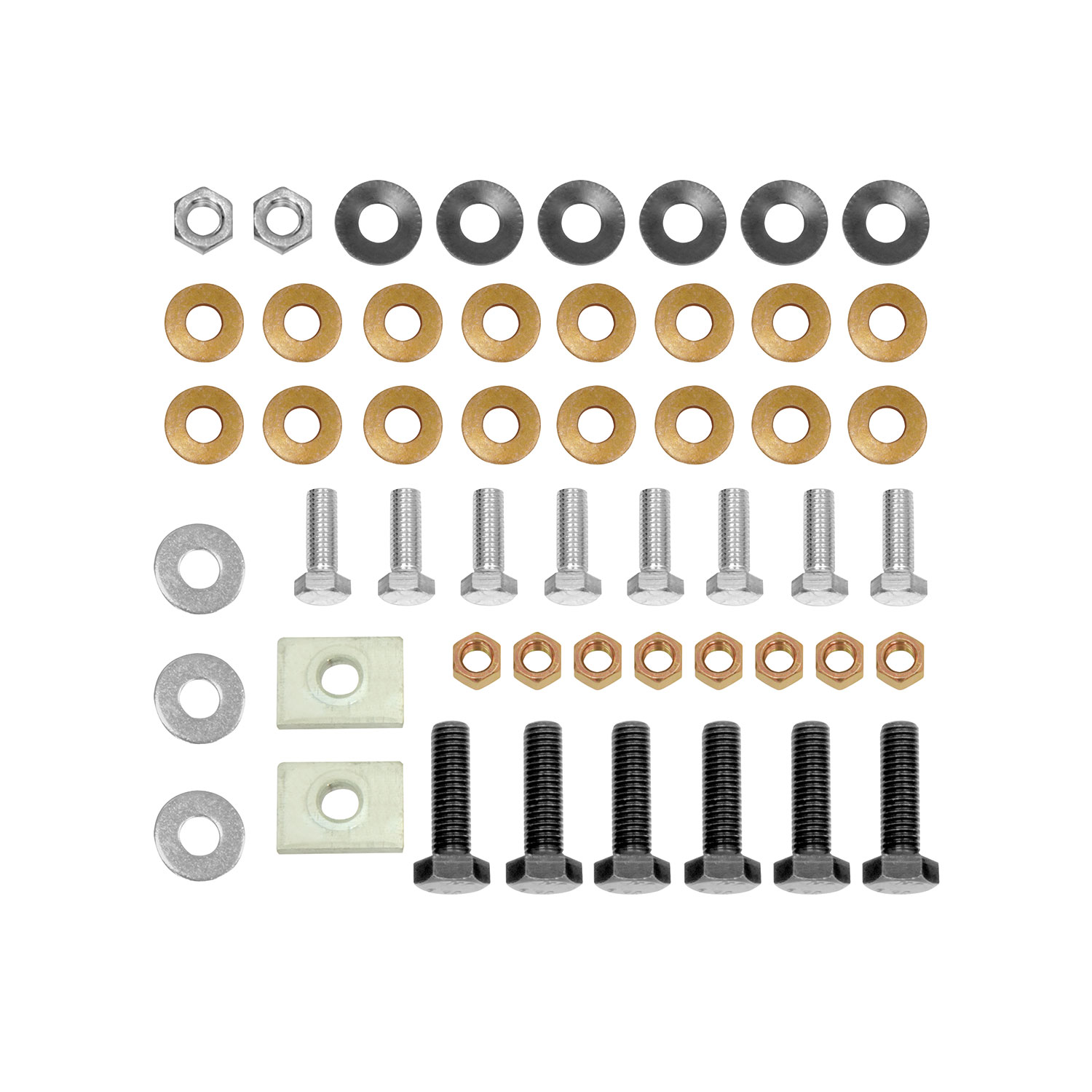

The fastener kit (41950F) includes: (6) Hex Bolts M14 x 2.0 x 45mm CL10.9; (8) Hex Nuts 1/2"-13; (6) Conical Toothed Washers 5/8" (black); (2) Blocks 1-1/2" x 2" with round hole (short-bed only); (8) Hex Bolts 1/2"-13 x 1-1/2" Gr.5 (short-bed only); (3) Flat Washers 9/16"; (16) Conical Toothed Washers 1/2" (gold); and (2) Hex Nuts M14 x 2.0.
The manual lists fastener kit 41950F as a separate item, but does not explicitly state whether it is included with the hitch or must be purchased separately. Confirm with your supplier whether fasteners are included or if kit 41950F must be ordered.
Yes. Lower the spare tire from underneath the truck before beginning installation to allow ease of access. After installation is complete, raise the spare tire back into place.
The manual does not require bumper removal for the standard installation. However, if your truck has an existing hitch, you must remove the bumper bolts. If your 2015 or newer truck is not equipped with a hitch, you must remove the OEM bumper mount hitch (shown in Figure 3) before installing the 41950.
The existing 14mm bolts at the end of each truck frame rail are removed to allow the hitch to be positioned and to access the weldnuts. These bolts are returned to the vehicle owner and are not reused in the hitch installation.
Raise the hitch into position by locating the slots in the hitch over the existing weldnuts in the truck bumper and at the end of the truck frame rails. The hitch will align with these factory attachment points.
Attach the bolt-on brackets supplied with the hitch to the side brackets as shown in the manual. Insert a 1-1/2" x 2" block between the bottom of the frame and the top of the bolt-on bracket. Drop the bolt down through the frame, block, and bracket. Use conical toothed washers and nuts on the back side. A 9/16" heavy flat washer is supplied and may be used on top of the block between the frame and hitch if needed.
On short-bed trucks, remove the rearmost 8mm bolt holding the plastic heat shield to the bottom of the frame on the passenger side. Sandwich the tab of the plastic heat shield between the hitch and frame underneath on the passenger side. In some cases, you may need to trim the plastic gusset on the heat shield to allow it to stay in place. The shield remains in place between the frame and hitch bracket.
1. Lower spare tire. 2. Remove existing 14mm frame bolts and (if applicable) existing hitch and bumper bolts. 3. On short-bed trucks, remove the rearmost 8mm heat shield bolt. 4. On short-bed trucks, attach bolt-on brackets to side brackets. 5. Raise hitch into position over weldnuts. 6. On short-bed trucks, sandwich plastic heat shield between hitch and frame. 7. Install and torque rear 14mm bolts to 115 lb-ft. 8. Install and torque forward M14 bolts to 110 lb-ft. 9. Install and torque side frame rail M14 bolts to 115 lb-ft and 1/2" bolts to 75 lb-ft. 10. Raise spare tire back into place.
Trimming of the plastic gusset on the heat shield is required only in some cases. The manual states: "In some cases it may be necessary to trim plastic gusset on heat shield to allow shield to stay in place." Trim only if the shield does not remain in place between the frame and hitch bracket after installation.
A plastic cutting tool is supplied with the hitch for short-bed installations. Use this tool to trim the plastic gusset on the heat shield as needed to allow the shield to remain in place.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." Use only the supplied plastic cutting tool or appropriate hand tools.
The rear 14mm bolts (installed into the existing weldnuts in the truck bumper and frame rails) must be torqued to 115 lb-ft (156 N·m).
The forward M14 bolts (installed through the frame and hitch slots) must be torqued to 110 lb-ft (136 N·m).
The side frame rail M14 bolts must be torqued to 115 lb-ft (156 N·m).
All 1/2"-13 Grade 5 bolts must be tightened with a torque wrench to 75 lb-ft (102 N·m). These bolts are used on the supplied bar and side bracket.
The 41950 hitch has two capacity ratings depending on the type of ball mount used: Weight Distributing hitch: maximum 17,000 lb GVWR and 1,700 lb tongue weight; Weight Carrying Ball Mount: maximum 15,000 lb GVWR and 1,700 lb tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch capacity.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Support the vehicle safely before working underneath. Ensure the spare tire is properly lowered and raised to avoid injury.
After installation, verify that all fasteners are properly tightened to the specified torque values. Check that the hitch is securely positioned and that the spare tire is properly raised back into place. Ensure the plastic heat shield (on short-bed trucks) is in place between the frame and hitch bracket.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but recommends regular inspection as part of vehicle maintenance.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle from corrosion and damage.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Yes, the 41950 fits both GMC Sierra and Chevrolet Silverado 2500 & 3500 HD pickups. Installation differs by bed length: short-bed trucks require bolt-on brackets and heat shield modification; long-bed trucks do not use bolt-on brackets.
You need wrenches (13mm, 21mm, 22mm, 3/4", 7/8"), a torque wrench, and a plastic cutting tool (for short-bed heat shield trimming). No drilling is required.
Yes, lower the spare tire from underneath the truck before installation for access, then raise it back into place after installation is complete.
Rear 14mm bolts: 115 lb-ft (156 N·m); forward M14 bolts: 110 lb-ft (136 N·m); side frame rail M14 bolts: 115 lb-ft (156 N·m); 1/2"-13 Grade 5 bolts: 75 lb-ft (102 N·m).
Wear eye protection, observe safety precautions when working beneath the vehicle, do not use a torch to cut holes, and check fasteners frequently after installation.
Trim the plastic gusset on the heat shield to allow it to remain in place. Use the supplied plastic cutting tool to carefully trim the area shown in Picture 1 of the manual. The shield should be sandwiched between the hitch and frame underneath on the passenger side.
Verify that all fasteners are properly tightened to the specified torque values: rear 14mm bolts to 115 lb-ft, forward M14 bolts to 110 lb-ft, side frame rail M14 bolts to 115 lb-ft, and 1/2" bolts to 75 lb-ft. Use a torque wrench to re-tighten any bolts that are not at the correct torque. Check that the hitch is properly positioned over the weldnuts in the bumper and frame rails.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
