Trailer Hitch for 07-23 Toyota Sequoia, 07-21 Toyota TundraDraw-titeOriginal price was $335.00. Current price is $208.78.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2001 - 2007 Toyota Sequoia
Confirmed to Fit
2000 - 2006 Toyota Tundra
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

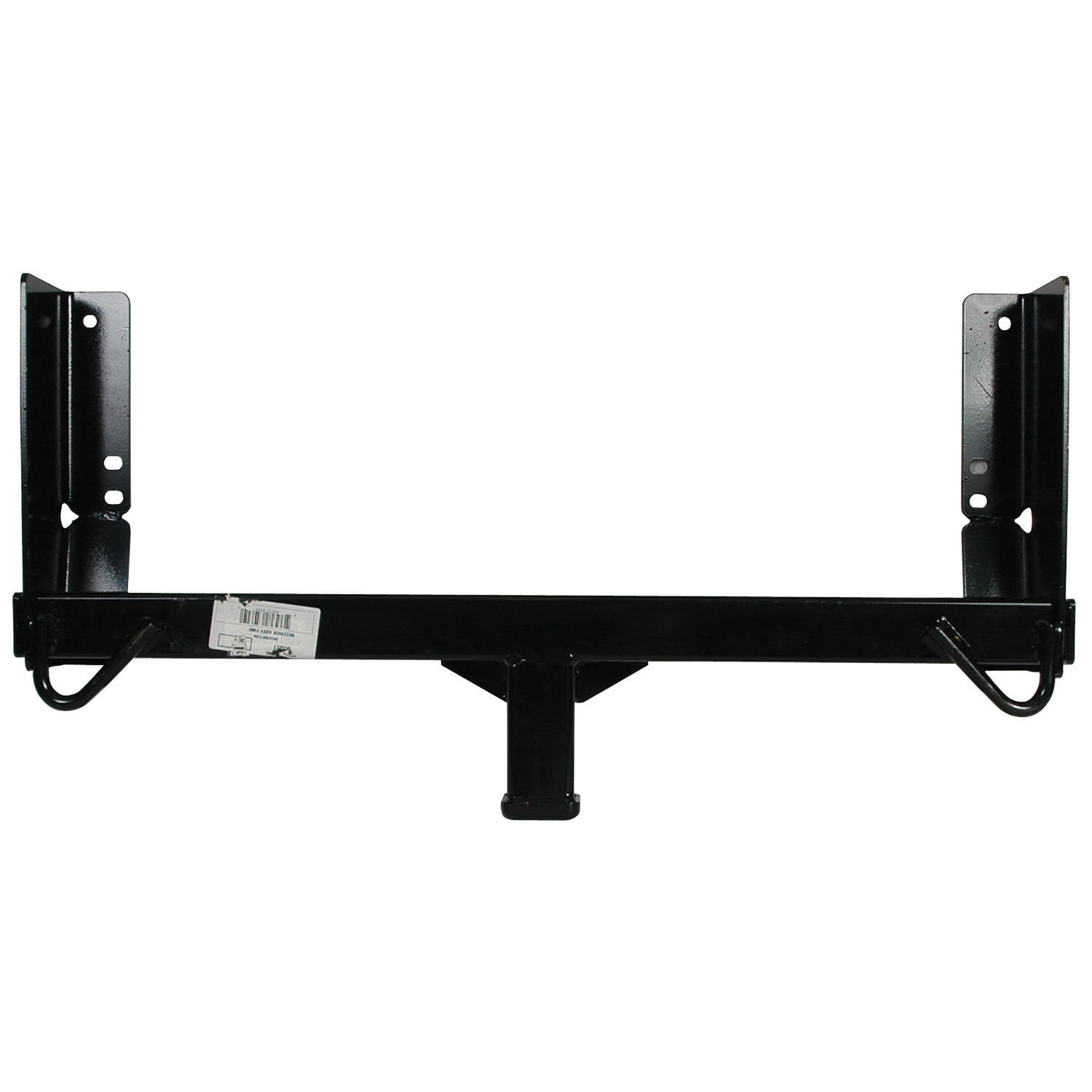

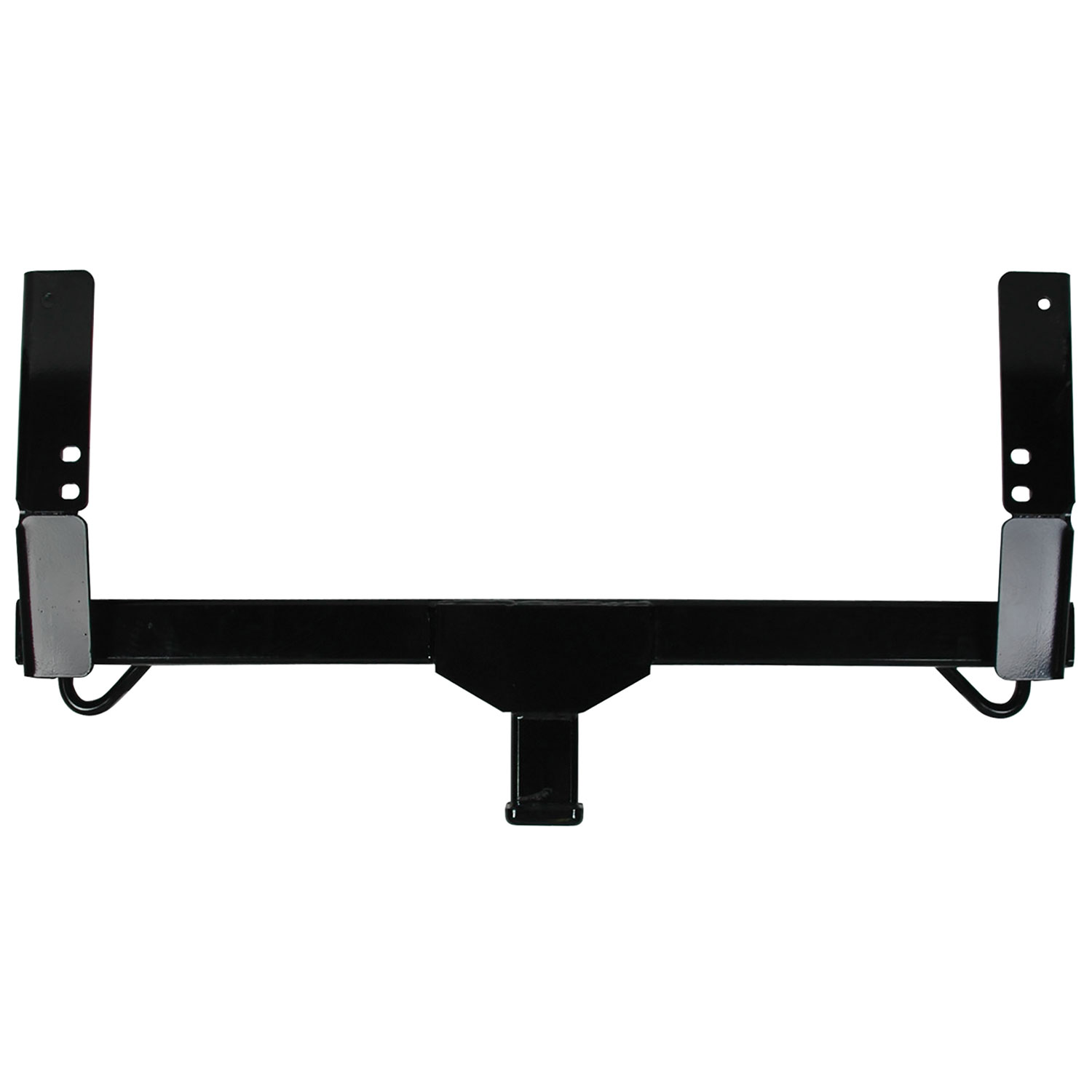

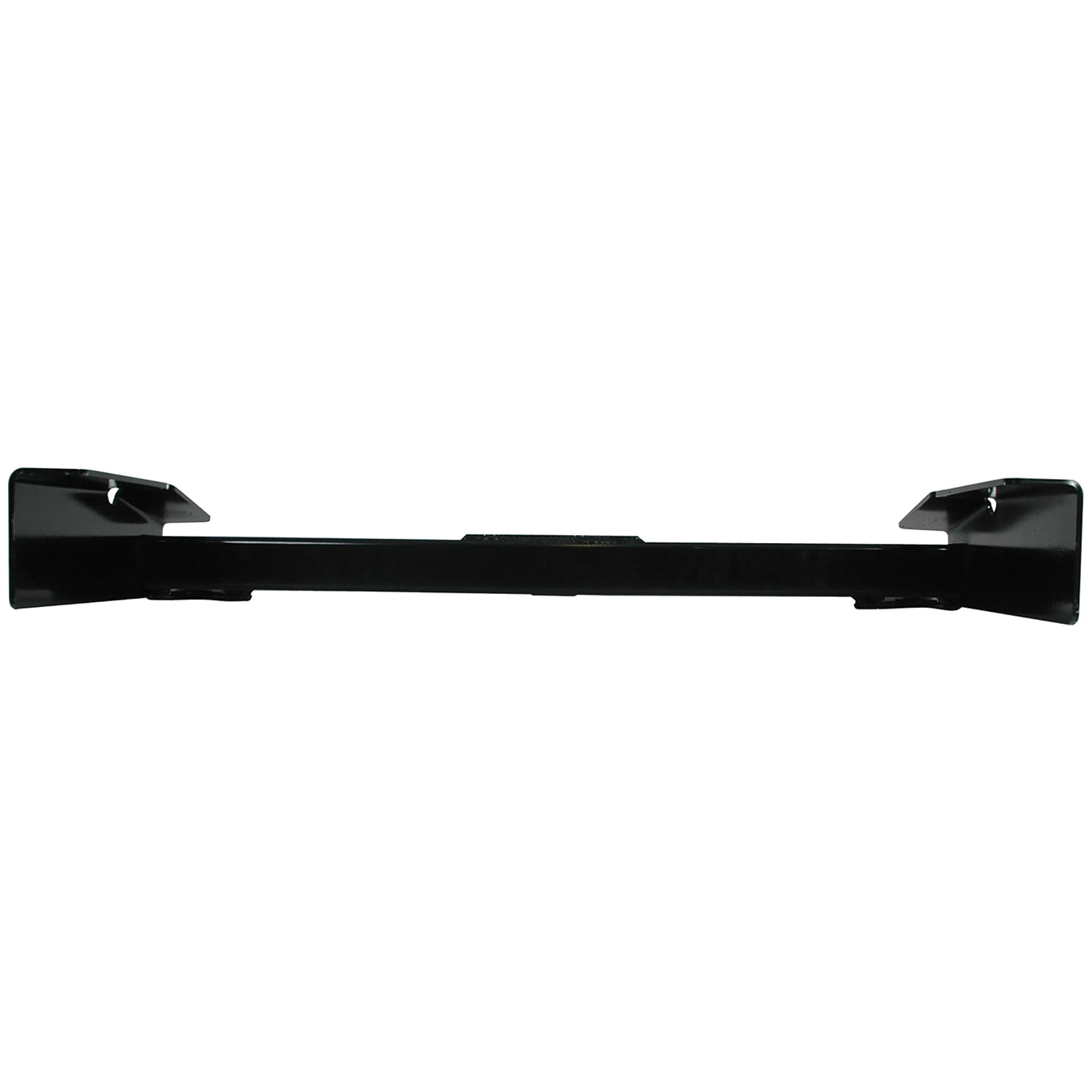

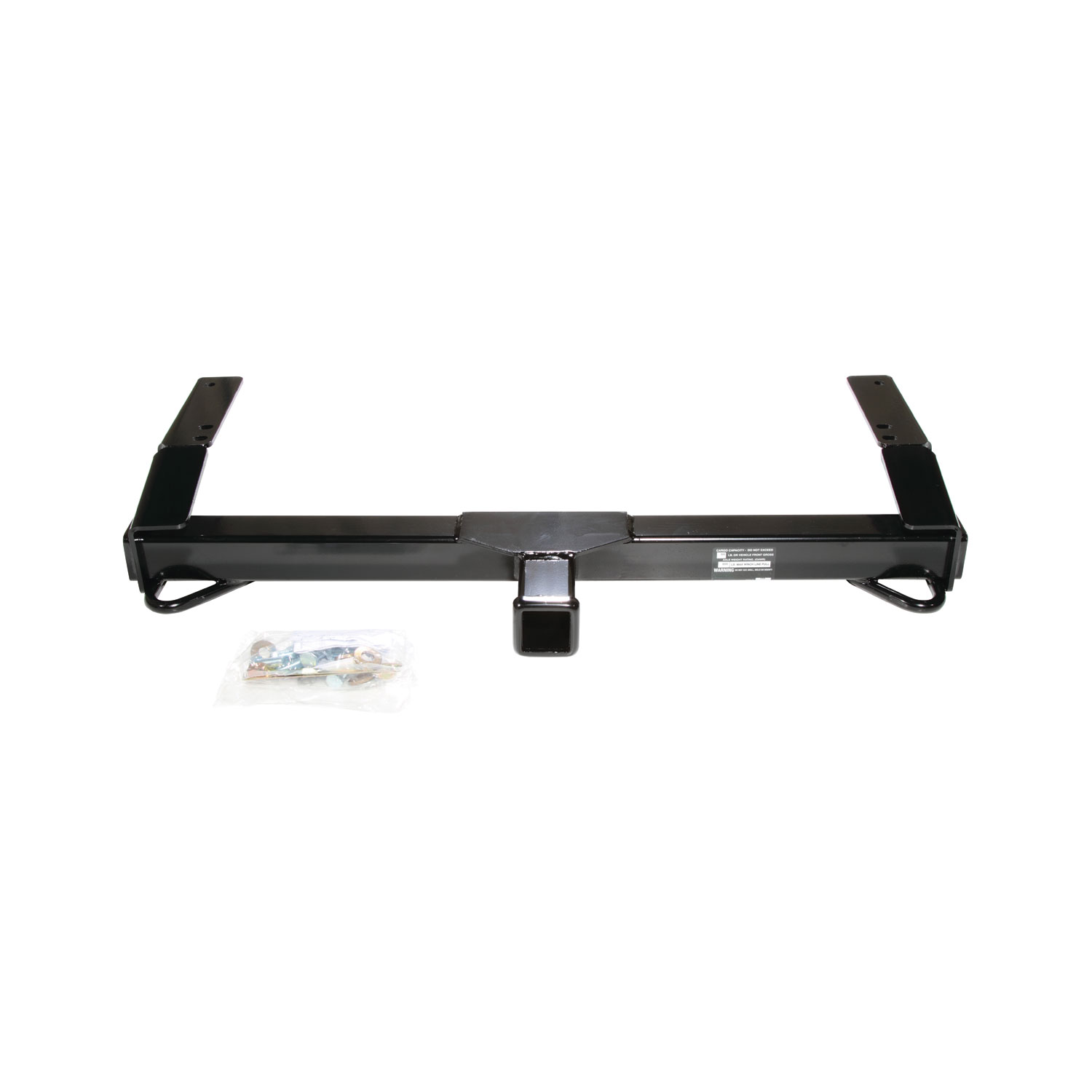

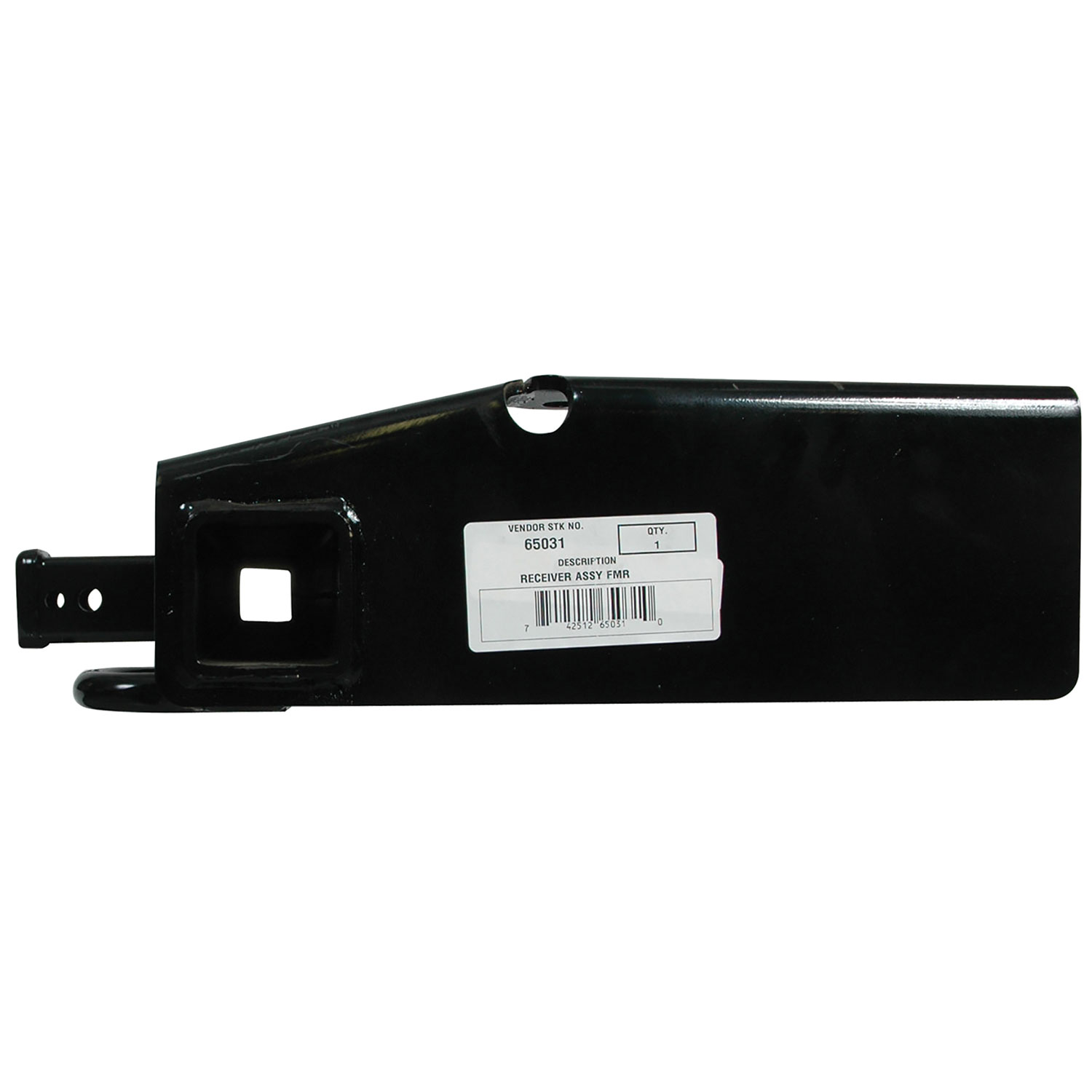

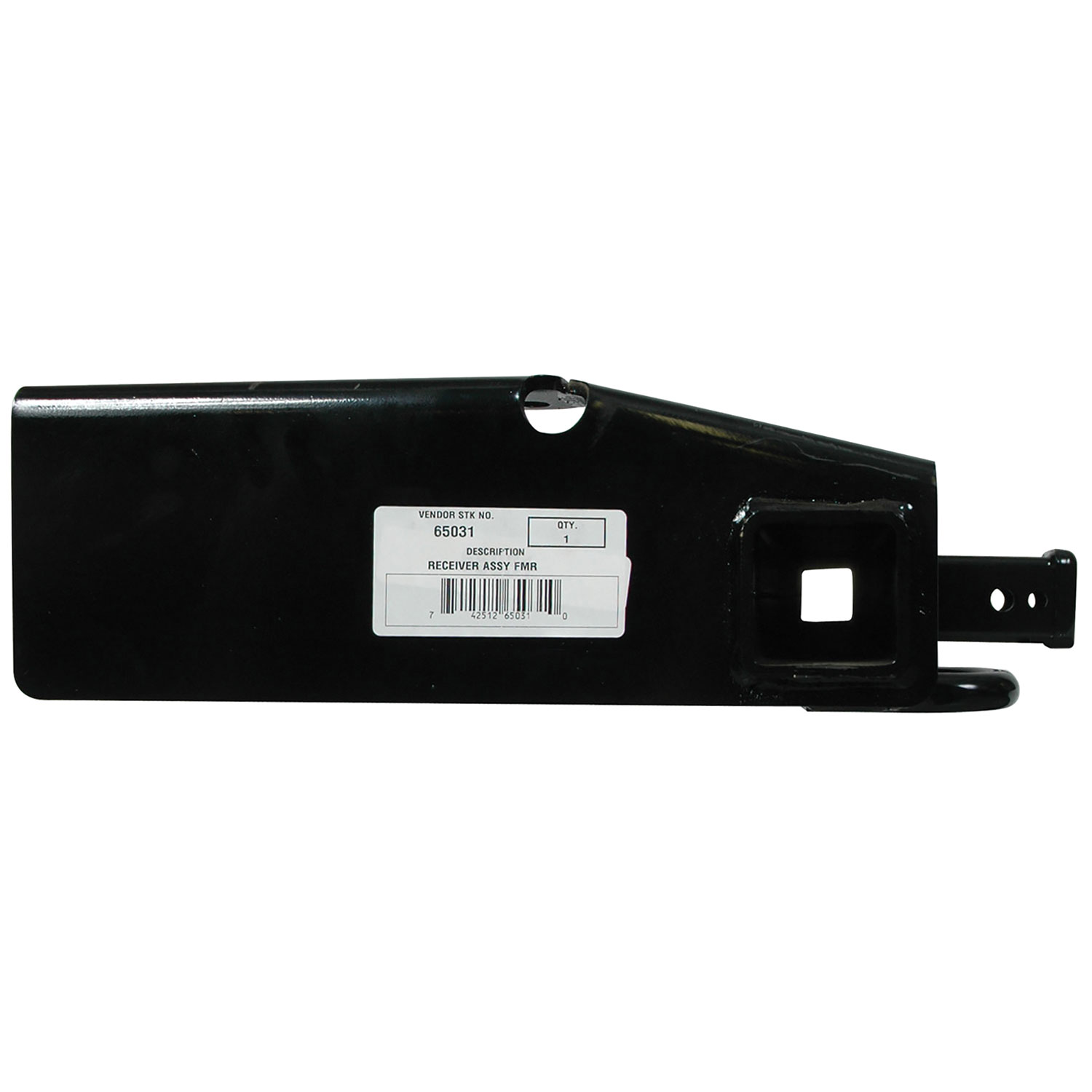

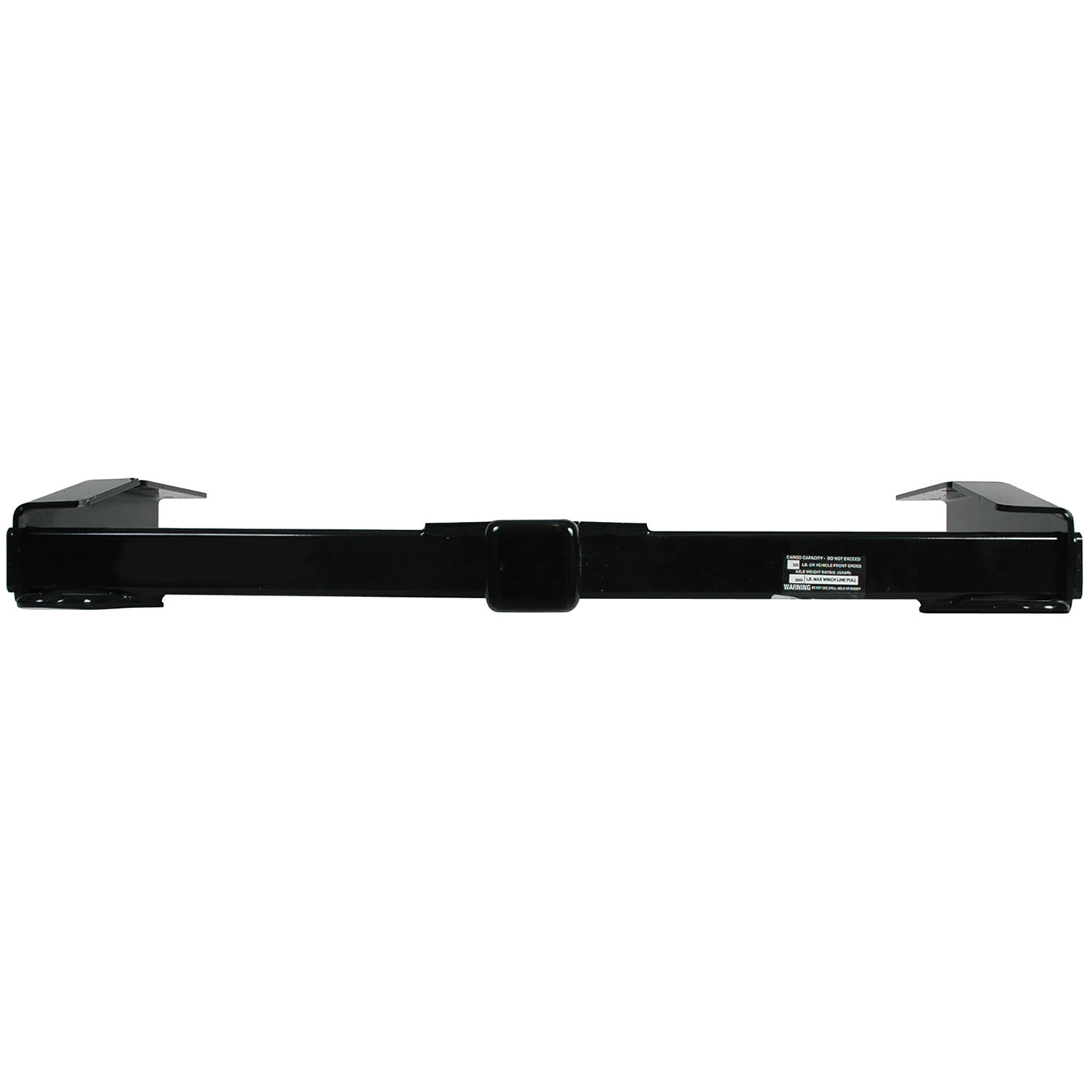

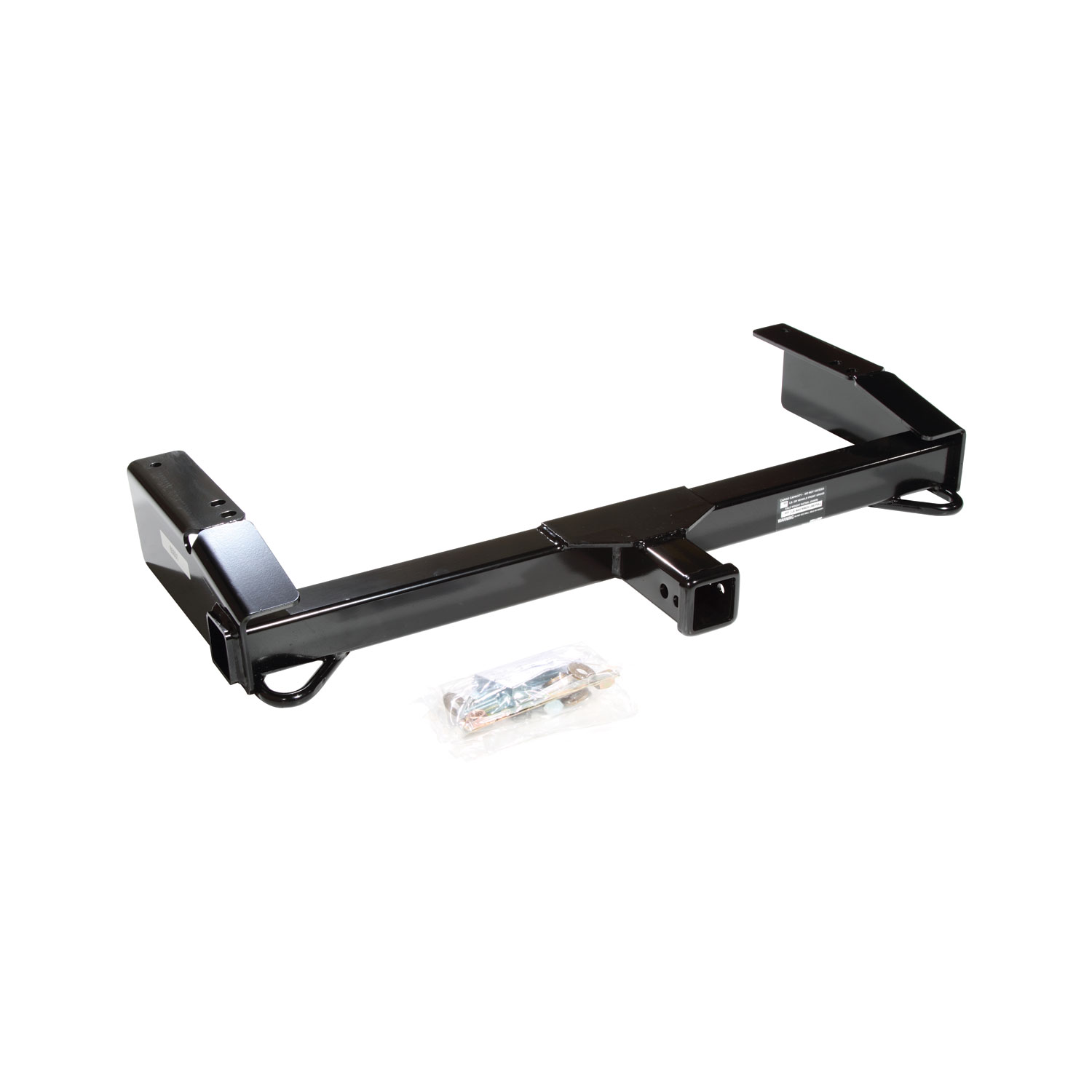

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65031 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 40.8 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2007 | Toyota Sequoia | Front Mount Receiver Drilling Required Install Time is 40 minutes |
| 2000 - 2006 | Toyota Tundra | Front Mount Receiver Drilling Required Install Time is 40 minutes |
Yes, the Trailer Hitch for 01-07 Toyota Sequoia, 00-06 Toyota Tundra (Part #DT65031) is designed to fit the 2001-2007 Toyota Sequoia.
The Trailer Hitch for 01-07 Toyota Sequoia, 00-06 Toyota Tundra (Part #DT65031) fits 2001-2007 Toyota Sequoia models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The Trailer Hitch for 01-07 Toyota Sequoia, 00-06 Toyota Tundra (Part #DT65031) fits the following vehicles: 2001-2007 Toyota Sequoia; 2000-2006 Toyota Tundra. Always verify your specific year, make, and model before ordering.
The Trailer Hitch for 01-07 Toyota Sequoia, 00-06 Toyota Tundra (Part #DT65031) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 65031 is designed for Toyota Tundra. It is also compatible with Toyota Sequoia. This is a front-mounted receiver that installs to the frame using existing weldnuts and two drilled holes.
Yes, part number 65031 is designed for Toyota Sequoia. It is also compatible with Toyota Tundra. This is a front-mounted receiver that installs to the frame using existing weldnuts and two drilled holes.
The maximum cargo capacity is 500 lb, or the vehicle front gross axle weight rating (GAWR), whichever is lower. Do not exceed this limit.
The maximum winch line pull is 9,000 lb.
The receiver requires a 5/8" pin and clip for the hitch ball connection.
The fastener kit F65031 includes: four M12 x 1.25 x 35 hex bolts (CL8.8), four 1/2" conical washers, two 1/2"-13 x 1-3/4" hex bolts (GR5), two 1/2" flat washers, two 1/2" lock washers, and two 1/2" handle nuts.
Required tools are: wrenches in 3/4", 18 mm, and 19 mm sizes; a 1/2" drill bit; and a torque wrench. Eye protection is also required.
Yes. Step 1 of the installation instructions requires you to remove the skid plates and tow hooks from the vehicle and return them to the customer.
Yes. Using the receiver as a template, you must drill two holes in the frame. A 1/2" drill bit is required. Do not use a torch to cut these holes.
Two 1/2" diameter holes must be drilled in the frame. Use the receiver as a template to locate them correctly.
Four M12 bolts are installed. These are M12 x 1.25 x 35 hex bolts (CL8.8 grade) that attach to existing weldnuts on the frame rail.
Two 1/2"-13 x 1-3/4" hex bolts (GR5 grade) are installed through handle nuts inserted into the frame access holes.
All M12 CL8.8 fasteners must be tightened to 68 Lb.-Ft (92 N-m) using a torque wrench.
All 1/2" GR5 fasteners must be tightened to 50 Lb.-Ft (68 N-m) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is required for safe operation.
The 65031 front-mounted receiver fits Toyota Tundra and Toyota Sequoia.
You need wrenches (3/4", 18 mm, 19 mm), a 1/2" drill bit, a torque wrench, and eye protection.
Yes, you must drill two 1/2" holes in the frame using the receiver as a template. Do not use a torch.
M12 bolts: 68 Lb.-Ft (92 N-m); 1/2" bolts: 50 Lb.-Ft (68 N-m). Use a torque wrench for both.
Maximum 500 lb or the vehicle front GAWR, whichever is lower. Maximum winch line pull is 9,000 lb.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch or modify the hitch. Check fasteners and ball frequently for tightness.
