Trailer Hitch for 09-10 Dodge Ram 1500, 11-21 RAM 1500Draw-titeOriginal price was $342.50. Current price is $233.49.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2002 - 2005 Dodge Ram 1500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

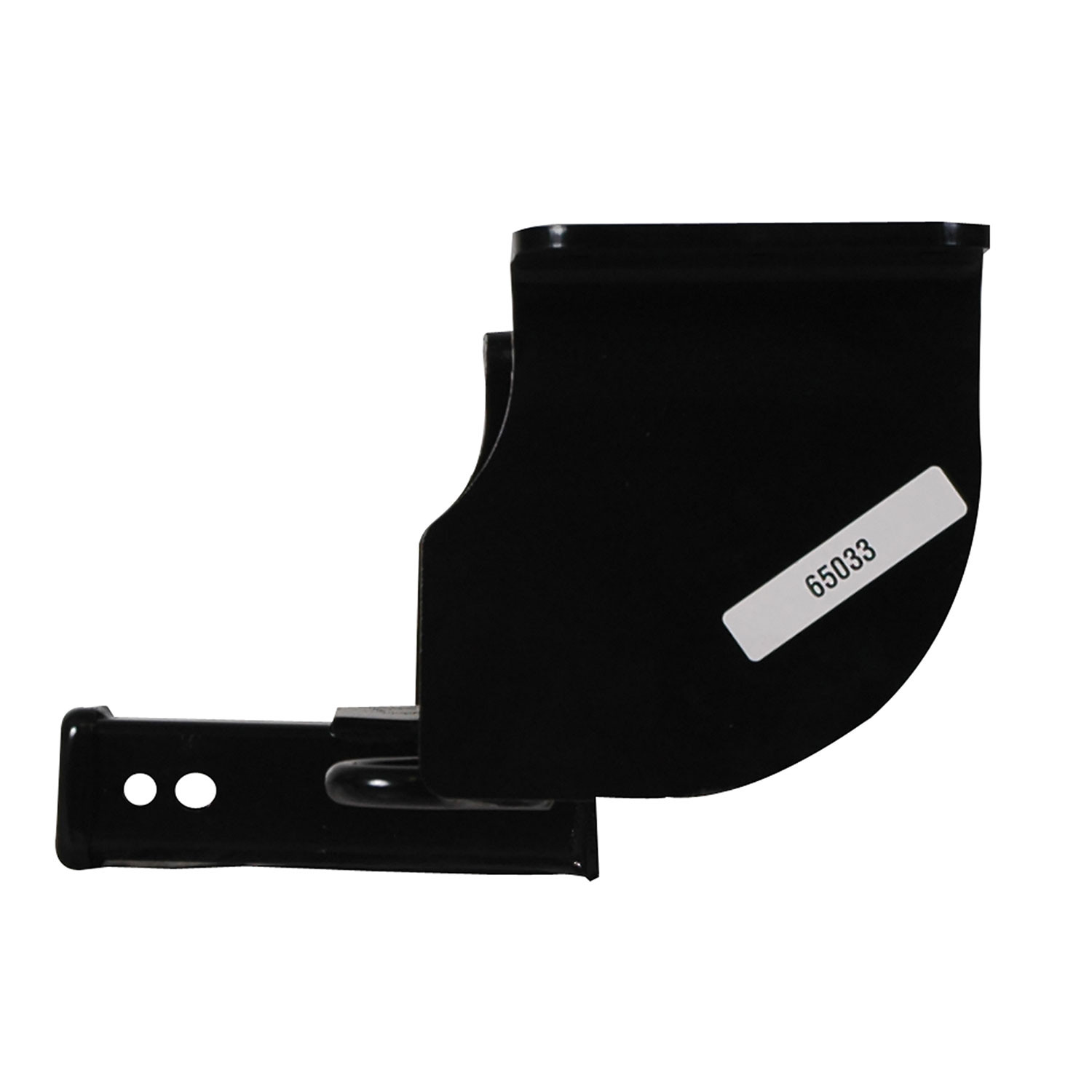

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65033 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 42.8 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2005 | Dodge Ram 1500 | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Trailer Hitch for 02-05 Dodge Ram 1500 (Part #DT65033) fits 2002-2005 Dodge Ram 1500 models. The 2005 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Trailer Hitch for 02-05 Dodge Ram 1500 (Part #DT65033) is designed to fit the 2002-2005 Dodge Ram 1500.
The Trailer Hitch for 02-05 Dodge Ram 1500 (Part #DT65033) fits the following vehicles: 2002-2005 Dodge Ram 1500. Always verify your specific year, make, and model before ordering.
The Trailer Hitch for 02-05 Dodge Ram 1500 (Part #DT65033) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the N65033 front mounted receiver is designed for the Dodge Ram 1500. However, the manual does not specify which model years are compatible. Contact the manufacturer or your dealer to confirm fitment for your specific year and cab/bed configuration.
The kit includes: 6 spacers (1" x 2" x 1/4"), 2 pull wires (1/2"), 6 lock washers (1/2"), 6 carriage bolts (1/2"-13 x 1-3/4"), and 6 hex nuts (1/2"). You will also need fastener kit F65033, which contains the remaining hardware required for installation.
You will need a 3/4" wrench and a torque wrench. No drill bits are required—no drilling is necessary for this installation. The pull wires needed to feed the carriage bolts through access holes are included in the kit.
No, drilling is not required. The installation uses existing access holes in the vehicle frame to feed the carriage bolts and spacers into position using the included pull wires.
All 1/2" GR5 fasteners must be tightened to 75 Lb.-Ft (102 N-m) using a torque wrench.
Do not exceed 500 lb of cargo capacity or the vehicle's front gross axle weight rating (GAWR), whichever is lower. The maximum winch line pull is 9000 lb.
1. Feed the carriage bolts and spacer blocks through the vehicle's access holes into position using the included pull wires. 2. Raise the receiver into position. 3. Install lock washers and hex nuts on all fasteners. 4. Tighten all 1/2" GR5 fasteners to 75 Lb.-Ft (102 N-m) using a torque wrench.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe operation.
You need fastener kit F65033, which contains the hardware required to complete the installation of the N65033 receiver.
Yes, the N65033 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the N65033 front mounted receiver is designed for the Dodge Ram 1500. Confirm your specific model year with the manufacturer.
No. The installation uses existing access holes and included pull wires to feed fasteners into position. No drilling is necessary.
You need a 3/4" wrench and a torque wrench. All other hardware, including pull wires, is included in the kit.
Tighten all 1/2" GR5 fasteners to 75 Lb.-Ft (102 N-m) using a torque wrench.
Do not exceed 500 lb cargo capacity or the vehicle's front GAWR. Maximum winch line pull is 9000 lb.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
