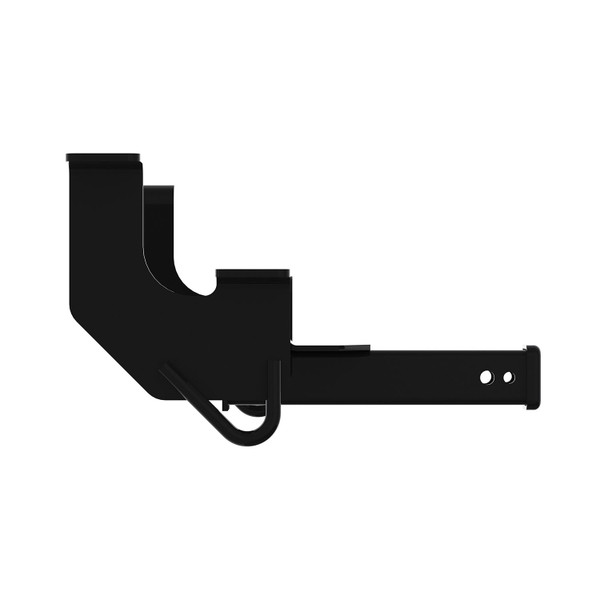

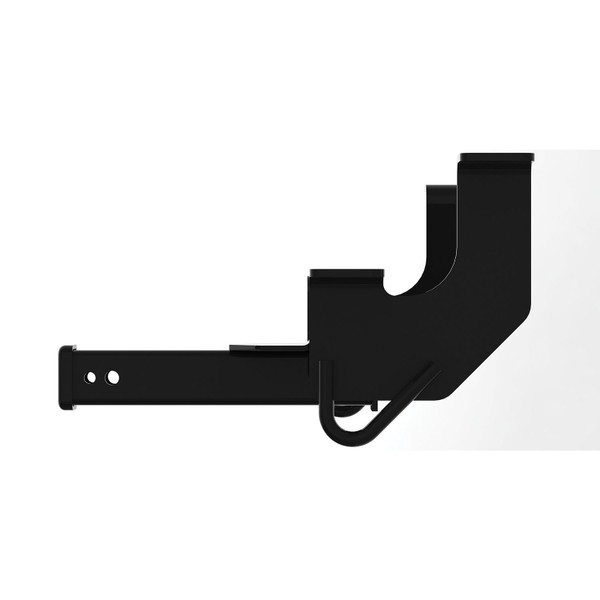

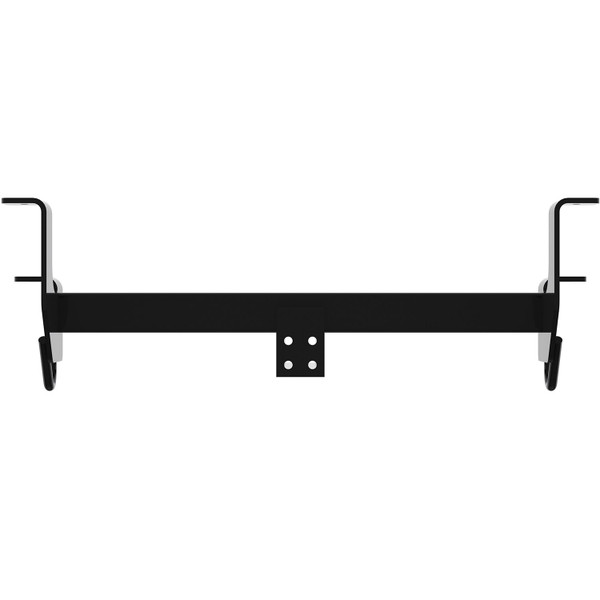

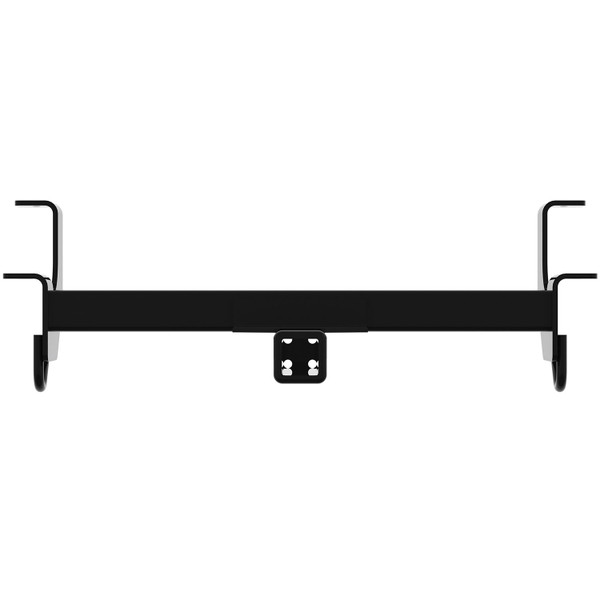

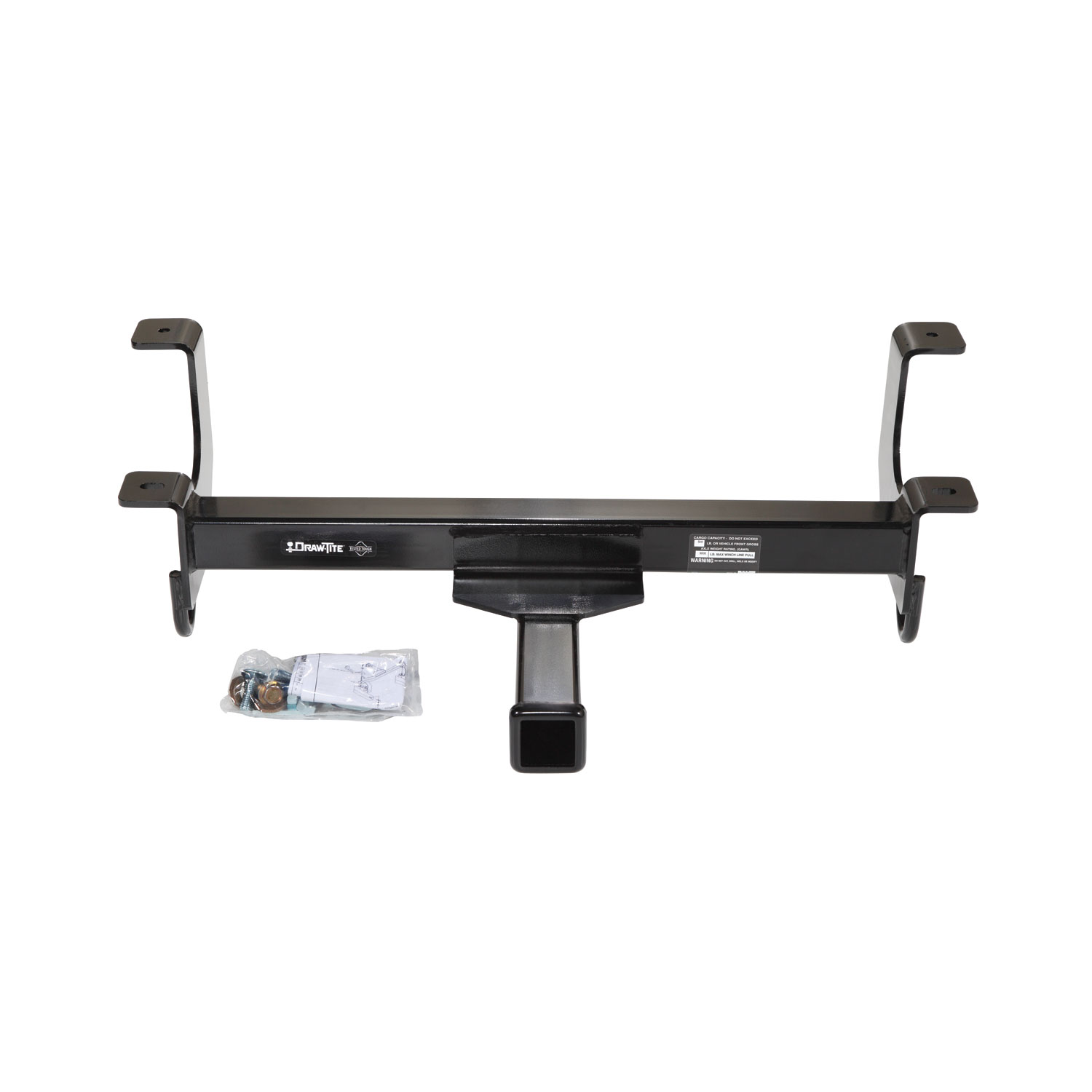

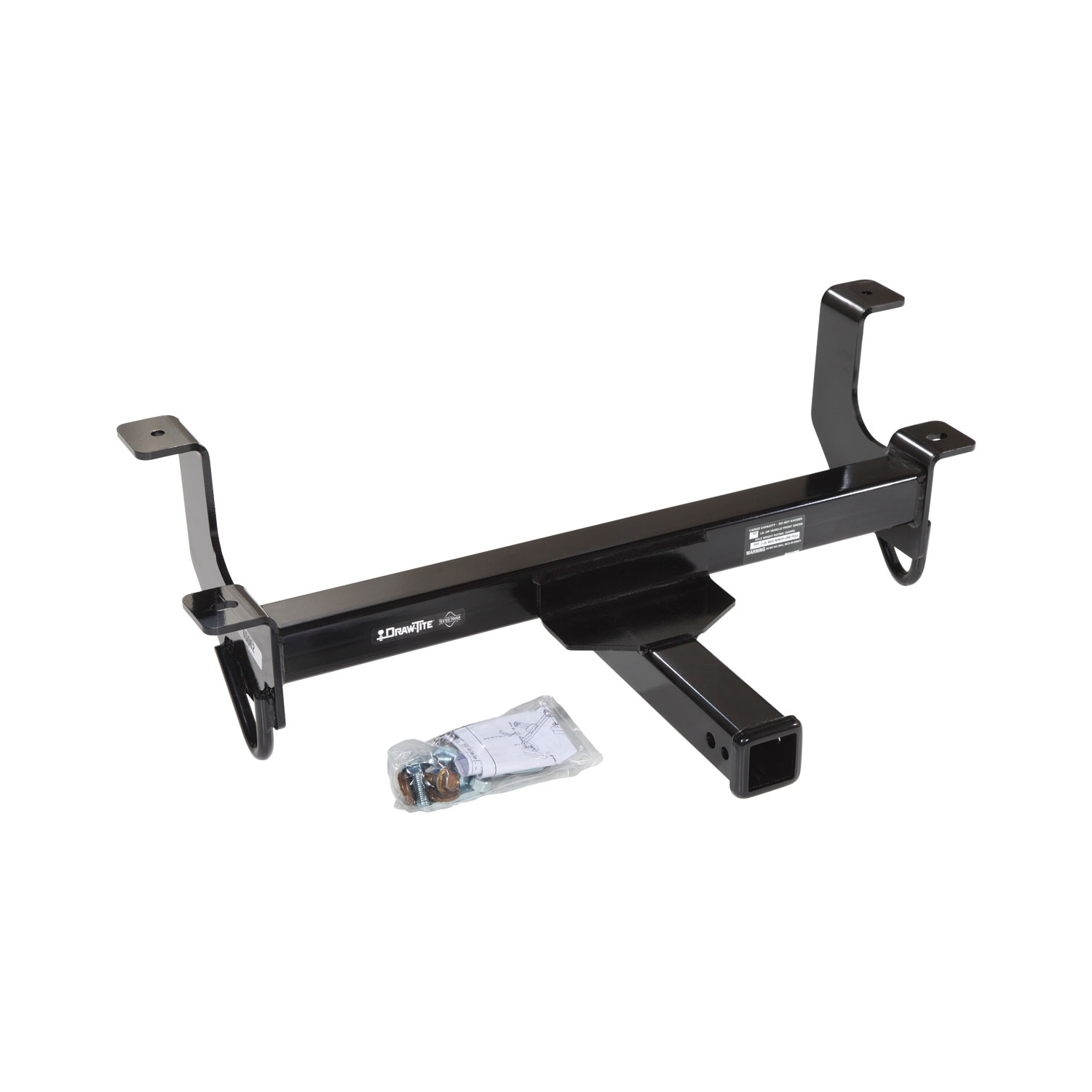

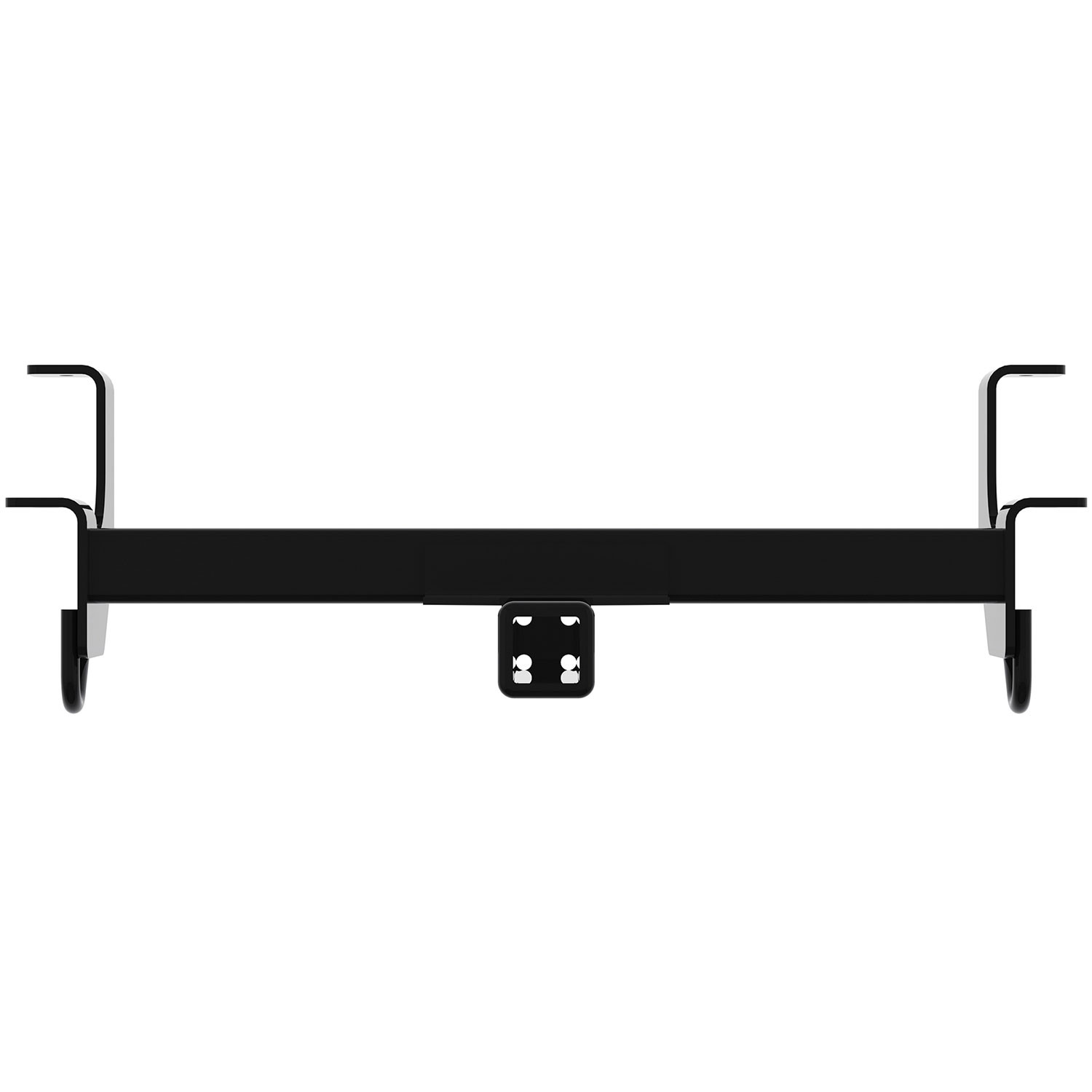

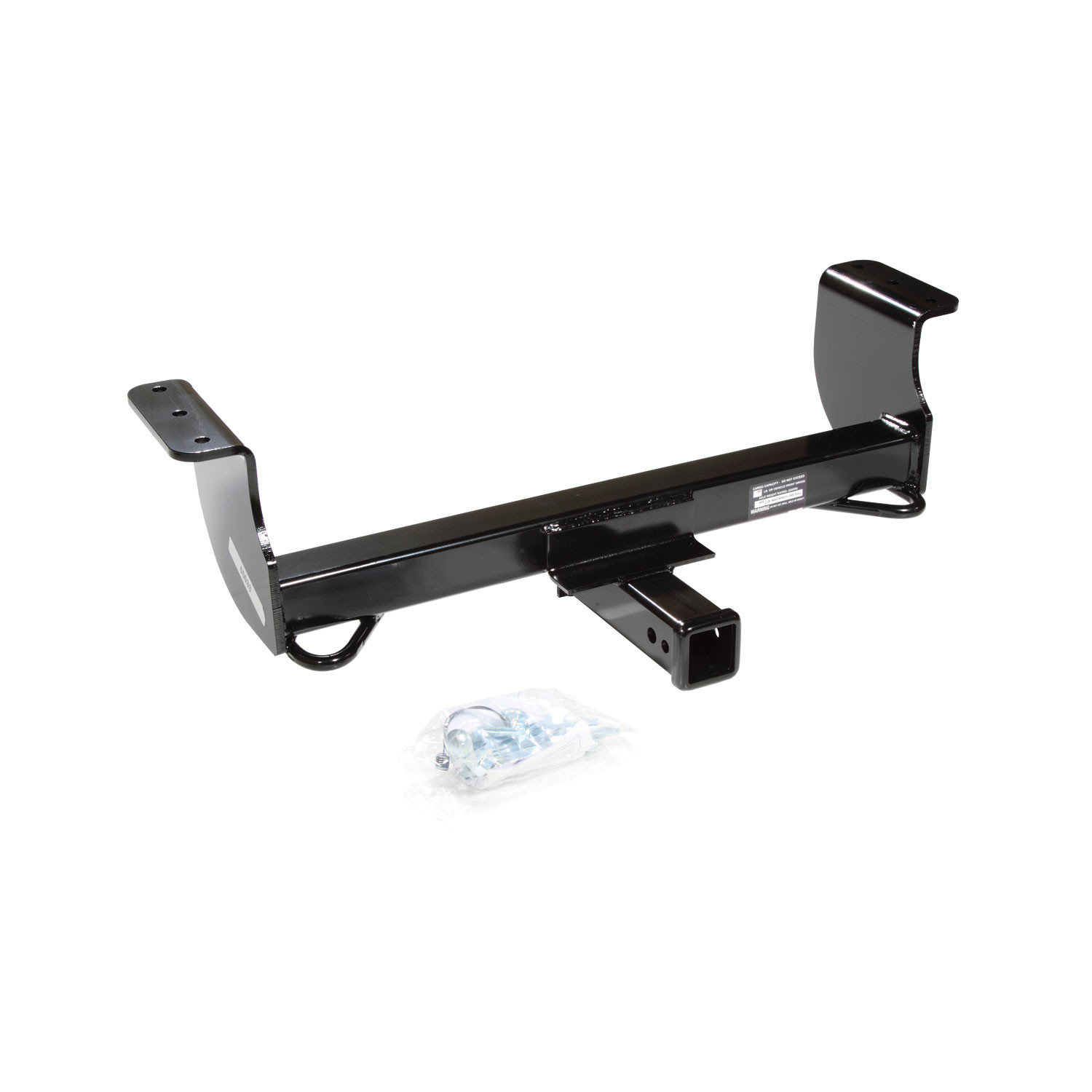

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65062 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 42.6 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2010 | Dodge Ram 1500 | Front Mount Receiver Drilling Required Install Time is 35 minutes |
| 2019 - 2021 | Ram 1500 | Front Mount Receiver Drilling Required Install Time is 35 minutes |
The Trailer Hitch for 09-10 Dodge Ram 1500, 11-21 RAM 1500 (Part #DT65062) fits the following vehicles: 2009-2010 Dodge Ram 1500; 2019-2021 Ram 1500. Always verify your specific year, make, and model before ordering.
The Trailer Hitch for 09-10 Dodge Ram 1500, 11-21 RAM 1500 (Part #DT65062) fits 2009-2010 Dodge Ram 1500 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Trailer Hitch for 09-10 Dodge Ram 1500, 11-21 RAM 1500 (Part #DT65062) is designed to fit the 2009-2010 Dodge Ram 1500.
The Trailer Hitch for 09-10 Dodge Ram 1500, 11-21 RAM 1500 (Part #DT65062) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 65062 is designed for both Dodge 1500 2WD and 4WD models.
Yes. If your truck is not equipped with tow hooks, skip the tow hook removal step and use the provided bolts for installation.
You will need: wrenches in 18mm and 7/8" sizes, a 1/2" drill bit (rotabroach recommended), a cutting tool for hard plastic fascia, and a torque wrench. A rotabroach drill bit is recommended for drilling the frame hole.

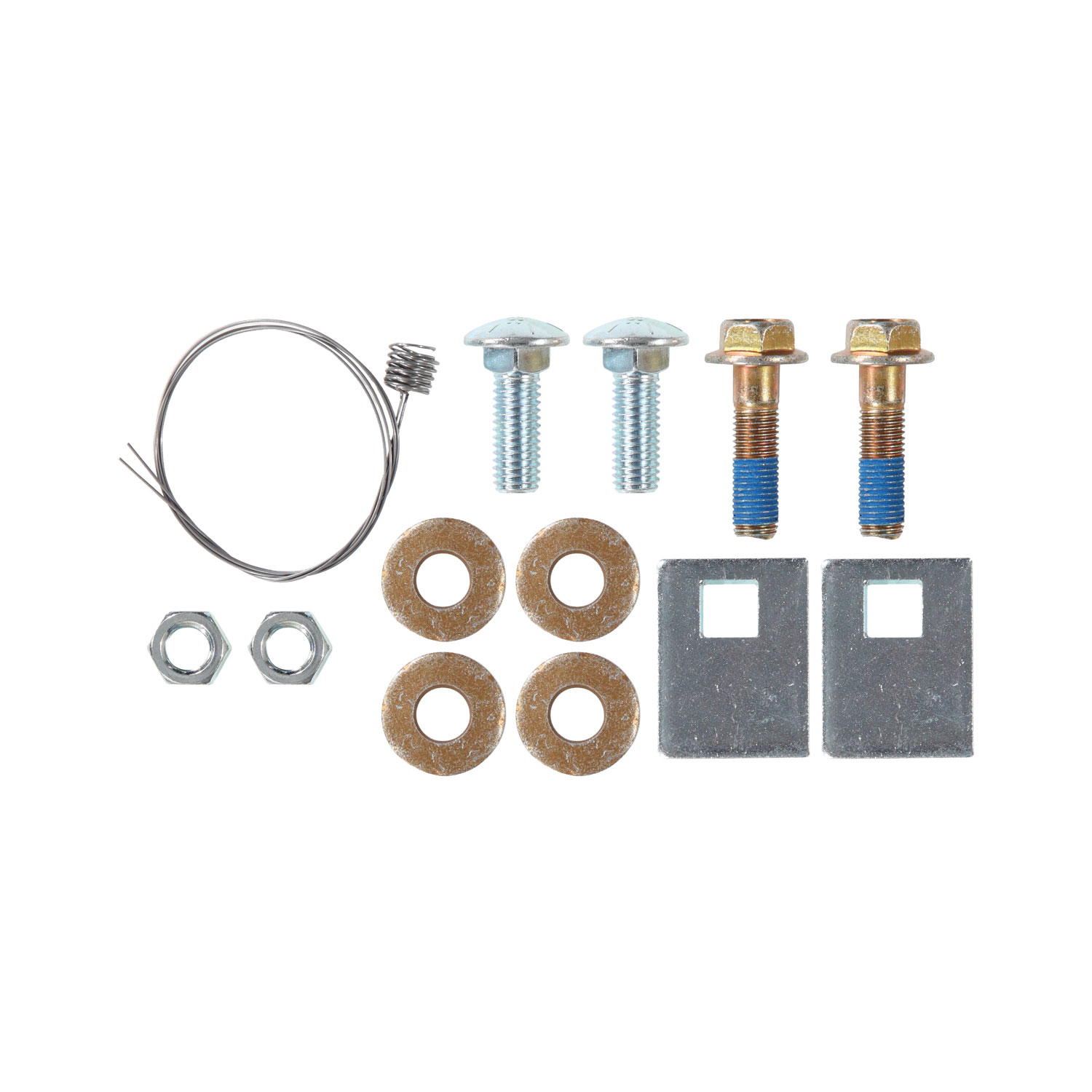

The hitch comes with: 2 hex bolts M12 × 1.50 × 45 CL 10.9, 4 conical washers 1/2", 2 carriage bolts 1/2" – 13 × 1-1/2" Gr5, 2 hex nuts 1/2", 2 blocks 1/4" × 1-1/2" × 2", and 2 bolt leaders 1/2". Additional fasteners are available in kit 65062F.
The manual does not specify whether bumper removal is required. You will need to loosen the factory tow hooks (if equipped) and cut the plastic fascia as shown in Figure 2, but the exact extent of bumper removal is not detailed in the instructions.
1. Cut the plastic fascia using the hitch as a reference (Figure 2). 2. Remove both 12mm factory bolts attaching tow hooks to the frame on both sides, and loosen the 12mm bolts attaching the tow hook to the bumper (skip if no tow hooks). 3. Slide the hitch between the frame and tow hook, then reinstall the tow hooks with the hitch in place. 4. Secure the front hitch mounts, then use the rear holes as a guide to drill a 1/2" hole into the frame. 5. Use 1/2" bolt leaders to pull 1/2" carriage bolts and spacer blocks through the existing holes and through the hitch. Ensure the square shoulders of the bolts are pulled into the blocks to engage with the frame sides. Install conical washers and hex nuts. 6. Torque all hardware to specification.
Yes. You must drill a 1/2" hole into the frame using the rear hitch mounting holes as a guide. A rotabroach drill bit is recommended for this operation.
Yes. Using the hitch as a reference, you must cut the plastic fascia as shown in Figure 2. A cutting tool for hard plastic fascia is required.
No. Do not cut access or attachment holes with a torch. Use appropriate cutting tools for the fascia and drilling equipment for frame holes.
All 1/2" fasteners (carriage bolts, conical washers, and hex nuts) must be tightened to 75 Lb.-Ft. using a torque wrench.
All 12mm fasteners (hex bolts M12 × 1.50 × 45 CL 10.9) must be tightened to 90 Lb.-Ft. using a torque wrench.
Do not exceed 500 LB. cargo capacity or the truck's front Gross Axle Weight Rating (GAWR), whichever is lower.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged hitch.
The 65062 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, part 65062 fits both Dodge 1500 2WD and 4WD models.
You need 18mm and 7/8" wrenches, a 1/2" drill bit (rotabroach recommended), a cutting tool for plastic fascia, and a torque wrench.
Tighten all 1/2" fasteners to 75 Lb.-Ft. and all 12mm fasteners to 90 Lb.-Ft. using a torque wrench.
Wear eye protection, do not use a torch to cut holes, and plug all frame holes if the hitch is removed to prevent water and exhaust fume entry.
