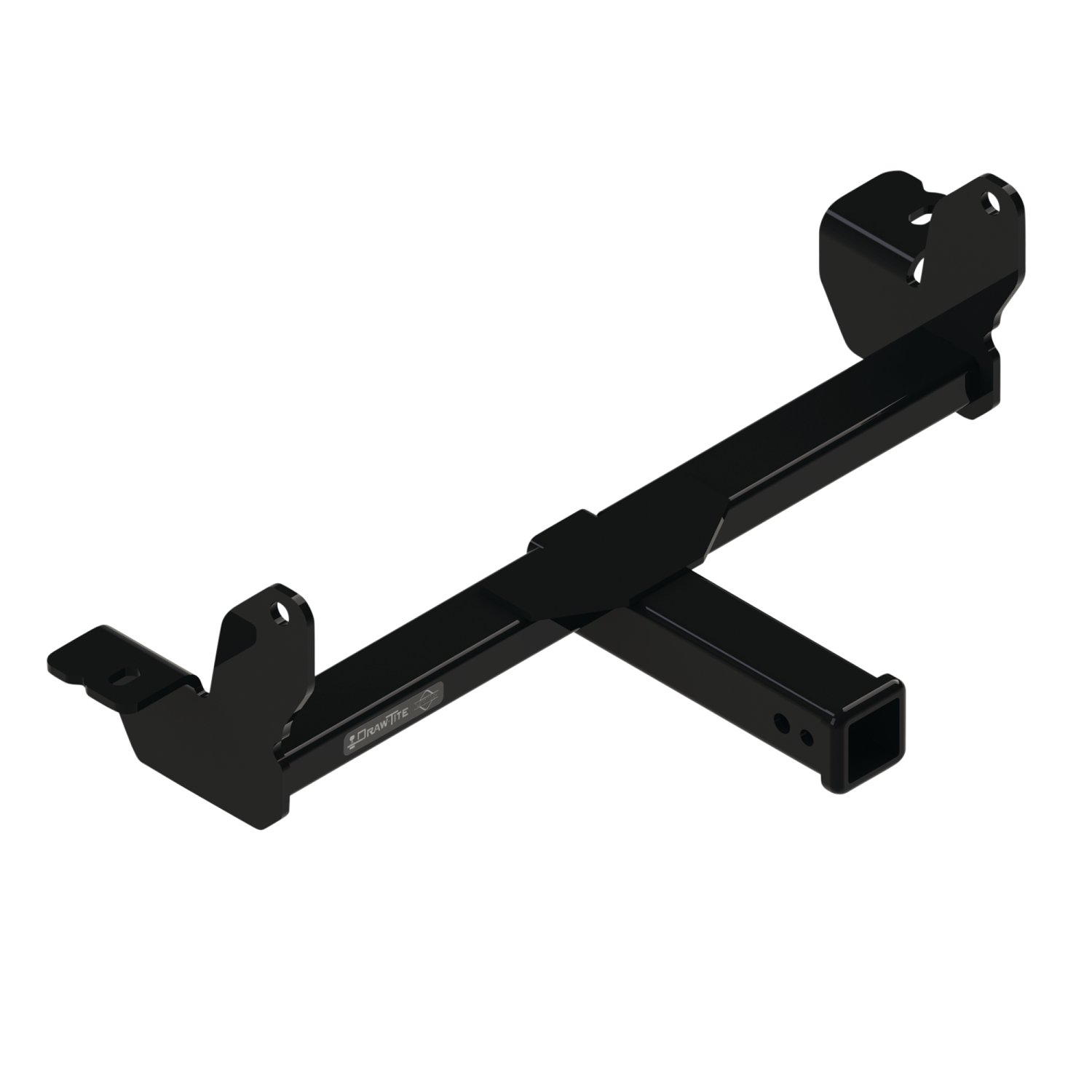

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65083 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30.35 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Chevrolet Silverado 2500 HD | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2020 - 2025 | Chevrolet Silverado 3500 HD | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2020 - 2024 | GMC Sierra 2500 HD | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2020 - 2024 | GMC Sierra 3500 HD | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Trailer Hitch for 20-23 Chevrolet Silverado 2500 HD, 20-23 Chevrolet Silverado 3500 HD, 20-23 GMC Sierra 2500 HD, 20-23 GMC Sierra 3500 HD (Part #DT65083) is designed to fit the 2020-2025 Chevrolet Silverado 2500 HD.
The Trailer Hitch for 20-23 Chevrolet Silverado 2500 HD, 20-23 Chevrolet Silverado 3500 HD, 20-23 GMC Sierra 2500 HD, 20-23 GMC Sierra 3500 HD (Part #DT65083) fits 2020-2025 Chevrolet Silverado 2500 HD models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Trailer Hitch for 20-23 Chevrolet Silverado 2500 HD, 20-23 Chevrolet Silverado 3500 HD, 20-23 GMC Sierra 2500 HD, 20-23 GMC Sierra 3500 HD (Part #DT65083) fits the following vehicles: 2020-2025 Chevrolet Silverado 2500 HD; 2020-2025 Chevrolet Silverado 3500 HD; 2020-2024 GMC Sierra 2500 HD; 2020-2024 GMC Sierra 3500 HD. Always verify your specific year, make, and model before ordering.
The Trailer Hitch for 20-23 Chevrolet Silverado 2500 HD, 20-23 Chevrolet Silverado 3500 HD, 20-23 GMC Sierra 2500 HD, 20-23 GMC Sierra 3500 HD (Part #DT65083) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 65083 and CQT65083 are designed for 2020-current Chevrolet 2500HD and 3500HD, as well as GMC 2500HD and 3500HD. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels.
Yes. Part numbers 65083 and CQT65083 are designed for 2020-current GMC 2500HD and 3500HD, as well as Chevrolet 2500HD and 3500HD. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels.
No. Part numbers 65083 and CQT65083 are designed for 2020-current Chevrolet and GMC 2500HD/3500HD models only. The manual does not list 2019 or earlier model years as compatible.
Required tools: 18mm socket, 18mm end wrench, 7/8" socket, torque wrench, ratchet, socket extensions, pry bar, tape measure, marker, utility knife, and safety glasses. A fastener kit (65083F) is included with the hitch.
No drilling is required. The hitch uses existing holes in the frame and tow hook mounting points. However, trimming of the lower air dam is required.
Yes. You must trim the lower plastic air dam with a notch 3-1/4" wide by 1" tall, centered on the vehicle. Use a tape measure, marker, and utility knife. You must obtain the vehicle owner's permission before trimming.
Tighten all M12 CL8.8 fasteners with a torque wrench to 68 Lb.-Ft. (92 N*M).
Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 Lb.-Ft. (102 N*M).
Do not exceed 500 lb. (227 kg) or the truck front Gross Axle Weight Rating (GAWR), whichever is lower.
The maximum winch line pull is 9,000 lb. (4086 kg). Do not exceed this rating.
Fastener kit 65083F includes: (2) M12-175 x 120mm CL8.8 bolts, (4) 1/2" conical washers (part no. 01292008), (2) 1/2"-13 x 2.00 Gr5 carriage bolts, (2) 1/4" x 1-1/2" x 3" spacer blocks (part no. 1171), (2) 3/16" x 1-1/2" x 2" spacer blocks, (2) 1/2"-13 GR2H hex nuts, and (2) 1/2" pull wires (part no. 5482).
No. All fasteners required for installation are included in fastener kit 65083F. The installation reuses the existing factory M12 flange nuts from the tow hooks.
No. You must remove the rearward M12 bolts and hex flange nuts holding the tow hooks (one per side). Do not remove the forward bolts. The hitch mounts through the rear mounting holes of the tow hooks using the existing factory M12 flange nuts.
The manual does not specify whether the battery must be disconnected. However, step 2 requires removing a wire clip holding the wire harness on the driver's side of the frame. Consult the vehicle manufacturer's instructions or a professional installer if you are uncertain about working near electrical components.
Follow these steps in order: (1) Remove rearward M12 bolts from tow hooks and save the factory flange nuts. (2) Remove the rearmost wire clip on the driver's side frame. (3) Feed the pull wire through the frame and attach carriage bolts and spacer blocks, pulling them into position. (4) Install 3/16" spacer blocks onto carriage bolts and secure with tape. (5) Trim the lower air dam with a 3-1/4" wide by 1" tall notch. (6) Raise the hitch and install M12 bolts with conical washers through the hitch into the tow hook rear mounting holes, then loosely install hex nuts and conical washers on carriage bolts. (7) Tighten 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M). (8) Tighten M12 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M).
Feed the coiled end of the pull wire (item 7) through the existing hole into the bottom of the frame and out of the end of the frame rail. Attach the 1/2" carriage bolt (item 3) and 1/4" thick spacer block (item 4) to the pull wire, then pull the fasteners into the end of the frame rails and into position on both sides. Ensure the spacer blocks sit flat inside the frame.
Two sizes of spacer blocks are used: 1/4" thick blocks (item 4) are attached to the pull wire to help position the carriage bolts inside the frame, and 3/16" thick blocks (item 5) are installed onto the carriage bolts and secured to the bottom of the frame with tape. The spacer blocks must sit flat against the bottom of the frame on both sides to ensure proper hitch alignment and support.
Locate the centerline of the vehicle. Using a tape measure, marker, and utility knife, cut a notch in the bottom of the lower plastic air dam 3-1/4" wide by 1" tall. You must obtain the vehicle owner's permission before trimming.
First, use a 7/8" socket to tighten the 1/2" hex nuts on the carriage bolts enough to secure the hitch and spacer blocks in position on both sides. Then tighten all fasteners to proper torque: 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M) and M12 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M).
Use a 7/8" socket to tighten the 1/2" hex nuts on the carriage bolts.
Use an 18mm socket and 18mm end wrench to remove the rearward M12 bolts and hex flange nuts holding the tow hooks.
Return the two M12 bolts to the vehicle owner. Save the two M12 flange nuts to be used for hitch installation.
No. Do not remove the forward bolts holding the tow hooks. Remove only the rearward M12 bolts and hex flange nuts (one per side).
The rearmost wire clip holding the wire harness located on the inside of the frame on the driver's side must be removed using a small pry tool. This allows clearance for the hitch installation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but recommends periodic checks to maintain security during towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. DO NOT apply your brakes and DO NOT speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability when towing.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Do not exceed the lower of the towing vehicle manufacturer's rating or 9,000 lb. (4086 kg) maximum winch line pull. Additionally, do not exceed 500 lb. (227 kg) cargo capacity or the truck front Gross Axle Weight Rating (GAWR).
No. Do not cut, weld, or modify the receiver hitch. Doing so may compromise its structural integrity and safety.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
Always wear safety glasses when installing the hitch. Also observe safety precautions when working beneath a vehicle and wear eye protection.
Yes. You must obtain the vehicle owner's permission before trimming the lower air dam.
Use a utility knife to cut the notch in the lower plastic air dam. You will also need a tape measure and marker to locate and mark the 3-1/4" wide by 1" tall notch centered on the vehicle.
No. Do not cut access or attachment holes with a torch. Use a utility knife instead.
The average installation time is 30 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Horizon Global provides a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are returned for inspection and testing, the defect is not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com to make a warranty claim.
Contact Horizon Global Technical Assistance at 1-800-632-3290 or TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com or scan the QR code in the manual for step-by-step photo installation instructions.
The manual lists part numbers 65083 and CQT65083 as compatible with 2020-current Chevrolet and GMC 2500HD/3500HD. For the most up-to-date information regarding application years and specific trim levels, visit the manufacturer's website at www.horizonglobal.com.
The conical washers (item 2) should be installed with the teeth side against the hitch. Use conical washers with both the M12 bolts and the 1/2" carriage bolts.
Install the 3/16" thick spacer blocks (item 5) onto the carriage bolts and secure them to the bottom of the frame with tape on both sides. Ensure the spacer blocks are flat against the bottom of the frame.
Loosely install means to thread the fasteners by hand or with minimal tightening, without applying final torque. For part number 65083, loosely install the factory M12 flange nuts onto the M12 bolts and the 1/2" hex nuts onto the carriage bolts. Then use a 7/8" socket to tighten the 1/2" hex nuts enough to secure the hitch and spacer blocks in position before applying final torque specifications.
Check all fasteners to ensure they are tight. Retighten the 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M) and the M12 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened, as proper torque is needed to keep the hitch secure to the vehicle when towing.
Ensure the spacer blocks are positioned correctly. For the 1/4" blocks (item 4) during step 3, verify they are sitting flat inside the frame as you pull the fasteners into position. For the 3/16" blocks (item 5) during step 4, ensure they are flat against the bottom of the frame on both sides before securing with tape. If blocks are not seating properly, check that the pull wire is feeding the fasteners straight and that the frame is not bent or obstructed.
