Trailer Hitch for 19-23 RAM 1500 Except with Factory Tow HooksDraw-titeOriginal price was $342.50. Current price is $236.74.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2019 - 2024 Ram Model 30-B
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

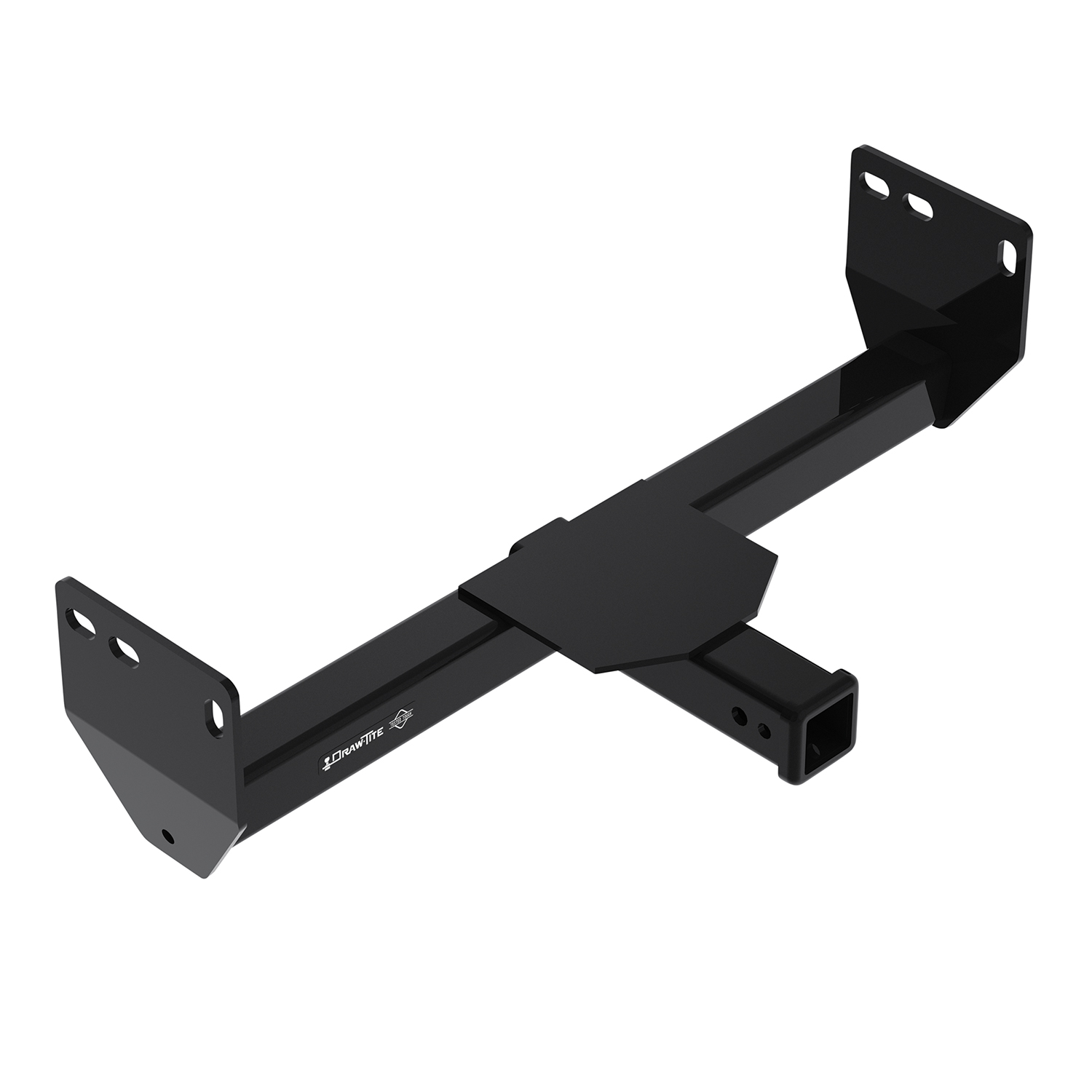

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65084 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 38.45 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Ram Model 30-B | Front Mount Receiver Drilling Required Install Time is 40 minutes Except Diesel Engine |
The Trailer Hitch for 19-23 RAM 2500/ 3500/ 4500/5500, Except Diesel Engine Except Diesel (Part #DT65084) fits the following vehicles: 2019-2024 Ram Model 30-B. Always verify your specific year, make, and model before ordering.
Yes, the Trailer Hitch for 19-23 RAM 2500/ 3500/ 4500/5500, Except Diesel Engine Except Diesel (Part #DT65084) is designed to fit the 2019-2024 Ram Model 30-B.
The Trailer Hitch for 19-23 RAM 2500/ 3500/ 4500/5500, Except Diesel Engine Except Diesel (Part #DT65084) fits 2019-2024 Ram Model 30-B models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Trailer Hitch for 19-23 RAM 2500/ 3500/ 4500/5500, Except Diesel Engine Except Diesel (Part #DT65084) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the 65084 hitch is designed for RAM 2500HD, 2020-current. For the most up-to-date information regarding specific application years and trim levels, visit the Horizon Global website.
The 65084 hitch is designed for RAM 2500HD, 2020-current. The manual recommends visiting the Horizon Global website at www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, as this may change.
Do not exceed the lower of your towing vehicle manufacturer's rating or 9,000 lb (4086 Kg) maximum winch line pull. Cargo capacity is limited to 500 LB (227 Kg) or truck front Gross Axle Weight Rating (GAWR), whichever is lower.
Fastener kit 65084F includes: (4) M14 x 2.00 x 120 CL8.8 bolts, (4) M14 x 2.00 CL8 nuts, (4) 1/2" conical washers, (12) 9/16" flat washers, (2) M12 x 1.75 x 120 CL8.8 bolts, (4) 9/16" lock washers, and (2) M12 x 1.75 CL8 nuts.
Required tools: 24mm, 22mm, 19mm, and 18mm sockets and open-end wrenches, ratchet, torque wrench, socket extensions, safety glasses, marker, tape measure, and utility knife.
No. All fasteners are included in the fastener kit 65084F, which comes with the hitch. The kit includes M14 and M12 bolts, nuts, conical washers, flat washers, and lock washers.
Yes. The installation requires trimming of the lower fascia. The center section of the fascia opening must be completely removed and discarded, and a 3" x 3" square must be trimmed below center. Obtain owner permission before trimming.
Using a utility knife, trim the center section of the fascia opening completely and discard it. Then trim a 3" x 3" square below center. See Figure 2 in the manual for the exact location. Obtain owner permission before trimming.
Remove (2) M16 factory bolts from the vehicle frame on both sides using a 24mm socket and open-end wrench. Also remove (1) M12 factory bolt from the vehicle chassis on both sides using an 18mm socket and open-end wrench. Return all factory bolts to the vehicle owner.
Once the (2) M16 factory bolts are removed, the bracket could separate from the vehicle frame. If the bracket becomes loose, remove it completely from the vehicle frame until you are ready to install the hitch.
1. Remove factory bolts (2 M16 from frame, 1 M12 from chassis, both sides). 2. Trim lower fascia (center section and 3" x 3" square below center). 3. Raise hitch and loosely secure at forward holes with M12 bolts, conical washers, and M12 nuts; install M14 bolts, flat washers, lock washers, and M14 nuts. 4. Tighten all fasteners to specification.
Fasteners should be left loose initially. In step 3, secure the hitch loosely at the forward holes with M12 bolts and nuts, and loosely install the M14 bolts with nuts. Only in step 4 are all fasteners tightened to their final torque specifications.
If there is a gap between the hitch bracket and the mounting surface, use one extra 9/16" flat washer on both M14 bolts. This is shown in Figure 1 of the manual.
Tighten all M14 CL8.8 fasteners to 100 Lb.-Ft (136 N·M) using a torque wrench.
Tighten all M12 CL8.8 fasteners to 68 Lb.-Ft (92 N·M) using a torque wrench.
Proper torque is needed to keep the hitch secure to the vehicle when towing. Insufficient torque can result in fastener loosening and hitch failure during use.
The conical washer must be installed with the teeth side against the hitch. This is shown in Figure 2 of the manual.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch.
The maximum winch line pull is 9,000 lb (4086 Kg). Do not exceed this rating or the lower of your towing vehicle manufacturer's rating.
Do not exceed 500 LB (227 Kg) or the truck front Gross Axle Weight Rating (GAWR), whichever is lower.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability when towing.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual recommends periodic inspection to ensure the hitch remains securely mounted to the vehicle.
After installation, verify that all fasteners are tight and the hitch is securely mounted to the vehicle. Check that the ball is properly tightened. Periodically re-check these items, especially before towing.
Check all fasteners periodically to ensure they remain tight and the hitch is securely mounted to the vehicle. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced.
No. Do not cut, weld, or modify the receiver. Doing so may compromise the structural integrity and safety of the hitch.
The 65084 hitch is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the instructions. For warranty claims, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product, purchase receipt, and model number.
Contact Horizon Global technical support at 1-800-632-3290 or email TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com for additional information. For step-by-step photo installation instructions, scan the QR code on the manual or visit http://qr.towingproducts.net/qrproducts/qr-product.
