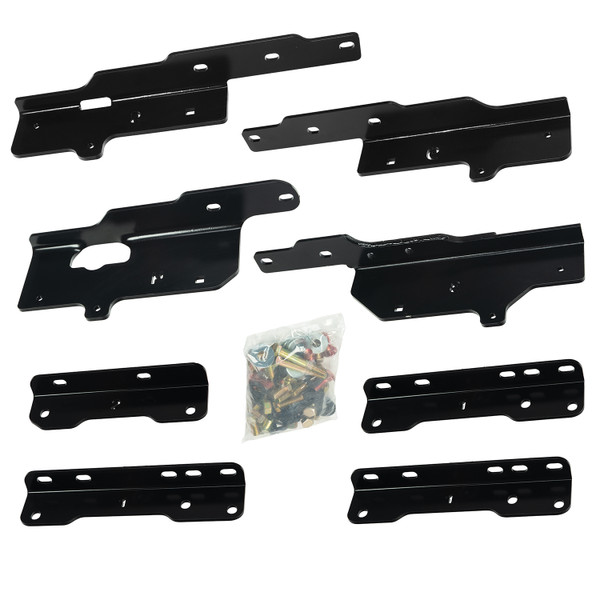

Draw-tite Gooseneck Rail Kit, Ford 4449Draw-titeOriginal price was $402.50. Current price is $390.37.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2017 - 2023 Ford F-250 Super Duty
Confirmed to Fit
2017 - 2023 Ford F-350 Super Duty
Confirmed to Fit
2017 - 2021 Ford F-450 Super Duty
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| BRAND: | DRAW-TITE |
| PART NUMBER: | 4494 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 110 LBS |
| GROSS TOWING WEIGHT: | 32,500 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| DRILLING REQUIRED: | YES |
| PIN WEIGHT CAPACITY: | 8,125 LBS. |
| WELDING REQUIRED: | NO |
| MATERIAL: | STEEL |
| MOUNTING HARDWARE INCLUDED: | YES |
| COLOR: | BLACK |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2023 | Ford F-250 Super Duty | Gooseneck Trailer Hitch Rail Kit Uses all existing holes. No Drilling required Install Time is 120 minutes Except Cab & Chassis |
| 2017 - 2023 | Ford F-350 Super Duty | Gooseneck Trailer Hitch Rail Kit Uses all existing holes. No Drilling required Install Time is 120 minutes Except Cab & Chassis |
| 2017 - 2021 | Ford F-450 Super Duty | Gooseneck Trailer Hitch Rail Kit Uses all existing holes. No Drilling required Install Time is 120 minutes Except Cab & Chassis |
The Draw-tite Gooseneck Rail Kit, Ford 4494 (Part #DT4494) fits 2017-2023 Ford F-250 Super Duty models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Gooseneck Rail Kit, Ford 4494 (Part #DT4494) fits the following vehicles: 2017-2023 Ford F-250 Super Duty; 2017-2023 Ford F-350 Super Duty; 2017-2021 Ford F-450 Super Duty. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Gooseneck Rail Kit, Ford 4494 (Part #DT4494) is designed to fit the 2017-2023 Ford F-250 Super Duty.
The Draw-tite Gooseneck Rail Kit, Ford 4494 (Part #DT4494) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 4494 kit is designed for Ford Super Duty F-250, F-350, and F-450 models. It must be used with a 9468 head only.
Required tools: wrenches (3/4", 13/16", 15/16", 10 mm, 13 mm), drill bits (3/16", 9/16", 3-1/2" hole saw), drill, torque wrench, center punch, and tapered alignment pin. Fastener kits 4494F and 58534 are also required.
Yes. You must lower the spare tire, lower the exhaust system by unbolting the rear hanger and loosening the two forward hangers, and lower the electrical and brake line hanger on the driver side. All must be restored to position after installation.
Yes. You must drill a 3-1/2" hole in the truck bed for the gooseneck ball using the dimple in the center flat spot as a guide. You must also drill four pilot holes with a 3/16" bit and enlarge them to 11/16" for the safety chain U-bolts. All drilled holes must be touched up with paint.
Center section carriage bolts (4) 5/8-11 x 2.00 GR.8: 212 ft-lbs. Center section hex bolts (7) 5/8-11 x 2.00 GR.8: 212 ft-lbs. Rail hex bolts (8) 5/8-11 x 1.50 GR.8: 150 ft-lbs. Mounting bracket bolts (4) 5/8-11 x 4.250 GR.8: 212 ft-lbs. Tighten in the order specified in the manual.
Always ensure the ball is fully locked before towing. Check the ball, hitch coupler, safety chains, and other connections for proper operation every time you tow. Keep the ball and ball sleeve well lubricated. Periodically check and re-torque all hitch fasteners.
Keep the ball and ball sleeve well lubricated. Periodically check and re-torque all hitch fasteners to the specified torque values. Check the ball, hitch coupler, safety chains, and other connections for proper operation every time you tow.
The 4494 is a gooseneck hitch mounting kit manufactured by Horizon Global for Ford Super Duty F-250, F-350, and F-450 trucks. It provides a frame-mounted system to attach a gooseneck trailer ball and safety chain assembly to the truck bed. The kit includes frame brackets, mounting rails, a gooseneck center section, ball, U-bolts, and all required fasteners.
The 4494 kit can be used with a 9468 head only. It is not compatible with other gooseneck head models.
Yes. Some trucks are equipped from the factory with frame brackets that are welded to the inside of the frame. If your truck has these inside frame brackets, you do not need to install the inside frame brackets provided with the 4494 kit. You should still install the outside frame brackets as instructed.
Yes. Before installing the hitch, check for adequate clearance between the gooseneck trailer and the rear of the cab and the rear of the truck box. Additionally, all trucks have fuel lines, brake lines, and electrical wiring located along the vehicle frame where the kit installs. Carefully examine the location of these systems before installation to ensure they are not damaged when positioning hitch components.
The kit includes: (4) 5/8-11 x 4.25 GR.8 hex head bolts for frame brackets, (4) 5/8" flat washers, (4) 5/8" conical washers, (4) 5/8-11 GR.8 hex nuts for frame brackets, (4) 5/8-11 x 1.50 GR.8 carriage bolts for center section, (8) 5/8-11 x 1.25 GR.8 hex head bolts for rails, (8) 5/8" conical washers for rails, (7) 5/8-11 x 2.00 GR.8 hex bolts for center section, (7) 5/8" flat washers, (7) 5/8" conical washers, (7) 5/8-11 GR.8 hex nuts, (2) 5/8-18 x 4.50 U-bolts, (4) compression springs, (4) 5/8" conical washers for U-bolts, and (4) 5/8-18 lock nuts. Additional fastener kits 4494F and 58534 are required.
The kit includes a 1" Hi-Rise 2-5/16" diameter Elite gooseneck ball. This ball is installed in the gooseneck sleeve after drilling the 3-1/2" hole in the truck bed.
The exhaust system must be lowered to provide clearance for positioning the frame brackets and mounting rails underneath the truck. The rear exhaust hanger bracket must be unbolted from the frame, and the two forward exhaust hanger brackets must be loosened. The exhaust is lowered from the rear of the catalytic converter only and must be supported as required. After installation is complete, the exhaust system is raised back into position and all bolts are re-tightened.
Yes. The manual notes that this step may require an extra set of hands because the gooseneck center section is very heavy and it will be difficult to hold the part in place while attaching the washers and nuts to secure it.
Install frame brackets loosely in this order: (1) One bracket on the outside and inside of the driver side using two 5/8-11 x 4.25 GR.8 bolts, two 5/8" flat washers, two 5/8" conical washers, and two 5/8-11 GR.8 nuts per bracket. Both driver-side brackets are #1 brackets. (2) One bracket on the outside and inside of the passenger side using the same fasteners. The passenger-side outside bracket is #1 and the inside bracket is #2. All fasteners are tightened to 212 ft-lbs in the final torque sequence.
Before installing rails, insert one 5/8-11 x 1.50 GR.8 carriage bolt into the square hole in each of the four frame rails (#3, #4, #5, #6). Then loosely install each rail over the previously installed frame brackets: front passenger side (#4), rear passenger side (#6), front driver side (#3), and rear driver side (#5). For each rail, loosely install two 5/8-11 x 1.25" GR.8 hex head bolts and two 5/8" conical washers through the frame bracket into the threaded holes in the rail. All rail bolts are tightened to 150 ft-lbs in the final torque sequence.
Step 1: From underneath the vehicle, raise the gooseneck center section up to the bottom side of the rails and route the four carriage bolts previously installed in the rails through the four outside holes in the center section. Secure using four 5/8" conical washers and four 5/8-11 GR.8 hex nuts. Step 2: Install seven 5/8-11 x 2.00 GR.8 hex bolts, seven 5/8" flat washers, seven 5/8" conical washers, and seven 5/8-11 GR.8 hex nuts through the rails and center section as shown. Use a tapered alignment pin to properly align holes and slots before fastening. All center section bolts are tightened to 212 ft-lbs in the final torque sequence.
Use the dimple in the center flat spot of the truck bed as a guide. Drill the hole using a 3-1/2" hole saw. After drilling, clean up all metal shavings and touch up the drilled hole with paint to prevent rust.
Using the U-bolt slots as a guide, mark and center punch the position of four holes in the truck bed from underneath. These holes must be in a lower bed corrugation to limit the amount of U-bolt showing above the bed. Drill four pilot holes with a 3/16" drill bit, then enlarge them to 11/16". Touch up all drilled holes with paint. Install the U-bolts from the topside of the truck bed.
Placing the U-bolt holes in a lower bed corrugation limits the amount of the U-bolt showing above the bed, which reduces protrusion and improves the appearance and functionality of the installation.
The four 5/8-11 x 2.00 GR.8 carriage bolts that secure the gooseneck center section must be torqued to 212 ft-lbs. These are tightened first in the fastener torque sequence.
The seven 5/8-11 x 2.00 GR.8 hex head bolts that secure the gooseneck center section must be torqued to 212 ft-lbs. These are tightened second in the fastener torque sequence.
The eight 5/8-11 x 1.50 GR.8 hex head bolts that secure the mounting rails must be torqued to 150 ft-lbs. These are tightened third in the fastener torque sequence.
The four 5/8-11 x 4.250 GR.8 hex head bolts that secure the frame brackets must be torqued to 212 ft-lbs. These are tightened last in the fastener torque sequence.
Torque fasteners in this specific order: (1) Center section carriage bolts (4) 5/8-11 x 2.00 GR.8 to 212 ft-lbs, (2) Center section hex bolts (7) 5/8-11 x 2.00 GR.8 to 212 ft-lbs, (3) Rail hex bolts (8) 5/8-11 x 1.50 GR.8 to 150 ft-lbs, (4) Mounting bracket bolts (4) 5/8-11 x 4.250 GR.8 to 212 ft-lbs. This sequence ensures proper load distribution and structural integrity.
Tighten the 5/8-18 lock nuts on the U-bolts so that there is a minimum of 3 threads showing past the nuts. This ensures proper clamping force while allowing for inspection of the fastener.
Always ensure the ball is fully locked before towing. Additionally, never exceed the towing vehicle manufacturer's recommended towing capacity under any circumstances.
Keep the ball and ball sleeve well lubricated. This helps ensure smooth operation and extends the life of the components.
After installation, verify that all fasteners have been torqued to the specified values in the correct sequence. Ensure the spare tire, exhaust system, and electrical/brake line hanger have been restored to their original positions and all bolts re-tightened. Check that the gooseneck ball is properly installed and fully locked. Verify adequate clearance between the gooseneck trailer and the rear of the cab and truck box.
Periodically check and re-torque all hitch fasteners to the specified torque values. The manual does not specify an exact interval, but recommends periodic inspection and re-torquing as part of routine maintenance.
Every time you tow, check the ball, hitch coupler, safety chains, and other connections for proper operation. Ensure the ball is fully locked before towing.
