Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2025 Audi Q5
Confirmed to Fit
2020 - 2025 Audi Q5 PHEV
Confirmed to Fit
2021 Audi Q5 Sportback
Confirmed to Fit
2018 - 2025 Audi SQ5
Confirmed to Fit
2021 - 2025 Audi SQ5 Sportback
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

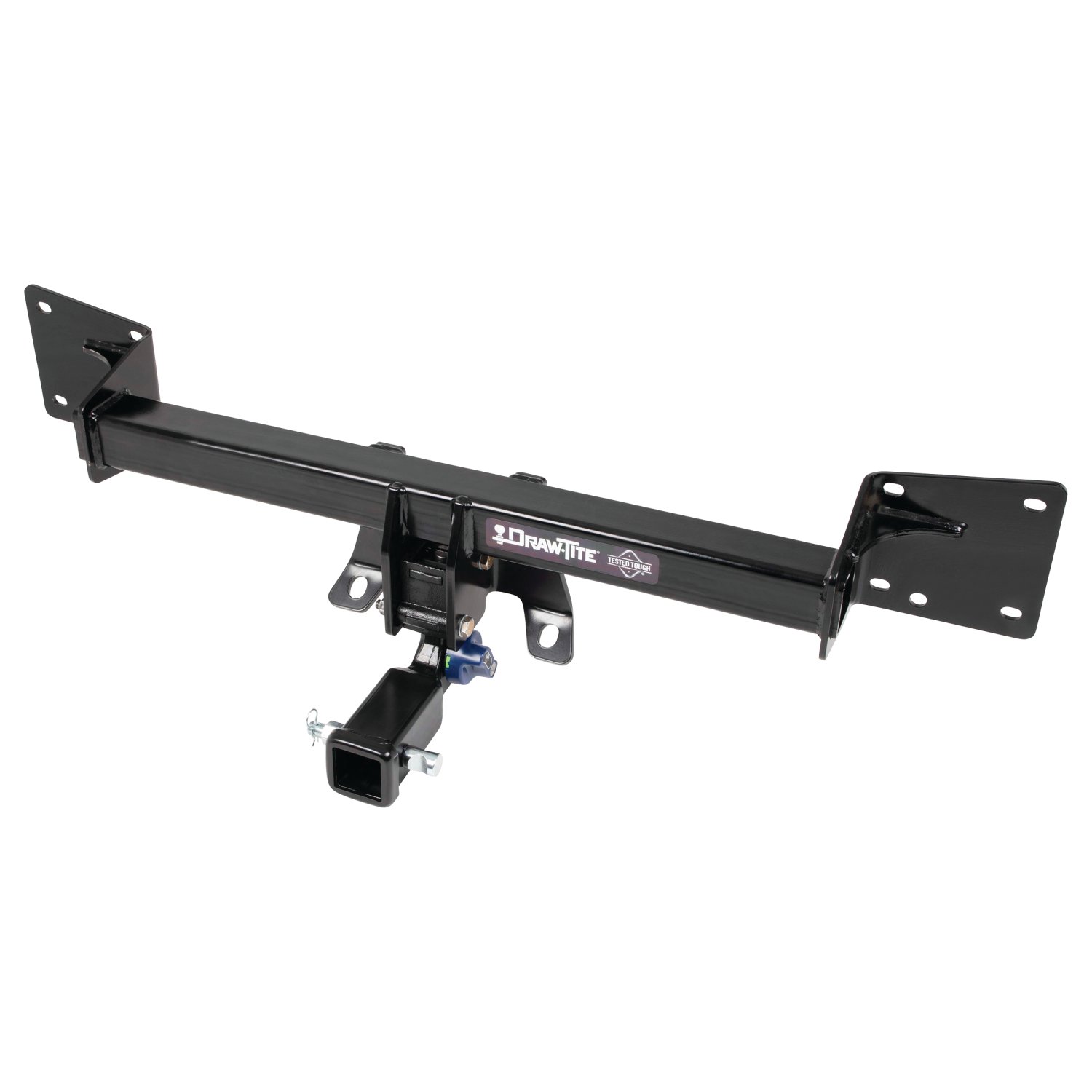

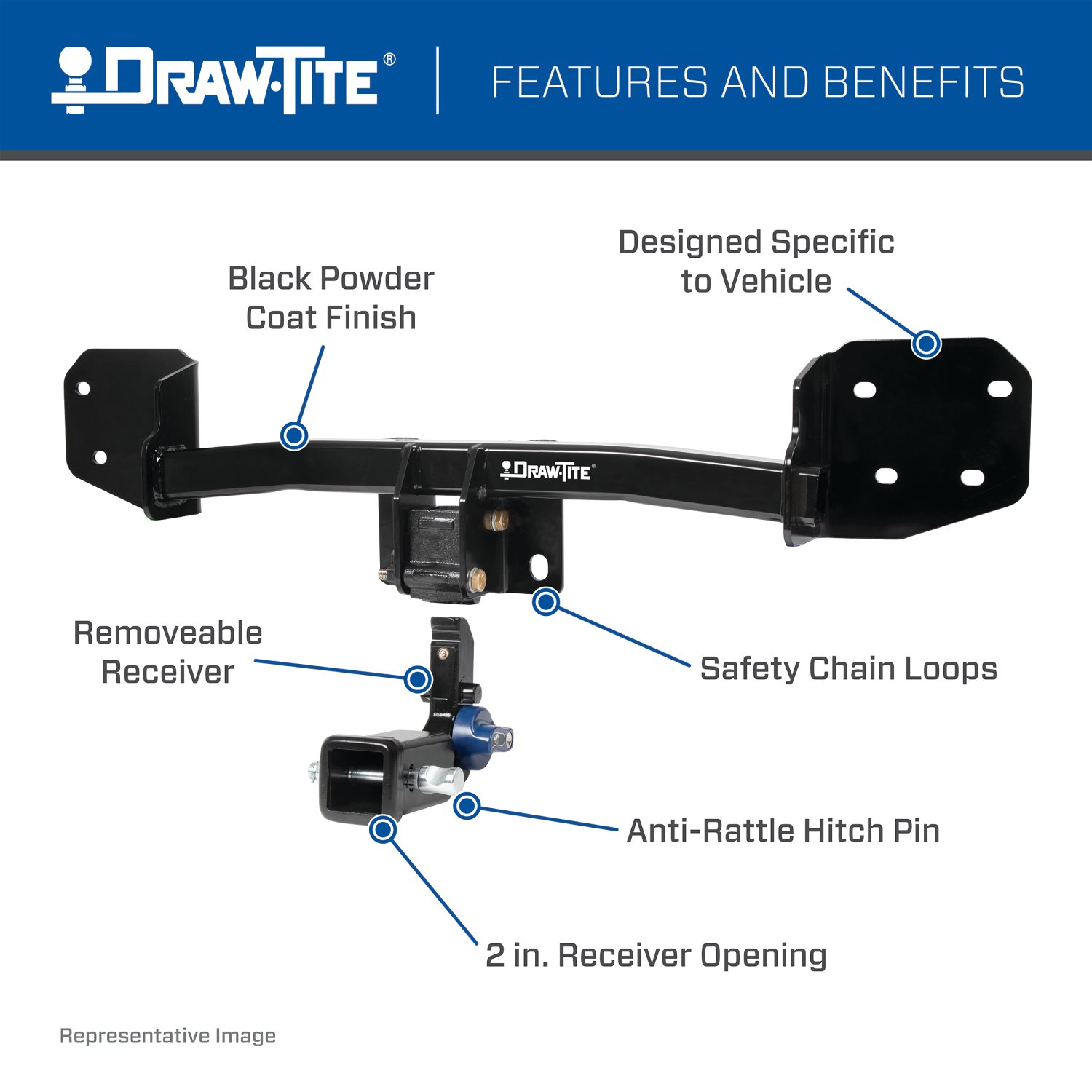

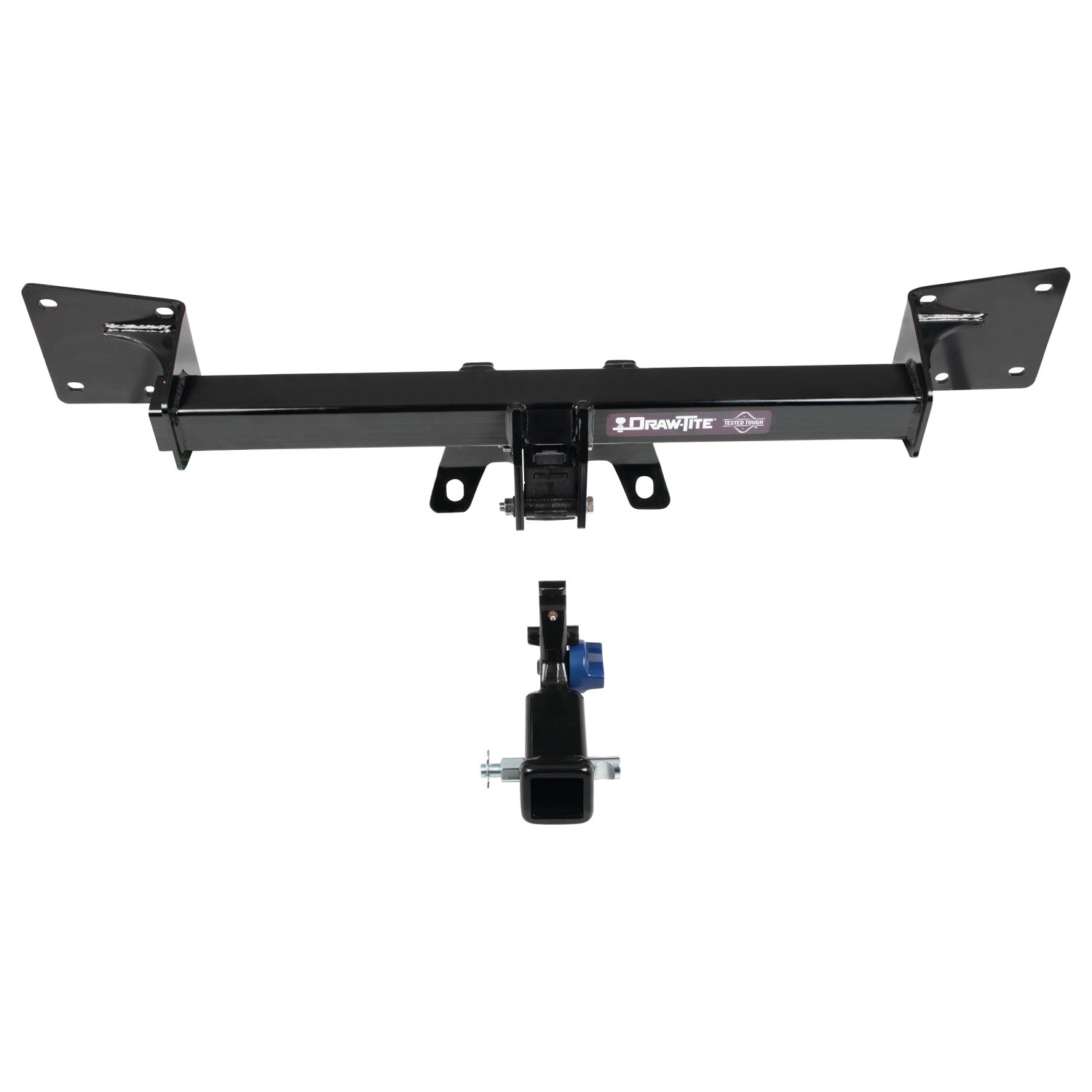

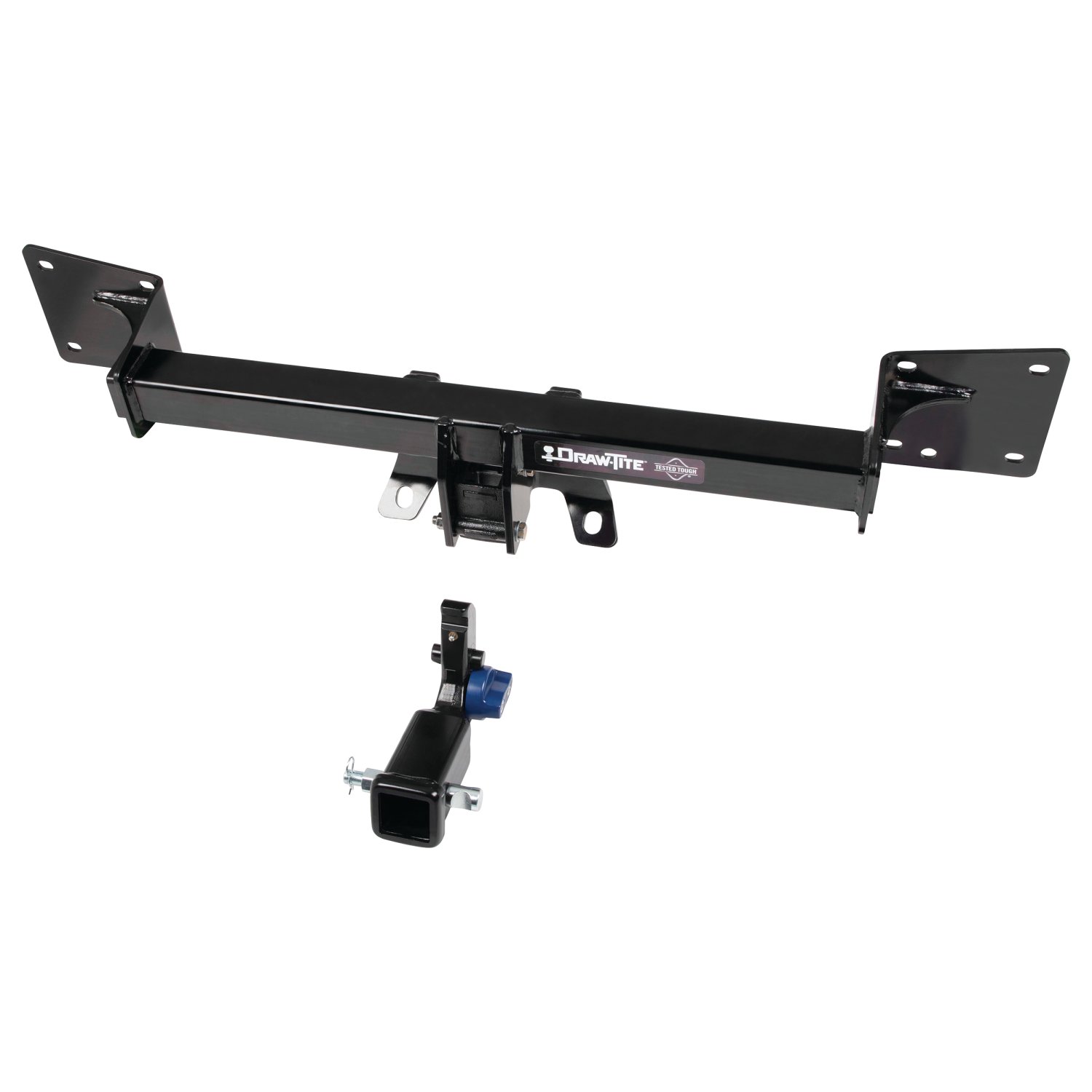

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76911 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 43.45 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2025 | Audi Q5 | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
| 2020 - 2025 | Audi Q5 PHEV | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
| 2021 | Audi Q5 Sportback | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
| 2018 - 2025 | Audi SQ5 | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
| 2021 - 2025 | Audi SQ5 Sportback | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Audi Q5, Audi Q5 PHEV, Audi Q5 Sportback, Audi SQ5, Audi SQ5 Sportback 76911 (Part #DT76911) is designed to fit the 2018-2025 Audi Q5.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Audi Q5, Audi Q5 PHEV, Audi Q5 Sportback, Audi SQ5, Audi SQ5 Sportback 76911 (Part #DT76911) fits 2018-2025 Audi Q5 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Audi Q5, Audi Q5 PHEV, Audi Q5 Sportback, Audi SQ5, Audi SQ5 Sportback 76911 (Part #DT76911) fits the following vehicles: 2018-2025 Audi Q5; 2020-2025 Audi Q5 PHEV; 2021 Audi Q5 Sportback; 2018-2025 Audi SQ5; 2021-2025 Audi SQ5 Sportback. Always verify your specific year, make, and model before ordering.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Audi Q5, Audi Q5 PHEV, Audi Q5 Sportback, Audi SQ5, Audi SQ5 Sportback 76911 (Part #DT76911) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76911 is designed for 2018-Current Audi Q5 and SQ5 models. For the most up-to-date information regarding specific application years and trim levels, visit the Horizon Global website at www.horizonglobal.com.

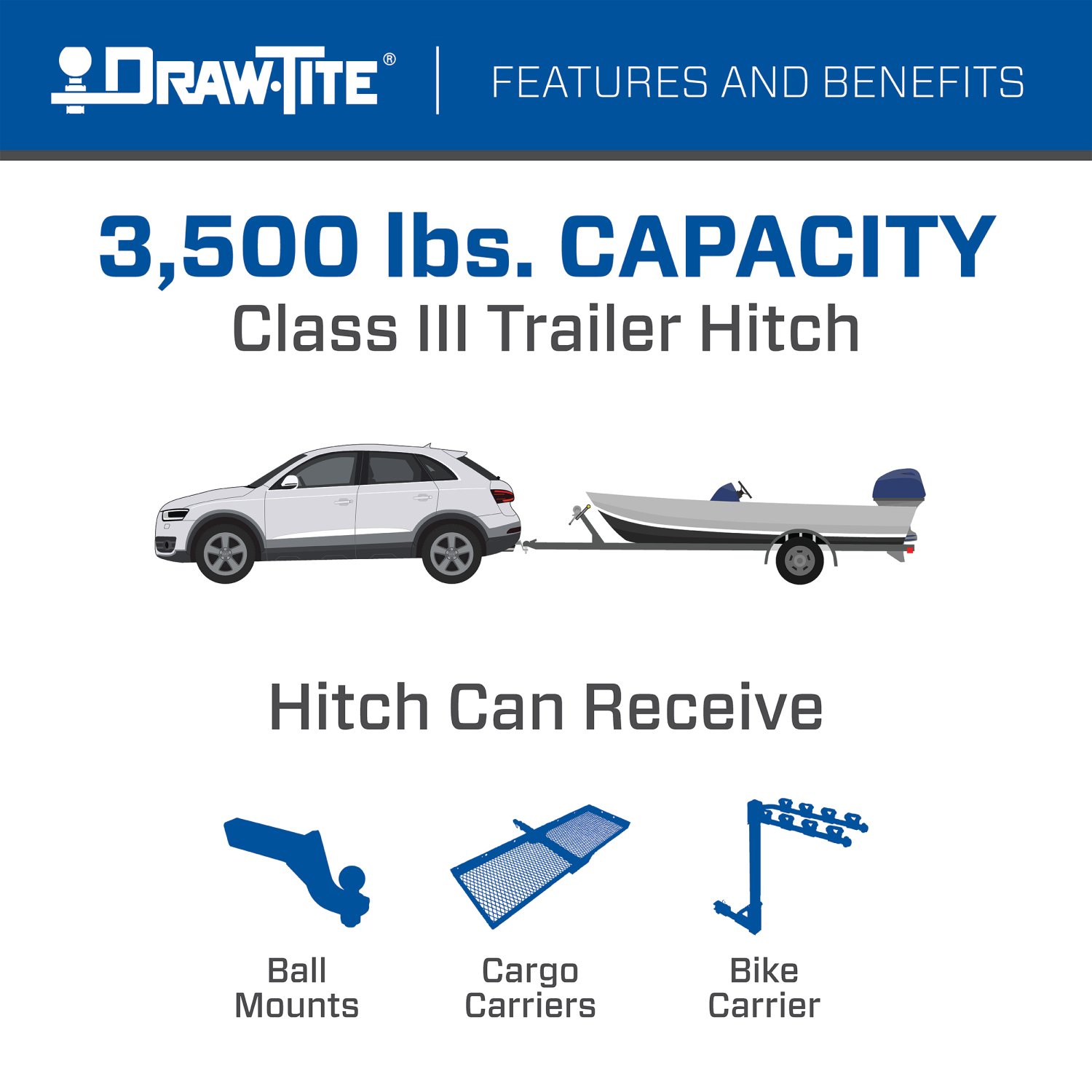

The 76911 is a weight-carrying hitch with a maximum gross trailer weight (GTW) of 3,500 lb (1,588 kg) and a maximum tongue weight of 350 lb (158 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, sockets (10 mm, 16 mm, 19 mm), a 6-inch socket extension, a T25 Torx bit socket, a panel removal tool, plastic trim tools, and silicone sealant. A representative vehicle photo and hitch illustration are provided in the manual.
Yes. Step 4 of the installation requires you to remove the bumper beam and cross bar using a 16 mm socket to remove eight (8) M10 factory bolts. The bumper beam and cross bar should be returned to the vehicle owner after the hitch is installed.
Step 3 requires removal of: the rear bottom fascia (4 screws), wheel well liner (1 screw and 1 plastic flange nut per side), lower wheel well trim, upper wheel well area screws (3 per side), rear cargo flooring, scuff plate, bumper fascia studs (2 under scuff plate, 1 inside driver-side compartment), and driver-side interior panel. The passenger-side interior panel is also removed but wiring harnesses on the passenger side must not be disconnected.
All M10 fasteners must be tightened to 53 Lb-Ft (72 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
The M12 bolt, flat washer, and prevailing torque nut that attach the housing to the hitch must be tightened to 92 Lb-Ft (125 N·M).
1. Install receiver housing to hitch using M12 bolt, flat washer, and prevailing torque nut (tighten to 92 Lb-Ft / 125 N·M). 2. Keep warning card in glove compartment and apply warning labels to receiver and door jamb. 3. Remove fascia (rear bottom, wheel well liners, trim, interior panels). 4. Remove bumper beam and cross bar (8 M10 bolts). 5. Apply silicone sealant around end panel openings and loosely install the 8 existing factory M10 bolts. 6. Tighten all M10 fasteners to 53 Lb-Ft (72 N·M). 7. Reinstall all removed panels, trim, wiring harnesses, and rubber plugs.
Step 5 instructs you to loosely install the eight (8) existing factory M10 bolts. They are then tightened to 53 Lb-Ft (72 N·M) in Step 6 using a torque wrench.
No drilling is required. The hitch uses eight (8) existing factory M10 bolt holes in the bumper beam and cross bar. The manual explicitly warns: 'Do not cut access or attachment holes with a torch.'
The installation is reversible. The hitch uses existing factory M10 bolt holes and does not require welding, cutting, or permanent modifications to the vehicle. If the hitch is removed, the manual instructs you to 'plug all holes in trunk pan or other body panels to prevent entry of water and exhaust fumes.'
Silicone sealant is used to seal around the opening on the end panel on both sides of the vehicle (Step 5). This prevents water and exhaust fumes from entering the vehicle through the hitch mounting area.

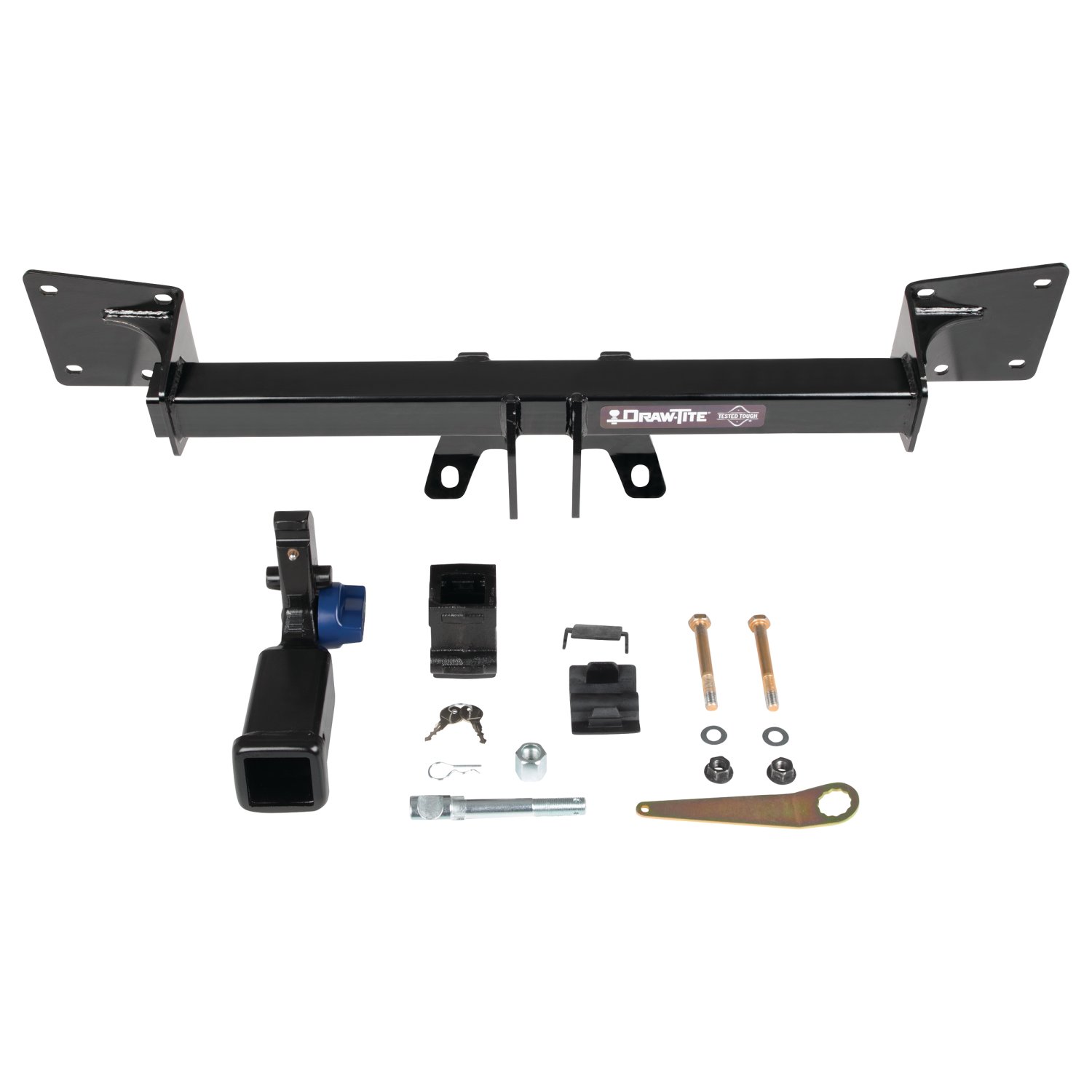

Fastener Kit 76911F includes: (2) M12 bolts (1.75 x 100 mm, CL10.9), (2) 7/16-inch flat washers, and (2) M12 x 1.75 prevailing torque nuts (CL10). These are used to attach the receiver housing to the hitch. Fastener Kit 76911F2 includes a warning card and two warning labels. The eight (8) M10 factory bolts from the bumper beam are reused to mount the hitch to the vehicle.

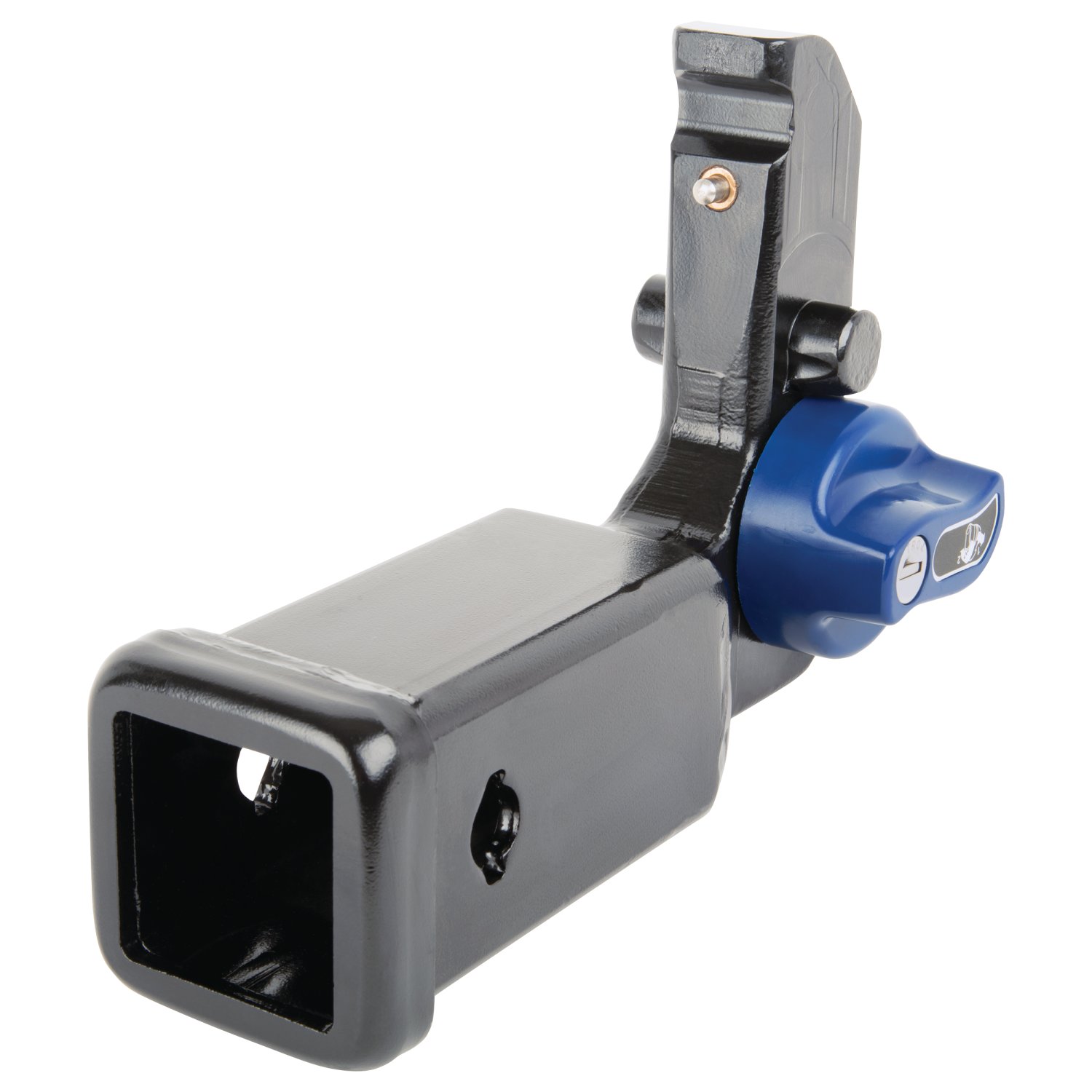

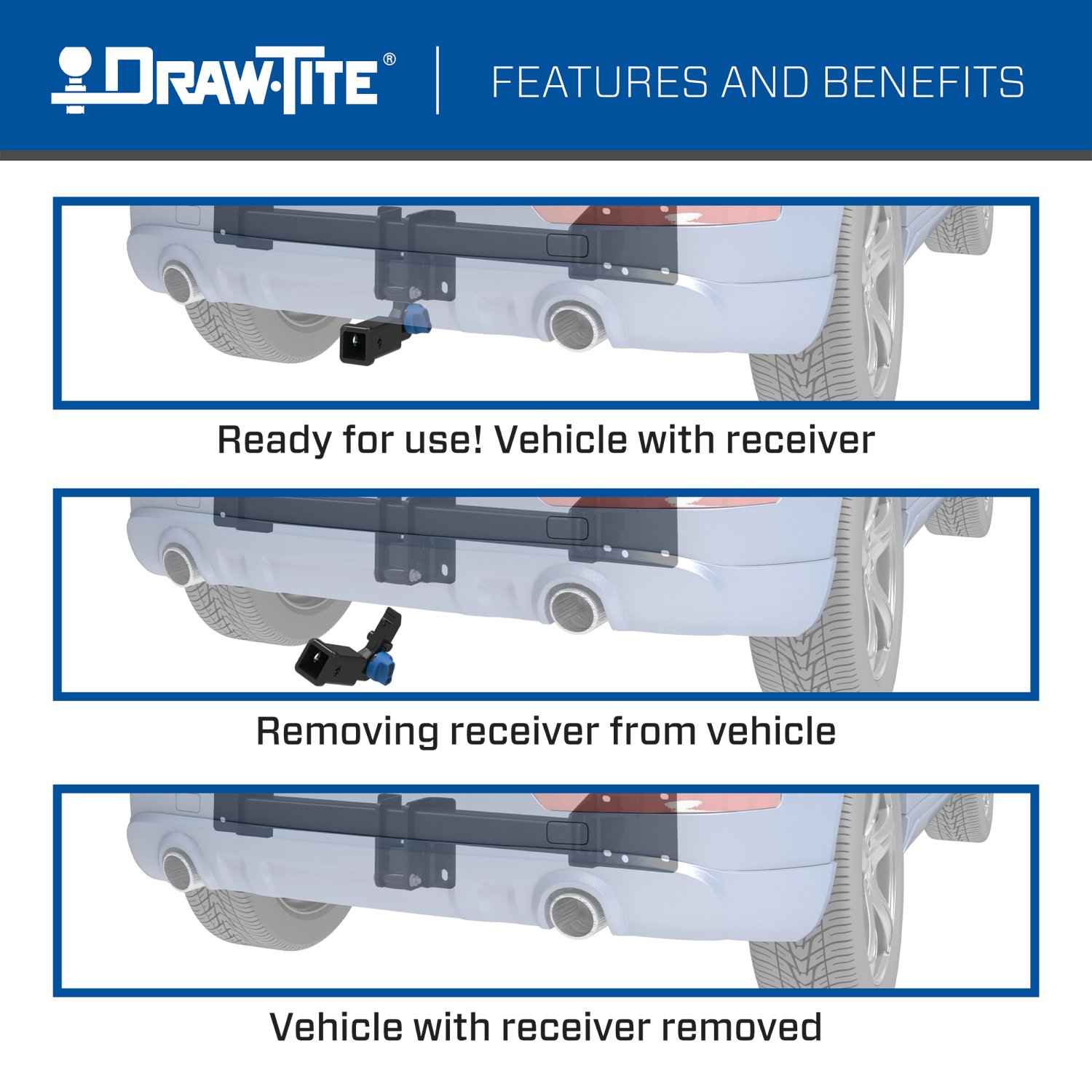

The receiver housing is a removable component that comes with the hitch. It is unlocked using a key attached to the blue handle, then removed by pressing the handle and rotating clockwise until a click sound is heard. The housing is then installed with top/bottom weather covers and attached to the hitch using an M12 bolt, flat washer, and prevailing torque nut, tightened to 92 Lb-Ft (125 N·M). For receiver installation and use, refer to instruction 76900N with the receiver kit.
The ball mount must have a maximum length of 10.5 inches (distance from center of ball hole to center of pin hole) and a minimum rise of 0.75 inches (distance from top of shank to top of ball platform). The manual states 'Ball mount selection' with these specifications but does not specify which ball mounts are compatible. Consult the manufacturer or a professional installer for compatible ball mount options.
Two quick-link options are available (sold separately): #49131 (5/16 inch) with a maximum GTW of 3,500 lb, and #44133 (3/8 inch) with a maximum GTW of 3,500 lb. These are used to attach safety chains to the hitch.
Key warnings include: (1) Do not cut, weld, or modify the receiver. (2) Check all fasteners are tight and the hitch is securely mounted periodically. (3) Do not exceed the vehicle manufacturer's towing rating or the hitch's 3,500 lb GTW / 350 lb tongue weight limits. (4) Load the trailer heavier in front. (5) Always wear your seatbelt. (6) Slow down when towing and never exceed posted speed limits. (7) If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steady; do not apply brakes or speed up. (8) Wear safety glasses during installation. (9) If the hitch is removed, plug all holes to prevent water and exhaust fume entry. (10) Do not use a torch to cut access or attachment holes.
After installation, check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual instructs you to 'check hitch frequently, making sure all fasteners and ball are properly tightened.' Proper torque is needed to keep the hitch secure to the vehicle when towing.
The manual instructs you to 'check hitch frequently, making sure all fasteners and ball are properly tightened.' It also states 'CHECK all fasteners are tight and your hitch is securely mounted to your vehicle periodically.' No specific interval is provided; regular inspection before towing is recommended.
If the hitch or ball is damaged, it must be removed and replaced. The manual states: 'A hitch or ball which has been damaged should be removed and replaced.' Do not attempt to repair or continue using a damaged hitch.
The average installation time for professional installers is 90 minutes. The manual notes: 'If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.'
Technical support is available from Horizon Global at: Website: www.horizonglobal.com, Phone: 800-632-3290, Email: TechnicalSupport@horizonglobal.com. For warranty claims, contact the principal address: 47912 Halyard Drive, Suite 100, Plymouth, MI 48170.
Yes, part 76911 is designed for 2018-Current Audi Q5 and SQ5 models. Check www.horizonglobal.com for the most current application information.
Maximum gross trailer weight: 3,500 lb (1,588 kg). Maximum tongue weight: 350 lb (158 kg). Do not exceed your vehicle manufacturer's towing rating.
Ratchet, torque wrench, safety glasses, sockets (10 mm, 16 mm, 19 mm), 6-inch socket extension, T25 Torx bit socket, panel removal tool, plastic trim tools, and silicone sealant.
Yes. The bumper beam and cross bar must be removed using eight (8) M10 factory bolts (16 mm socket) and reinstalled after the hitch is mounted.
M12 receiver housing bolts: 92 Lb-Ft (125 N·M). M10 hitch mounting bolts: 53 Lb-Ft (72 N·M). Use a torque wrench for all fasteners.
No. The hitch uses eight (8) existing factory M10 bolt holes. No drilling, welding, cutting, or permanent modifications are required.
Do not cut, weld, or modify the receiver. Wear safety glasses during installation. Check fasteners periodically. Do not exceed 3,500 lb GTW or 350 lb tongue weight. Load trailer heavier in front. Slow down when towing. If excess sway occurs, take foot off gas and hold steering wheel steady; do not brake or speed up.
Verify all fasteners are tight and the hitch is securely mounted. Check frequently before towing to ensure all fasteners and the ball are properly tightened.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
