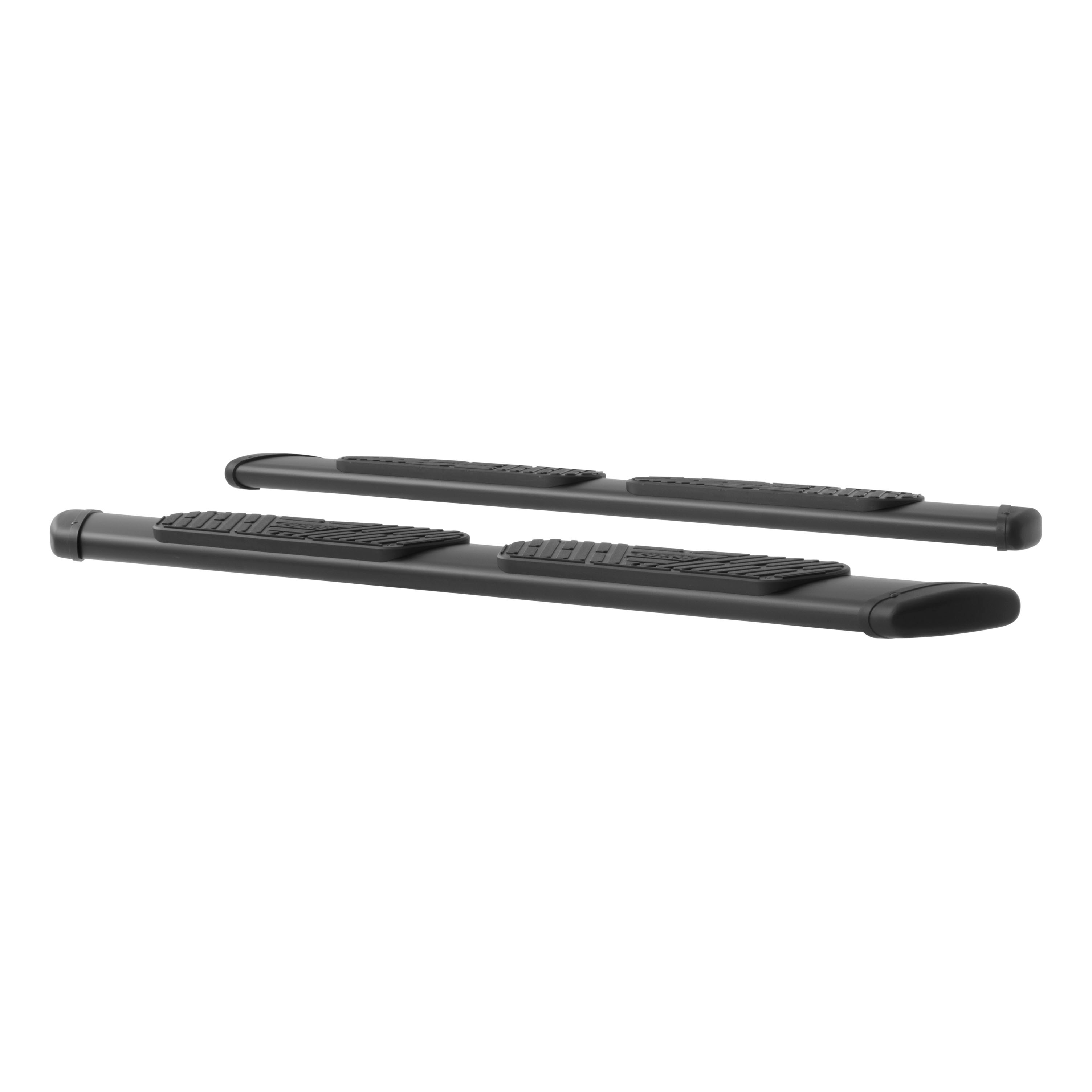

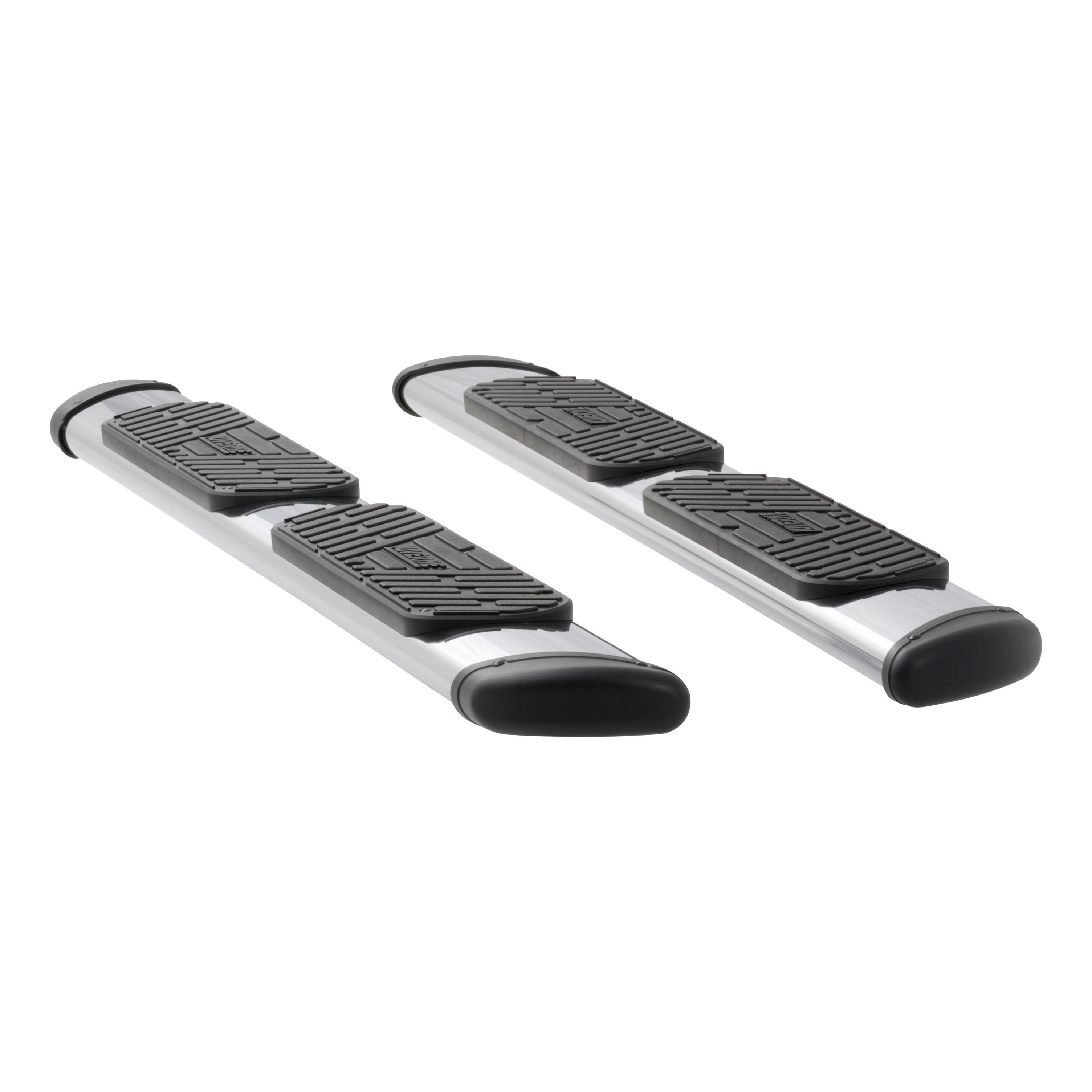

Not everyone understands the status that comes with owning a full-size truck or SUV, but for those who do, LUVERNE Regal 7 oval side steps are the side accessory of choice. They are the largest oval nerf bars on the market, featuring a patented design, non-skid step pads and a sleek nerf bar styling. Built on the idea that a deluxe ride needs a deluxe entrance, these 7" ovals have a width comparable to some of the largest running boards available. This, combined with the classic styling of popular nerf bars, allows Regal 7 oval side steps to easily live up to their name. Each is set with full-width step pads that offer a non-skid surface for ultimate comfort and safety. They are also capped on each end with contoured end caps, giving them a professional look and added protection against small rocks and road debris. Both the step pads and end caps are factory-installed and securely bolted in place. To make sure these deluxe side steps maintain their classy appearance, we construct them from stainless steel. This gives them the durability to outlast rust through every season of the year, and the strength to be offer reliable footing with every climb. They are available in a high-polish stainless steel finish for a bright, eye-catching shine or a durable black powder coat for a tough, no-nonsense accent. When it comes to our Regal 7 oval side steps, we don't trust anyone else to build them with uncompromising quality. We design each one for a vehicle-specific fit. This particular set of side steps is designed to fit specific years of the Ford F150 (see application information to verify vehicle fitment). They install using a 3" wide channel on the bottom side and high-strength steel brackets with a durable black powder coat finish (NOTE: The mounting brackets for these steps are included but shipped separately).
Regal 7 oval side steps are designed to be the largest oval nerf bars on the market, featuring a patented design, non-skid step pads and a sleek nerf bar styling. They have full-width step pads for a non-skid surface for comfort and safety.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2004 - 2014 | Ford F-150 | Extended Cab Pickup | — |
Yes, the MODEL 400922 step bracket is designed specifically for 2004 Ford F-150 Super Cab and SuperCrew Cab pickups. The bracket package includes different components depending on your cab style, so confirm whether you have a Super Cab or SuperCrew Cab before installation.
Three lengths are available: 76" (MODEL 477078, part number 552059), 86" (MODEL 477088, part number 552060), and 96" (MODEL 477098, available as left-hand part number 552061 or right-hand part number 552062).
Yes, the step is pre-assembled from the factory. The serial number label is located on the front inside driver's side step assembly.
For each step attachment point, the package includes: 5/16-18 x 1" black stainless steel hex bolt (item #10), 5/16" flat washer (item #11), and 5/16-18 serrated flange nut (item #12). Eight support mounting plates (item #9) are also included to position the step on the brackets.
Yes. The step assembly instructions cover only how to attach the pre-assembled step to the mounting brackets. You must follow the separate instructions included with your specific bracket package (MODEL 400922 or other) to mount the brackets to your vehicle first.
1. Set the step on the mounting brackets. 2. Slide each support mounting plate (item #9) inside the oval step and above each bracket. 3. Using the supplied 5/16-18 x 1" black stainless steel hex bolt, washer, and serrated flange nut (items #10, #11, #12), attach the step assembly, support mounting plate, and mounting bracket. 4. Set the step plate in the correct position and tighten all fasteners to 19 LB FT.
All 5/16" fasteners must be torqued to 19 LB FT.
Yes, the REGAL 7 OVAL STEPS (models 477078, 477088, 477098) are listed as universal applications and can be used with any compatible bracket system. However, the MODEL 400922 brackets are specific to 2004 Ford F-150 Super Cab and SuperCrew Cab pickups. You will need to use the appropriate bracket package for your vehicle.
The support mounting plates (item #9) are positioned inside the oval step and above each bracket to distribute the load and secure the step to the mounting brackets. They are attached using the 5/16-18 x 1" hex bolts, washers, and serrated flange nuts.
Read the instructions completely and verify that all required parts listed on the service parts list are on hand before starting installation. This applies to both the step assembly and the bracket package for your specific vehicle.
Yes, drilling is required. You must drill an 11/32" hole in the pinch weld area to line up with the bottom hole in the bracket, and a 7/32" hole into the top of the rocker panel for the self-tapping screw. The brackets must be clamped into position approximately 6" from the back of the cab and 6" from the front of the cab before drilling.

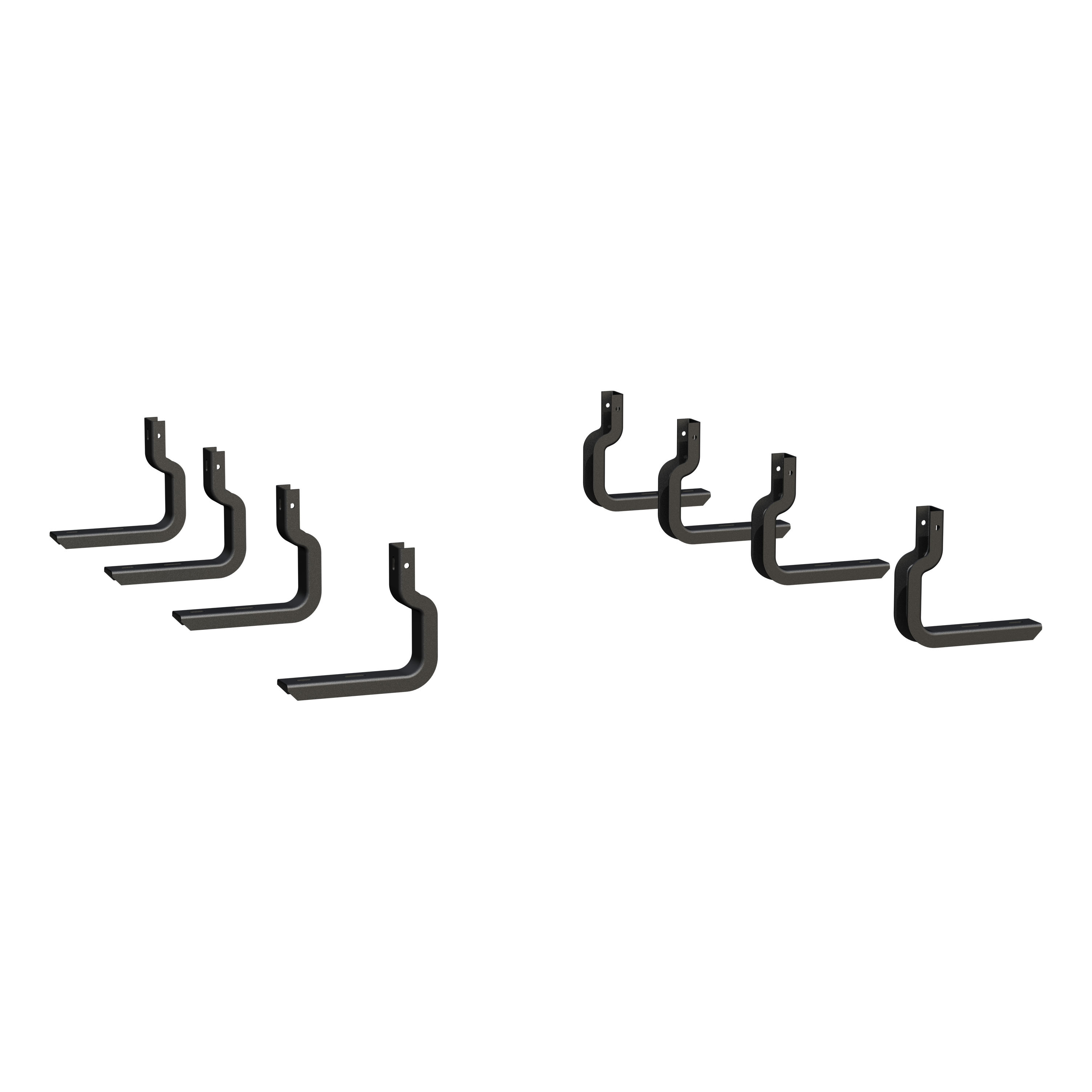

Super Cab installation uses two center mounting brackets (item #1) attached to the vehicle with specific fastener patterns. SuperCrew installation uses the second-from-front mounting bracket (item #1) with an angle bracket (item #6) attached to it. The angle bracket is positioned with the angle towards the multi-thread U-nut. Both require U-nuts to be pre-installed in the rocker panel.
Multi-thread U-nuts (item #5, part number 104264) are threaded fasteners that must be pre-installed in the rocker panel before bracket installation. Install them in the top rear hole of the second pattern from the front and in the top front hole of the third pattern from the front, with threads facing inside the rocker panel. They are inserted through large access holes and slid towards the round hole until seated.
The bottom of the bracket is attached to the pinch weld using a 5/16" x 1.00" black plated hex head cap screw (item #2), 5/16" black plated flat washer (item #3), and 5/16" serrated flange nut (item #4). These fasteners must be torqued to 19 LB FT.
The top of the bracket is attached using a 5/16" x 1.00" zinc plated hex head cap screw (item #7) and 5/16" zinc plated flat washer (item #8). These fasteners must be torqued to 19 LB FT. For SuperCrew cabs, an angle bracket (item #6) is attached first using the same fastener type plus a 5/16" serrated flange nut (item #4).
A 7/32" hole must be drilled into the top of the rocker panel. A self-tapping screw (item #9, 5/16" x 3/4") is then installed into this hole. Be careful not to over-tighten the self-tapping screw.
The front and rear brackets should be positioned approximately 6" from the back of the cab and 6" from the front of the cab. Clamp the brackets into position before drilling. For center brackets, position them so the top hole lines up with the multi-thread U-nut and the offset hole lines up with the hole in the pinch weld.
After attaching the brackets with fasteners, you must level them before fully tightening all bolts. This ensures the brackets are properly aligned and the step will sit evenly on the vehicle.
The bracket package includes: 8 mounting brackets (item #1), 8 hex head cap screws 5/16-18 x 1.00" black plated (item #2), 8 flat washers 5/16" black plated (item #3), 10 serrated flange nuts 5/16-18 (item #4), 4 multi-thread U-nuts 5/16-18 (item #5), 2 angle brackets (item #6), 6 hex head cap screws 5/16-18 x 1.00" zinc plated (item #7), 6 flat washers 5/16" zinc plated (item #8), and 4 self-tapping screws 5/16" x 3/4" (item #9).
Black plated fasteners (items #2, #3) are used for the bottom bracket attachment to the pinch weld. Zinc plated fasteners (items #7, #8) are used for the top bracket attachment to the rocker panel. Both types must be torqued to 19 LB FT.
The MODEL 400922 bracket is designed specifically for 2004 Ford F-150 Super Cab and SuperCrew Cab pickups only. The REGAL 7 OVAL STEPS are universal and work with any compatible bracket system.
Yes. You must drill an 11/32" hole in the pinch weld and a 7/32" hole in the rocker panel. Clamp brackets in position approximately 6" from the cab before drilling.
All 5/16" fasteners on both the step assembly and brackets must be torqued to 19 LB FT.
Yes, for 2004 F-150 installation. Install 5/16" multi-thread U-nuts in the top rear hole of the second pattern from the front and top front hole of the third pattern from the front, with threads facing inside the rocker panel, before attaching brackets.
Yes. Super Cab uses two center mounting brackets. SuperCrew uses the second-from-front bracket with an angle bracket (item #6) attached. Both require U-nuts pre-installed in the rocker panel.
Use the supplied 5/16-18 x 1" black stainless steel hex bolts, washers, and serrated flange nuts (items #10, #11, #12). Torque all 5/16" fasteners to 19 LB FT.
The step is pre-assembled from the factory. You only need to attach it to the mounting brackets using the supplied fasteners.
The manual warns to be careful not to over-tighten the self-tapping screw (item #9) into the rocker panel. Over-tightening can damage the rocker panel or strip the threads. Tighten only until snug; do not apply excessive force.
