Tekonsha T-One T-Connector Custom Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module 118887Tekonsha$97.28In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2023 - 2025 Ford Escape
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118888 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.5 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, WHITE, YELLOW |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 2-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2025 | Ford Escape | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The T-One® Connector is a trailer wiring module that provides electrical connections for towing. It interfaces with your vehicle's taillight wiring to supply power to a trailer's lighting system. The module contains a black box that houses the electrical components and connects to your vehicle's battery via a 12-gauge power wire and fuse holder.
Yes, the T-One® Connector (part number 118888) is designed for the Ford Escape. However, the manual states that specific application years and trim levels should be verified on the Horizon Global website at www.horizonglobal.com, as this information is updated regularly and not listed in this installation guide.
Yes, the T-One® Connector can be installed on a Ford Escape hybrid. The installation procedure is the same as for non-hybrid models, with one important note: on hybrid models, the vehicle's battery is located beneath the spare tire in the trunk, so you will need to access the battery from that location when connecting the power wire.
Required tools are: safety glasses, flat-head screwdriver, wire stripper, wire crimper, 10 mm socket, ratchet, drill with 3/32" drill bit, fish wire, and a test light. The manual also lists a trim panel tool or Phillips screwdriver as helpful for removing interior trim panels. A 50-50 mixture of rubbing alcohol and water is needed to clean the mounting surface.

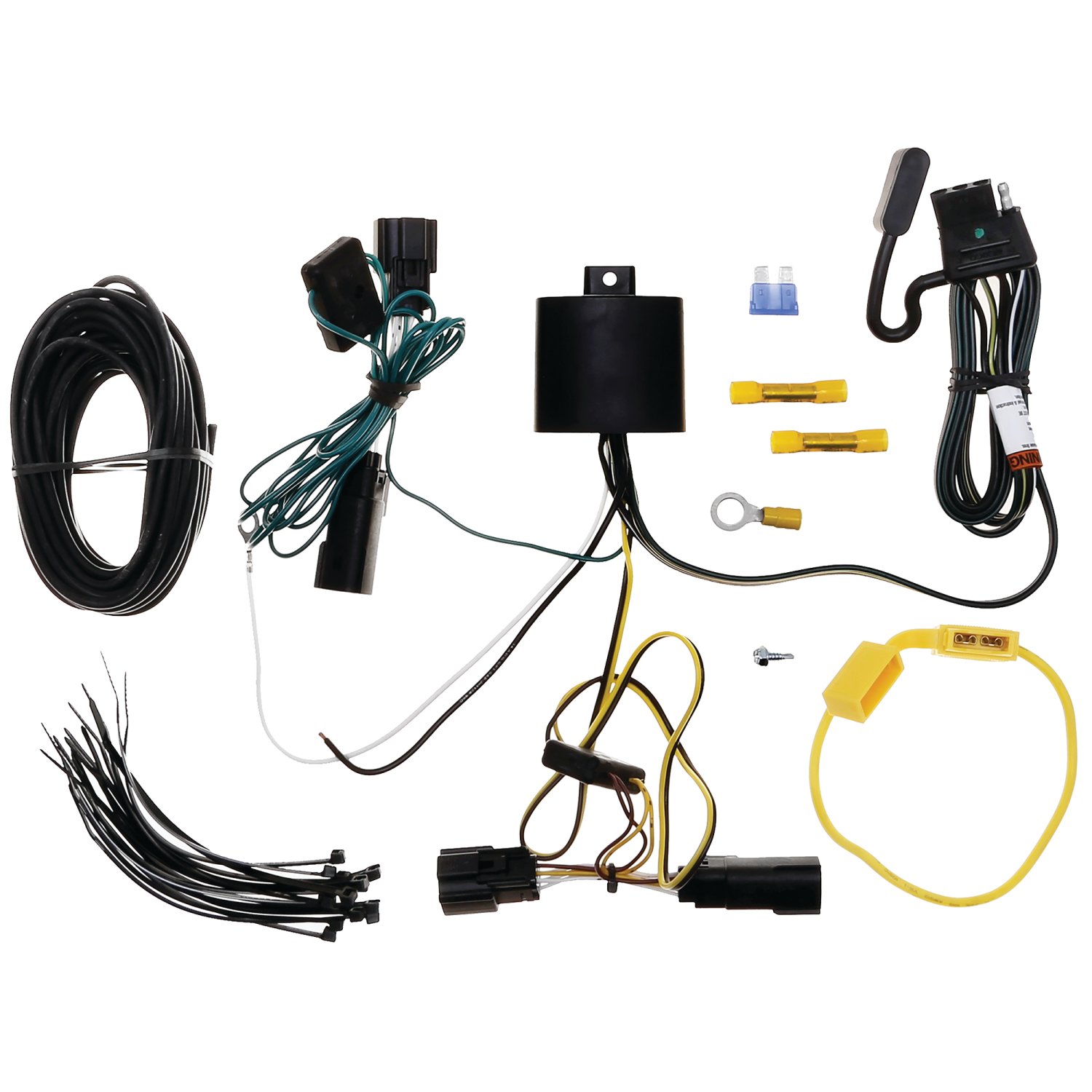

The hardware kit includes: Perma Seal butt connectors (yellow heat-shrinkable), ring terminals, #8 screws, a 15-amp fuse, double-sided tape, a fuse holder, and 6" wire ties. The T-One® Connector itself includes a black box module with yellow and green wire connectors for the taillights, a white ground wire, and a black 12-gauge power wire.
Yes. You must disconnect and isolate the vehicle's negative battery cable before beginning installation. The manual emphasizes this as a critical safety step. The negative cable is reconnected in the final steps after all other connections are complete.
The installation difficulty is rated as Intermediate. This rating is based on the time and effort involved and may vary depending on the installer's level of expertise, the condition of the vehicle, and availability of proper tools and equipment. Specific installation times are listed on the Horizon Global website or in downloadable application guides.
The black box should be mounted on a suitable flat surface determined during installation. For non-hybrid models, mount it inside the vehicle behind the driver's side taillight area. For models with the rear bumper fascia removed, mount it behind the rear bumper fascia on the driver's side. Before mounting, clean the flat surface area with a 50-50 mixture of rubbing alcohol and water. Use the double-sided tape provided. Ensure the wire side of the module points toward the ground to prevent water buildup.

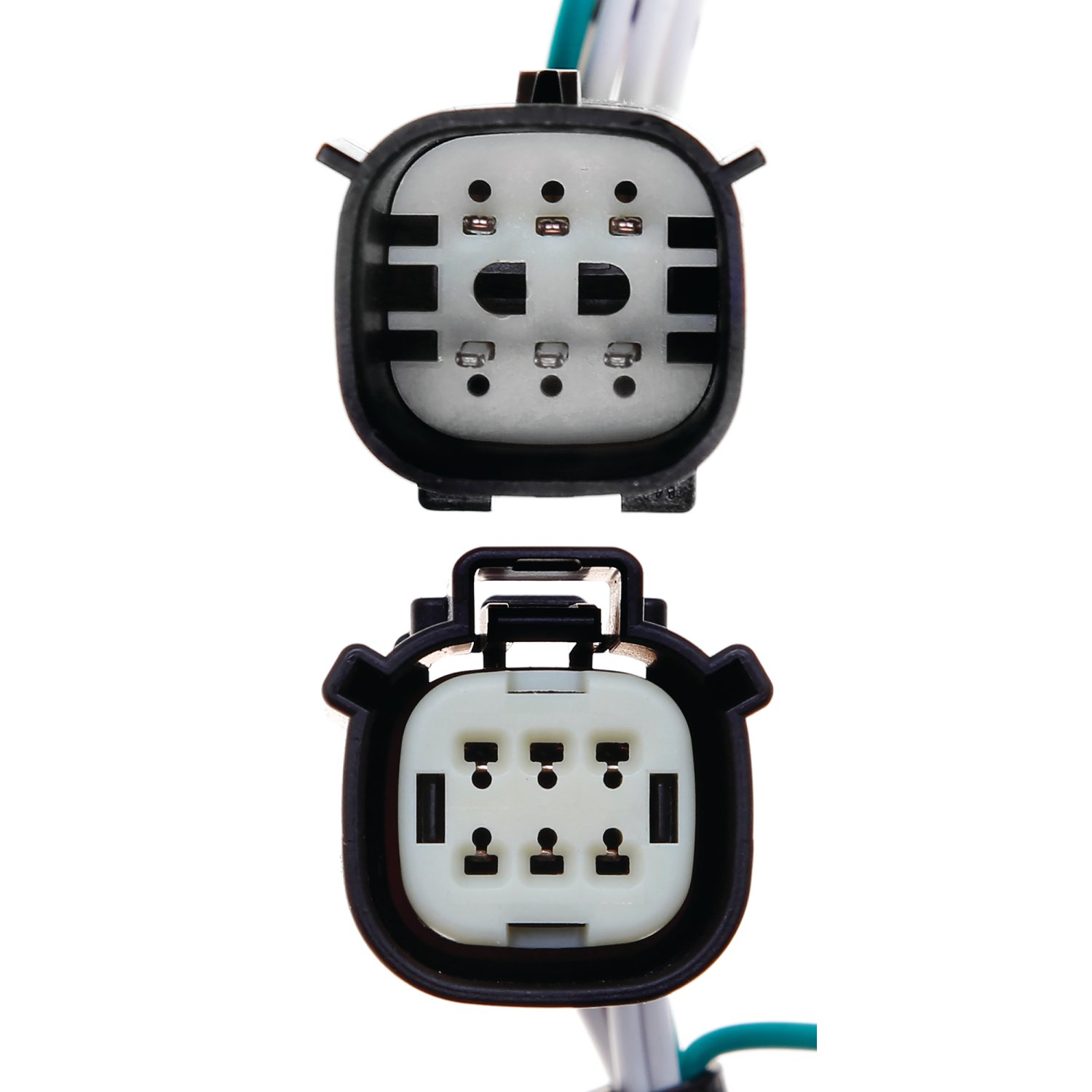

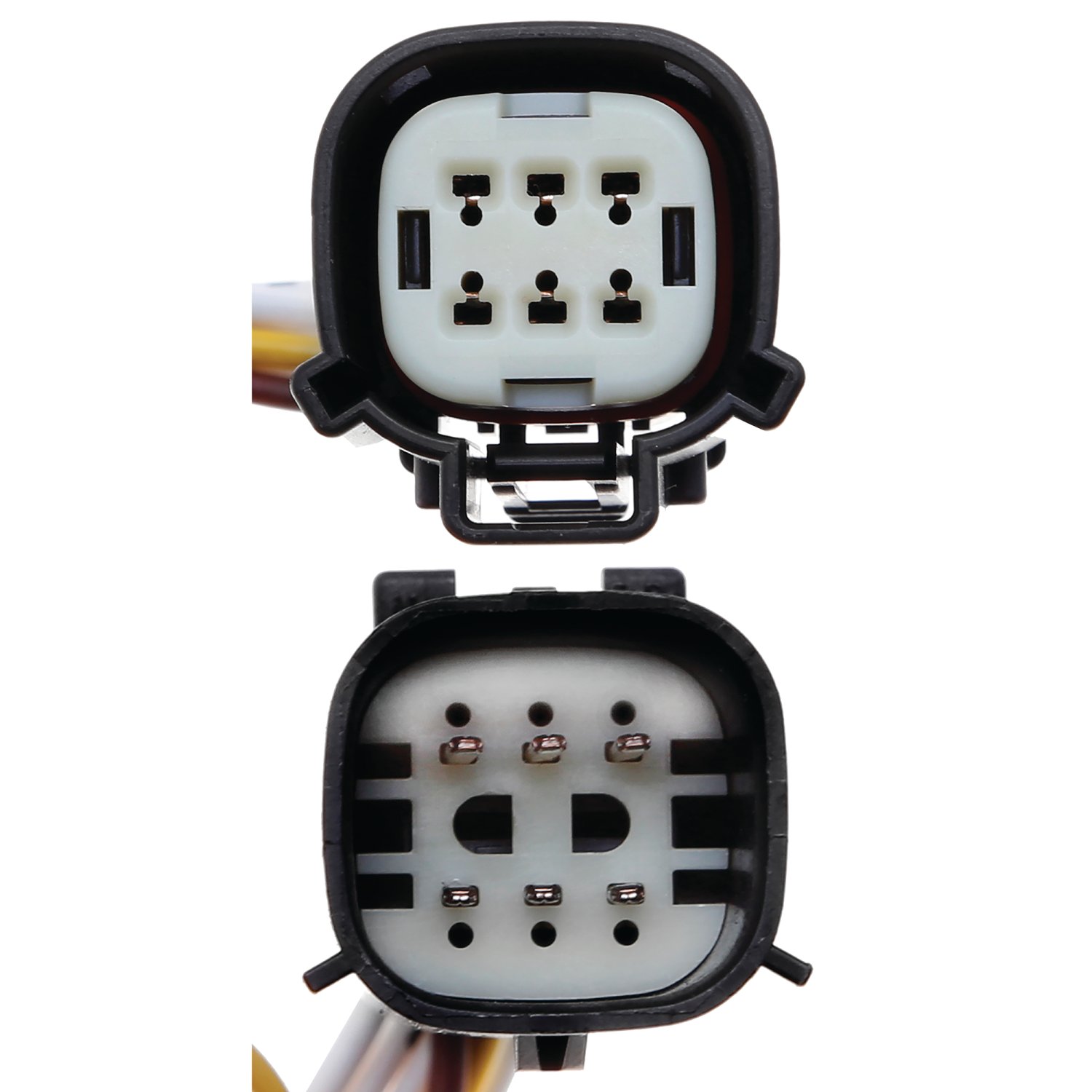

The T-One® Connector has two connector ends: one with a yellow wire for the driver's side and one with a green wire for the passenger's side. For each side, locate the matching vehicle taillight wiring connector, separate it carefully without breaking the locking tabs, and insert the T-One® Connector end between the vehicle connector and the taillight connector. Ensure all connector surfaces are clean and free of dirt. Be careful not to break any locking tabs during insertion.
Yes, drilling is required. You must drill a 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the black box, such as an existing ground stud, or drill the 3/32" hole and secure the white wire using the eyelet and screw provided. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces. Clean dirt and rustproofing from the area before securing the ground wire.
You need a 3/32" drill bit. This is used to drill a hole for securing the white ground wire with the eyelet and screw provided in the hardware kit.
The fuse rating is 15 amps. A 15-amp fuse is included in the hardware kit and must be installed in the fuse holder after all other connections are complete and the negative battery cable is reconnected.
The power wire is 12-gauge (12 ga.). This black wire runs from the fuse holder at the positive battery terminal to the black power wire on the T-One® Connector's black box. It is routed from the front of the vehicle rearward along the frame rail.
The T-One® Connector has four main wires: Yellow wire (driver's side taillight connector), Green wire (passenger's side taillight connector), White wire (ground connection), and Black wire (12-gauge power wire from the battery). The yellow and green wires connect to the vehicle's taillight wiring. The white wire provides the ground connection to the vehicle chassis. The black wire carries power from the vehicle's positive battery terminal through the fuse holder to the module.
After disconnecting the negative battery cable, cut the fuse holder wire and attach a ring terminal to one end. Using the yellow heat-shrinkable butt connector provided, connect the other end of the fuse holder to the black 12-gauge wire. Secure the ring terminal to the vehicle's positive (+) battery cable. Route the black 12-gauge wire from the front of the vehicle rearward along the frame rail, avoiding hot pipes, heat shields, fuel tank, and other points that may pinch or break the wire. Connect the other end of the black wire to the black power wire on the T-One® Connector's black box using another yellow heat-shrinkable butt connector. Finally, reconnect the negative battery cable and install the 15-amp fuse into the fuse holder.
The yellow heat-shrinkable butt connectors are used to join wires securely. Two are included in the hardware kit: one connects the fuse holder wire to the black 12-gauge power wire, and the other connects the black 12-gauge power wire to the black power wire on the T-One® Connector's black box.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the vehicle's battery. Do not touch the negative battery terminal to the positive battery terminal, as this can cause serious injury and damage to the vehicle's electrical system. Verify what is behind any surface before drilling to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or exposed surfaces. Avoid routing wires near hot pipes, heat shields, fuel tank, or points that may pinch or break the wire. Do not exceed the product's stated ratings or your vehicle's towing manufacturing rating.
If your vehicle is equipped with the Start/Stop option, do not connect the module power wire to the support battery. Connect the module only to the main vehicle battery. Failure to connect to the vehicle's main battery may result in damage to the vehicle's electrical system.
After installation is complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly. If the 4-way connector is not functioning, refer to the troubleshooting guide to diagnose the issue.

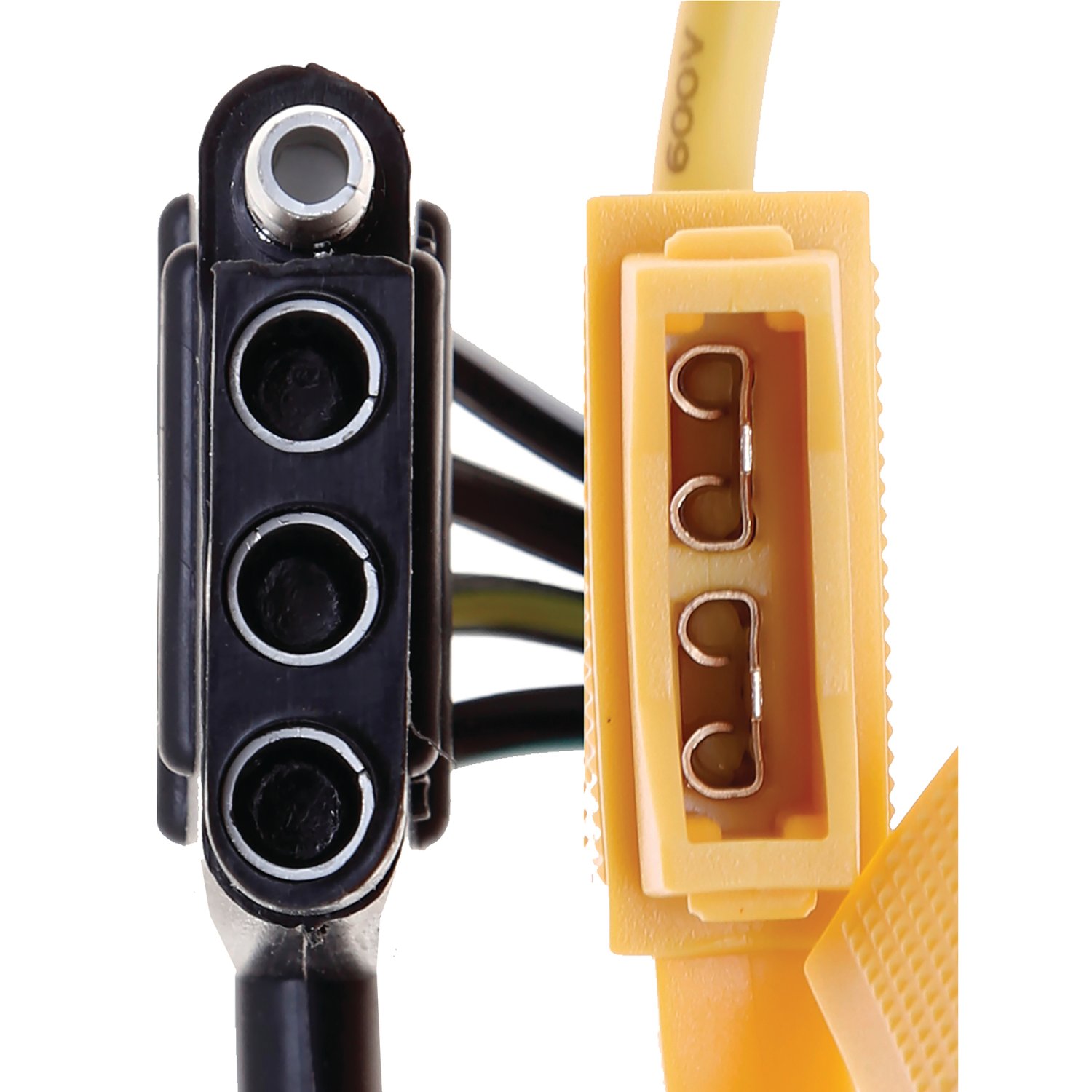

Clean the 4-way flat connector after each use. Before each trip, inspect the 4-way flat harness to ensure there is no damage to the terminals and connection points for proper lighting connection and operation. Ensure the 4-way flat harness does not get pinched in door latches, trailer connection points, or contact the road surface. Clean the connection and add dielectric grease (sold separately) to the terminal pins.
Route the 4-way flat harness through the driver's side panel and threshold into the storage compartment and store it there when not in use. This protects the harness from damage and keeps it organized.
Yes, the T-One® Connector (118888) is designed for Ford Escape. Verify specific years and trim levels on www.horizonglobal.com.
You need: safety glasses, flat-head screwdriver, wire stripper, wire crimper, 10 mm socket, ratchet, drill with 3/32" bit, fish wire, and test light. A trim panel tool or Phillips screwdriver is also helpful.
Yes. You must drill a 3/32" hole to secure the white ground wire. Verify what is behind the surface before drilling and do not drill into the vehicle floor, bed, or exposed surfaces.
Yes. Disconnect and isolate the vehicle's negative battery cable before beginning installation. Reconnect it after all other connections are complete.
15 amps. The fuse is included in the hardware kit and installed in the fuse holder after all connections are complete.
Always wear safety glasses. Do not touch the negative battery terminal to the positive terminal (serious injury and electrical damage risk). Do not exceed the product's stated ratings or your vehicle's towing manufacturing rating. Overloading circuits can cause fires.
First, check the chassis grounds and ensure ring terminals are in full contact with the vehicle chassis. Remove the module's power fuse. Then, ensure the T-One Connector ends are fully inserted and locked in place. Remove the module's power fuse for 10 seconds and repeat the test. If the issue persists, check that the fuse is fully inserted into the fuse holder with no breaks, and that the fuse holder is properly connected to the positive post of the battery.
Ensure the fuse is fully inserted into the fuse holder with no breaks. Verify the fuse holder is properly connected to the positive post of the battery. Ensure the module is connected to B+ (positive). Using a tester or voltmeter, check for voltage on either side of the yellow butt connector near the module. Remove the module power fuse for 10 seconds and repeat the test. If the installation may have activated circuit protection, start the vehicle and turn all functions off (tail/headlights, brake, and turns), then remove the module power fuse for 10 seconds and repeat the test.
