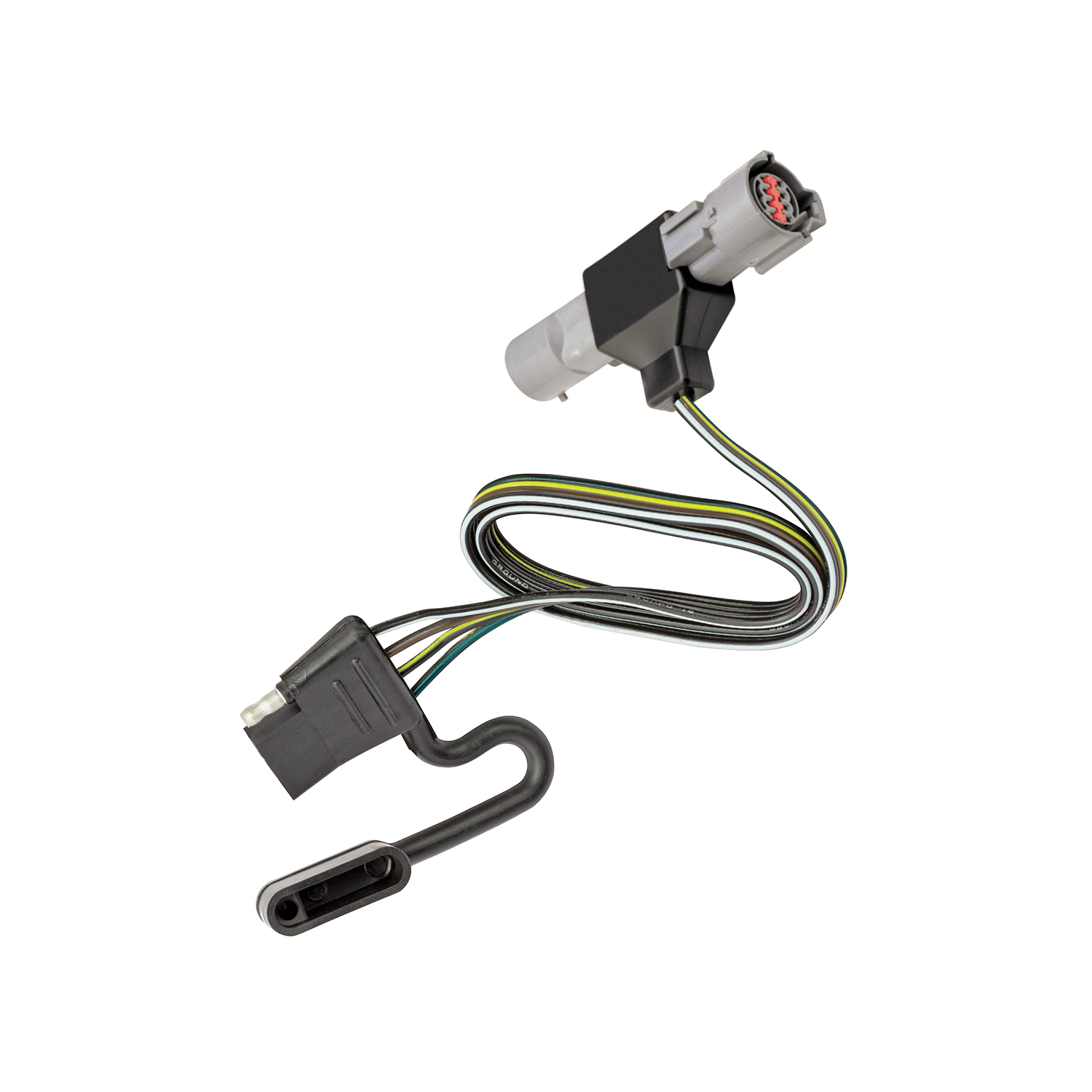

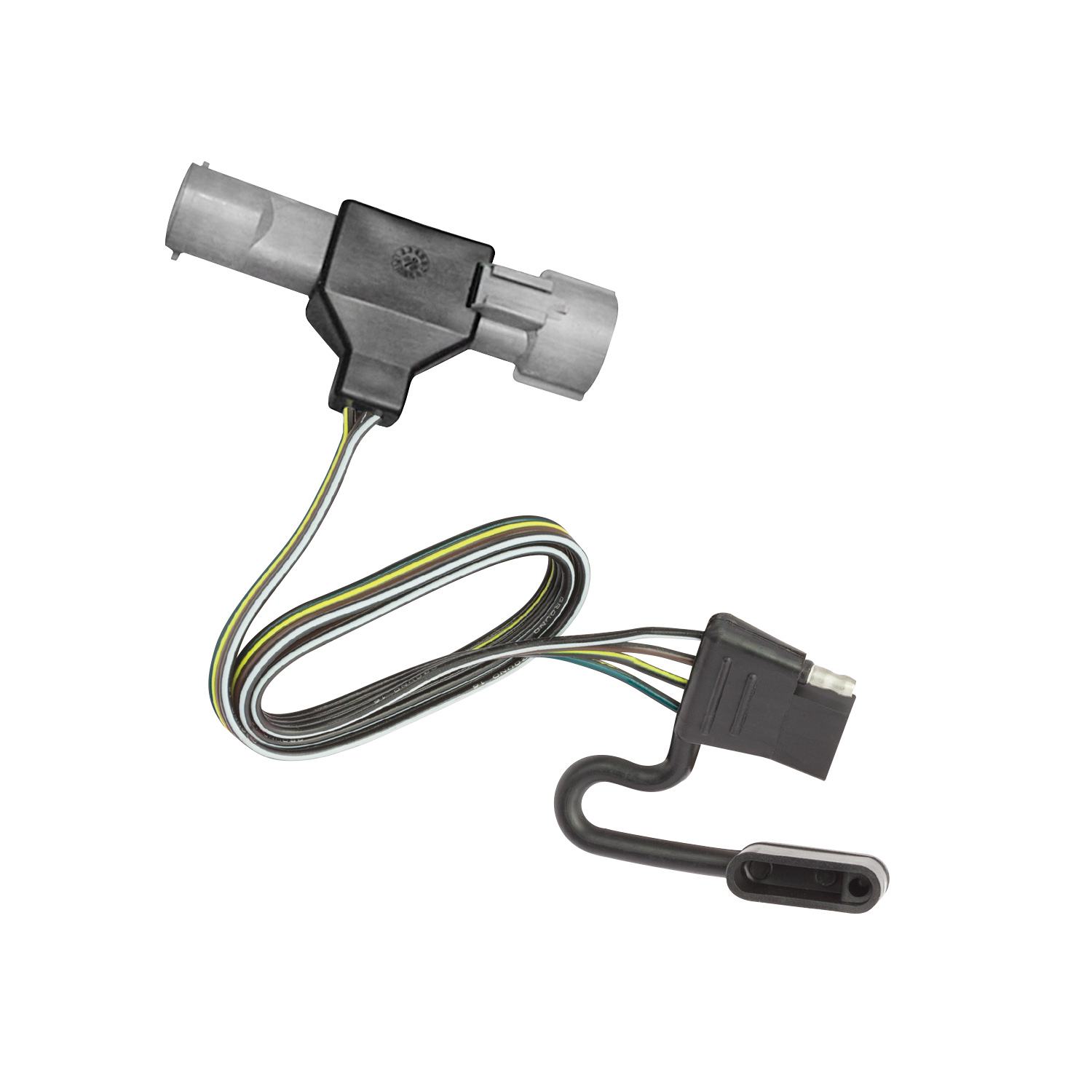

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118316 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.44 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | NO |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 2-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1987 - 1996 | Ford F-150 | Tow Harness T: Connector Assembly Uses all existing holes. No Drilling required Install Time is 5 minutes |
| 1987 - 1996 | Ford F-250 | Tow Harness T: Connector Assembly Uses all existing holes. No Drilling required Install Time is 5 minutes |
| 1997 | Ford F-250 HD | Tow Harness T: Connector Assembly Uses all existing holes. No Drilling required Install Time is 5 minutes |
| 1987 - 1997 | Ford F-350 | Tow Harness T: Connector Assembly Uses all existing holes. No Drilling required Install Time is 5 minutes |
Yes, the Tekonsha T-One T-Connector Harness, 4-Way Flat TK118316 (Part #TK118316) is designed to fit the 1987-1996 Ford F-150.
The Tekonsha T-One T-Connector Harness, 4-Way Flat TK118316 (Part #TK118316) fits the following vehicles: 1987-1996 Ford F-150; 1987-1996 Ford F-250; 1997 Ford F-250 HD; 1987-1997 Ford F-350. Always verify your specific year, make, and model before ordering.
The Tekonsha T-One T-Connector Harness, 4-Way Flat TK118316 (Part #TK118316) fits 1987-1996 Ford F-150 models. The 1997 model year is the last year covered by this part number. For newer models, check for an updated version.
The Tekonsha T-One T-Connector Harness, 4-Way Flat TK118316 (Part #TK118316) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The T-connector adapter is rated for 7.5 amps per circuit. This rating applies to each individual circuit in the taillight wiring harness.
The vehicle's taillight wiring harness is located along the inside of the left rear frame rail. This harness has a connection point with connectors that match the ends of the T-connector adapter.
First, separate the harness connectors carefully without breaking the locking tabs. Clean the mating surfaces of the connectors if necessary. Then insert the T-connector adapter between the harness connectors and lock it into place. Ensure that connectors are fully inserted with locking tabs in place.
Route the T-connector harness to the center of the vehicle and secure the wire to the vehicle crossmember or other mounting point using electrical tape or tie straps. Note that tie straps are not supplied with the adapter.
You will need electrical tape or tie straps to secure the harness (these are not supplied). A test light or trailer is required to test the installation after completion.
After installation, test the installation using either a test light or a trailer. This verifies that the adapter is properly connected and functioning.
Before inserting the T-connector adapter, separate the harness connectors carefully without breaking the locking tabs. Check that the mating surfaces of the connectors are free of dirt and clean them if necessary.
The manual does not specify which vehicle makes, models, or years are compatible. Verify that your vehicle has a taillight wiring harness with connectors matching the T-connector adapter ends, located along the inside of the left rear frame rail.
The adapter is rated for 7.5 amps per circuit.
