Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118356 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.56 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | NO |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 2-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 | Jeep TJ | Tow Harness T: Connector Assembly Drilling Required Install Time is 10 minutes |
| 1991 - 1995, 1997 | Jeep Wrangler | Tow Harness T: Connector Assembly Drilling Required Install Time is 10 minutes |
The 1991-1995 Jeep Wrangler, 1997-1997 Jeep Wrangler, 1997-1997 Jeep TJ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118356 (Part #TK118356) fits 1997 Jeep TJ models. The 1997 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 1991-1995 Jeep Wrangler, 1997-1997 Jeep Wrangler, 1997-1997 Jeep TJ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118356 (Part #TK118356) is designed to fit the 1997 Jeep TJ.
The 1991-1995 Jeep Wrangler, 1997-1997 Jeep Wrangler, 1997-1997 Jeep TJ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118356 (Part #TK118356) fits the following vehicles: 1997 Jeep TJ; Jeep Wrangler. Always verify your specific year, make, and model before ordering.
The 1991-1995 Jeep Wrangler, 1997-1997 Jeep Wrangler, 1997-1997 Jeep TJ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118356 (Part #TK118356) Drilling is required for installation. Basic hand tools are typically all you need.
This unit is rated for 7.5 amps per circuit.
The manual does not specify vehicle makes, models, or years. It is designed for vehicles with factory wiring harnesses located under the vehicle behind protective covers next to the rear bumper. Consult the product packaging, fitment database, or manufacturer to confirm compatibility with your specific vehicle.

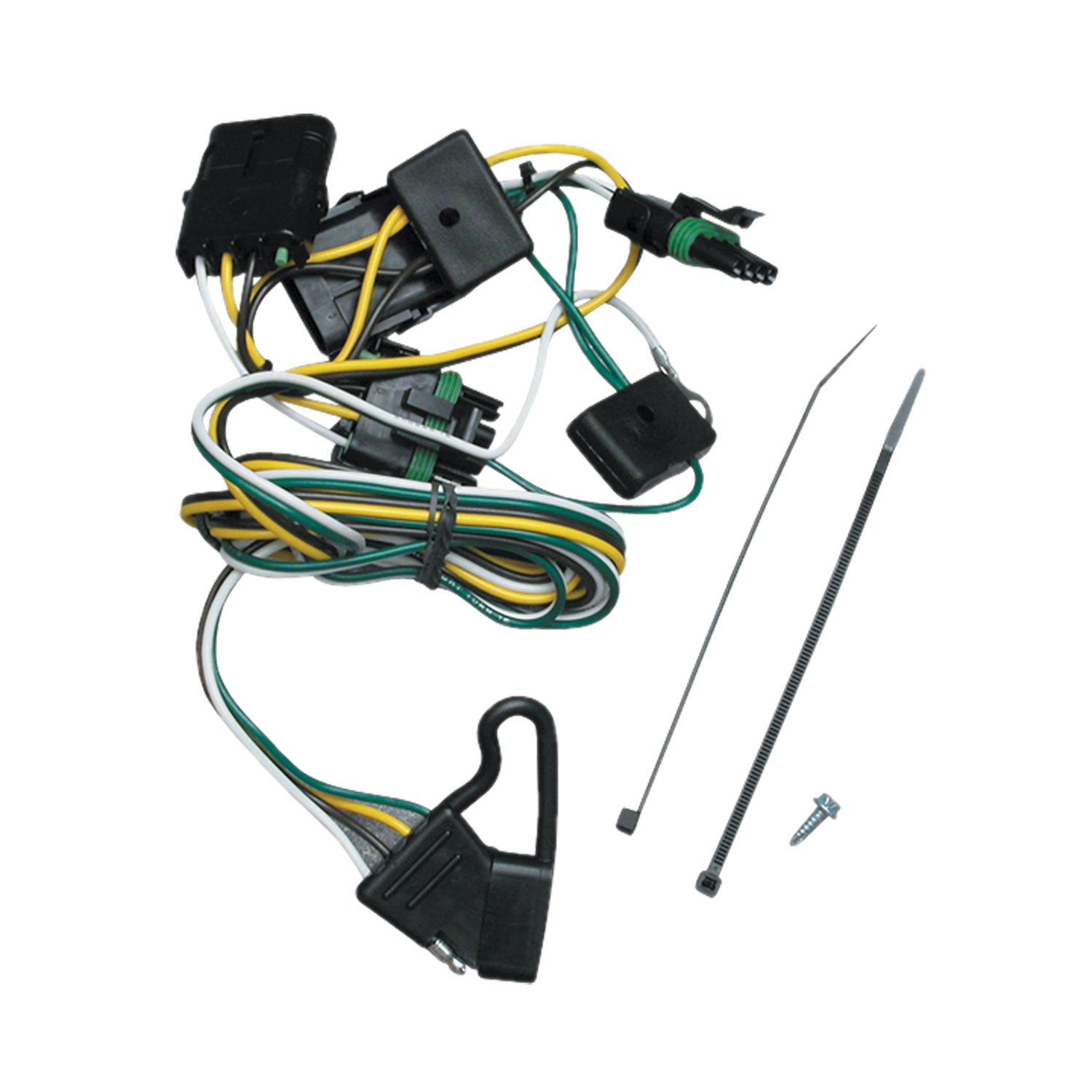

The adapter includes two T-connectors (one with a Yellow wire for the driver's side and one with a Green wire for the passenger's side), a White ground wire with an eyelet and screw, and cable ties for bundling and securing wires to the vehicle's crossmember.
You will need a drill with a 3/32" drill bit. A test light or trailer is also required to test the installation after completion.
The vehicle's wiring harnesses are located underneath the vehicle behind the protective covers next to the rear bumper. There will be connection points on both sides of the vehicle that match the ends of the T-connector.
Begin with the driver's side. Separate the vehicle's wiring harness connectors carefully without breaking the locking tabs, ensure mating surfaces are clean, and insert the T-connector containing the Yellow wire. Repeat the same process for the passenger's side using the T-connector containing the Green wire.
Insert the T-connector fully between the vehicle connectors and ensure the locking tabs are in place. The connectors should be fully inserted with locking tabs engaged to secure the connection.
Clean the mating surfaces before connecting the T-connector. Ensure that the mating surfaces are free of dirt and clean if necessary before inserting the T-connector.
Locate a suitable grounding point near the adapter on the vehicle frame or crossmember. Do not drill into the vehicle floor or bed. Drill a 3/32" hole at this location to secure the White ground wire.
Drill a 3/32" hole (2.4 mm) for the ground wire.
Yes. Before drilling, clean dirt and rustproofing from the grounding point area to ensure a good electrical connection.
After drilling the 3/32" hole, secure the White wire using the eyelet and screw provided with the adapter.
Bundle and secure all wires to the vehicle's crossmember using the cable ties provided with the adapter.
Test the installation using either a test light or a trailer. This verifies that the T-connector adapter is functioning correctly before regular use.
Yes. After bundling and securing the wires and completing the test, reinstall the protective covers that were removed at the beginning of the installation.
The Yellow wire is part of the T-connector for the driver's side connection. The Green wire is part of the T-connector for the passenger's side connection. The White wire is the ground wire.
This T-connector adapter fits vehicles with factory wiring harnesses under the rear bumper area. Check your vehicle's service manual or contact the manufacturer to confirm compatibility with your specific make and model.
You need a drill with a 3/32" drill bit and a test light or trailer to test the installation.
Yes. You must drill a 3/32" hole in the vehicle frame or crossmember to secure the ground wire. Do not drill into the vehicle floor or bed.
This unit is rated for 7.5 amps per circuit.
Yes. Ensure the mating surfaces of the vehicle's wiring harness connectors are free of dirt and clean them if necessary before inserting the T-connector.
Test the installation using a test light or trailer to verify proper operation before regular use.
