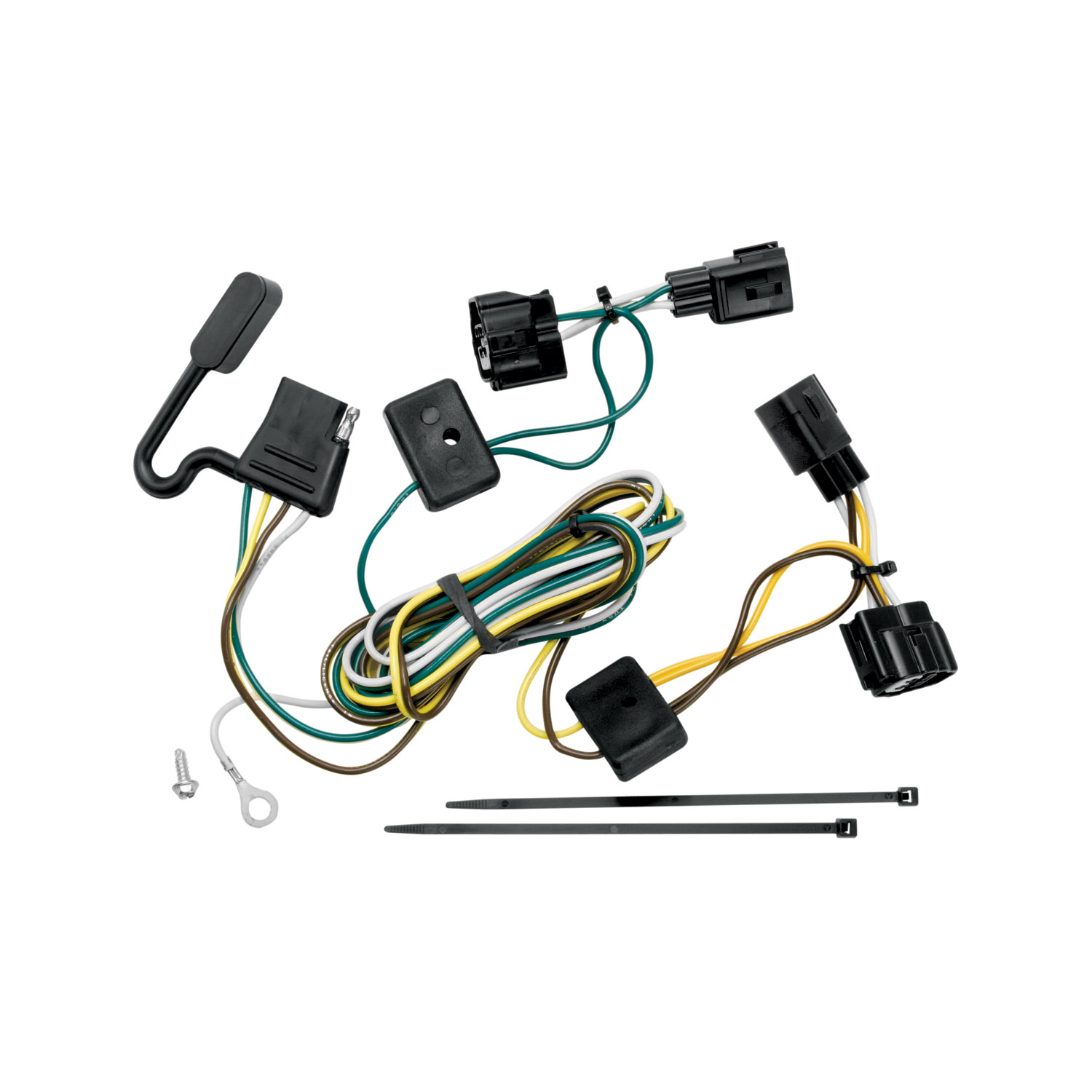

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118409 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.55 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | NO |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 2-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 - 2006 | Jeep TJ | Tow Harness T: Connector Assembly Drilling Required Install Time is 15 minutes |
| 1998 - 2006 | Jeep Wrangler | Tow Harness T: Connector Assembly Drilling Required Install Time is 15 minutes |
Yes, the 1998-2006 Jeep TJ, 1998-2006 Jeep Wrangler Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118409 (Part #TK118409) is designed to fit the 1998-2006 Jeep TJ.
The 1998-2006 Jeep TJ, 1998-2006 Jeep Wrangler Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118409 (Part #TK118409) fits 1998-2006 Jeep TJ models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1998-2006 Jeep TJ, 1998-2006 Jeep Wrangler Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118409 (Part #TK118409) fits the following vehicles: 1998-2006 Jeep TJ; 1998-2006 Jeep Wrangler. Always verify your specific year, make, and model before ordering.
The 1998-2006 Jeep TJ, 1998-2006 Jeep Wrangler Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118409 (Part #TK118409) Drilling is required for installation. Basic hand tools are typically all you need.
The T-Connector is a vehicle trailer lighting adapter that allows you to connect a trailer to your vehicle's electrical system. It interfaces between your vehicle's wiring harness and a 4-flat trailer connector, enabling your trailer lights to function with your vehicle's lighting circuits.
The manual does not specify which vehicle makes, models, or years are compatible with this adapter. Contact the manufacturer or your retailer with your vehicle's details to confirm fitment before purchase.
You need a drill with a 3/32" drill bit and a Phillips head screwdriver. These are the only tools required for installation.
The package includes an eyelet and screw for securing the white ground wire, and cable ties for bundling and securing wires to the vehicle's crossmember. A bracket for mounting the 4-flat connector is not included.
The vehicle's wiring harness is located behind black plastic protective covers on each side of the vehicle under the vehicle next to the bumper. On some vehicles, the harness is located behind the protective cover and above the rear bumper bracket. Remove the two plastic trim fasteners on each side to access it.
The manual does not specify whether the battery must be disconnected. Consult your vehicle's owner's manual or a qualified installer for guidance on electrical safety before beginning installation.
Begin on the driver's side and insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Then repeat on the passenger's side with the T-Connector end containing the green wire. Ensure connectors are fully inserted with locking tabs in place.
Remove the foam tape attached to the plugs and separate the vehicle's wiring harness connectors carefully, being careful not to break the locking tabs. Ensure that the mating surfaces are free of dirt and clean if necessary before connecting the T-Connector.
Yes. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. The hole should be drilled in a suitable grounding point near the adapter, such as the vehicle frame or crossmember. Do not drill into the vehicle floor or bed.
Locate a suitable grounding point near the adapter such as the vehicle frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling the 3/32" hole.
Verify what is behind any surface prior to drilling to avoid damage to the vehicle and/or personal injury. Do not drill into any exposed surfaces. Do not drill into the vehicle floor or bed.
The drill bit size is 3/32". This hole is used to secure the white ground wire using the eyelet and screw provided.
The T-Connector has three colored wires: yellow (driver's side connection), green (passenger's side connection), and white (ground wire). The yellow and green wires connect to the vehicle's wiring harness connectors on their respective sides, and the white wire is grounded to the vehicle frame or crossmember.
Do not exceed 7.5 amps on stop/turn lights or 7.5 amps on tail lights. Do not exceed the lower of your vehicle manufacturer's rating or these limits. Overloading the circuit can cause fires. Consult your vehicle's owner's manual for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed to ensure all connections are working correctly.
Test and verify the installation with a test light or trailer once installed. This ensures all connections are complete and functioning properly. Consult your vehicle's owner's manual and instruction sheet for additional testing information.
Bundle and secure wires to the vehicle's crossmember using the cable ties provided. Route the 4-flat connector to the center of the vehicle's crossmember using cable ties provided. Re-install protective covers removed in step 1.
Yes. After bundling and securing the wires, re-install the protective covers that were removed in step 1 to protect the connections and maintain the vehicle's appearance.
The manual does not specify compatible vehicles. Contact the manufacturer or retailer with your vehicle's make, model, and year to confirm fitment.
You need a drill with 3/32" bit and Phillips head screwdriver. The kit includes an eyelet, screw, and cable ties. A bracket for the 4-flat connector is not included and must be sourced separately.
Yes. You must drill a 3/32" hole in the vehicle frame or crossmember (not the floor or bed) to ground the white wire. Verify what is behind the surface before drilling.
Maximum 7.5 amps for stop/turn lights and 7.5 amps for tail lights. Do not exceed the lower of your vehicle manufacturer's rating or these limits; overloading can cause fires.
Test and verify installation with a test light or trailer once installed. All connections must be complete for proper function.
Remove protective covers and access the wiring harness. Connect the yellow wire end on the driver's side and green wire end on the passenger's side. Drill and ground the white wire to the frame or crossmember. Secure wires with cable ties and reinstall covers.
