Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118558 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.15 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Honda Pilot | Tow Harness T: Connector Assembly Uses all existing holes. No Drilling required Install Time is 30 minutes |
The 2012-2015 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118558 (Part #TK118558) fits the following vehicles: 2012-2015 Honda Pilot. Always verify your specific year, make, and model before ordering.
The 2012-2015 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118558 (Part #TK118558) fits 2012-2015 Honda Pilot models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2012-2015 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118558 (Part #TK118558) is designed to fit the 2012-2015 Honda Pilot.
The 2012-2015 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118558 (Part #TK118558) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

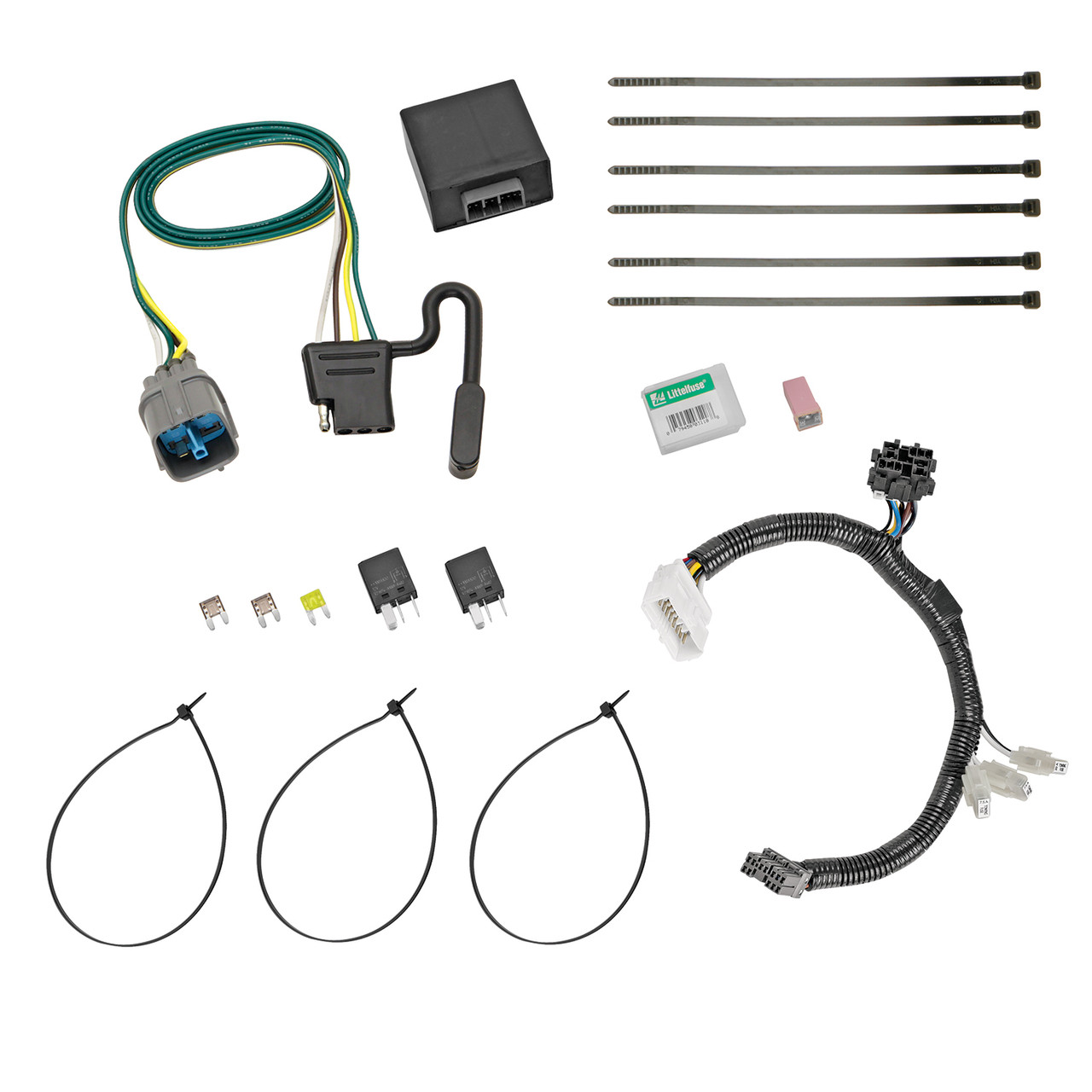

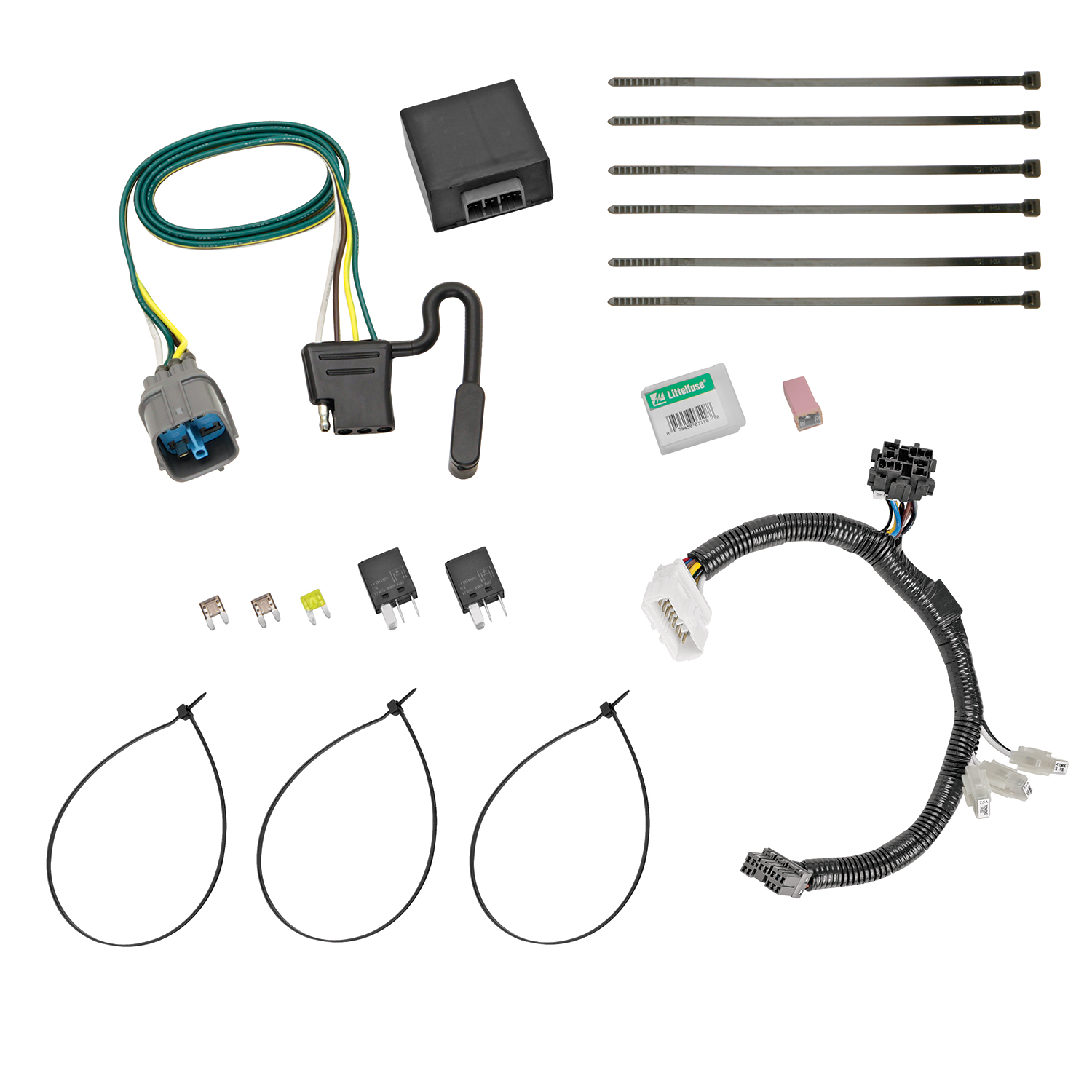

The T-Connector kit includes: two black relays, a relay and fuse harness with black connector, a black box-module, cable ties, and the main T-Connector harness. The 4-flat tow harness bracket is not included and must be obtained separately.
Yes, the T-Connector part 118558-037 is designed for Honda Pilot.
Two tools are required: a trim panel remover and a test-probe. Cable ties are provided with the kit for securing the harness.
No, the 4-flat tow harness bracket is not included and must be purchased separately.
The black box-module must be mounted ONLY in the interior of the vehicle on a flat, out-of-the-way surface that is free of moisture and positioned high enough to prevent direct contact with water or liquid. Mounting on the exterior or in areas exposed to elements or moisture will cause serious damage to the vehicle and module.
Locate the two black relays included in the kit and insert them into the black connector on the included relay and fuse harness. Using relays that differ from those included can result in the unit not functioning or may damage the vehicle and/or trailer.
Open the rear door and push the rear seat forward. On the driver's side, use a trim panel remover to carefully remove the compartment door labeled 'AUX FUSE'. The vehicle's white trailer tow plug is located behind this trim panel.
The vehicle fuse box is located in the engine compartment on the driver's side. Fuses must be inserted into the positions as shown in the installation diagram.
The large grey housing containing the tow plug is located under the vehicle bumper on the driver's side. Remove the protective cap carefully without breaking the locking tabs, ensure mating surfaces are clean, and plug the towing harness into the grey tow plug. Ensure connectors are fully inserted with locking tabs in place.
Route the T-Connector harness rearward to the back of the bumper fascia. Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. Secure the harness under the bumper with the provided cable ties, being careful to avoid areas that would cut or pinch the wire.
Reinstall the access door, rear cargo door, and other items removed during installation, being careful not to pinch or cut the wires. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the vehicle manufacturer's rating or: maximum 2 stop/turn lights per side (4.2 amps total) and maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Consult the vehicle's owner's manual and instruction sheet for additional information.
Using relays that differ from the relays included in the kit can result in the unit not functioning or may damage the vehicle and/or trailer. Only the two black relays provided should be inserted into the black connector on the relay and fuse harness.
Wear safety glasses and use all safety precautions during installation. Avoid pinching, cutting, or melting the wire when securing the harness. Do not route the harness near hot pipes, heat shields, or the fuel tank. Ensure the black box-module is mounted in the vehicle interior only, away from moisture and elements. Be careful not to break the locking tabs on the grey tow plug connector.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
The T-Connector (part 118558-037) is designed for Honda Pilot.
You need a trim panel remover and a test-probe. Cable ties are included in the kit.
No, the 4-flat tow harness bracket is not included and must be purchased separately.
The black box-module must be mounted ONLY in the vehicle interior on a flat, dry surface away from moisture. Never mount it on the exterior or in areas exposed to elements.
Using different relays can cause the unit to malfunction or damage the vehicle and/or trailer. Only use the two black relays provided in the kit.
