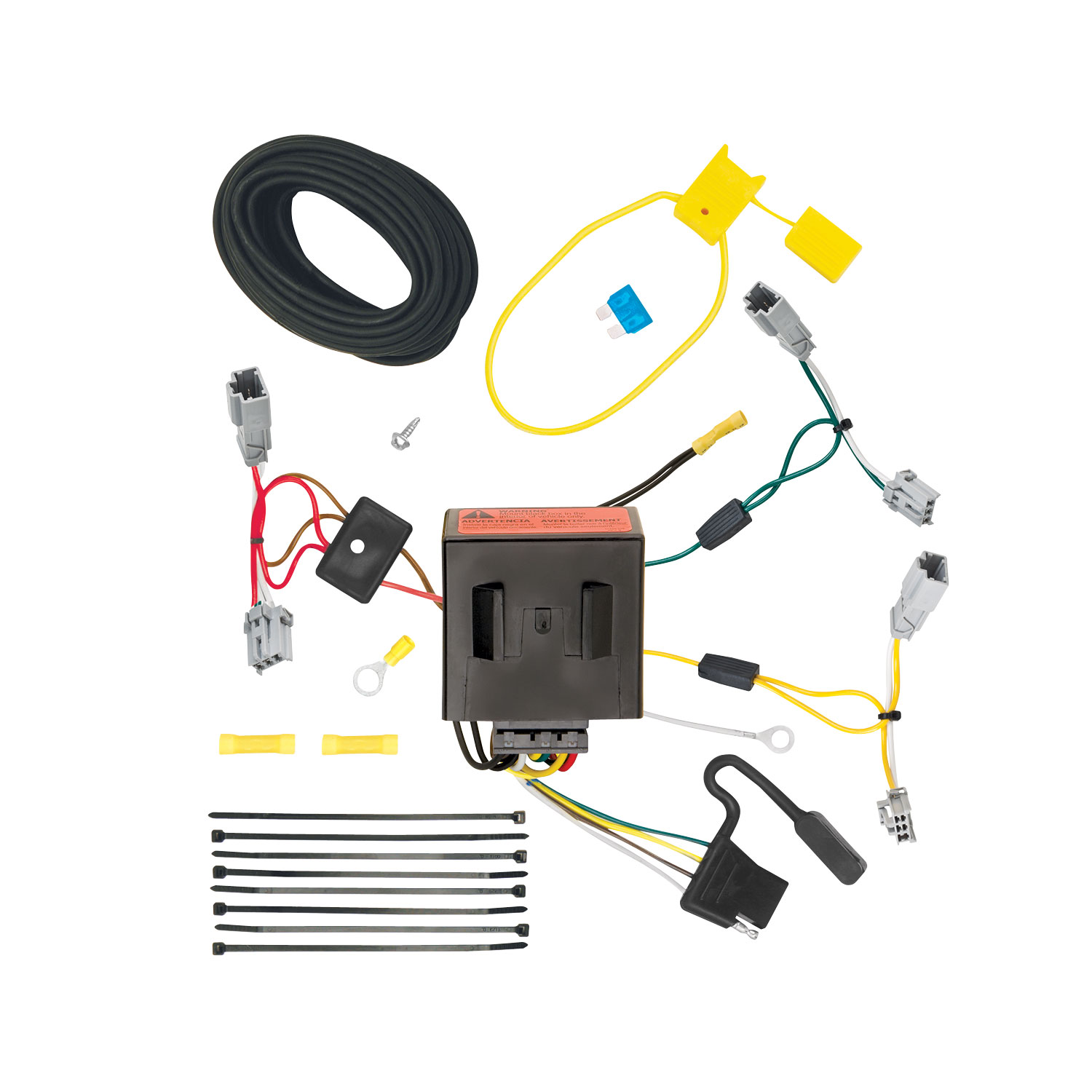

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118563 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.65 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2016 | Mazda CX-5 | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
Yes, the 2013-2016 Mazda CX-5 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118563 (Part #TK118563) is designed to fit the 2013-2016 Mazda CX-5.
The 2013-2016 Mazda CX-5 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118563 (Part #TK118563) fits the following vehicles: 2013-2016 Mazda CX-5. Always verify your specific year, make, and model before ordering.
The 2013-2016 Mazda CX-5 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118563 (Part #TK118563) fits 2013-2016 Mazda CX-5 models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2013-2016 Mazda CX-5 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118563 (Part #TK118563) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, this T-Connector is designed for the Mazda CX-5. The installation instructions are specific to this vehicle model.
The T-Connector is a trailer wiring adapter that connects to your vehicle's taillight wiring to provide power for trailer lights. It includes a black box-module that manages the electrical connections and a 4-flat connector for storage when not in use.
You will need: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, and a test probe.
Yes. You must disconnect the vehicle's negative (−) battery cable before making the final electrical connections to the battery. This is done in step 9, after all other connections are complete.
Yes. You must partially remove the plastic threshold cover, cargo trays, and rear interior trim panels on both the driver and passenger sides to access the vehicle's wiring behind the taillights. Several trim panel fasteners will need to be removed.
Yes. You must drill a 3/32" hole on the driver's side near the taillight connectors to secure the white ground wire with an eyelet and screw. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
The black box-module must be mounted in the interior of the vehicle only, on a flat surface in an out-of-the-way location that is free of moisture and high enough to prevent direct contact with water or liquid. It must never be mounted on the exterior or in areas exposed to the elements or moisture, as this could cause serious damage to the vehicle and module.
Starting on the driver's side, separate the vehicle's wiring connectors behind each taillight housing. Attach the T-Connector end containing yellow, brown, and red wires to the driver's side connector. Route the T-Connector containing the green wire below the threshold cover to the passenger's side taillight housing and repeat the connection. Ensure connectors are fully inserted with locking tabs in place and do not damage the locking tabs.
The driver's side T-Connector end contains yellow, brown, and red wires. The passenger's side T-Connector end contains the green wire. These connect to the matching connection points on the back of each vehicle taillight housing.
Locate a suitable grounding point on the driver's side near the taillight connectors. Drill a 3/32" hole and secure the white wire with an eyelet using the screw provided. Do not drill into any exposed surfaces.
From inside the vehicle, connect the black 12 ga. wire from the T-Connector black box-module with the supplied yellow butt connector. Route the black wire either through a grommet and along the exterior frame, or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. After disconnecting the negative battery cable, remove the fuse from the yellow fuse holder, cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector.
The yellow fuse holder is provided with the T-Connector. If not already removed, remove the fuse from it. Cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided.
Locate the T-Connector's grey 12-pin connector and insert it into the mating connector located on the black box-module. Ensure the mating surfaces of the wiring connectors match, that all connector surfaces are clean and free of dirt, and that connectors are fully inserted with locking tabs in place. Be careful not to damage the locking tabs.
Do not exceed the lower of the vehicle manufacturer's rating or: maximum stop/turn light 2 per side (4.2 amps), or maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Refer to your vehicle's owner's manual and instruction sheet for additional information.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
Store the 4-flat connector in the trunk area when not in use.
Yes. Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items that may have been removed during installation. Be careful not to pinch or cut the wires.
You have two options: (1) Route the black wire through a grommet and along the exterior frame, or (2) follow the existing wiring along the thresholds into the engine compartment up to the battery. Either way, avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Yes, the T-Connector (part 118563-037) is designed for the Mazda CX-5.
Trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, and test probe.
Do not exceed: stop/turn light 2 per side (4.2 amps) or tail lights (7.5 amps). Overloading can cause fires.
Mount the black box-module inside the vehicle only, on a flat, dry surface away from moisture and water. Never mount it on the exterior.
