Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118618 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.5 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |

Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2024 | Ram ProMaster 1500 | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2014 - 2024 | Ram ProMaster 2500 | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2014 - 2024 | Ram ProMaster 3500 | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118618 (Part #TK118618) fits the following vehicles: 2014-2024 Ram ProMaster 1500; 2014-2024 Ram ProMaster 2500; 2014-2024 Ram ProMaster 3500. Always verify your specific year, make, and model before ordering.
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118618 (Part #TK118618) fits 2014-2024 Ram ProMaster 1500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118618 (Part #TK118618) is designed to fit the 2014-2024 Ram ProMaster 1500.
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118618 (Part #TK118618) Drilling is required for installation. Basic hand tools are typically all you need.

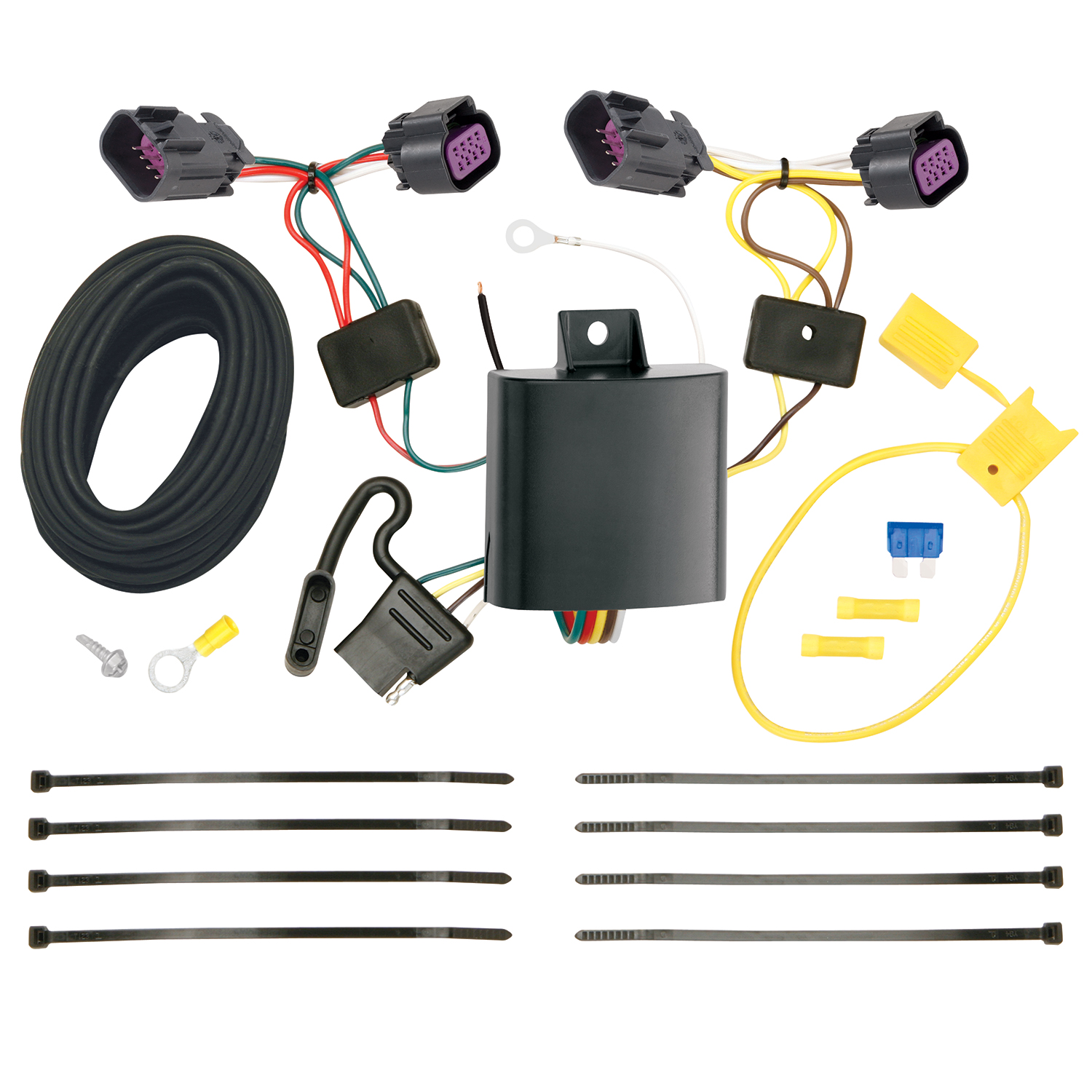

The T-One® T-Connector is a wiring harness adapter that allows you to connect a trailer to your Ram Promaster. It intercepts the vehicle's taillight signals and provides a 4-flat connector for trailer use. The system includes a black control module, wiring harness with yellow and green connectors, a 15 amp fuse holder, and cable ties for secure installation.
Yes, the T-One® T-Connector part 118618-037 is designed for the Ram Promaster. The manual confirms this application. However, you should verify your specific vehicle configuration and consult your vehicle's owner's manual for towing capacity and any additional compatibility requirements.
You will need: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. Safety glasses are also required.
The kit includes: T-One® T-Connector harness with yellow and green wires, black control module, white ground wire with eyelet, black 12 gauge power wire, 15 amp fuse holder (yellow), 15 amp fuse, yellow butt connector, double-sided tape for module mounting, cable ties, and a ring terminal for battery connection.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the positive battery terminal. This is done in step 8, after routing the black 12 gauge power wire to the engine compartment. Reconnect the negative battery cable only after the fuse is installed in step 9.
Open the rear door and remove the access panel doors on both sides of the vehicle. You will need to remove several trim panel fasteners to access the panels. Behind these panels you will find the vehicle's wiring connectors at the back of each taillight housing.
Begin on the driver's side. Plug the T-One® T-Connector harness containing the yellow wire between the vehicle's mating connectors at the driver's side taillight. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place. Then route the end with the green wire across the top threshold to the passenger side and repeat the process for the passenger's side using the connector containing the green wire.
On the driver's side, route the T-One® T-Connector end with the green wire up through the trim panel access hole, across the top threshold, and through the passenger trim panel access hole. For ease of installation, the manual suggests attaching the harness (two connectors) to fish wire and carefully pulling it toward the passenger side.
Yes. You must drill one 3/32" hole on the driver's side near the taillight connectors to secure the white ground wire with an eyelet and screw. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
A 3/32" drill bit is required. This hole is drilled on the driver's side near the taillight connectors to secure the white ground wire with the eyelet and screw provided.
Mount the black control module on the driver's side using the double-sided tape provided. The module must be mounted so that the epoxy side is pointed toward the ground to prevent water buildup. After mounting, secure the remainder of the harness with cable ties provided, being careful to avoid areas that would cut or pinch the wire.
Locate the black 12 gauge power wire from the T-One® T-Connector black box on the driver's side. You have two options: either route the black wire through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire.
First disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge power wire using the yellow butt connector provided. Do not reconnect the negative battery cable until after the 15 amp fuse is installed.
A 15 amp fuse is required. This fuse is installed in the yellow fuse holder after the power wire is connected to the vehicle's positive battery cable. The fuse holder is provided with the kit.
After installing the 15 amp fuse into the fuse holder, reconnect the vehicle's negative (-) battery cable. Then secure the remainder of the T-One® T-Connector harness with the cable ties provided, being careful to avoid any areas that would pinch, cut, or melt the wire. Finally, reinstall the threshold, storage covers, floor covering, and other items removed during installation, being careful not to pinch or cut the wires.
All connections must be complete for the T-One® T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. This ensures all connections are working correctly before towing.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. You must consult both your vehicle's owner's manual and the product specifications to determine the safe amperage limit for your specific setup.
Store the 4-flat connector in the rear cargo area when not in use.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. Be careful not to damage locking tabs on connectors. Avoid pinching, cutting, or melting wires when securing the harness with cable ties.
Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place. Improper insertion can prevent the T-One® T-Connector from functioning properly.
Yes, part 118618-037 is designed for Ram Promaster vehicles. Verify your vehicle's towing capacity in your owner's manual before installation.
Yes, disconnect the negative (-) battery cable before connecting the power wire to the positive terminal in step 8. Reconnect it only after the 15 amp fuse is installed.
Do not exceed the lower of your vehicle's towing manufacturer rating or the product's amperage rating. Consult your vehicle owner's manual and product specifications. Overloading can cause fires.
