Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2017 - 2022 Kia Sportage
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $141.25. Current price is $118.81.You save $22.44 (16%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Aug 15 - Tue, Aug 18
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118698 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.5 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2022 | Kia Sportage | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The 2017-2022 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118698 (Part #TK118698) fits the following vehicles: 2017-2022 Kia Sportage. Always verify your specific year, make, and model before ordering.
The 2017-2022 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118698 (Part #TK118698) fits 2017-2022 Kia Sportage models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2017-2022 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118698 (Part #TK118698) is designed to fit the 2017-2022 Kia Sportage.
The 2017-2022 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118698 (Part #TK118698) Drilling is required for installation. Basic hand tools are typically all you need.
The T-One® T-Connector is a wiring harness that provides trailer lighting connections for towing. It connects to your vehicle's factory wiring and battery to supply power to trailer lights. The system includes a T-connector with yellow, green, red, and brown wires for lighting circuits, a black 12 gauge power wire, a white ground wire, a 15 amp fuse holder, and a 4-flat connector end for the trailer.
Yes, this T-Connector is designed for the Kia Sportage. The manual is specific to this vehicle. However, the manual does not specify which model years are compatible. Contact the manufacturer or your installer to confirm your specific year and trim level are supported.
You will need: a trim panel remover, a drill with a 3/32" drill bit, a Phillips head screwdriver, and a test probe. The test probe is used to verify electrical connections after installation.

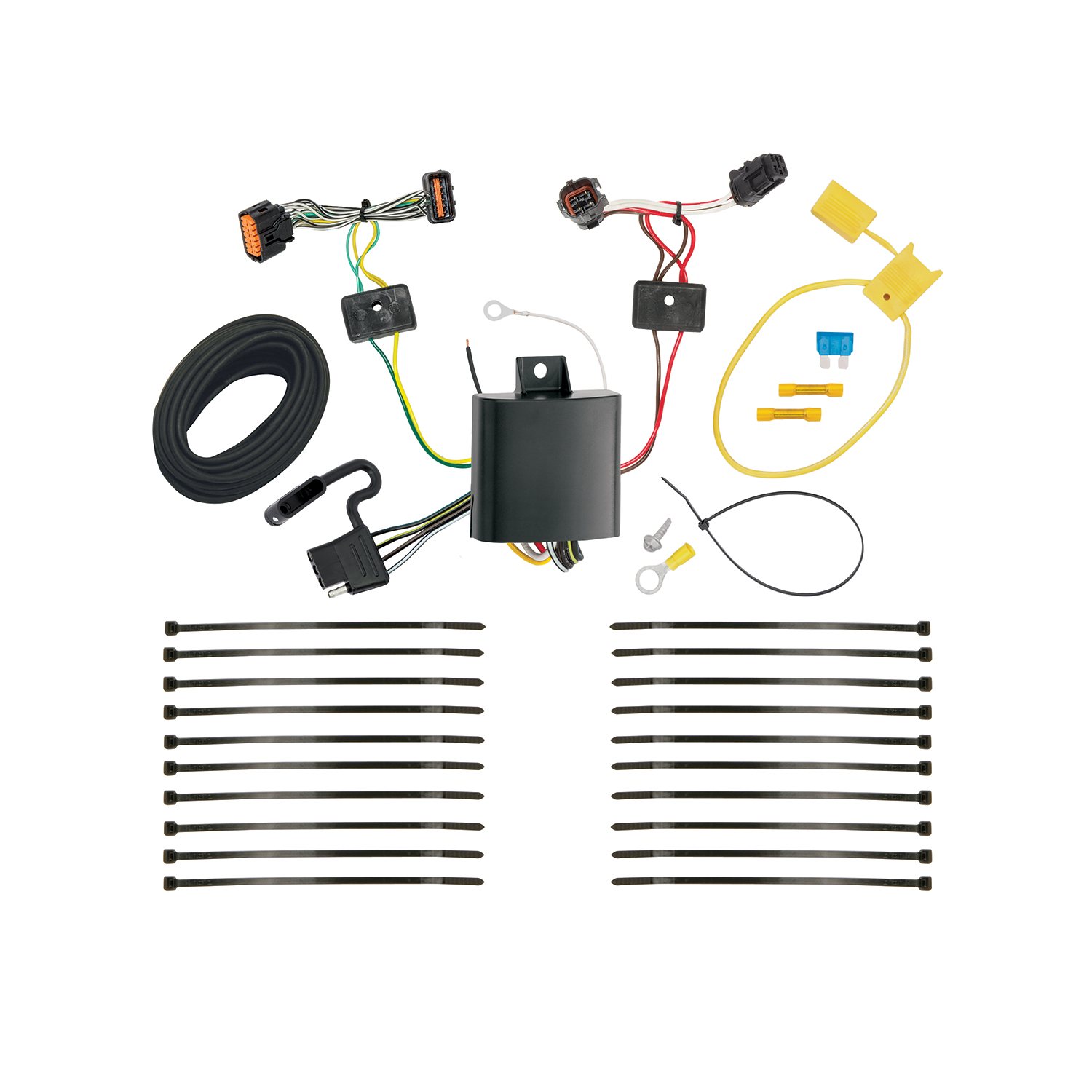

The kit includes: a T-connector harness with yellow, green, red, and brown wires; a black 12 gauge power wire; a white ground wire with eyelet and screw; a yellow fuse holder with 15 amp fuse; a yellow butt connector; cable ties; and a 4-flat connector end for the trailer. A bracket or electrical box for mounting the 4-flat end is not included.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the fuse holder to the positive (+) battery terminal in step 8. After all connections are complete, you reconnect the negative cable and install the 15 amp fuse in step 9.
The T-Connector installs on the driver's side only. This includes removing the driver's side taillight assembly, the plastic appearance panel underneath the rear on the driver's side, and routing all wires from the driver's side.
The T-Connector has two main connections: (1) Plug the T-connector with yellow and green wires into the vehicle's mating connector underneath the rear on the driver's side (step 4). (2) Route the red/brown wires to the driver's side taillight pocket and plug them into the vehicle's mating connectors (step 6). Ensure all connector surfaces are clean and free of dirt, and fully insert connectors with locking tabs in place.
Yes. You must drill one 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the connector on the driver's side underneath the rear of the vehicle. Clean dirt and rustproofing from the area first, then drill the hole and secure the white wire using the eyelet and screw provided. Always verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
Route the black 12 gauge wire from the T-Connector box along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Disconnect the vehicle's negative battery cable first. Attach the ring terminal to the fuse holder wire, secure it to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 15 amp fuse.
The T-Connector uses a 15 amp fuse. The fuse holder is provided with the kit. Install the 15 amp fuse into the fuse holder after all other connections are complete and the negative battery cable has been reconnected.
The T-Connector uses the following wires: yellow and green wires connect to the vehicle's mating connector underneath the rear (step 4); red and brown wires connect to the driver's side taillight pocket connectors (step 6); black 12 gauge wire is the power wire that connects to the battery (step 7); white wire is the ground wire that connects to a grounding point (step 5).
Route the black 12 gauge power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior of the vehicle, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Mount the black box module on a flat surface in an out-of-the-way location to prevent damage or rattling. The exact location is not specified in the manual; choose a location that is protected and does not interfere with vehicle operation.
Secure the remainder of the T-Connector harness with the cable ties provided. Be careful to avoid any areas that would pinch, cut, or melt the wire. Also secure the 4-flat harness underneath and to the center of the vehicle, and mount the 4-flat end in an accessible location with a bracket or electrical box (not included).
Yes. On the driver's side only, remove two screws on the taillight assembly and pull the taillight housing directly rearward to remove it. Set it aside during installation. After routing the red/brown wires to the taillight pocket and connecting them, reassemble the taillight assembly.
Yes. On the driver's side underneath the rear of the vehicle, locate the plastic appearance panel. Using a trim panel puller, remove the clips holding it in place, then remove the plastic nuts to remove the panel. Set it aside during installation. After routing and securing all wires, replace the appearance panel and any other clips that were removed, being careful not to cut or pinch the wires.
All connections must be complete for the T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Use the test probe to verify electrical connections at the connector.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual specifies a 15 amp fuse but does not state the overall product amperage rating. Refer to the product label and your vehicle's owner's manual for the specific towing capacity.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery before beginning. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. Be careful when routing wires to avoid hot pipes, heat shields, fuel tank, or other points that may pinch or break the wire. Overloading circuits can cause fires—do not exceed stated product ratings.
Yellow and green (vehicle connector), red and brown (taillight connector), black 12 gauge (power), and white (ground).
Do not exceed the lower of your vehicle's towing manufacturer rating or the product's amperage rating. Refer to your vehicle's owner's manual and the product label.
