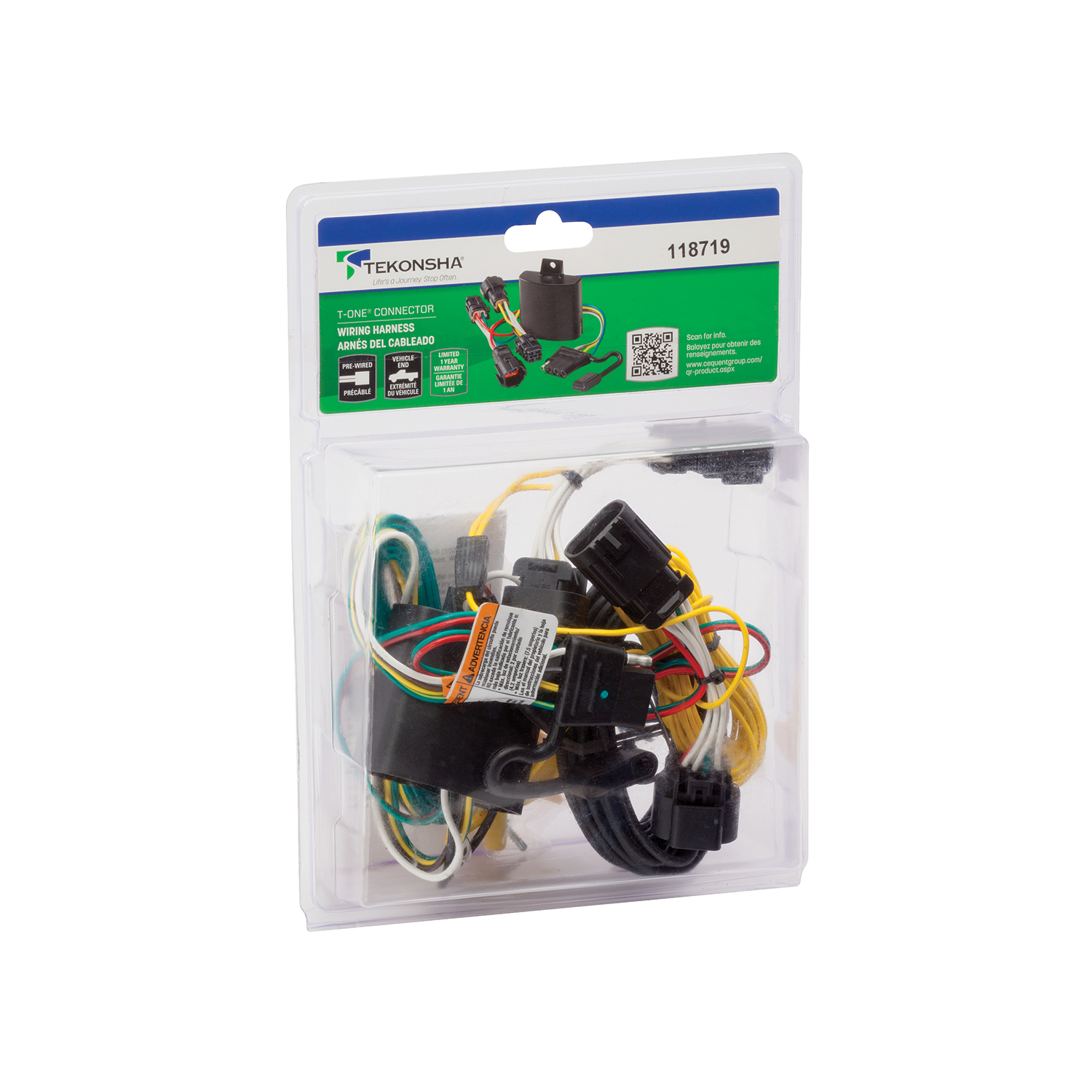

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118719 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.9 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2022 | Ram ProMaster City | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
Yes, the 2015-2022 RAM ProMaster City Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118719 (Part #TK118719) is designed to fit the 2015-2022 Ram ProMaster City.
The 2015-2022 RAM ProMaster City Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118719 (Part #TK118719) fits the following vehicles: 2015-2022 Ram ProMaster City. Always verify your specific year, make, and model before ordering.
The 2015-2022 RAM ProMaster City Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118719 (Part #TK118719) fits 2015-2022 Ram ProMaster City models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2022 RAM ProMaster City Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118719 (Part #TK118719) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-Connector part 118719-037 is designed for the RAM Promaster City. The installation instructions are specific to this vehicle model.

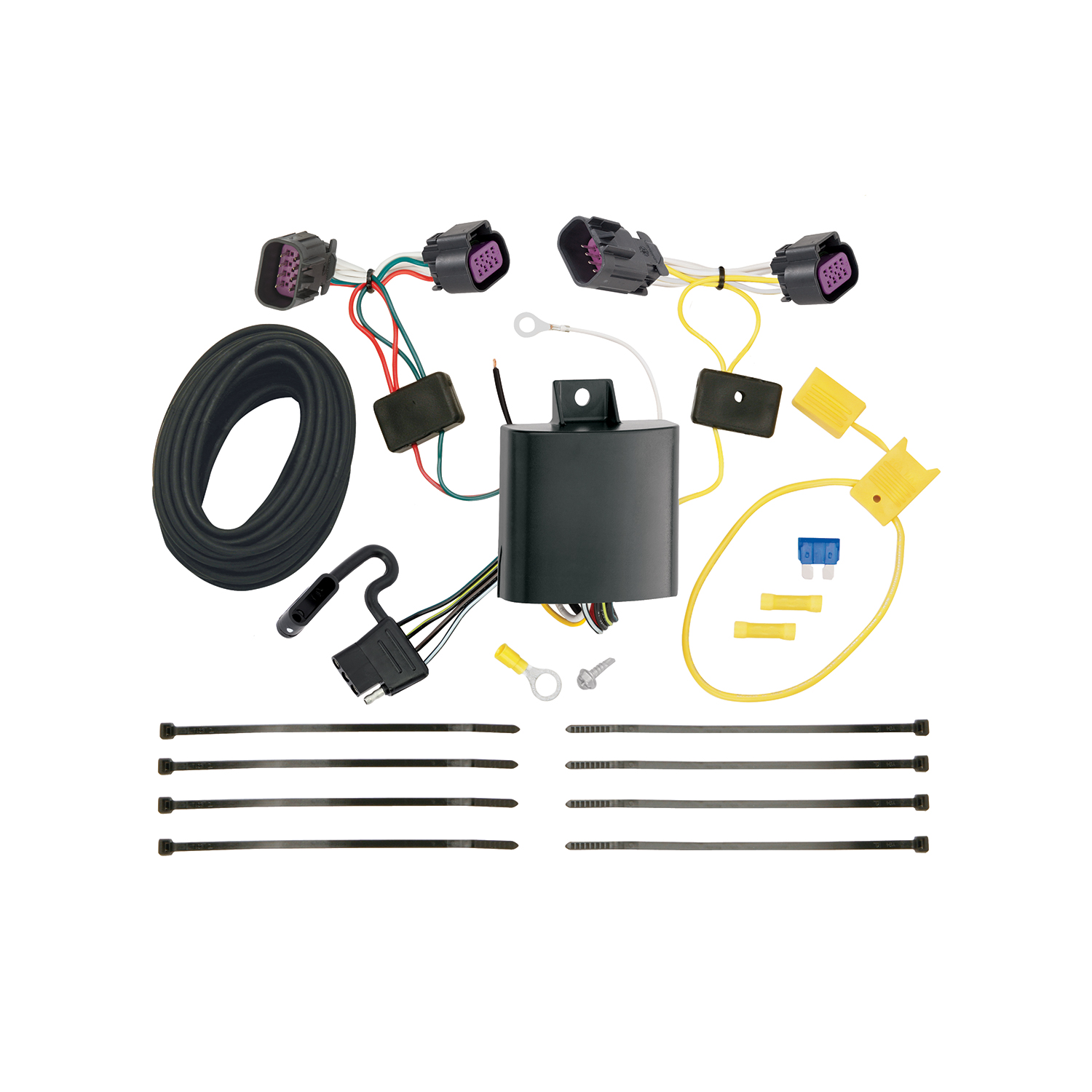

The T-Connector provides a connection point for trailer lighting. It connects to the vehicle's taillight wiring harness on both driver and passenger sides, allowing a 4-flat connector to be used for trailer hookup. The 4-flat connector should be stored in the rear cargo area when not in use.
You will need: Philips head screwdriver, drill with 3/32" drill bit, trim panel remover, test probe, wire crimpers, and wire cutters. Safety glasses are also required during installation.
Yes. You must disconnect the vehicle's negative (-) battery cable before beginning installation. This is a required safety step before any electrical work.
Yes. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. The hole should be drilled near a suitable grounding point on the vehicle. Do not drill into any exposed surfaces. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
The T-Connector harness connects to the vehicle's taillight wiring harness on both the driver and passenger sides. Each side has a matching connection point. The harness containing the green wire connects on the passenger side first, and the harness containing the yellow wire connects on the driver side. All connector surfaces must be clean and free of dirt before connecting.
Route the harness containing the yellow wire behind the fascia and door hinge bracket, then across the vehicle to the driver side. Hide the wire behind the top of the bumper fascia while routing. Once routed to the driver side, route the wire behind the fascia and door hinge bracket to the taillight pocket area. Be careful to avoid any areas that would cut, pinch, or melt the wire. Use the cable ties provided to secure the harness and prevent damage or rattling.
The black box is a module that mounts behind the taillight assembly on the passenger side. Clean a flat area behind the taillight using a mixture of rubbing alcohol and water, then mount the black box using the double-sided tape provided. The epoxy side of the module must point toward the ground to prevent water buildup. Verify that the taillight assembly can be reinstalled before mounting the black box.
The black 12 gauge power wire from the T-Connector box connects to the vehicle's positive (+) battery cable through a yellow fuse holder (provided). First, disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. After cutting the fuse holder wire, attach the ring terminal and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Route the black wire either through a grommet along the exterior frame or along existing wiring through the thresholds into the engine compartment, avoiding areas that may pinch or break the wire.
The yellow fuse holder protects the power circuit. It connects between the vehicle's positive (+) battery cable and the black 12 gauge power wire from the T-Connector box using yellow butt connectors. The fuse holder should be removed if already installed, then the wire should be cut and the ring terminal attached to the positive battery cable.
Do not exceed the lower of the towing manufacturer rating or: maximum 2 stop/turn lights per side (4.2 amps total) or maximum tail lights (7.5 amps). Overloading the circuit can cause fires. Refer to your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Open the rear door. On both the driver and passenger sides, remove two bolts and carefully pry the taillight housings rearward away from the vehicle, being careful not to break the alignment tabs. This will expose the taillight wiring harness connection points.
On the passenger side, remove the access panel to locate the rear of the taillight area. Route the 4-flat connector through the access hole in the taillight pocket area and exit through the area where the access panel was removed. Store the 4-flat connector in the rear cargo area when not in use.
After completing the T-Connector installation, reinstall the taillight housings that were removed in step 1. Also replace the access panel that was removed in step 7 to locate the rear of the taillight area.
The white wire is the ground wire. It must be secured to a suitable grounding point near the connector using the eyelet and screw provided. Drill a 3/32" hole to secure it. Do not drill into any exposed surfaces.
Yes, part 118719-037 is designed for the RAM Promaster City.
Philips head screwdriver, drill with 3/32" bit, trim panel remover, test probe, wire crimpers, wire cutters, and safety glasses.
Yes, disconnect the negative battery cable before starting installation.
Yes, you must drill a 3/32" hole to secure the white ground wire. Do not drill into exposed surfaces.
Maximum 2 stop/turn lights per side (4.2 amps) or maximum tail lights (7.5 amps). Do not exceed the lower of the towing manufacturer rating or these limits.
