Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118760 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2022 | Honda Pilot | Tow Harness T: Connector Assembly Drilling Required Install Time is 20 minutes |
The 2016-2022 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118760 (Part #TK118760) fits the following vehicles: 2016-2022 Honda Pilot. Always verify your specific year, make, and model before ordering.
Yes, the 2016-2022 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118760 (Part #TK118760) is designed to fit the 2016-2022 Honda Pilot.
The 2016-2022 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118760 (Part #TK118760) fits 2016-2022 Honda Pilot models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2016-2022 Honda Pilot Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118760 (Part #TK118760) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-One® Connector model 118760-037 is designed for the Honda Pilot. Your vehicle must have a factory tow plug located in the driver-side storage compartment (accessed by opening the rear tailgate and access panel) for the connector to be compatible.

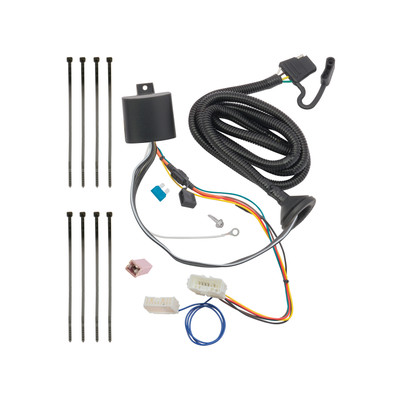

The T-One® Connector package includes the harness with black box-module, a white connector with single blue wire for optional back-up sensor connection, a 30 amp fuse, two 20 amp fuses, an eyelet and screw for grounding, cable ties for securing the harness, and a 4-Flat harness end. A bracket or electrical box for mounting the 4-Flat end is not included.
You will need: a trim panel remover, a drill with 3/32" drill bit, a Phillips head screwdriver, and a test-probe (test light). Safety glasses are required during installation.
The manual does not specify whether the battery must be disconnected before installation. Consult your vehicle's owner's manual or contact the manufacturer for guidance on this safety step.
You must temporarily remove all floor coverings and cargo trays from the rear cargo area. You will also need to remove the jack storage compartment door and discard the rubber grommet from the floor of the vehicle.
The white tow plug is located in the driver-side storage compartment. To access it, open the vehicle's rear tailgate and then open the access panel inside the storage compartment.
Insert the T-One® Connector harness into the vehicle's Tow-Plug harness and lock it into place. Ensure all connector surfaces are clean and free of dirt. Be careful not to damage the locking tabs and verify that connectors are fully inserted with locking tabs in place.
If your vehicle is not equipped with an accessory back-up sensor, the white connector with the single blue wire from the T-One® Connector will not be used. Leave it unconnected and proceed with the remaining installation steps.
Yes, drilling is required. You must drill a 3/32" hole near the connector to secure the white grounding wire using the eyelet and screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury, and do not drill into any exposed surfaces.
Locate a suitable grounding point near the connector. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Before drilling, verify what is behind the surface to prevent damage to the vehicle or personal injury.
Route the 4-Flat harness behind the trim panel over to the grommet area (where the rubber grommet was removed from the jack storage compartment floor). Route the 4-Flat end through the grommet hole into the jack storage area, then seat the grommet inside the hole. Continue routing the 4-Flat to the center of the vehicle.
The fuses are installed in the fuse box on the driver side near the front of the vehicle, accessed by opening the hood and unlatching the fuse door. Install the 30 amp fuse in position #2 (labeled Trl Main), one 20 amp fuse in position #3 (labeled Trl E-Brake), and one 20 amp fuse in position #11 (labeled Trl Charge). All three fuses are included with the T-One® Connector package.
The T-One® Connector uses three fuses: one 30 amp fuse (position #2, Trl Main) and two 20 amp fuses (position #3, Trl E-Brake and position #11, Trl Charge). All fuses are included in the package.
Mount the black box-module on a flat surface in an out-of-the-way place to prevent damage or rattling.
Secure the remainder of the T-One® Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
Mount the 4-Flat end in an accessible location with a bracket or electrical box. Note that the bracket or electrical box is not included with the T-One® Connector package and must be sourced separately.
Yes, you must replace both access panels, floor trim panels, and cargo door that were removed during installation.
Do not exceed the lower of the towing manufacturing rating stated in your vehicle's owner's manual or the specific amperage ratings stated on the T-One® Connector product. Overloading circuits can cause fires.
All connections must be complete for the T-One® Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Always wear safety glasses and use all safety precautions during installation. Read and follow all warnings and instructions included with the product. Read, understand, and follow all warnings and instructions printed on the tow vehicle's battery. Read your vehicle's owner's manual for additional information.
Install one 30 amp fuse in position #2 (Trl Main), one 20 amp fuse in position #3 (Trl E-Brake), and one 20 amp fuse in position #11 (Trl Charge). All are included.
Verify that all connections are complete. Check that the T-One® Connector harness is fully locked into the vehicle's Tow-Plug harness with locking tabs in place. Ensure all three fuses are correctly installed in the fuse box (30 amp in position #2, 20 amp in position #3, and 20 amp in position #11). Reset the vehicle electrical system by temporarily removing the key from the ignition. Test with a test light or trailer to verify proper function.
Ensure all connector surfaces are clean and free of dirt. Do not force the connector. Verify that you are not damaging the locking tabs during insertion. The connector must be fully inserted with locking tabs in place. If the connector still will not lock, inspect both the T-One® Connector and the vehicle's Tow-Plug harness for damage or debris.
