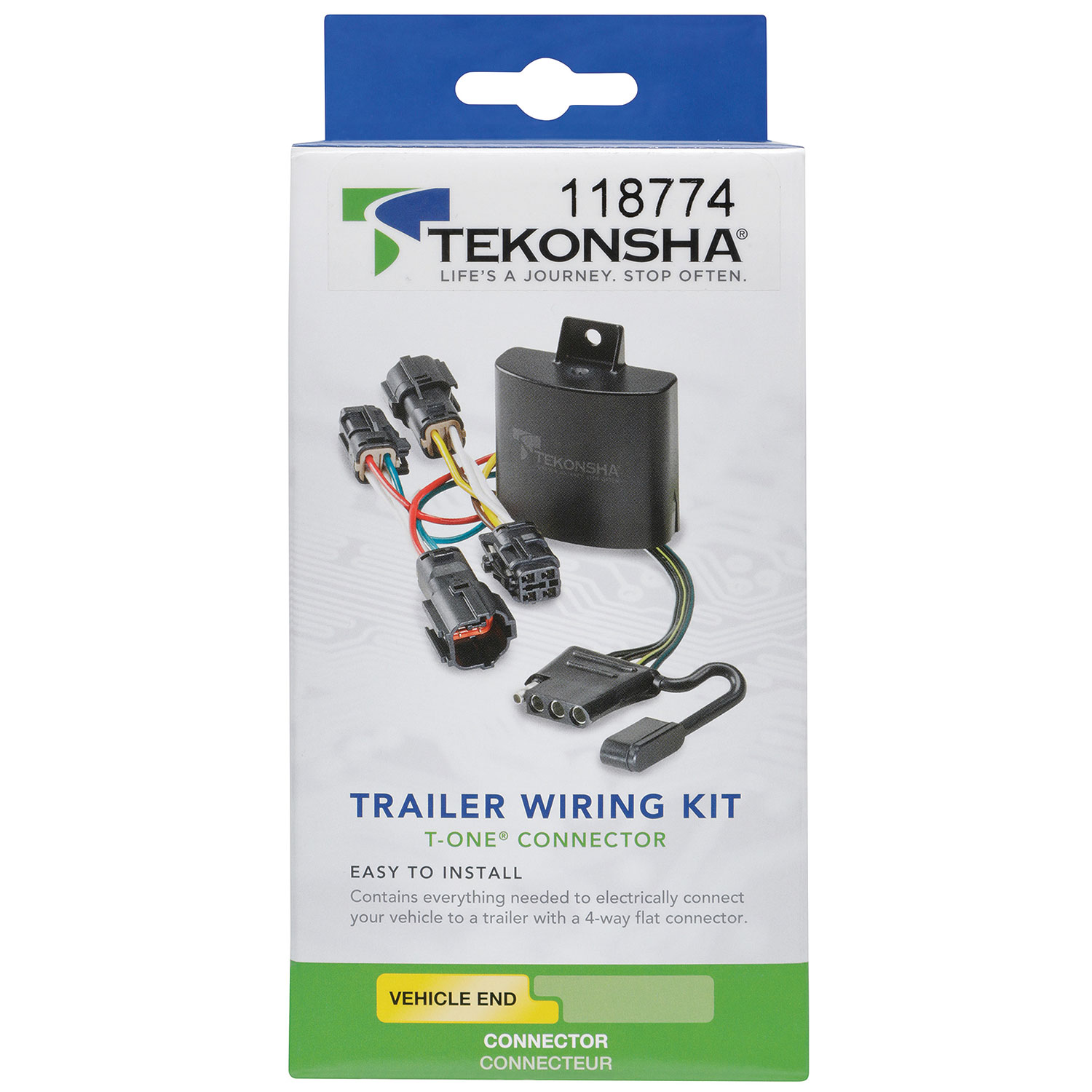

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118774 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.8 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2016 | Volvo XC70 | Tow Harness T: Connector Assembly Drilling Required Install Time is 20 minutes |
The 2008-2016 Volvo XC70 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118774 (Part #TK118774) fits the following vehicles: 2008-2016 Volvo XC70. Always verify your specific year, make, and model before ordering.
The 2008-2016 Volvo XC70 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118774 (Part #TK118774) fits 2008-2016 Volvo XC70 models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2008-2016 Volvo XC70 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118774 (Part #TK118774) is designed to fit the 2008-2016 Volvo XC70.
The 2008-2016 Volvo XC70 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118774 (Part #TK118774) Drilling is required for installation. Basic hand tools are typically all you need.
The T-One® Connector is a trailer wiring harness designed for the Volvo XC70. It integrates with the vehicle's existing taillight wiring to provide trailer lighting connections. The connector includes a black box module, multiple wire leads (yellow, green, red, white, and black), and a 4-flat connector for the trailer. It allows you to connect a trailer's lighting system to your vehicle's electrical system.
Yes, the T-One® Connector part number 118774-037 is designed specifically for the Volvo XC70. The installation instructions are tailored to this vehicle's rear cargo area layout, taillight wiring harness location, and battery access.
You will need: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. Safety glasses are also required during installation.

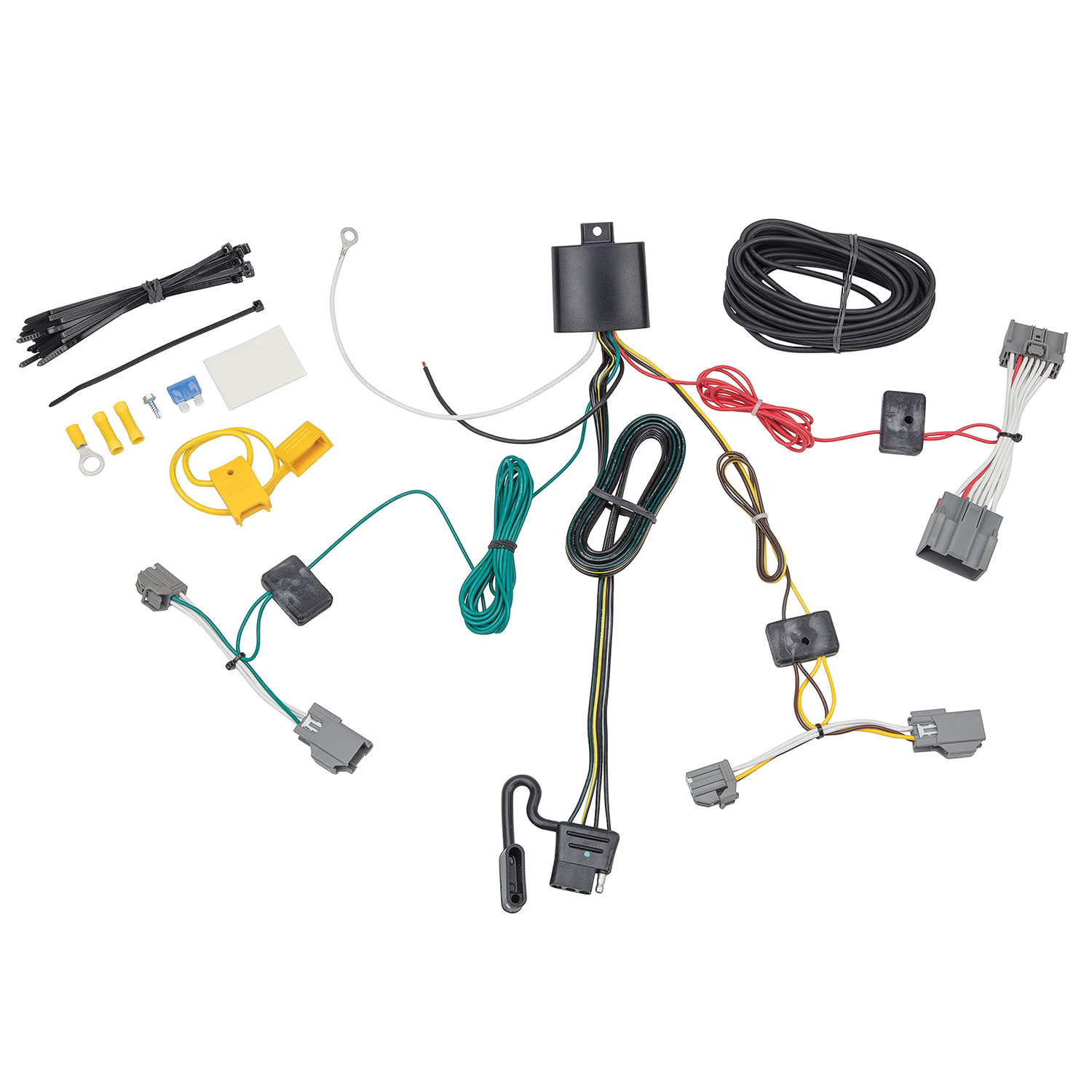

The kit includes: the T-One® Connector black box module, wire leads (yellow, green, red, white, and black 12 ga. power wire), double-sided tape for mounting the black box, cable ties for securing the harness, an eyelet and screw for the white ground wire, a yellow fuse holder with a 15 amp fuse, a yellow butt connector, and a 4-flat connector for storage in the rear cargo area when not in use.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the positive battery terminal. This is done in step 10 of the installation. After all connections are complete and the fuse is installed, you reconnect the negative battery cable in step 12.
You must partially remove the plastic threshold cover, side panels, and cargo trays from the rear cargo area to locate the vehicle's taillight wiring harness. These items are reinstalled at the end of the installation in step 13.
The T-One® Connector integrates into the existing taillight wiring on both sides of the vehicle. On the driver's side, insert the connector end with the yellow wire between the vehicle's taillight connectors and lock into place (step 3). On the passenger's side, insert the connector end with the green wire between the vehicle's taillight connectors and lock into place (step 7). On the driver's side, route the connector end with the red wire up the side panel to the mating connector and lock in place (step 8). Ensure all locking tabs are fully engaged and connector surfaces are clean before connecting.
Mount the black box on the driver's side of the vehicle using the double-sided tape provided. The box should be positioned near the taillight wiring connectors. After mounting, secure the remainder of the harness with the cable ties provided, being careful to avoid areas that would cut or pinch the wire.
Locate the black 12 ga. power wire from the T-One® Connector box on the driver's side. Route the black wire along the exterior frame or follow the existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior of the vehicle, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Yes, drilling is required to install the ground wire. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided, unless a suitable existing ground stud is available near the connector. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before securing the wire.
A 3/32" drill bit is required to drill the hole for securing the white ground wire.
Install a 15 amp fuse into the fuse holder. The yellow fuse holder is provided with the kit. If the fuse was removed from the holder before installation, reinstall it in step 12 after all connections are complete.
The T-One® Connector includes five main wires: yellow wire (driver's side taillight connection), green wire (passenger's side taillight connection), red wire (driver's side mating connector), white wire (ground connection to vehicle frame), and black 12 ga. wire (power connection to vehicle battery positive terminal). Each wire is routed to a specific location on the vehicle as detailed in steps 3-10.
After disconnecting the vehicle's negative battery cable, locate the black 12 ga. power wire from the T-One® Connector box. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Reconnect the vehicle's negative battery cable and install the 15 amp fuse into the fuse holder.
The yellow fuse holder protects the power circuit. It is installed between the vehicle's positive battery cable and the black 12 ga. power wire from the T-One® Connector. A 15 amp fuse is installed in the holder to protect the circuit from overload. The fuse holder is connected to the battery in step 10 and the fuse is installed in step 12 after all other connections are complete.
Always wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces, the vehicle floor, or bed. When routing the power wire, avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. Secure all wires with cable ties to prevent damage or rattling. Read and follow all warnings and cautions printed on the tow vehicle's battery. Do not exceed the towing manufacturer's rating or the product's amperage ratings, as overloading circuits can cause fires.
After installation is complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly.
After all wiring is complete and tested, reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items that were removed during installation. Be careful not to pinch or cut the wires when reinstalling these components. Store the 4-flat connector in the rear cargo area when not in use.
Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual does not specify the product's amperage rating; refer to the product label or contact the manufacturer for this specification. Overloading circuits can cause fires.
Yes, the T-One® Connector part number 118774-037 is designed specifically for the Volvo XC70.
You need: trim panel remover, 10mm socket/ratchet or wrench, drill with 3/32" bit, wire crimpers, wire cutters, Phillips screwdriver, test probe, and safety glasses.
Yes, disconnect the vehicle's negative battery cable before connecting the power wire to the positive terminal in step 10.
Install a 15 amp fuse in the yellow fuse holder provided with the kit.
After disconnecting the negative battery cable, attach the ring terminal from the fuse holder to the positive battery cable, connect the fuse holder to the black 12 ga. wire using the yellow butt connector, then reconnect the negative cable and install the 15 amp fuse.
Test with a test light or trailer, and reset the vehicle's electrical system by temporarily removing the ignition key. All connections must be complete for proper function.
Do not exceed the lower of your vehicle's towing manufacturer rating or the product's amperage rating. Refer to your vehicle owner's manual and the product label for specific limits.
