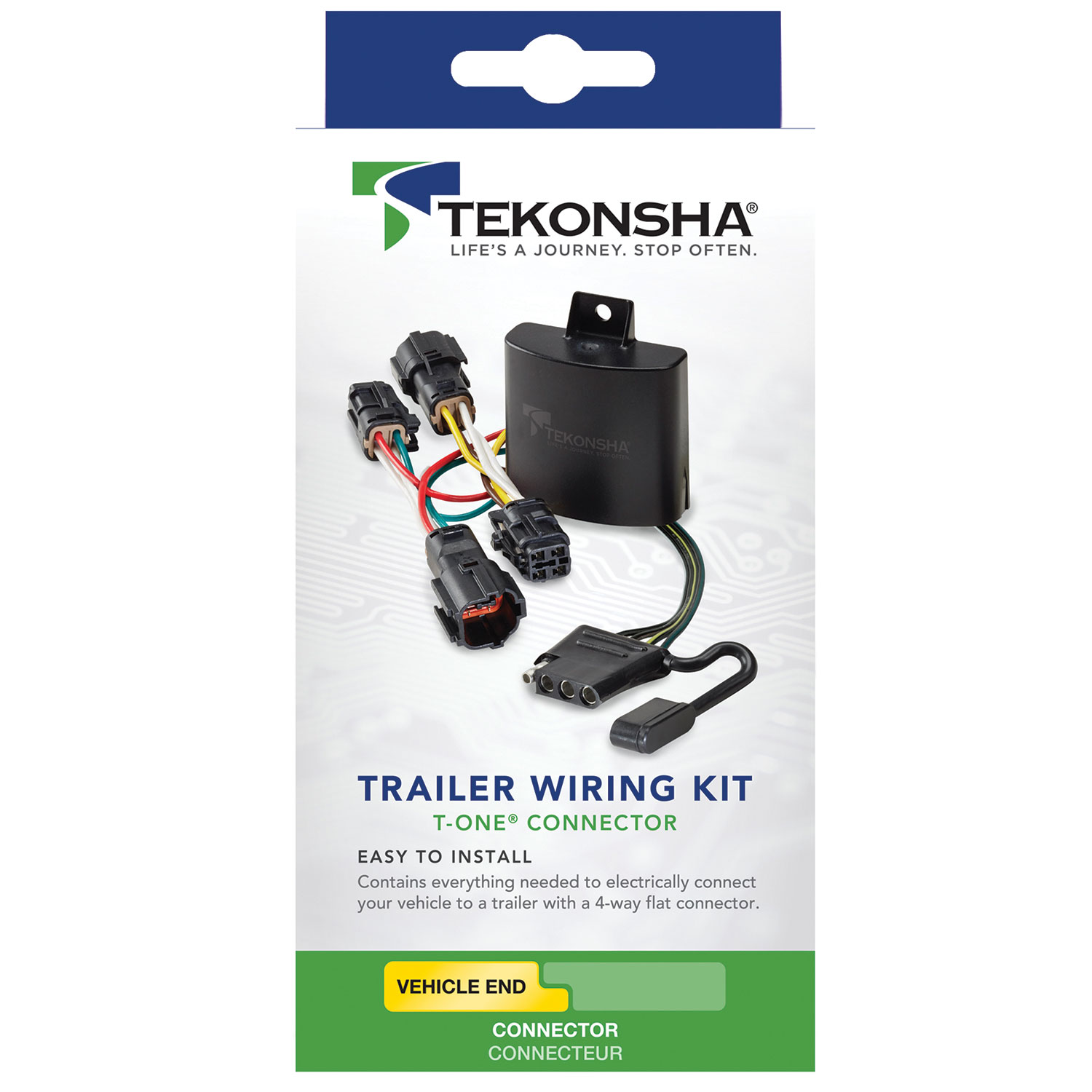

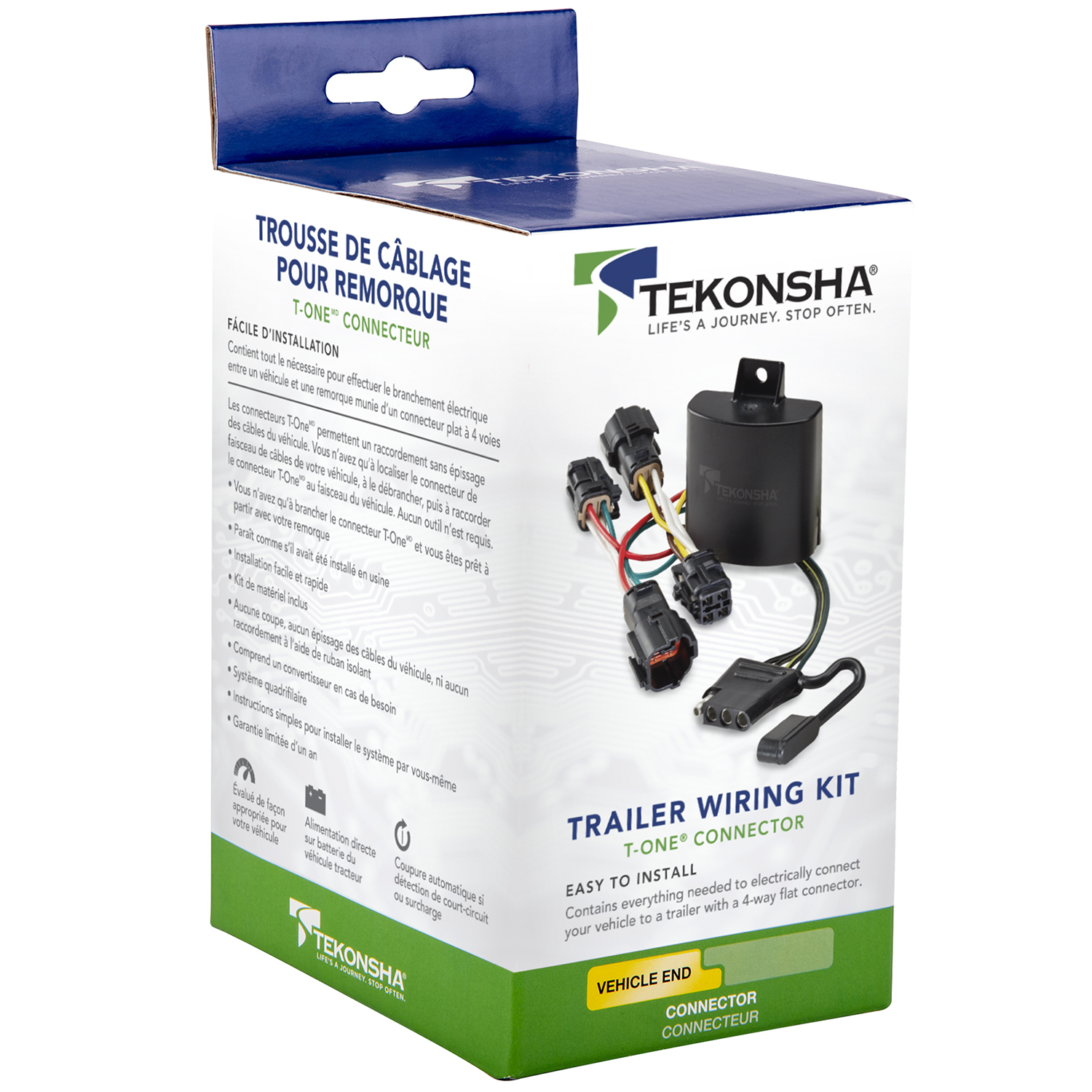

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118789 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.65 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2023 | BMW X2 | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
Yes, the 2018-2023 BMW X2 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118789 (Part #TK118789) is designed to fit the 2018-2023 BMW X2.
The 2018-2023 BMW X2 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118789 (Part #TK118789) fits the following vehicles: 2018-2023 BMW X2. Always verify your specific year, make, and model before ordering.
The 2018-2023 BMW X2 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118789 (Part #TK118789) fits 2018-2023 BMW X2 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2023 BMW X2 Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118789 (Part #TK118789) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-One T-Connector (part number 118789-037) is designed for the BMW X2. The installation involves connecting to the vehicle's taillight wiring harness on both driver and passenger sides and routing a 4-flat connector underneath the vehicle.
Required tools are: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe.

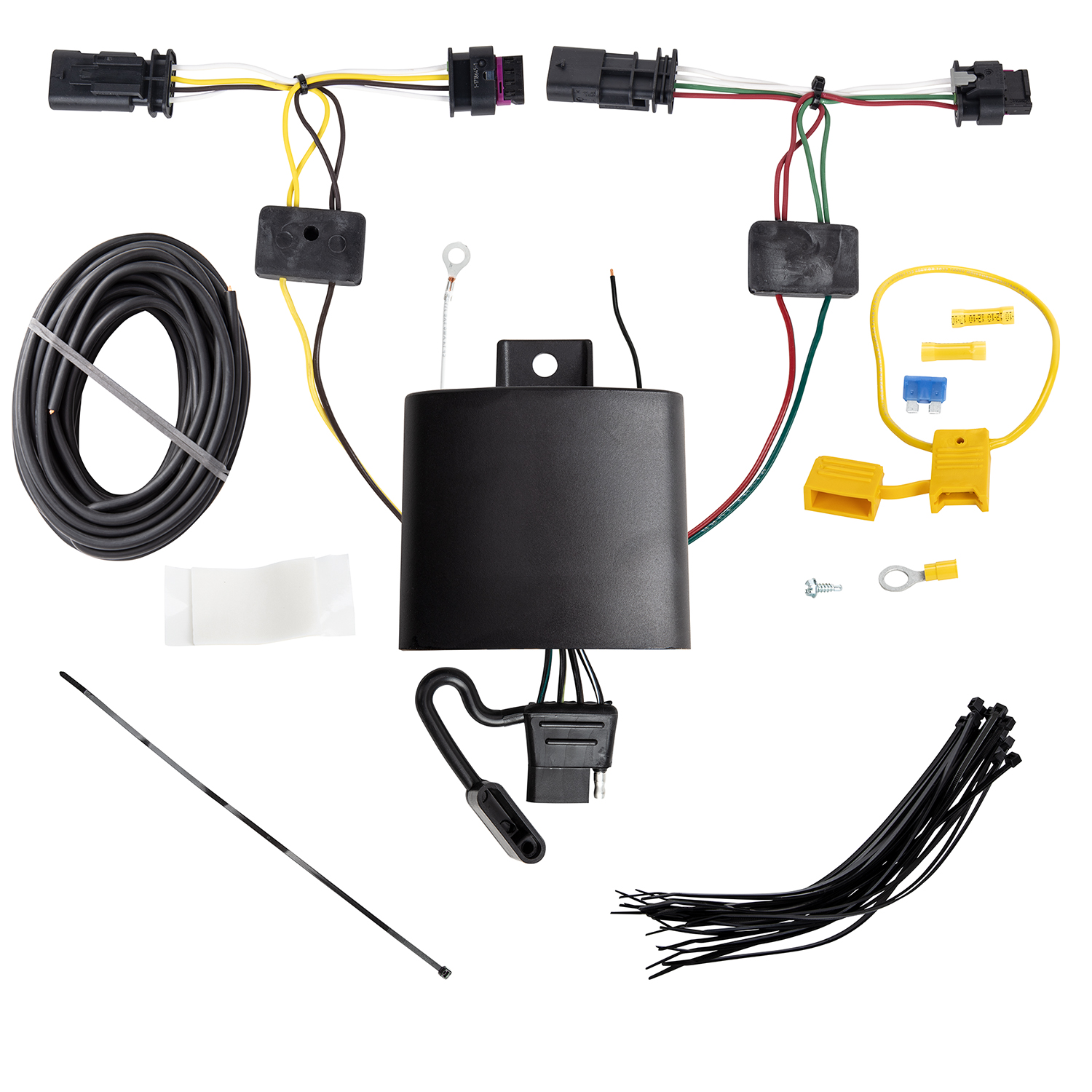

The kit includes: double-sided tape for mounting the black box module, an eyelet and screw for securing the white ground wire, a yellow fuse holder with a 15 amp fuse, a yellow butt connector for joining wires, and cable ties for securing the harness.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the black 12 gauge power wire to the positive (+) battery terminal. The negative cable is reconnected after the fuse holder and fuse are installed.
Open the tailgate. On the driver's side, use a trim panel puller to carefully pry away the black taillight trim cover to expose two 10mm fasteners, being careful not to damage clips. Remove two 10mm screws on both driver and passenger sides. Carefully pull each taillight away from the vehicle, being careful not to damage the alignment pins. Remove and set aside the taillight housings.
Locate the taillight wiring harness on both driver and passenger sides. The harness has a connection point matching the ends of the T-Connector. Separate the connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt. Plug the T-Connector end with the yellow wire between the mating plugs on the driver's side taillight socket and vehicle wiring harness. Repeat on the passenger side with the green wire end.
Mount the black box underneath the vehicle behind the rear bumper fascia on the driver's side using the provided double-sided tape. Ensure the module is in a protected area away from road debris and objects that could be driven over. Mount it with the epoxy side pointed toward the ground to prevent water buildup. Verify the trailer's wire harness has adequate length to reach this point.
On the driver's side, fish the T-Connector end with yellow wires up between the bumper and vehicle body into the taillight pocket. Route the T-Connector end with green wire to the passenger's side and route the 4-flat connector underneath the bumper. Route the green wire end up through the opening on the passenger side, being careful to avoid hot pipes, heat shields, fuel tank, or other points that may pinch or break the wire. Route the 4-flat harness underneath and to the center of the vehicle.
Yes. You must drill a 3/32" hole to secure the white ground wire. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill into any exposed surfaces. Locate a suitable grounding point near the connector such as the vehicle's frame or crossmember, clean dirt and rustproofing from the area, then drill the hole and secure the white wire using the provided eyelet and screw.
Locate the black 12 gauge power wire from the T-Connector box on the driver's side. Attach the black 12 gauge wire provided. Route the black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. After cutting the fuse holder wire, attach the ring terminal and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided.
Install a 15 amp fuse into the fuse holder after reconnecting the vehicle's negative (-) battery cable. The fuse holder is provided with the kit.
The T-Connector has yellow wires that connect to the driver's side taillight socket and vehicle wiring harness. It has green wires that connect to the passenger's side taillight socket and vehicle wiring harness. The white wire is the ground wire, which is secured to the vehicle's frame or crossmember using an eyelet and screw. The black 12 gauge wire is the power wire, which connects to the vehicle's positive (+) battery terminal via a fused connection.
After all connections are complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One T-Connector to function properly.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. Refer to your vehicle's owner's manual and the product documentation for the specific amperage rating.
Always wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. When routing wires, avoid hot pipes, heat shields, the fuel tank, and other points that may pinch or break the wire. When mounting under the vehicle, ensure the unit is in a protected area and cannot be damaged by road debris or objects driven over. Read and follow all warnings and cautions printed on the tow vehicle's battery.
Mount the 4-flat connector end in an accessible location with a bracket or electrical box. The bracket or electrical box is not included with the kit and must be obtained separately. Route the 4-flat harness underneath and to the center of the vehicle.
Secure the remainder of the T-One T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
Yes, the T-One T-Connector (118789-037) is designed specifically for the BMW X2.
You need: trim panel remover, 10mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
Yes, disconnect the negative battery cable before connecting the power wire to the positive terminal. Reconnect it after installing the fuse.
Yes, you must drill a 3/32" hole for the ground wire. Always verify what is behind the surface before drilling and do not drill into the vehicle floor or bed.
The kit uses a 15 amp fuse, which is installed in the provided yellow fuse holder.
Do not exceed the lower of your vehicle manufacturer's towing rating or the product's amperage rating. Refer to your vehicle's owner's manual for specific limits.
