Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118794 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.7 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2024 | Nissan Kicks | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The 2018-2024 Nissan Kicks Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118794 (Part #TK118794) fits 2018-2024 Nissan Kicks models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2024 Nissan Kicks Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118794 (Part #TK118794) fits the following vehicles: 2018-2024 Nissan Kicks. Always verify your specific year, make, and model before ordering.
Yes, the 2018-2024 Nissan Kicks Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118794 (Part #TK118794) is designed to fit the 2018-2024 Nissan Kicks.
The 2018-2024 Nissan Kicks Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118794 (Part #TK118794) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-One T-Connector (118794-037) is designed for the Nissan Kicks. The installation instructions are specific to this vehicle model.
The T-One T-Connector is a trailer wiring harness that integrates with your vehicle's taillight system to provide electrical connections for towing a trailer. It uses a 4-flat connector to supply power and ground signals to the trailer.
You will need: 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. Safety glasses are also required.

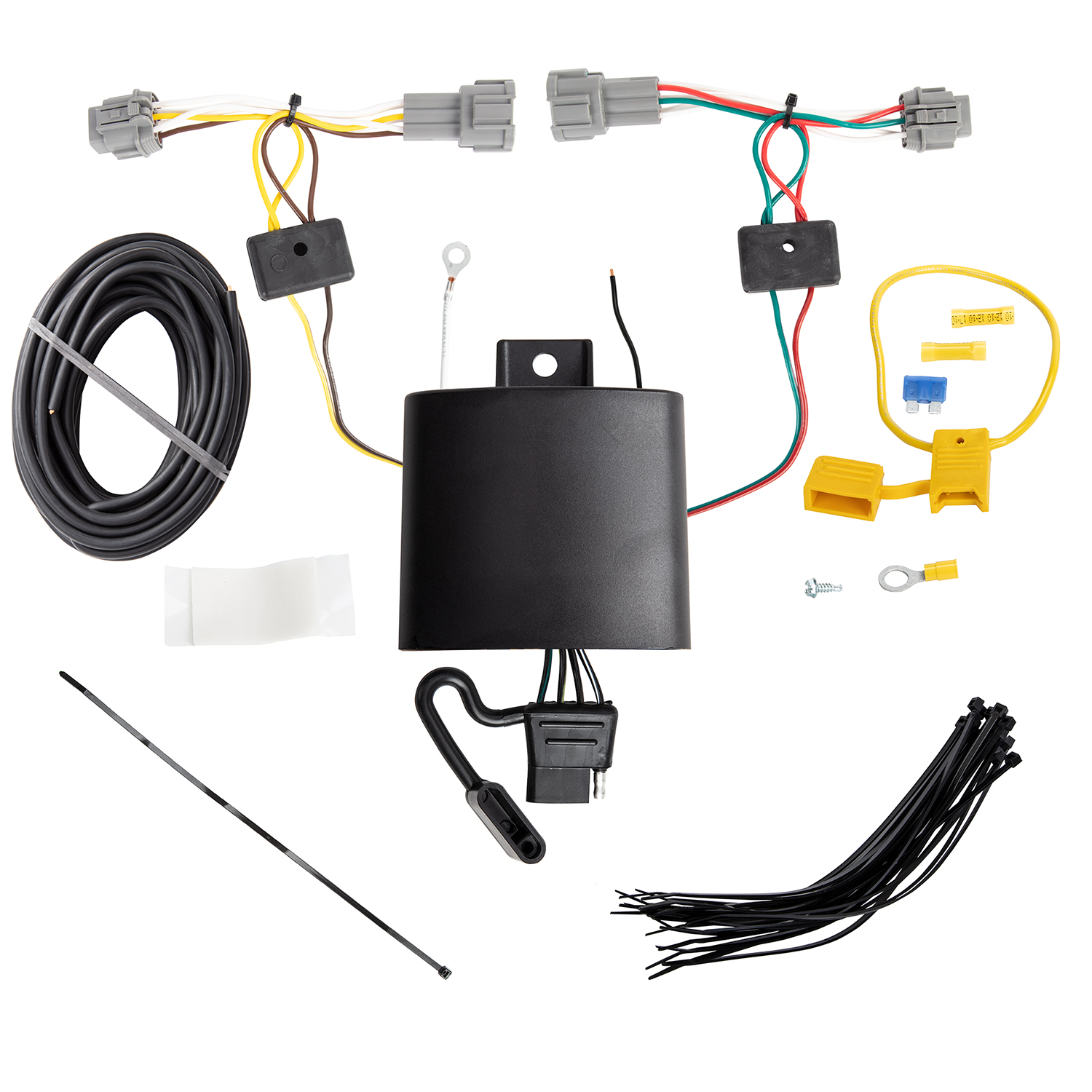

The kit includes: double-sided tape for mounting the black box, a white wire with eyelet and screw for grounding, a black 12 ga. power wire, a yellow fuse holder with 15 amp fuse, a yellow butt connector, and cable ties for securing the harness. The 4-flat connector end is included but requires a separate mounting bracket or electrical box (not included).
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive battery terminal. This is done in Step 10. After all connections are complete, you reconnect the negative battery cable and install the 15 amp fuse in Step 11.
Yes. You must open the rear tailgate and remove two 10mm screws on both the driver and passenger sides to remove the taillights. This gives you access to the taillight wiring harness connectors where the T-Connector plugs in. After removing the screws, carefully pull the taillights away from the vehicle without damaging the alignment pins.
Mount the black box underneath the vehicle behind the rear bumper fascia on the driver's side using the double-sided tape provided. The unit must be in a protected area where it cannot be damaged by road debris or objects driven over. The epoxy side of the module must point toward the ground to prevent water buildup. Ensure the trailer's wire harness has adequate length to reach this mounting point.
On the driver's side, route the T-Connector end with yellow wires up between the bumper and vehicle body into the taillight pocket, then plug it between the mating plugs on the driver's side taillight socket and vehicle wiring harness (Step 5). On the passenger's side, route the T-Connector end with green wire up through the opening on the passenger side, avoiding hot pipes, heat shields, and the fuel tank, then plug it between the mating plugs on the passenger's side taillight socket and vehicle wiring harness (Steps 6–7). Before plugging in, ensure all connector surfaces are clean and free of dirt.
Route the 4-flat connector underneath and to the center of the vehicle, underneath the bumper. Mount the 4-flat end in an accessible location using a bracket or electrical box (not included). The manual does not specify the exact mounting location beyond 'accessible.'
Yes. You must drill one 3/32" hole to secure the white ground wire using the eyelet and screw provided. Locate a suitable grounding point near the connector on the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
The T-One T-Connector uses a 15 amp fuse. The fuse is installed in the yellow fuse holder provided in the kit and is connected between the black 12 ga. power wire and the vehicle's positive battery terminal.
The power wire is black 12 ga. (12 gauge). The ground wire is white. The T-Connector harness ends are color-coded: yellow wires on the driver's side taillight connection and green wires on the passenger's side taillight connection.
Route the black 12 ga. power wire from the T-Connector box along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the vehicle's negative (−) battery cable. Attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder (which contains the 15 amp fuse) to the black 12 ga. wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. When routing wires, avoid hot pipes, heat shields, the fuel tank, and any areas that may pinch or break the wire. Do not drill into the vehicle floor, bed, or exposed surfaces. Overloading circuits can cause fires.
All connections must be complete for the T-One T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. When routing the black power wire, follow the exterior frame or existing wiring along the thresholds, avoiding hot pipes, heat shields, the fuel tank, and any points that may pinch or break the wire.
Yes. Before separating and connecting the taillight wiring harness, ensure all connector surfaces are clean and free of dirt. This ensures proper electrical contact.
Yes, the T-One T-Connector (118794-037) is designed specifically for the Nissan Kicks.
You need: 10mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, test probe, and safety glasses.
Yes, disconnect the negative battery cable before connecting the power wire to the positive terminal in Step 10. Reconnect it after all connections are complete.
The T-One T-Connector uses a 15 amp fuse, installed in the yellow fuse holder provided.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Refer to your vehicle's owner's manual for the towing capacity.
Verify that all connections are complete. Check that: (1) the yellow-wire end is properly plugged between the mating plugs on the driver's side taillight socket and vehicle harness, (2) the green-wire end is properly plugged between the mating plugs on the passenger's side taillight socket and vehicle harness, (3) the white ground wire is securely fastened to the frame or crossmember with the eyelet and screw, (4) the black power wire is connected to the vehicle's positive battery terminal via the fuse holder with the ring terminal, (5) the negative battery cable is reconnected, and (6) the 15 amp fuse is installed in the fuse holder. Reset the vehicle's electrical system by temporarily removing the key from the ignition and test again with a test light or trailer.
