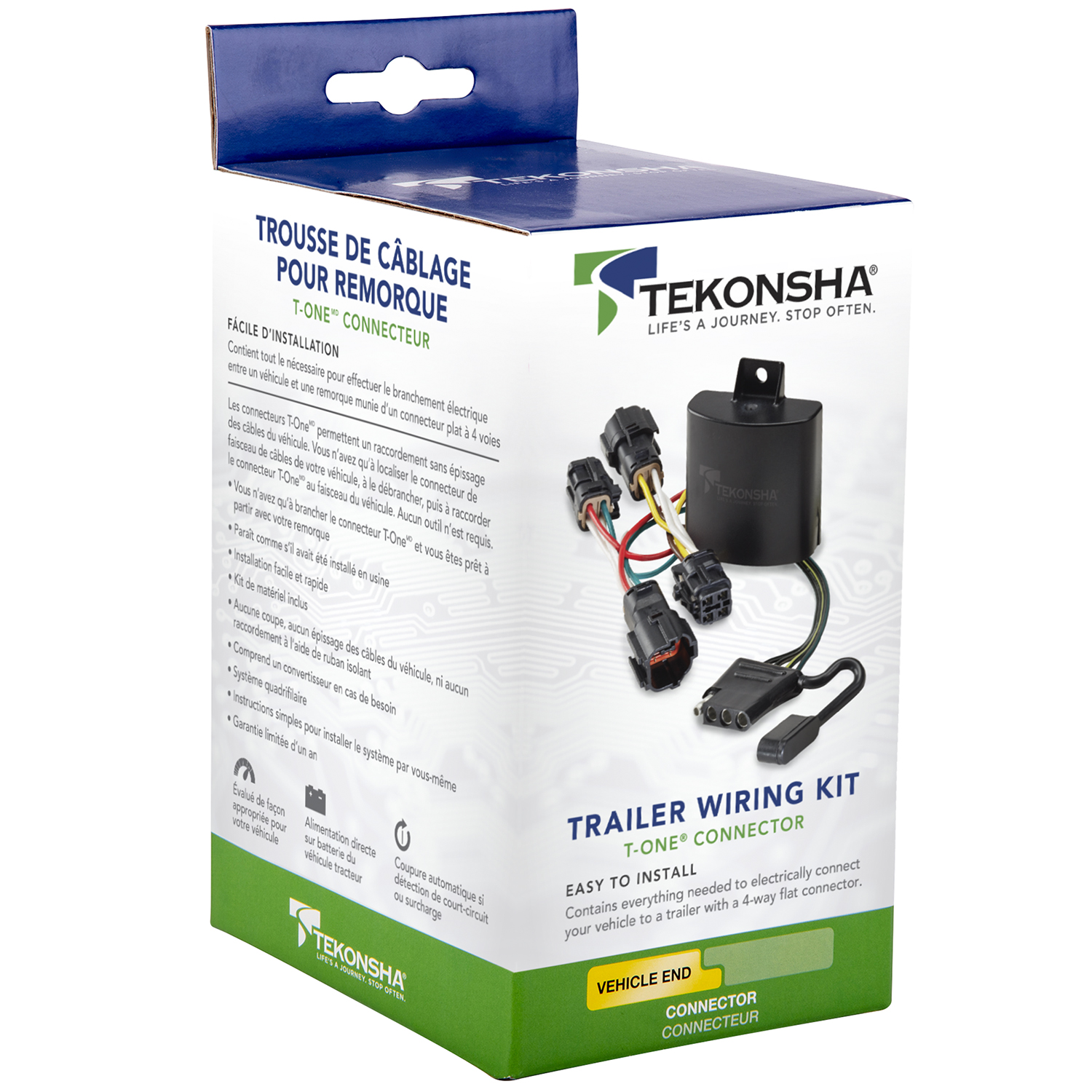

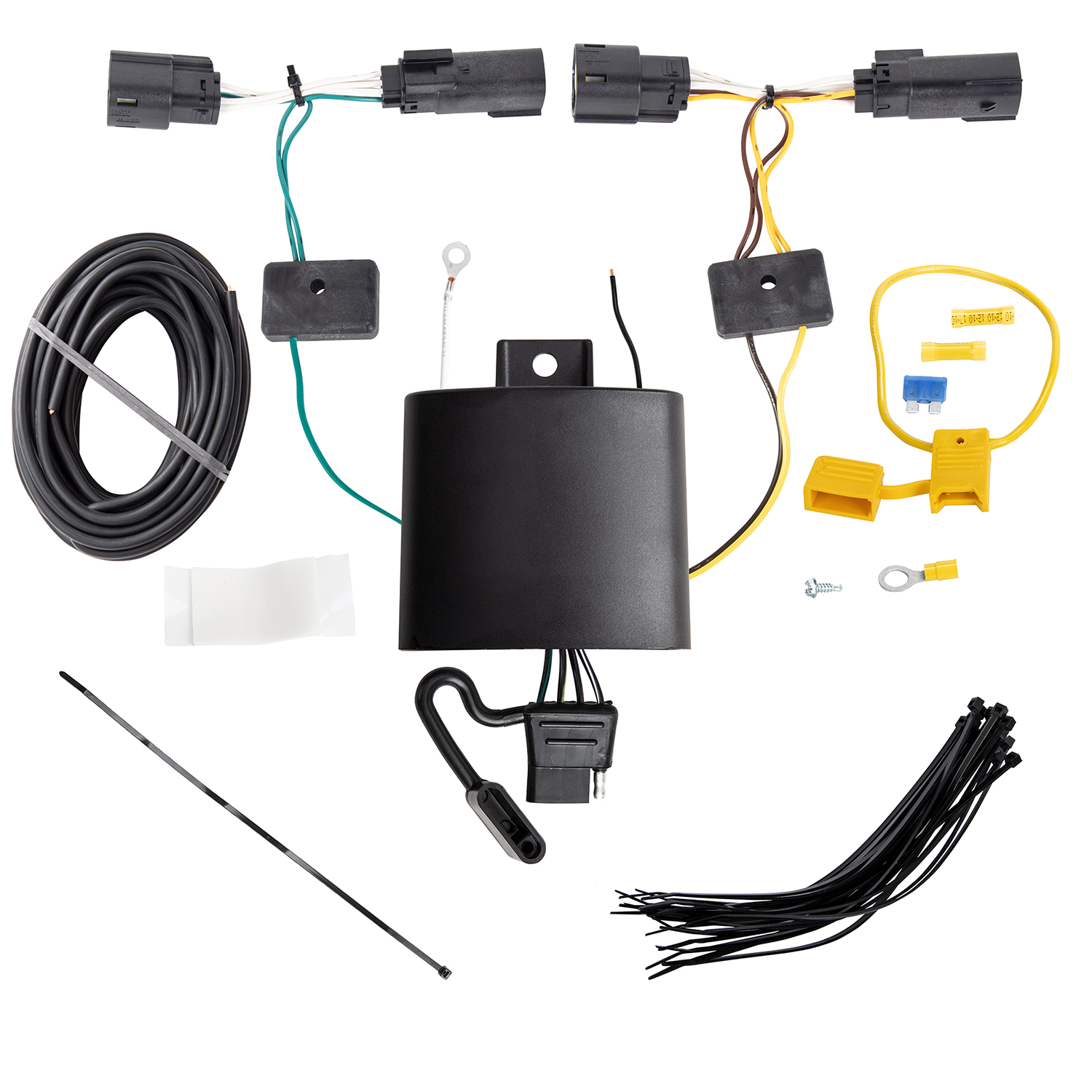

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118802 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.55 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 2-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |

Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
The 2019-2019 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118802 (Part #TK118802) fits 2019 Ford Escape models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2019-2019 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118802 (Part #TK118802) is designed to fit the 2019 Ford Escape.
The 2019-2019 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118802 (Part #TK118802) fits the following vehicles: 2019 Ford Escape. Always verify your specific year, make, and model before ordering.
The 2019-2019 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118802 (Part #TK118802) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, this T-Connector is designed for the Ford Escape. The installation instructions are specific to this vehicle model.
The T-Connector is a trailer wiring harness that connects between your vehicle's taillight sockets and a trailer. It allows you to control trailer lights (stop, turn, and tail lights) from your vehicle's electrical system.
You will need: Trim Panel Remover, 8mm Socket & Ratchet or 8mm Wrench, Drill with 3/32" Drill Bit, 1/4" Socket, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Yes. You must disconnect the vehicle's Negative (−) battery cable before connecting the power wire to the battery's Positive (+) terminal. Reconnect the Negative cable only after the fuse holder is properly installed.
Open the tailgate and remove the two 8mm hex head bolts on each side of the taillight assembly. Carefully pull the taillight away from the vehicle, being careful not to damage the alignment pins. Remove the taillight housing and set it aside.
Disconnect the vehicle wiring harness from both taillight sockets. Separate the connector carefully, being careful not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt before reconnecting.
Route the T-Connector end with the yellow wire out through the grommet hole on the driver's side. Plug it between the taillight socket and vehicle harness on the driver's side. Route the wire inside the vehicle through interior trim panels, then route the T-Connector with the green wire down the threshold plate, up through the passenger side trim panel, and out through the grommet hole. Route the 4-Flat connector through the driver's side trim panel into the spare tire compartment and store it there when not in use.
On the driver's side near the connectors, locate a suitable grounding point. Drill a 3/32" hole and secure the white wire with an eyelet using the screw provided. Do not drill into any exposed surfaces. Always verify what is behind any surface prior to drilling to avoid damage to the vehicle and personal injury.
The power wire is black, 12 gauge (12 ga.). It connects from the T-Connector box to the vehicle's battery Positive (+) terminal through a 15 amp fuse holder.
Locate the black 12 ga. power wire from the T-Connector box. Route it through a grommet and along the exterior frame, or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the vehicle's Negative (−) battery cable. Remove the fuse from the yellow fuse holder (provided). After cutting the fuse holder wire, attach the ring terminal and secure it to the vehicle's Positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector (provided). Reconnect the Negative (−) battery cable and install the 15 amp fuse into the fuse holder.
Install a 15 amp fuse into the fuse holder. This protects the circuit from overload.
Do not exceed the lower of your vehicle manufacturer's rating or: Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: (7.5 amps). Overloading the circuit can cause fires. Refer to your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
Reinstall the taillight assemblies and other items removed during installation, being careful not to pinch or cut the wires.
Yes, the T-Connector (part 118715-037) is designed for the Ford Escape.
You need: Trim Panel Remover, 8mm Socket & Ratchet or 8mm Wrench, Drill with 3/32" Drill Bit, 1/4" Socket, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Yes, you must drill a 3/32" hole on the driver's side near the connectors to secure the white ground wire with an eyelet. Always verify what is behind the surface before drilling.
Yes, you must disconnect the vehicle's Negative (−) battery cable before connecting the power wire to the Positive (+) terminal. Reconnect it only after the fuse holder is installed.
The T-Connector uses a 15 amp fuse in the yellow fuse holder provided.
Test with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Verify that all connections are complete. The T-Connector will not function properly if any connection is incomplete. Test the installation with a test light or trailer. If the initial test fails, reset the vehicle electrical system by temporarily removing the key from the ignition, then retest. Ensure the 15 amp fuse is installed in the fuse holder and is not blown.
Check that both the yellow and green T-Connector plugs are fully seated between the taillight sockets and vehicle wiring harnesses on both the driver's and passenger's sides. Verify that the locking tabs are not broken and that all connector surfaces are clean. Ensure the 15 amp fuse is installed and not blown. Test the installation with a test light or trailer to verify proper operation.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 | Ford Escape | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
