Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118816 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.7 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2022 | Ford Escape | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
Yes, the 2020-2022 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118816 (Part #TK118816) is designed to fit the 2020-2022 Ford Escape.
The 2020-2022 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118816 (Part #TK118816) fits 2020-2022 Ford Escape models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2022 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118816 (Part #TK118816) fits the following vehicles: 2020-2022 Ford Escape. Always verify your specific year, make, and model before ordering.
The 2020-2022 Ford Escape Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118816 (Part #TK118816) Drilling is required for installation. Basic hand tools are typically all you need.
The T-One® T-Connector is a vehicle wiring harness that integrates with your vehicle's taillight wiring to provide trailer lighting control. It includes a black box module that processes signals from your vehicle's lights and routes them to a 4-Flat connector for trailer use. The system requires connection to your vehicle's battery and ground point to function.
Yes, the manual shows the T-Connector is designed for the Ford Escape. However, the manual only explicitly confirms compatibility with this model. For other vehicles, consult the manufacturer or a fitment database to verify compatibility.
You will need: trim panel remover, 10mm socket and ratchet (or 10mm wrench), 7mm socket and ratchet (or 7mm wrench), Torx 25 driver, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe.

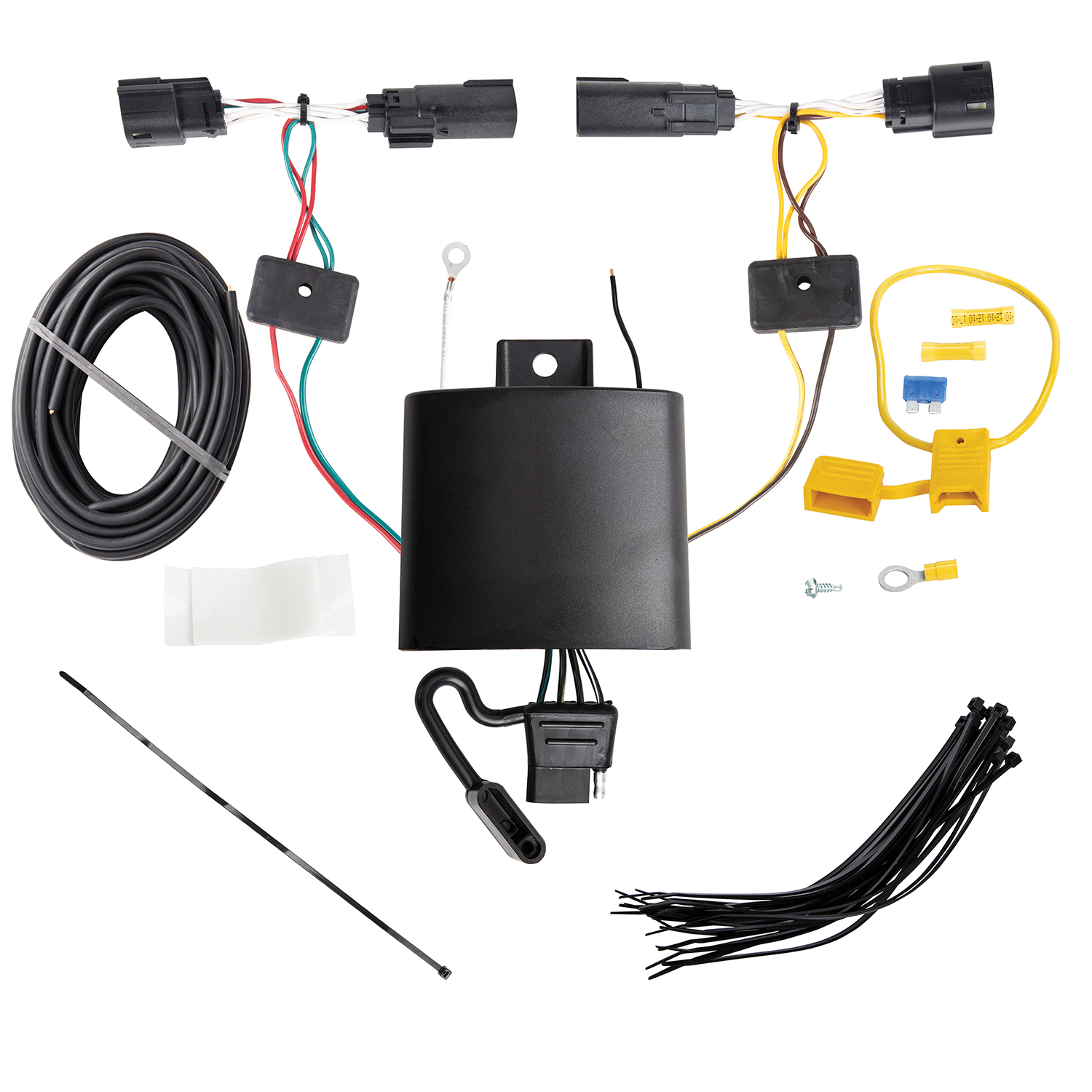

The kit includes: a yellow fuse holder with a 15 amp fuse, a yellow butt connector, a white eyelet and screw for the ground wire, cable ties for securing the harness, and a 4-Flat connector. The manual also references a black 12 gauge power wire and white ground wire as part of the system.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the positive battery terminal. This is done in step 8. After all connections are complete, you reconnect the negative cable in step 9 and install the 15 amp fuse.
You must temporarily remove the rear hatch, rear threshold plate, privacy screen, storage covers, and floor covering. You also need to open the rear door and fold the rear seat forward. Then partially remove the rear interior trim panels on both the driver and passenger sides. Set all removed items aside carefully to avoid damage.
On the driver's side, locate the vehicle's taillight wiring harness connector and separate it carefully without breaking the locking tabs. Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place, ensuring full insertion with locking tabs engaged. Repeat on the passenger side with the T-Connector end that has the green wire, routing the connector down the threshold. Ensure all connector surfaces are clean and free of dirt before connecting.
Yes. You must drill a 3/32" hole to secure the white ground wire to a suitable grounding point on the vehicle's frame or crossmember. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill into any exposed surfaces.
Locate a suitable grounding point near the connector on the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling the 3/32" hole. Secure the white wire using the eyelet and screw provided.
On the driver's side, locate the black 12 gauge power wire from the T-Connector box and attach the black 12 gauge wire provided. Route the black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, and other points that may pinch or break the wire.
The power wire is black and 12 gauge (12 ga.). The T-Connector also uses a yellow wire on the driver side connector, a green wire on the passenger side connector, and a white wire for the ground connection.
Disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Then reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
Install a 15 amp fuse into the yellow fuse holder. This fuse is provided with the kit and must be installed after all other connections are complete and the negative battery cable is reconnected.
Locate a flat surface in an out-of-the-way place to mount the T-One® T-Connector's black box module. This placement prevents damage or rattling during vehicle operation.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. Do not pinch the harness in the door latch.
Store the 4-Flat connector in the rear cargo area when not in use. When in use, pull the 4-Flat connector through the door and close the door. Be careful not to pinch the harness in the door latch.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. Consult your vehicle's owner's manual and the product documentation for the specific amperage limit.
Always wear safety glasses and use all safety precautions during installation. Read and follow all warnings and instructions included with the product before beginning. Verify what is behind any surface prior to drilling to avoid damage to the vehicle and personal injury. Read and follow all warnings and cautions printed on the tow vehicle's battery.
The manual confirms compatibility with the Ford Escape. For other vehicles, contact the manufacturer or consult a fitment database.
Trim panel remover, 10mm and 7mm sockets/wrenches, Torx 25 driver, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
Yes, disconnect the negative (-) battery cable before connecting the power wire to the positive terminal. Reconnect after all connections are complete and install the 15 amp fuse.
Install a 15 amp fuse in the yellow fuse holder provided. This must be installed after all other connections are complete.
Do not exceed the lower of the towing manufacturer rating or the specific amperage ratings stated on the product. Consult your vehicle's owner's manual and the product documentation for the exact limit.
Verify that all connections are complete. Check that the T-Connector ends are fully inserted into the vehicle's taillight connectors with locking tabs engaged on both driver and passenger sides. Ensure the ground wire is securely fastened to the frame or crossmember. Verify the 15 amp fuse is installed in the yellow fuse holder and the negative battery cable is reconnected. Reset the vehicle electrical system by temporarily removing the ignition key. Test with a test light or trailer to verify proper operation.
A repeatedly blown 15 amp fuse indicates an electrical overload or short circuit. Verify that you are not exceeding the lower of the towing manufacturer rating or the specific amperage ratings stated on the product. Check all wire connections for proper seating and no damage. Inspect the black power wire for cuts, pinches, or contact with hot surfaces, heat shields, or the fuel tank. If the problem persists, discontinue use and consult the manufacturer or a qualified technician.
