Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118818 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.5 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Hyundai Venue | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The 2020-2023 Hyundai Venue Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118818 (Part #TK118818) fits 2020-2025 Hyundai Venue models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2023 Hyundai Venue Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118818 (Part #TK118818) fits the following vehicles: 2020-2025 Hyundai Venue. Always verify your specific year, make, and model before ordering.
Yes, the 2020-2023 Hyundai Venue Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118818 (Part #TK118818) is designed to fit the 2020-2025 Hyundai Venue.
The 2020-2023 Hyundai Venue Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118818 (Part #TK118818) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-One® T-Connector (118818-037) is designed for the Hyundai Venue. The manual confirms this application. However, the manual does not specify which model years or trim levels are compatible, so you should verify with the manufacturer or retailer if you have a different generation or variant.
The T-One® T-Connector is a towing electrical connector that integrates with your vehicle's taillight wiring to provide power for a trailer. It uses a 4-flat connector that stores in the rear cargo area when not in use and pulls through the door when needed.
You will need: 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. A panel removal tool is also helpful for removing interior trim panels.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive battery terminal. This is done in step 8. After all connections are complete, you reconnect the negative battery cable and install the 15 amp fuse in step 9.
You must remove: the rear hatch floor covering, the threshold (held by two clips), and the rear interior trim panels on both driver and passenger sides. The manual notes that several trim panel fasteners must be removed. The French version specifies two 10mm bolts on the driver side and three 10mm bolts on the passenger side. Set all removed items aside carefully to avoid damage.
Yes. You must drill one 3/32" hole to secure the white ground wire using an eyelet and screw. The hole should be drilled into a suitable grounding point such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
The fuse rating is 15 amps. The yellow fuse holder is provided with the kit, and the 15 amp fuse is installed in step 9 after the negative battery cable is reconnected.
The T-Connector uses four wire colours: yellow (driver-side taillight connector), green (passenger-side taillight connector), black (12 gauge power wire from battery), and white (ground wire). The yellow and green wires connect to the vehicle's existing taillight harnesses on each side. The black wire carries power from the battery positive terminal through a 15 amp fuse. The white wire grounds to the vehicle frame or crossmember.
Locate the black 12 gauge power wire from the T-Connector box on the driver's side. Route this black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the negative battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided.
Route the black 12 gauge power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior of the vehicle, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
On both driver and passenger sides, locate the vehicle's taillight wiring harness and separate the connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt. On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place, ensuring connectors are fully inserted with locking tabs in place. Route the connector with the green wire down the threshold to the passenger side and insert it between the vehicle wiring connectors on that side, again ensuring full insertion and locked locking tabs.
Mount the T-One® T-Connector's black box module on a flat surface in an out-of-the-way place to prevent damage or rattling.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. Do not pinch the harness in the door latch.
Store the 4-flat connector in the rear cargo area when not in use. When in use, pull the 4-flat connector through the door and close the door. Be careful not to pinch the harness in the door latch.
All connections must be complete for the T-One® T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual does not specify the product's amperage rating, so you must check the product label or contact the manufacturer. Overloading circuits can cause fires.
Always wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces or the vehicle floor or bed. Read and follow all warnings and cautions printed on the tow vehicle's battery. Read and follow all warnings and instructions included with the product before beginning installation.

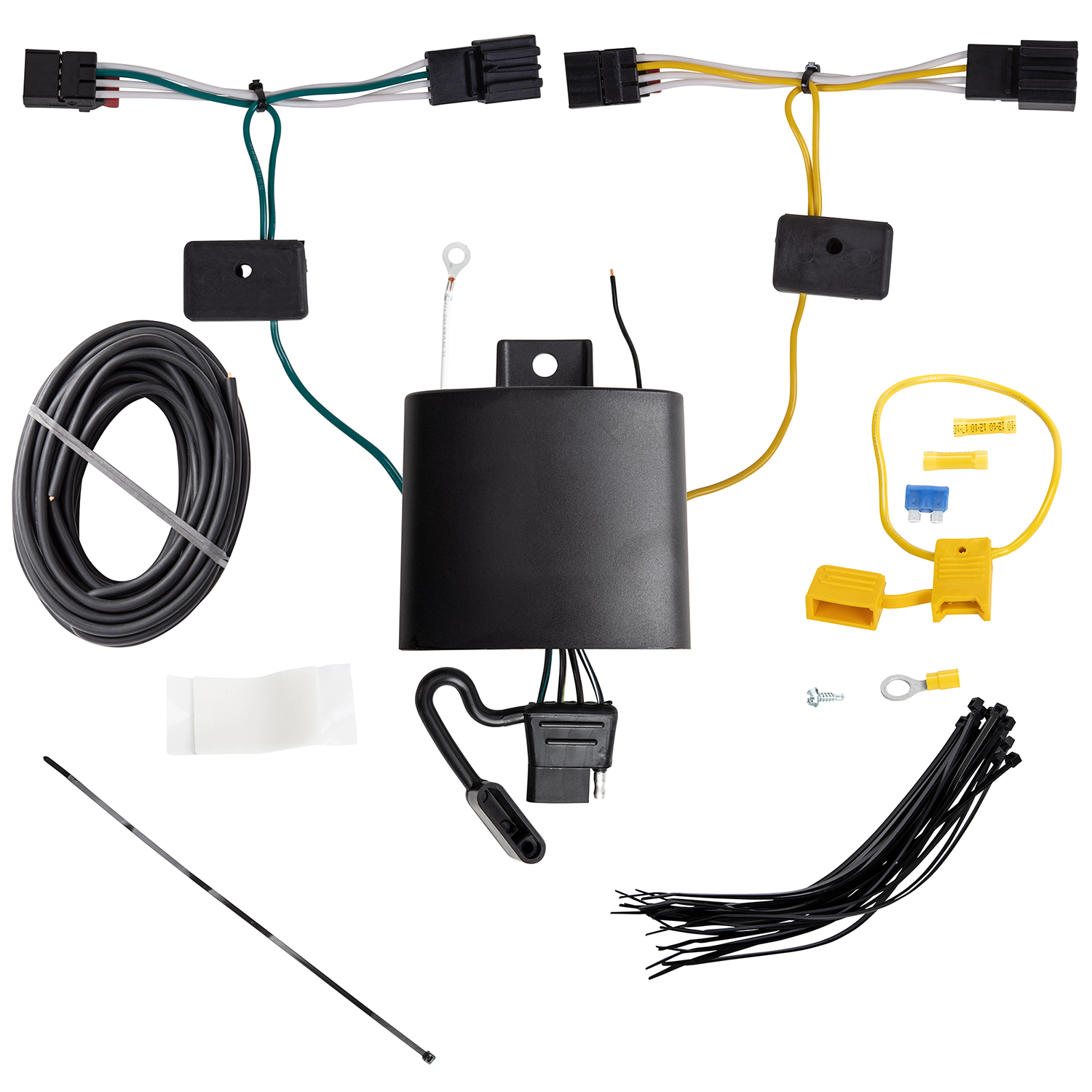

The kit includes: a yellow fuse holder with a 15 amp fuse, a yellow butt connector, an eyelet and screw for the ground wire, cable ties for securing the harness, and the T-Connector harness with yellow and green wire connectors. The 4-flat connector is also included for trailer connection.
Yes, the T-One® T-Connector (118818-037) is designed for the Hyundai Venue.
You need: 10mm socket/wrench, 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
Yes, you must disconnect the negative battery cable before connecting the power wire to the positive terminal in step 8.
The T-Connector uses a 15 amp fuse in the yellow fuse holder provided.
Yellow (driver-side taillight), green (passenger-side taillight), black (12 gauge power from battery), and white (ground to frame).
Always wear safety glasses and follow all safety precautions. Read and follow all warnings on the vehicle battery before connecting the power wire.
Verify that all connections are complete. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Ensure the 15 amp fuse is installed in the yellow fuse holder, the negative battery cable is reconnected, and both the yellow and green T-Connector ends are fully inserted into the taillight connectors with locking tabs in place.
