Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118825 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.7 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2025 | Chevrolet Trailblazer | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The 2021-2023 Chevrolet Trailblazer Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118825 (Part #TK118825) fits the following vehicles: 2021-2025 Chevrolet Trailblazer. Always verify your specific year, make, and model before ordering.
The 2021-2023 Chevrolet Trailblazer Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118825 (Part #TK118825) fits 2021-2025 Chevrolet Trailblazer models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2021-2023 Chevrolet Trailblazer Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118825 (Part #TK118825) is designed to fit the 2021-2025 Chevrolet Trailblazer.
The 2021-2023 Chevrolet Trailblazer Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118825 (Part #TK118825) Drilling is required for installation. Basic hand tools are typically all you need.

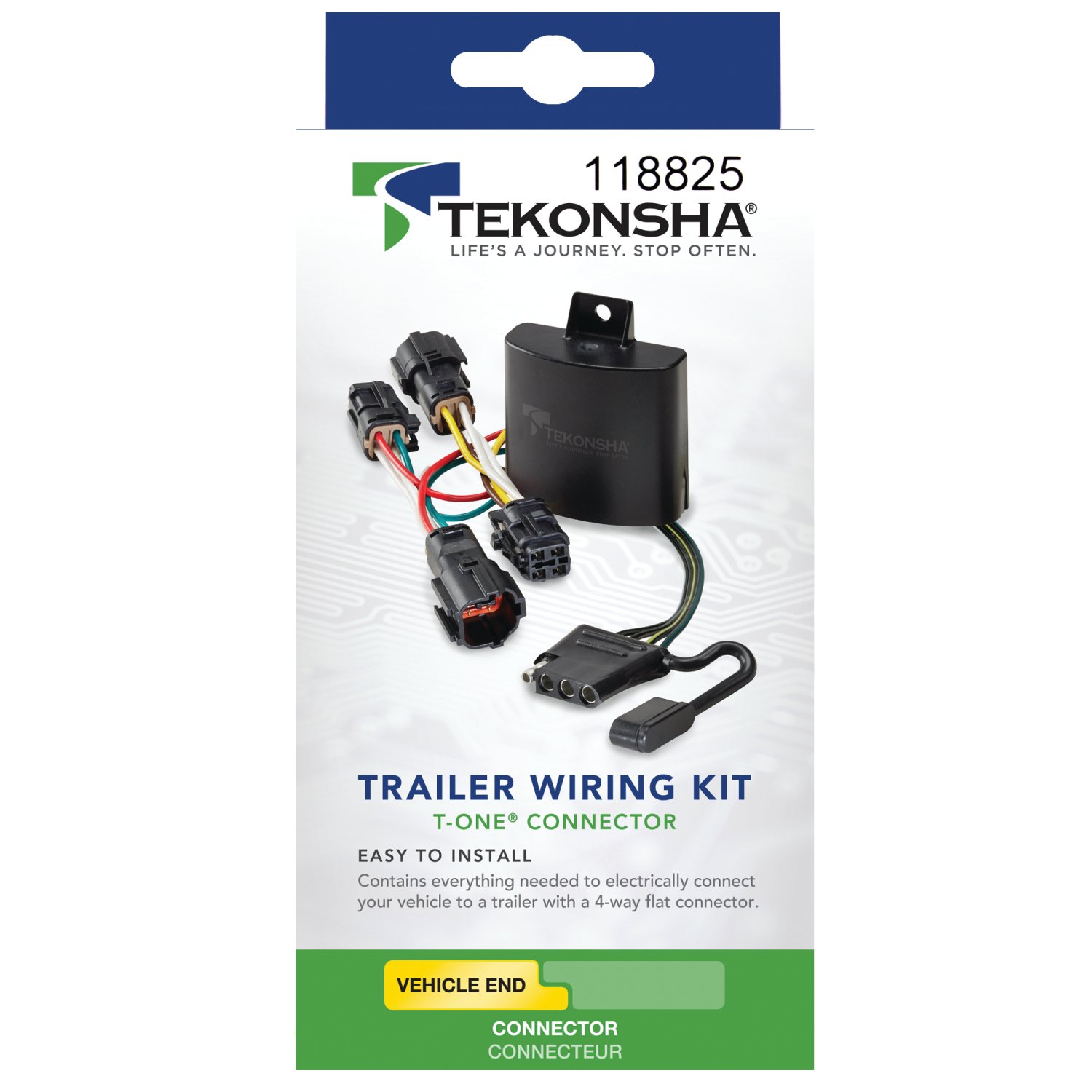

The T-One® T-Connector is a vehicle wiring harness that provides a 4-flat connector for trailer lighting. It taps into the vehicle's taillight wiring on both driver and passenger sides and routes power through a fused connection to the vehicle battery, allowing you to connect a trailer's lighting system to your vehicle's electrical system.
The manual shows installation on a Chevrolet Trailblazer but does not provide a comprehensive list of compatible vehicles. Contact the manufacturer or your retailer to confirm fitment for your specific vehicle before purchasing.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe.

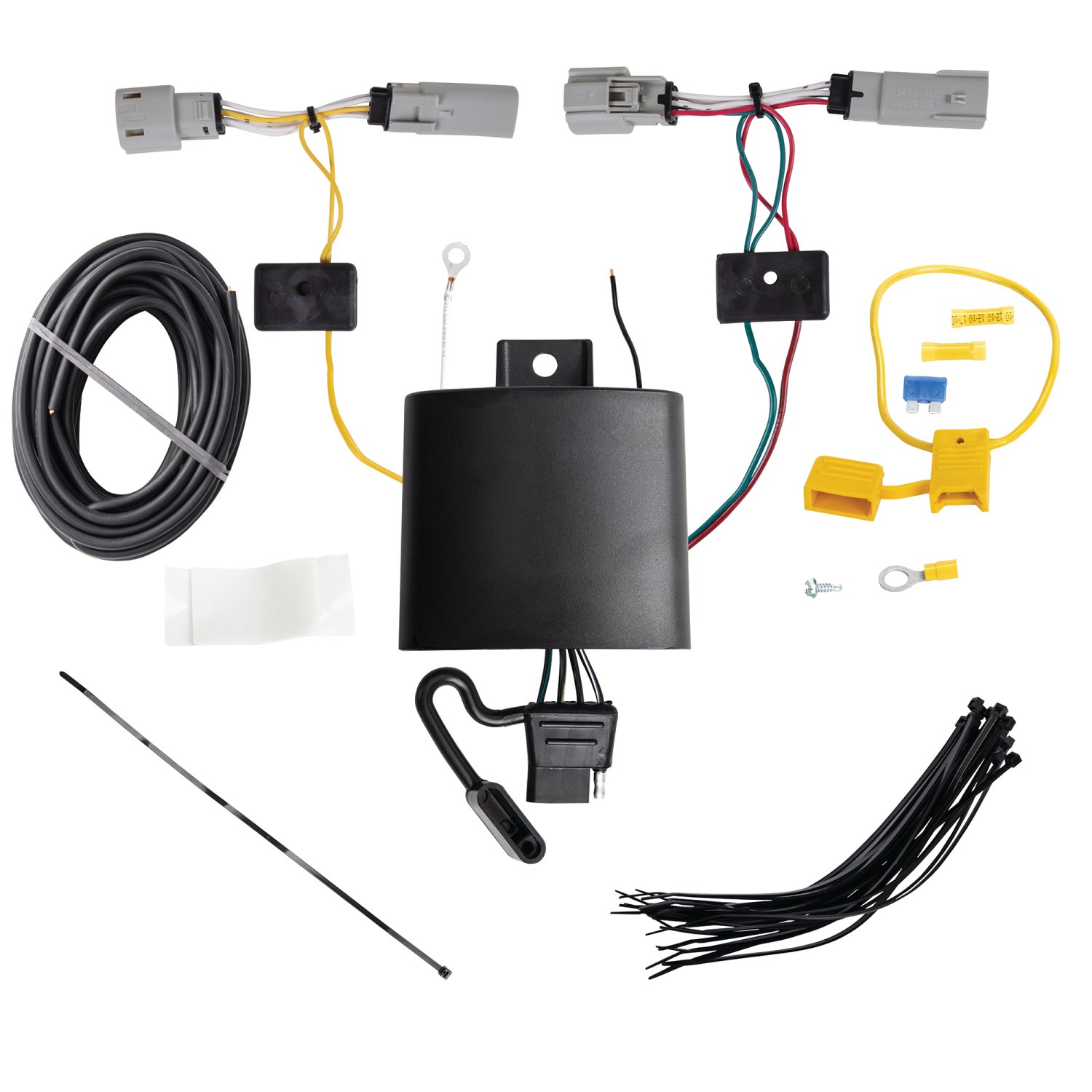

The kit includes: two T-Connector ends (one with yellow wire for driver side, one with green wire for passenger side), a black 12 gauge power wire, a white ground wire with eyelet and screw, a yellow fuse holder with 15 amp fuse, a yellow butt connector, and cable ties for securing the harness.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the fuse holder to the positive (+) battery terminal in step 8. Reconnect the negative cable after the fuse holder connection is complete and before installing the 15 amp fuse.
You must temporarily remove the rear hatch, rear threshold plate, privacy screen, storage covers, and floor covering. Open the rear door and fold the rear seat forward. Then partially remove the rear interior trim panels on both driver and passenger sides. Set aside all removed items carefully to avoid damage.
On the driver side, locate the taillight wiring harness connector, separate it carefully without breaking the locking tabs, and insert the T-Connector end with the yellow wire between the vehicle connectors. Lock it in place. Route the connector with the green wire down the threshold to the passenger side and repeat the process with the green-wire T-Connector end. Ensure all connectors are fully inserted with locking tabs in place and connector surfaces are clean and free of dirt.
Yes. You must drill a 3/32" hole to secure the white ground wire. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill any exposed surfaces. Choose a suitable grounding point near the connector such as the vehicle's frame or crossmember, clean dirt and rustproofing from the area, then drill and secure the white wire using the eyelet and screw provided.
The fuse rating is 15 amps. The yellow fuse holder is provided with the kit, and the 15 amp fuse is installed in step 9 after the negative battery cable is reconnected.
The power wire is 12 gauge (12 ga.). The black 12 gauge power wire is routed from the T-Connector box along the exterior frame or existing wiring to the engine compartment and connected to the vehicle's positive battery terminal through the yellow fuse holder.
Route the black 12 gauge power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior of the vehicle, carefully avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire.
The white wire is the ground wire. It is secured to a suitable grounding point near the connector, such as the vehicle's frame or crossmember, using the eyelet and screw provided. The hole drilled for the ground wire is 3/32".
The yellow wire is on the T-Connector end installed on the driver side, and the green wire is on the T-Connector end installed on the passenger side. The manual does not specify which trailer lighting circuits (brake, turn, or running lights) these wires control.
Always wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor or bed or any exposed surfaces. When routing the power wire, avoid hot pipes, heat shields, the fuel tank, and pinch points. Do not pinch the harness in the door latch. Read and follow all warnings and cautions printed on the tow vehicle's battery.
All connections must be complete for the T-One® T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Store the 4-flat connector in the rear cargo area when not in use. When in use, pull the 4-flat connector through the door and close the door. Be careful not to pinch the harness in the door latch.
Replace both access panels, spare tire cover, cargo floor hatch, and cargo nets that were removed during installation.
The manual specifies a 15 amp fuse but does not state the overall amperage rating of the connector. Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
Mount the T-One® T-Connector's black box-module on a flat surface in an out-of-the-way place to prevent damage or rattling.
Secure the remainder of the T-One® T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
The manual shows installation on a Chevrolet Trailblazer but does not list comprehensive vehicle compatibility. Confirm fitment with the manufacturer or retailer before purchasing.
You need: trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
Yes, disconnect the negative battery cable before connecting to the positive terminal in step 8. Reconnect it after the fuse holder connection is complete and before installing the 15 amp fuse.
The T-One® T-Connector uses a 15 amp fuse, provided in the yellow fuse holder included with the kit.
Always wear safety glasses. Before drilling, verify what is behind the surface. Avoid drilling into the floor or bed. When routing the power wire, avoid hot pipes, heat shields, and the fuel tank. Do not pinch the harness in the door latch.
