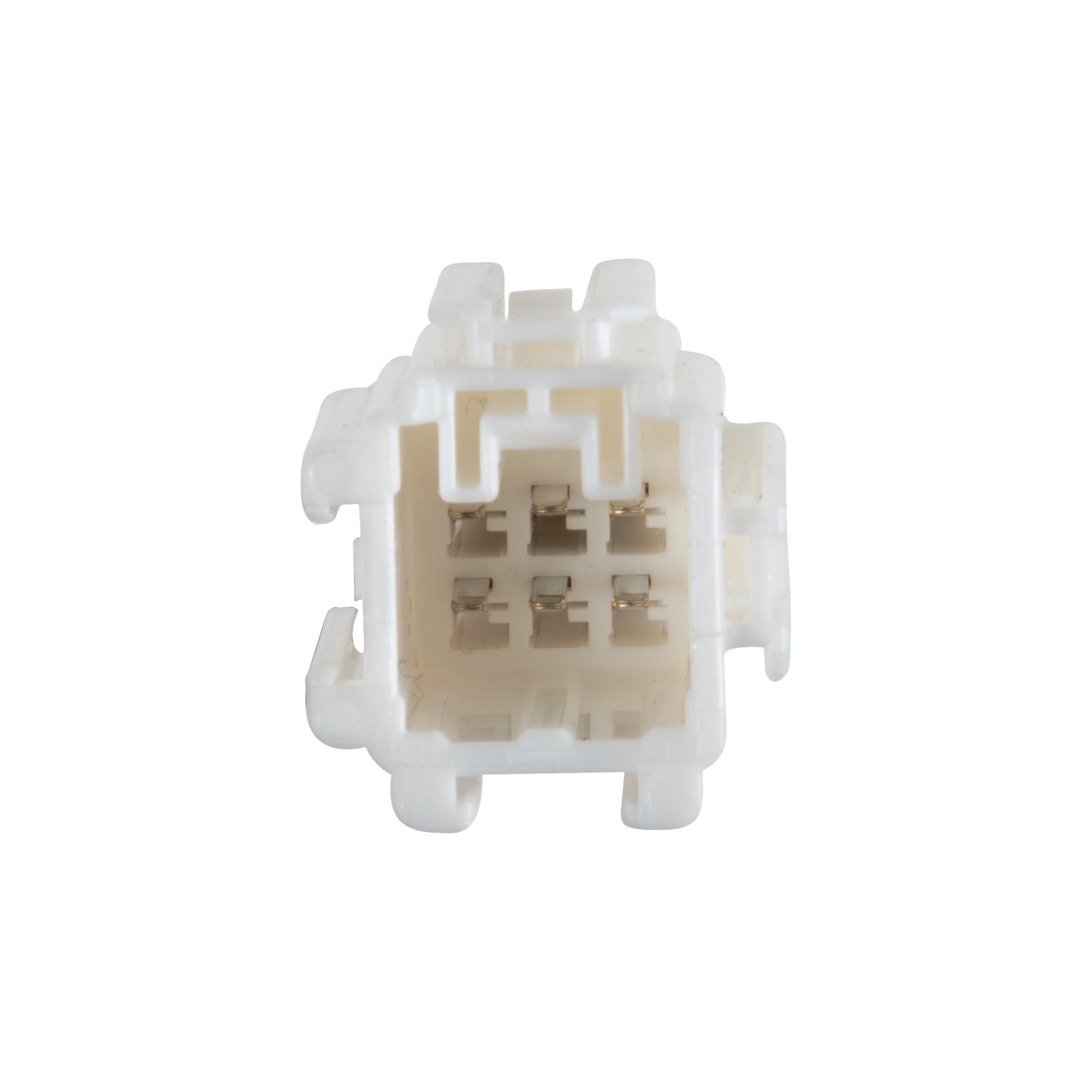

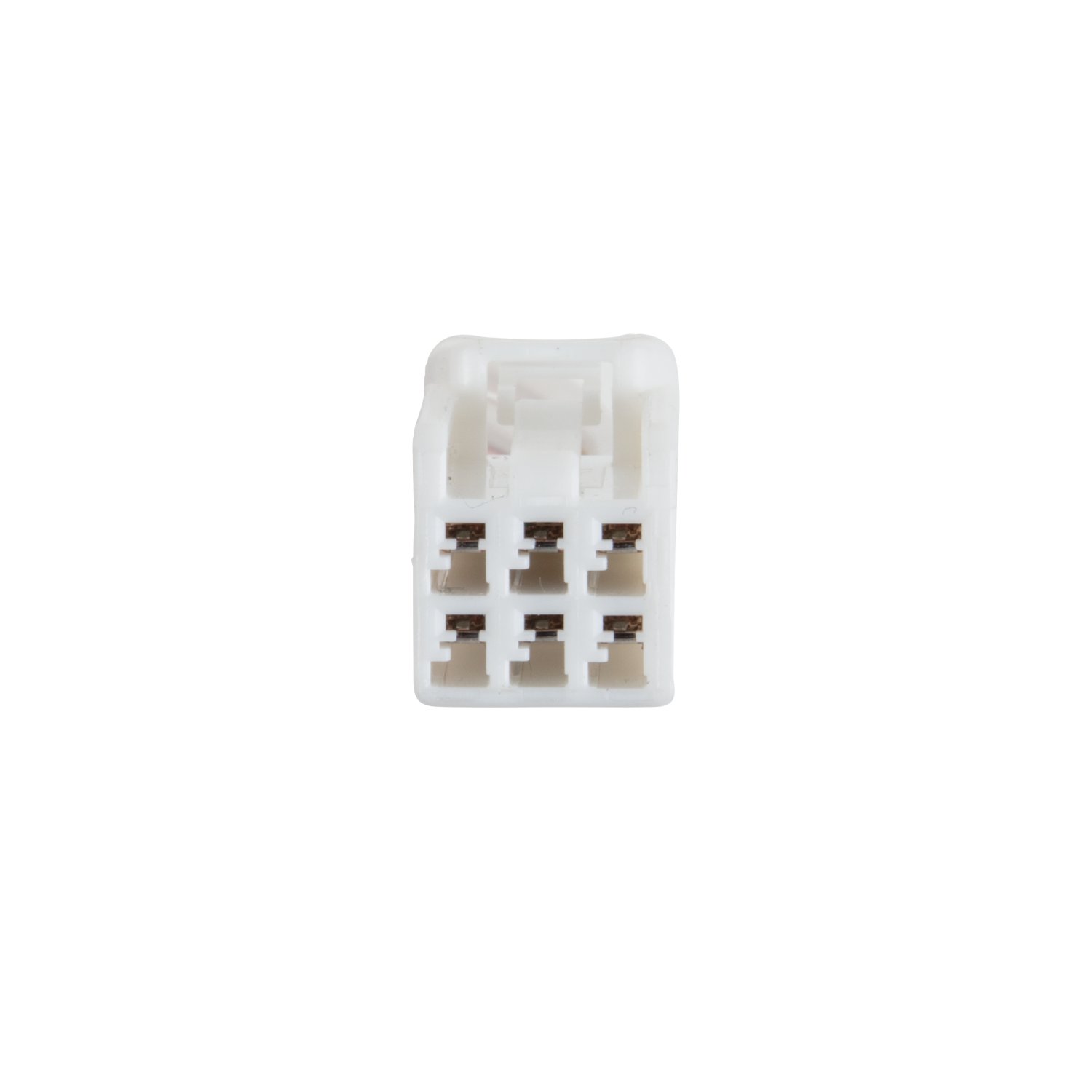

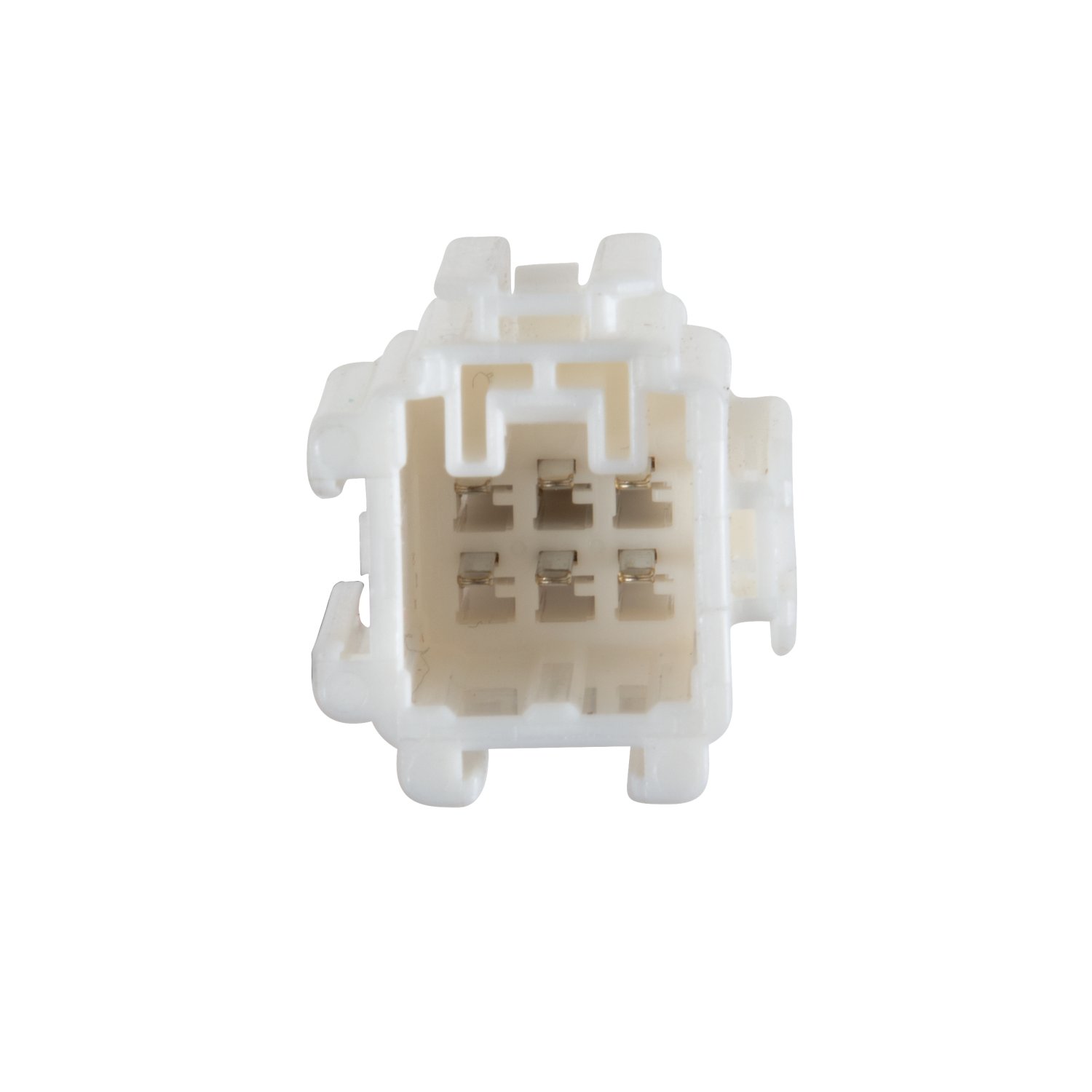

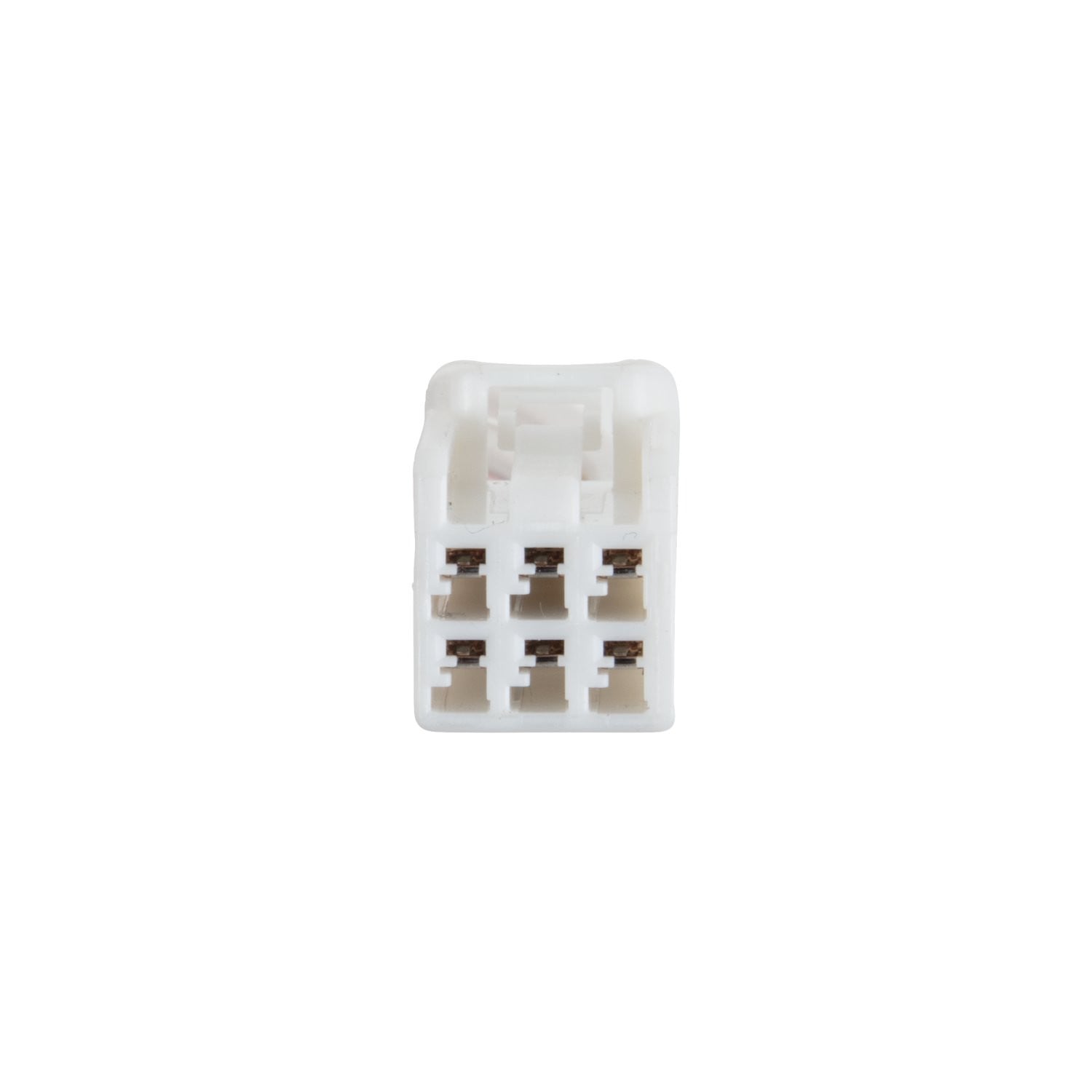

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118844 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.6 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Mitsubishi Outlander Sport | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
Yes, the 2020-2023 Mitsubishi Outlander Sport Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118844 (Part #TK118844) is designed to fit the 2020-2025 Mitsubishi Outlander Sport.
The 2020-2023 Mitsubishi Outlander Sport Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118844 (Part #TK118844) fits 2020-2025 Mitsubishi Outlander Sport models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2023 Mitsubishi Outlander Sport Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118844 (Part #TK118844) fits the following vehicles: 2020-2025 Mitsubishi Outlander Sport. Always verify your specific year, make, and model before ordering.
The 2020-2023 Mitsubishi Outlander Sport Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118844 (Part #TK118844) Drilling is required for installation. Basic hand tools are typically all you need.
The T-One® Connector is a trailer towing harness integration device that connects between your vehicle's taillight wiring and a trailer tow harness. It allows you to safely route power and ground signals from your vehicle's electrical system to a trailer without modifying the factory taillight wiring. The connector includes a black box module, wiring harness with yellow and green connector ends, a 15 amp fuse holder, and all necessary hardware for installation.
The manual shows installation on a Mitsubishi Outlander Sport. However, the manual does not specify which other vehicle makes, models, or years are compatible. Contact the manufacturer or consult a fitment database to confirm compatibility with your specific vehicle before purchasing.
You will need: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. The manual also recommends having a test light or trailer available to verify the installation after completion.

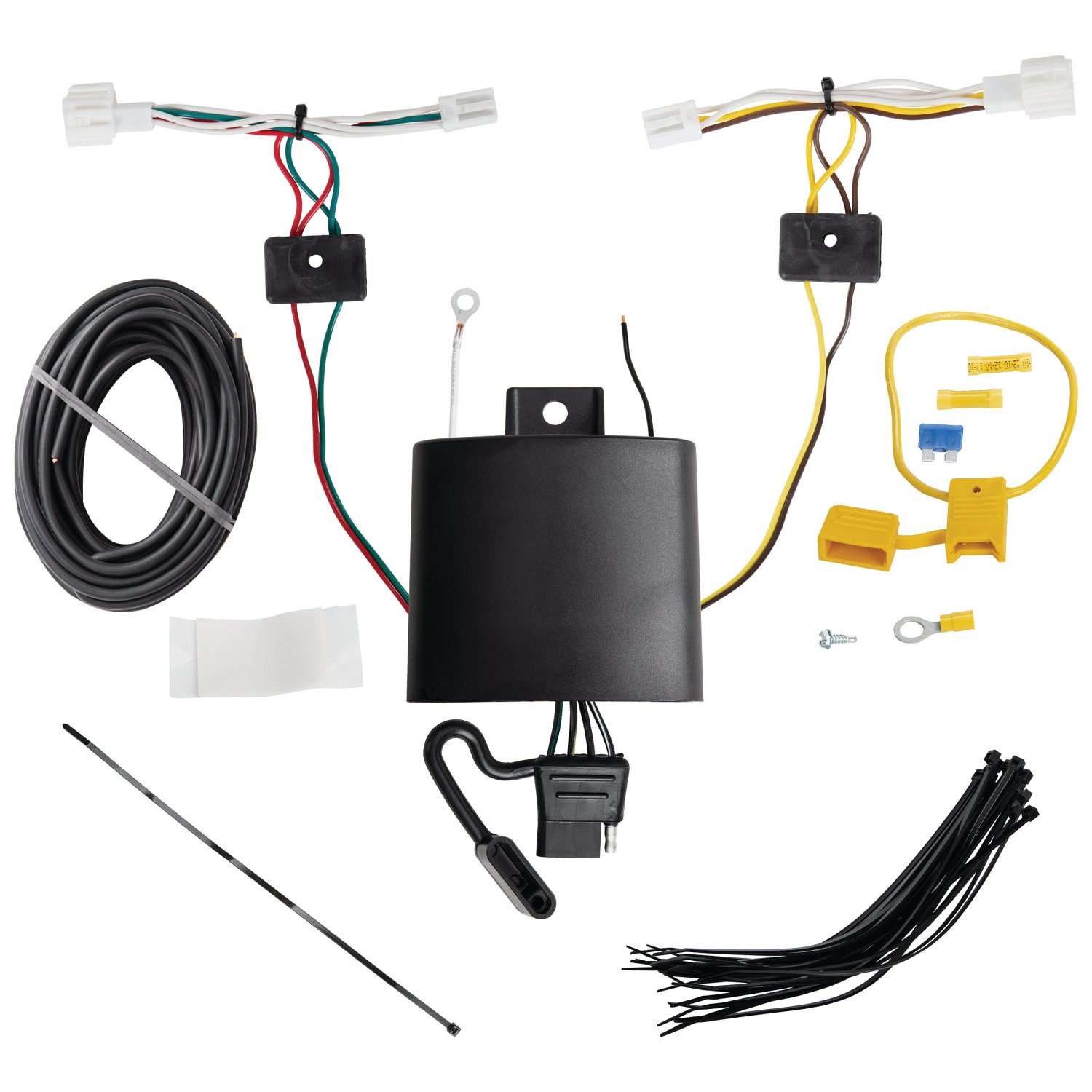

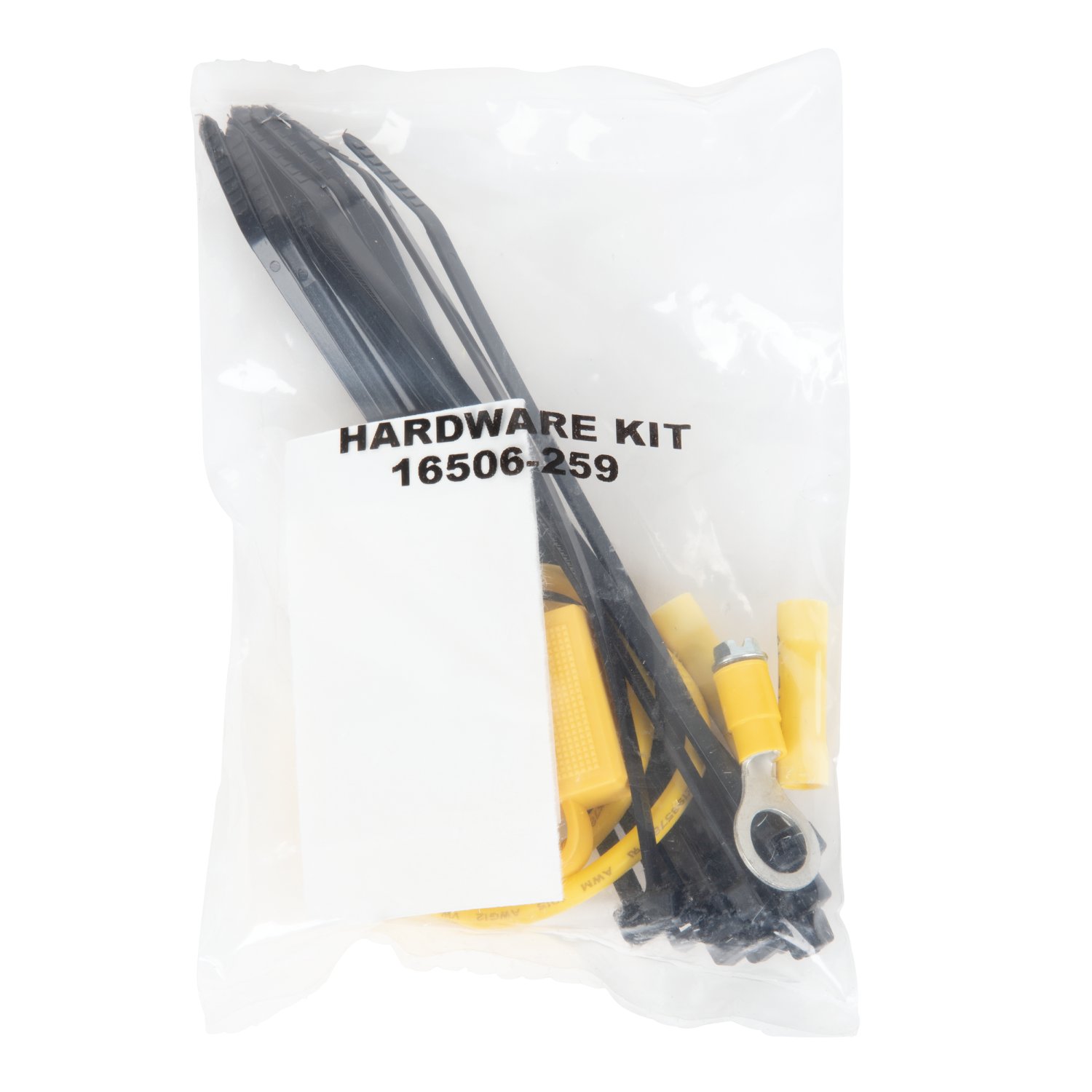

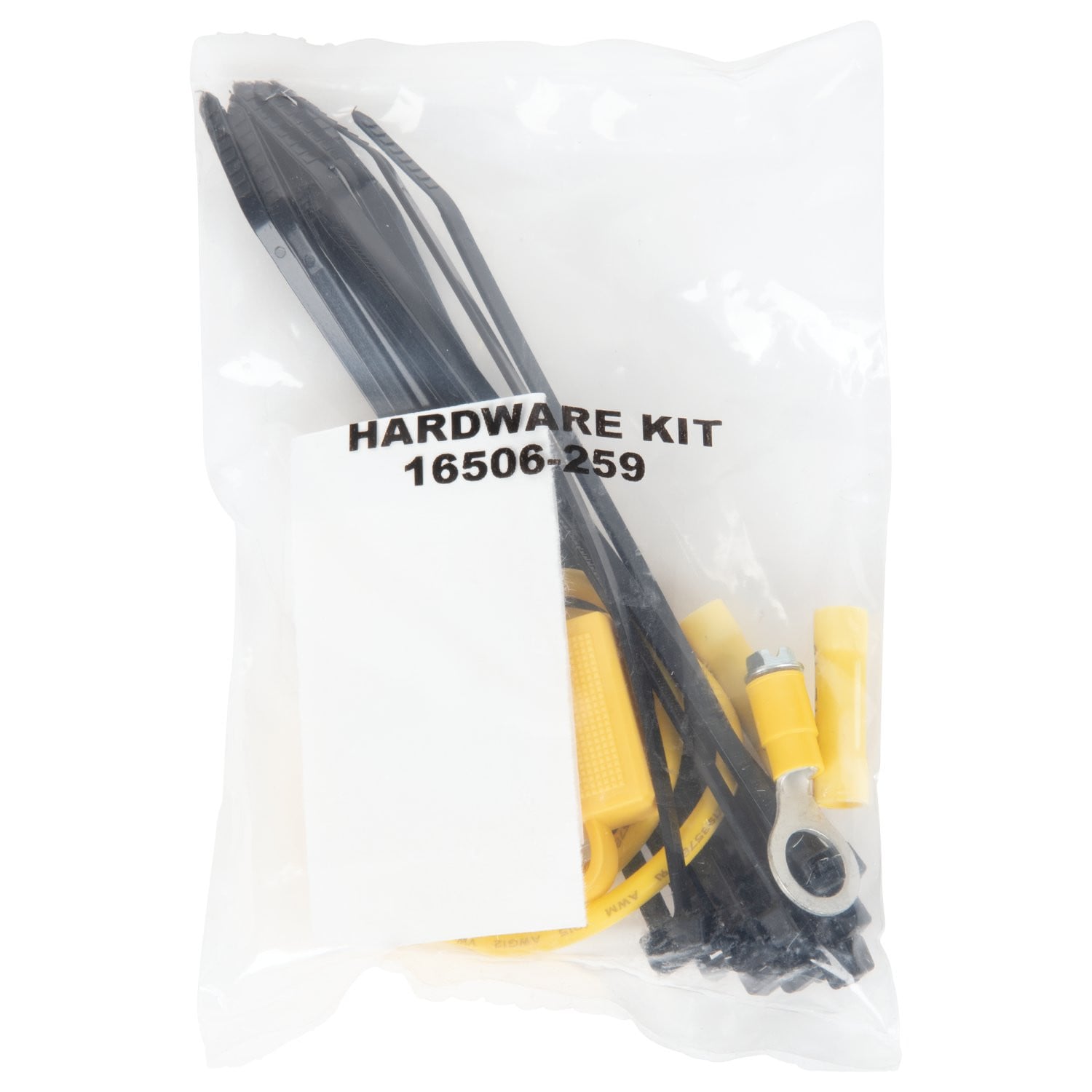

The kit includes: a T-One® Connector black box, two T-One® Connector ends (one with yellow wire for driver's side, one with green wire for passenger's side), a 12 ga. black power wire, a white ground wire with eyelet and screw, double-sided tape for mounting the black box, cable ties for securing the harness, a yellow fuse holder with 15 amp fuse, and yellow butt connectors for wire connections.
Yes. Step 8 requires you to disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive (+) battery terminal. After all wiring is complete and the fuse is installed, you reconnect the negative battery cable in step 11.
Open the rear hatch and partially remove the plastic threshold cover, side panels, and cargo trays to expose the vehicle's taillight wiring harness inside the rear cargo area. Using a 10mm socket or wrench, remove the 10mm bolts holding the cargo hooks in place. This exposes the taillight sockets where you will insert the T-One® Connector ends.

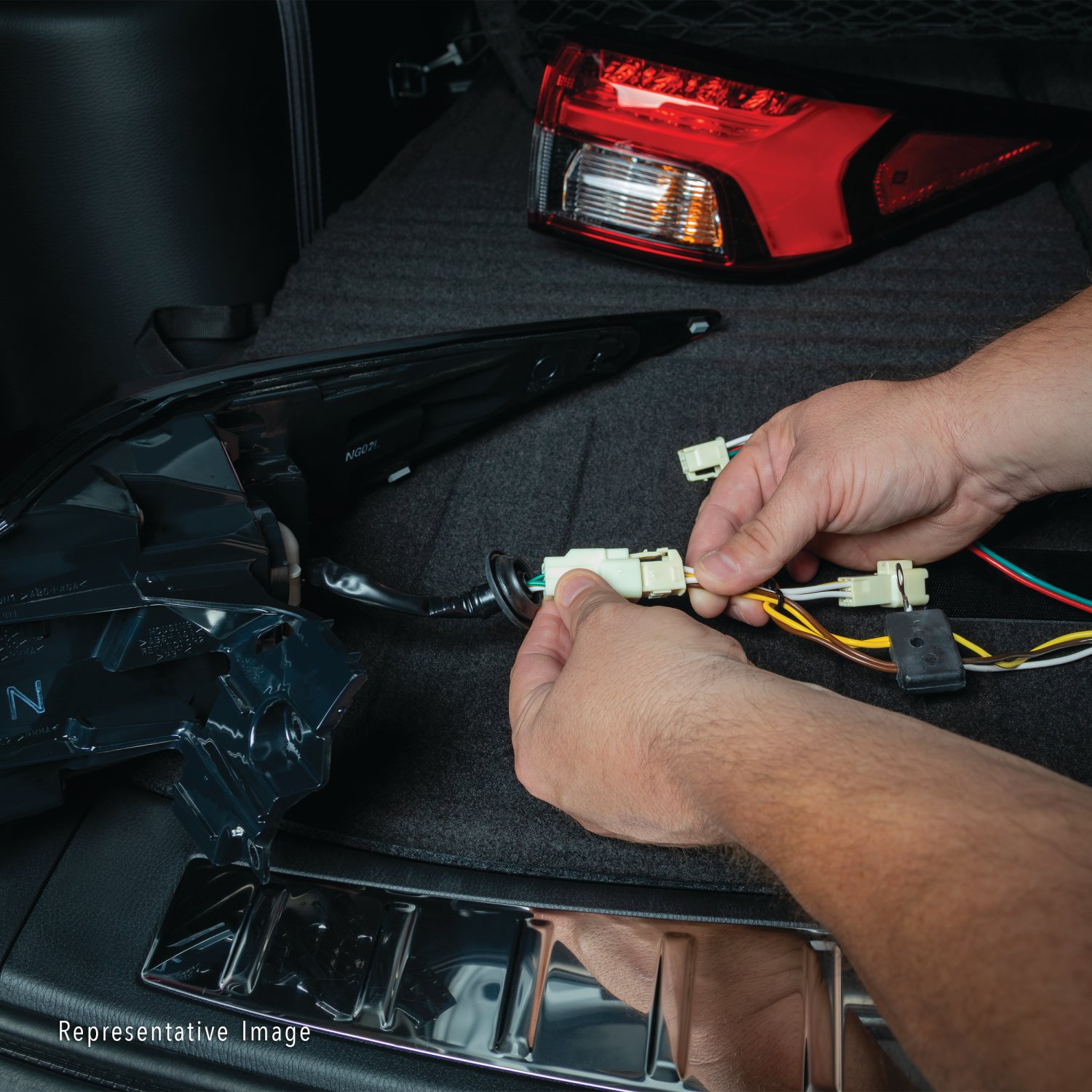

1. Disconnect the vehicle wiring harness from both taillight sockets and separate the connectors carefully without breaking the locking tabs. 2. On the driver's side, insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock into place, ensuring locking tabs are fully engaged. 3. On the passenger's side, insert the T-One® Connector end with the green wire between the vehicle wiring connectors and lock into place. Ensure all connector surfaces are clean and free of dirt before insertion.
Mount the black box on the driver's side using the double-sided tape provided. Secure the remainder of the T-One® Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would cut or pinch the wire.
Drilling is required only for the ground wire connection. You must locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. You must verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
Drill a 3/32" hole for the ground wire eyelet. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before securing the white wire.
After disconnecting the vehicle's negative (−) battery cable, remove the fuse from the yellow fuse holder provided. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Route the black 12 ga. wire from the front of the vehicle rearward along the frame rail, avoiding hot pipes, heat shields, fuel tank, and any points that may pinch or break the wire. Connect the other end of the black 12 ga. wire to the black power wire on the T-Connector's black box using the yellow butt connector provided.
The fuse rating is 15 amps. The yellow fuse holder provided in the kit contains a 15 amp fuse. After installation is complete and all wiring is connected, install the 15 amp fuse into the fuse holder.
Yellow wire: driver's side taillight connector end. Green wire: passenger's side taillight connector end. Black wire (12 ga.): power wire from the vehicle's positive (+) battery terminal to the black box module. White wire: ground wire from the black box module to a vehicle ground point. Yellow butt connectors: used to join the fuse holder to the black 12 ga. wire and to connect the black 12 ga. wire to the black power wire on the black box.
Beginning from the front of the vehicle, route the black 12 ga. wire rearward along the frame rail. Avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. If routing the wire through a grommet and along the exterior of the vehicle, exercise extra caution to avoid these hazards. The wire must reach from the positive battery terminal to the black box module on the driver's side.
Route the T-One® Connector end with the green wire to the passenger's side behind the panels and along the threshold to the taillight pocket. Secure the harness with the cable ties provided to prevent damage or rattling, and be careful to avoid any areas that would cut or pinch the wire.
Always wear safety glasses during installation. Read and follow all warnings and instructions included with the product before beginning. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces or the vehicle floor or bed. When routing wires, avoid hot pipes, heat shields, fuel tank, and any points that may pinch or break the wire. Ensure all connector surfaces are clean and free of dirt. Do not exceed the product's stated amperage ratings or the towing manufacturer's rating, as overloading circuits can cause fires.
After reconnecting the vehicle's negative (−) battery cable and installing the 15 amp fuse, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly.
Reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items that were removed during installation, being careful not to pinch or cut the wires. Secure all loose wires and mount the trailer tow harness in an accessible location with a bracket or electrical box. Test and verify the installation with a test light or trailer, and reset the vehicle's electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of two ratings: the towing manufacturer's rating (including the rating in your vehicle owner's manual) or the specific amperage ratings stated on the T-One® Connector product. Overloading circuits can cause fires. Consult your vehicle's owner's manual and the product documentation for the exact amperage limits applicable to your vehicle and trailer.
15 amps. The yellow fuse holder and 15 amp fuse are provided in the kit.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle owner's manual) or the specific amperage rating stated on the product. Overloading can cause fires.
