Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118873 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.5 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2025 | Kia Sportage | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The 2023-2024 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118873 (Part #TK118873) fits 2023-2025 Kia Sportage models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2023-2024 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118873 (Part #TK118873) is designed to fit the 2023-2025 Kia Sportage.
The 2023-2024 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118873 (Part #TK118873) fits the following vehicles: 2023-2025 Kia Sportage. Always verify your specific year, make, and model before ordering.
The 2023-2024 KIA Sportage Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118873 (Part #TK118873) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-One® Connector is designed for the Kia Sportage. However, the manual does not specify which model years are compatible. Contact the manufacturer or your retailer to confirm your specific vehicle year and trim level are supported.
The T-One® Connector is a trailer wiring harness that integrates with your vehicle's factory taillight connectors to provide trailer lighting control. It uses a black box module mounted under the vehicle that intercepts the taillight signals and routes them to a trailer connector.
You will need: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. A fish wire is recommended (but not required) to ease harness routing.

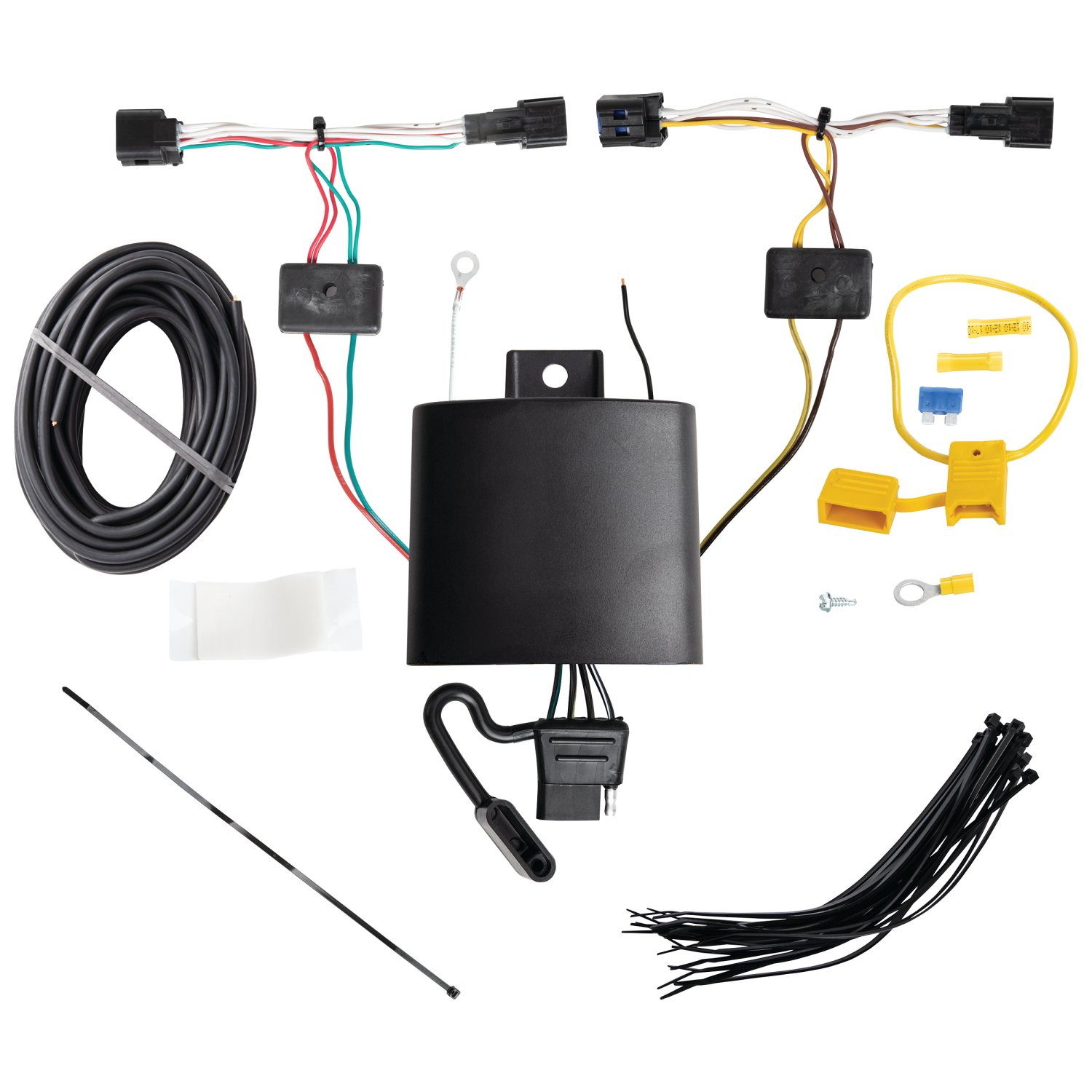

The kit includes: double-sided tape for mounting the black box, a white wire with eyelet and screw for grounding, a yellow fuse holder with 15 amp fuse, two yellow butt connectors, and the T-One® Connector harness with yellow and green wires and matching connectors for the taillight sockets.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wiring in step 9. The cable is reconnected in step 12 after the fuse holder and power connections are complete.
No. You remove the taillight mounting screws and disconnect the factory taillight wiring connectors, but the taillight assemblies themselves are set aside, not fully removed. The T-One® Connector is inserted between the vehicle connector and the taillight connector.
The black box is mounted underneath the vehicle behind the rear bumper fascia on the driver's side, using the provided double-sided tape. The mounting surface must be cleaned with a 50-50 mixture of rubbing alcohol and water. The epoxy side of the module must point toward the ground to prevent water buildup.
Drilling may be required. You must locate a suitable grounding point near the black box, such as an existing ground stud. If no existing stud is available, you must drill a 3/32" hole to secure the white ground wire using the provided eyelet and screw. Do not drill into the vehicle floor or bed. Always verify what is behind the surface before drilling.
A 15 amp fuse is used. The fuse is installed in the yellow fuse holder provided with the kit. It is removed during installation (step 9) and reinstalled after all power connections are complete (step 12).
The harness uses three main wires: yellow (driver's side taillight signal), green (passenger's side taillight signal), and black 12 gauge (power). A white wire is used for grounding. Yellow butt connectors are used to join the black power wire and fuse holder.
The black 12 gauge power wire is routed from the front of the vehicle rearward along the frame rail, avoiding hot pipes, heat shields, fuel tank, and other points that may pinch or break the wire. It connects to the yellow fuse holder at the battery's positive (+) terminal and to the black power wire on the black box using yellow butt connectors.

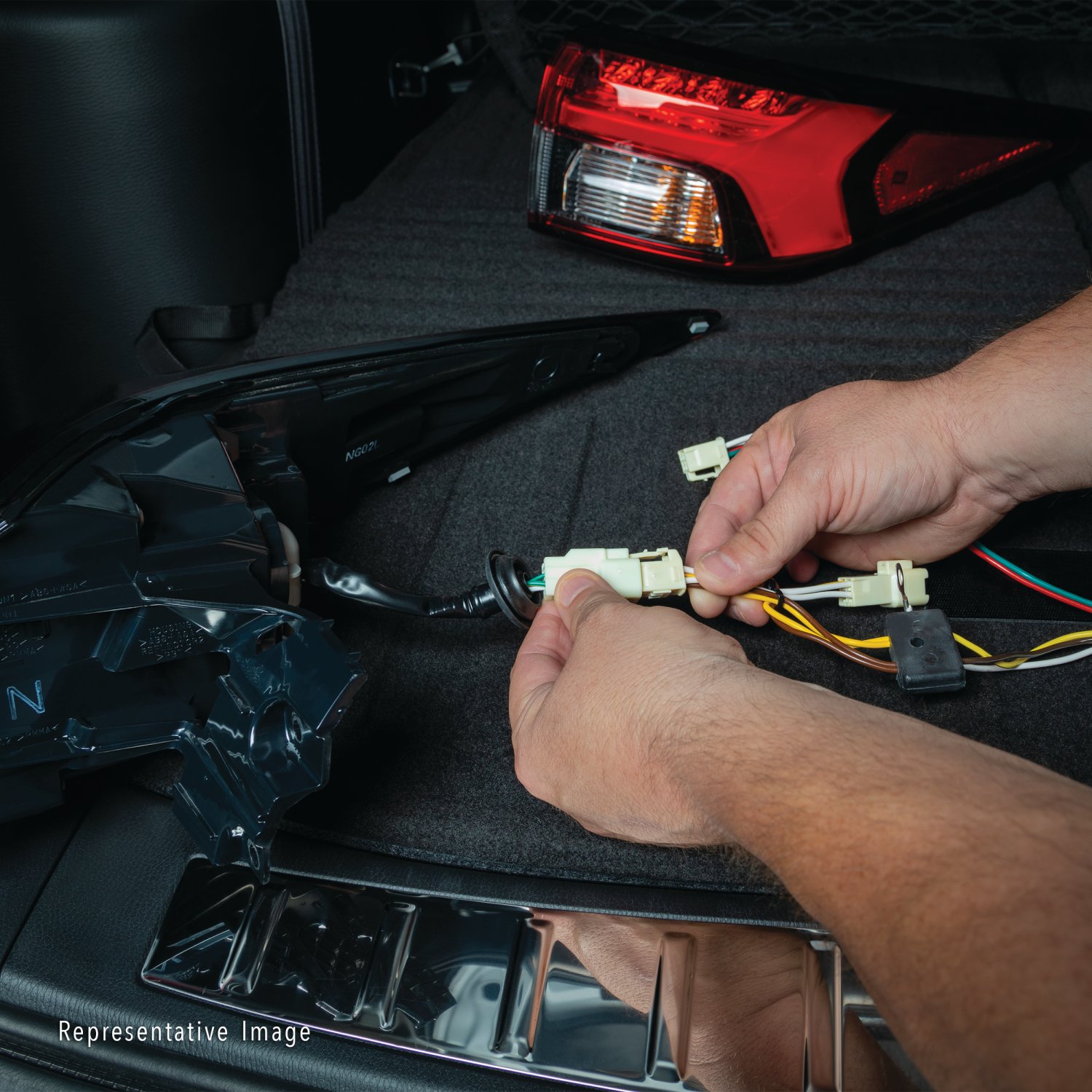

The T-One® Connector has two ends: one with a yellow wire for the driver's side and one with a green wire for the passenger's side. Each end is inserted between the vehicle's factory taillight connector and the taillight assembly connector. All connector surfaces must be clean and free of dirt before insertion.
Always wear safety glasses during installation. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces, the vehicle floor, or bed. When routing wires, avoid hot pipes, heat shields, fuel tank, and other points that may pinch or break the wire. Follow all warnings printed on the vehicle's battery. Do not exceed the towing manufacturer's rating or the product's amperage rating, as overloading circuits can cause fires.
After installation is complete, test and verify the installation with a test light or by connecting an actual trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly.
Secure all loose wires and mount the trailer tow harness in an accessible location using a bracket or electrical box. Reinstall all plastic trim panels, thresholds, storage covers, and floor coverings that were removed during installation, being careful not to pinch or cut the wires.
Yes. The manual recommends using a fish wire between the taillight pocket and rear fascia to pull the harness from underneath the vehicle through the taillight pocket. This is optional but recommended for ease of installation.
The yellow fuse holder protects the power circuit. A ring terminal from the fuse holder is attached to the vehicle's positive (+) battery terminal, and the other end connects to the black 12 gauge power wire via a yellow butt connector. A 15 amp fuse is installed in the holder to protect the circuit from overcurrent.
The black box must be mounted so that the epoxy side of the module points toward the ground. This orientation prevents water buildup inside the module.
Clean the flat mount surface area using a 50-50 mixture of rubbing alcohol and water before applying the double-sided tape. This ensures good adhesion of the tape to the vehicle surface.
Yes. All connector surfaces must be clean and free of dirt before inserting the T-One® Connector ends between the vehicle and taillight connectors. This ensures proper electrical contact.
The T-One® Connector is designed for the Kia Sportage, but the manual does not specify model years. Confirm your vehicle year with the manufacturer before purchasing.
Yes, disconnect the negative (−) battery cable before connecting the power wiring in step 9. Reconnect it after all power connections are complete.
A 15 amp fuse is used in the yellow fuse holder provided with the kit.
Do not exceed the towing manufacturer's rating or the product's amperage rating. Overloading circuits can cause fires. Always wear safety glasses during installation and verify what is behind surfaces before drilling.
