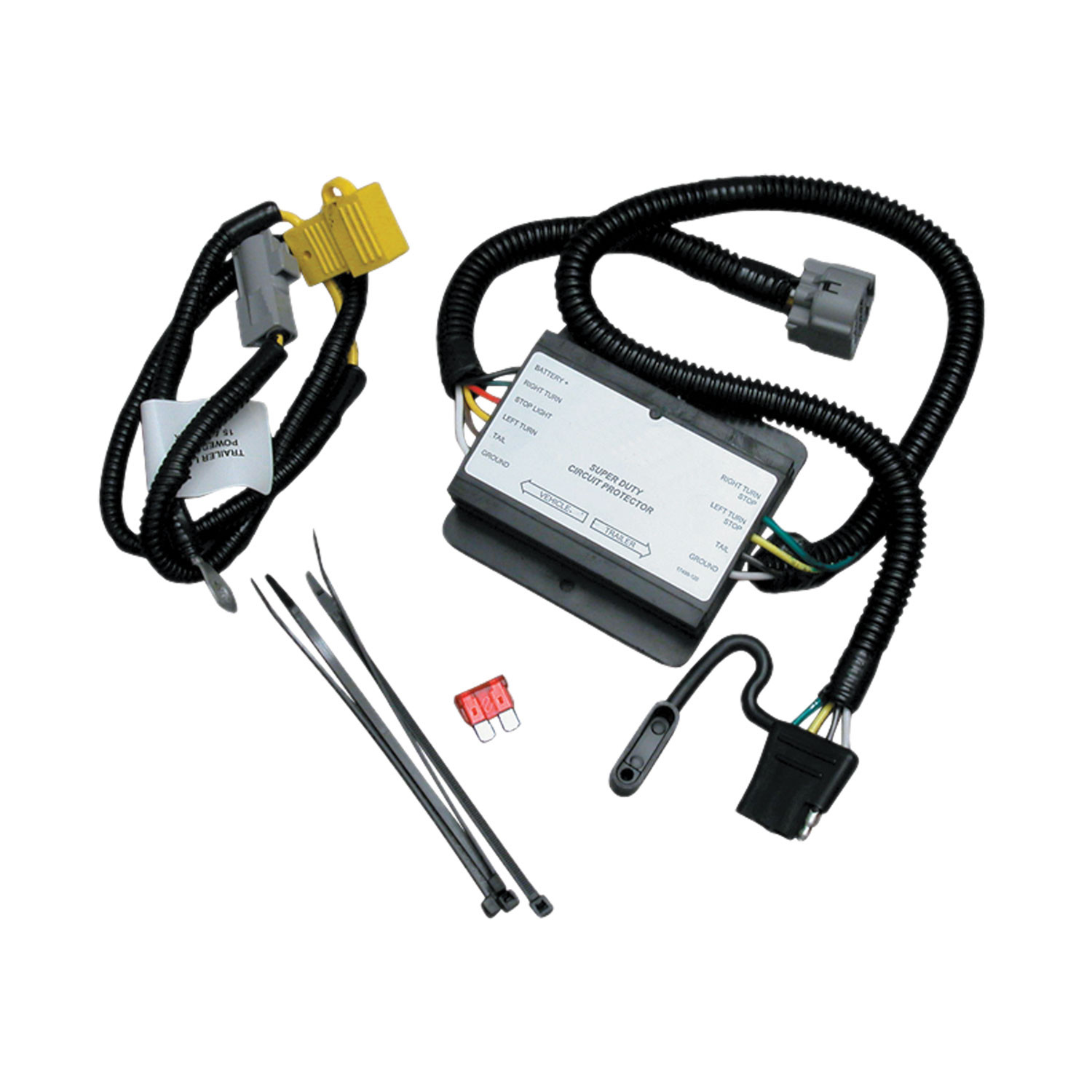

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118367 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.9 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 | Toyota Tundra | Tow Harness T: Connector Assembly Uses all existing holes. No Drilling required Install Time is 10 minutes |
The 2000-2000 Toyota Tundra Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118367 (Part #TK118367) fits the following vehicles: 2000 Toyota Tundra. Always verify your specific year, make, and model before ordering.
Yes, the 2000-2000 Toyota Tundra Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118367 (Part #TK118367) is designed to fit the 2000 Toyota Tundra.
The 2000-2000 Toyota Tundra Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118367 (Part #TK118367) fits 2000 Toyota Tundra models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2000-2000 Toyota Tundra Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118367 (Part #TK118367) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The part number is 18367-037.
This unit is rated for 7.5 amps per circuit.
No. If your vehicle has a 30 amp trailer harness fuse holder already installed, you must remove it and return it to the vehicle owner. Do not use it. Instead, use the yellow fuse holder and 10 amp fuse supplied with this product.
The trailer tow plug is located underneath the vehicle on the driver's side next to the frame rail.
The gray connector is located on the vehicle between the battery and the fender.
Install the 10 amp fuse supplied with the product. The maximum fuse rating allowed is 15 amps; do not exceed this limit.
You will need: cable ties (provided), double-sided tape (provided), a 50/50 water and alcohol solution for cleaning the mounting surface, and basic hand tools. The manual does not specify additional tools required.
Yes. Disconnect the vehicle's negative battery cable before beginning installation. This is the first step in the installation process.
You do not need to fully remove the battery. Temporarily remove the battery hold-down bracket and slide the battery towards the motor to access the gray connector. After installing the fuse holder connector and securing the wiring, return the battery to its original position and reinstall the bracket.
1. Disconnect the negative battery cable. 2. Temporarily remove the battery hold-down bracket and slide the battery towards the motor. 3. Locate the gray connector between the battery and fender, remove the cap, and install the trailer harness fuse holder connector. Tie wrap the gray connector and fuse harness to the vehicle's wiring. 4. Route the fuse holder wiring to the positive battery side, between the battery and fuse box. 5. Attach the ring terminal to the positive battery post. 6. Secure the fuse holder wire with 2 tie wraps. 7. Reinstall the battery hold-down bracket and install the 10 amp fuse. Reconnect the negative battery cable. 8. Locate the trailer tow plug underneath the vehicle on the driver's side next to the frame rail, remove the cap, and plug in the T-Connector harness. 9. Mount the black converter box to the truck end sill using double-sided tape after cleaning with 50/50 water-alcohol solution. 10. Secure the T-Connector wire harness to the vehicle's harness with cable ties.
Route the trailer harness fuse holder wiring over to the positive side of the battery, between the battery and the vehicle's fuse box. Attach the trailer harness fuse holder ring terminal to the positive battery post.
Secure the trailer fuse holder wire with 2 tie wraps.
Using the double-sided tape provided, mount the T-Connector black converter box to the truck end sill. Before mounting, clean the truck-mounting surface with a 50/50 water and alcohol solution.
Secure the T-Connector wire harness to the vehicle's harness with the cable ties provided.
Test the installation with a test light or trailer.
The T-Connector 18367-037 is designed for universal vehicle trailer towing installation. Your vehicle must have a gray connector between the battery and fender, and a trailer tow plug underneath the vehicle on the driver's side next to the frame rail. Consult the manufacturer or a fitment database if you are unsure whether your specific vehicle has these connectors.
Install the 10 amp fuse supplied with the product in the yellow fuse holder. The maximum fuse rating allowed is 15 amps.
Yes, disconnect the vehicle's negative battery cable before starting installation.
No. Temporarily remove the battery hold-down bracket and slide the battery towards the motor to access the gray connector, then return it to its original position after installation.
Mount the black converter box to the truck end sill using the double-sided tape provided, after cleaning the mounting surface with a 50/50 water and alcohol solution.
Test the installation with a test light or trailer.
