CURT Dual-Output Electrical Adapter (Adds 7-Way RV Blade to 4-Way Flat) Trailer Wiring Adapter ConnectorCURTIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2010 Pontiac Vibe
Confirmed to Fit
2011 - 2013 Scion xB
Confirmed to Fit
2009 - 2013 Toyota Matrix
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118460 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.75 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2010 | Pontiac Vibe | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2011 - 2013 | Scion xB | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2009 - 2013 | Toyota Matrix | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
On Sale Today
You save $7.94 (8%)
Free Shipping
Ships free on all orders
Authorized DealerFREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The 2011-2013 Scion xB, 2009-2013 Toyota Matrix, 2009-2010 Pontiac Vibe Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118460 (Part #TK118460) fits the following vehicles: 2009-2010 Pontiac Vibe; 2011-2013 Scion xB; 2009-2013 Toyota Matrix. Always verify your specific year, make, and model before ordering.
Yes, the 2011-2013 Scion xB, 2009-2013 Toyota Matrix, 2009-2010 Pontiac Vibe Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118460 (Part #TK118460) is designed to fit the 2009-2010 Pontiac Vibe.
The 2011-2013 Scion xB, 2009-2013 Toyota Matrix, 2009-2010 Pontiac Vibe Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118460 (Part #TK118460) fits 2009-2010 Pontiac Vibe models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2011-2013 Scion xB, 2009-2013 Toyota Matrix, 2009-2010 Pontiac Vibe Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118460 (Part #TK118460) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-Connector is designed for Pontiac Vibe and Toyota Matrix vehicles. The installation instructions are specific to these models.
The T-Connector is a trailer wiring adapter that allows you to connect a trailer to your Pontiac Vibe or Toyota Matrix. It intercepts the vehicle's taillight wiring and converts it to a 4-flat connector for trailer use. The system includes a converter box, wiring harness with yellow and green wires, and a 4-flat connector for storage when not in use.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and test probe. Safety glasses are also required during installation.

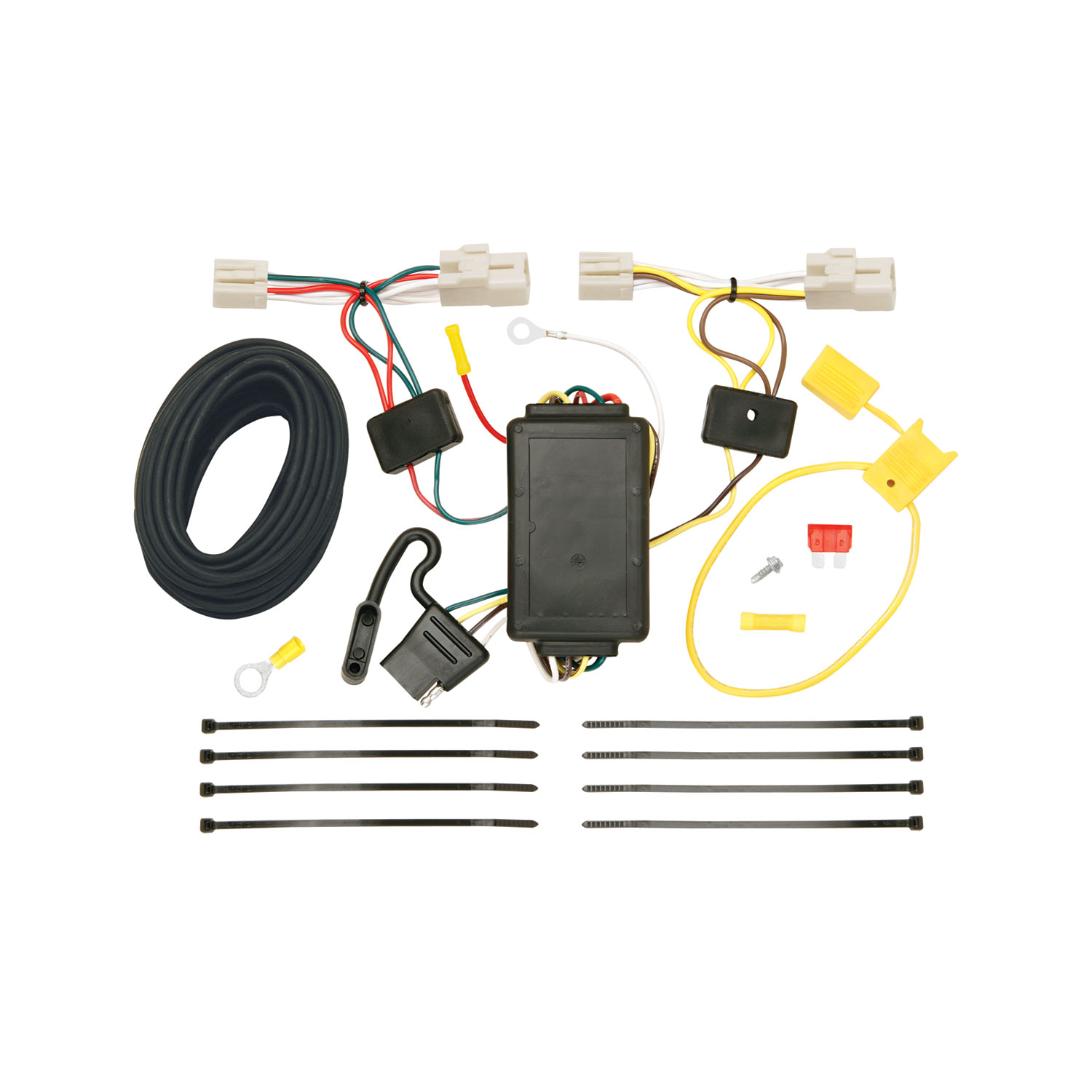

The kit includes: a yellow fuse holder with a 10 amp fuse, a ring terminal, a white eyelet and screw for grounding, yellow butt connectors, a T-Connector harness with yellow and green wires, a black converter box with double-sided tape, and a 4-flat connector for storage when not in use.
Yes. You must disconnect and isolate the vehicle's negative (-) battery terminal before beginning installation. This is a required safety step. You will reconnect it after the fuse holder is installed in step 8.
You must remove the rear threshold, cargo net, and cargo cover from the rear door area. You also need to remove both wiring access side panels located behind the taillights to access the vehicle's wiring connectors.
Starting on the driver's side, carefully separate the vehicle's wiring connectors without breaking the locking tabs. Plug the T-Connector harness containing the yellow wire between the vehicle's mating connectors. Ensure all connector surfaces are clean and free of dirt. Repeat this process on the passenger's side with the T-Connector end containing the green wire, routing it behind the panels and along the threshold.
Yes, drilling is required. You must drill a 3/32" hole to secure the white ground wire using the supplied eyelet and screw. However, you may avoid drilling if you can locate an existing ground stud near the connector. Do not drill into the vehicle floor or bed, and verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
Route the black wire out of the engine compartment either along the exterior frame and through a grommet, or through the interior following the existing wiring to the rear of the vehicle. Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. From inside the trunk, connect the black 12 ga. wire and the red wire from the T-Connector black box using the supplied yellow butt connector.
The T-Connector uses a 10 amp fuse. The fuse is installed into the yellow fuse holder provided in the kit. Install the fuse after reconnecting the vehicle's negative battery cable.
After cutting the fuse holder wire, attach the ring terminal and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. The fuse holder protects the circuit from overload.
Mount the T-Connector's black converter box on the driver's side on a flat surface in an out-of-the-way place using the double-sided tape provided. Ensure the location does not interfere with vehicle operation or passenger safety.
Reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, being careful not to pinch or cut the wires. Then test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of your towing manufacturer's rating or these limits: maximum 1 stop/turn light per side (2.1 amps per side), and maximum tail lights (4.2 amps total). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Store the 4-flat connector in the rear cargo area of the vehicle when not in use.
Wear safety glasses during installation. Read and follow all vehicle warnings and installation instructions before beginning. Read and follow all warnings and cautions printed on the tow vehicle's battery. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into exposed surfaces.
The T-Connector (118460-037) is designed for Pontiac Vibe and Toyota Matrix vehicles.
Yes, disconnect and isolate the vehicle's negative (-) battery terminal before installation. Reconnect it after the fuse holder is installed.
The T-Connector uses a 10 amp fuse installed in the yellow fuse holder provided.
