Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118465 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.9 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Honda Element | Tow Harness T: Connector Assembly Uses all existing holes. No Drilling required Install Time is 60 minutes |
On Sale Today
Original price was $81.25. Current price is $80.50.You save $0.75
Free Shipping
Ships free on all orders
Authorized DealerThe 2007-2011 Honda Element Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118465 (Part #TK118465) fits 2007-2011 Honda Element models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2011 Honda Element Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118465 (Part #TK118465) fits the following vehicles: 2007-2011 Honda Element. Always verify your specific year, make, and model before ordering.
Yes, the 2007-2011 Honda Element Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118465 (Part #TK118465) is designed to fit the 2007-2011 Honda Element.
The 2007-2011 Honda Element Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118465 (Part #TK118465) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, this T-Connector is designed for the Honda Element. The installation instructions are specific to this vehicle model.

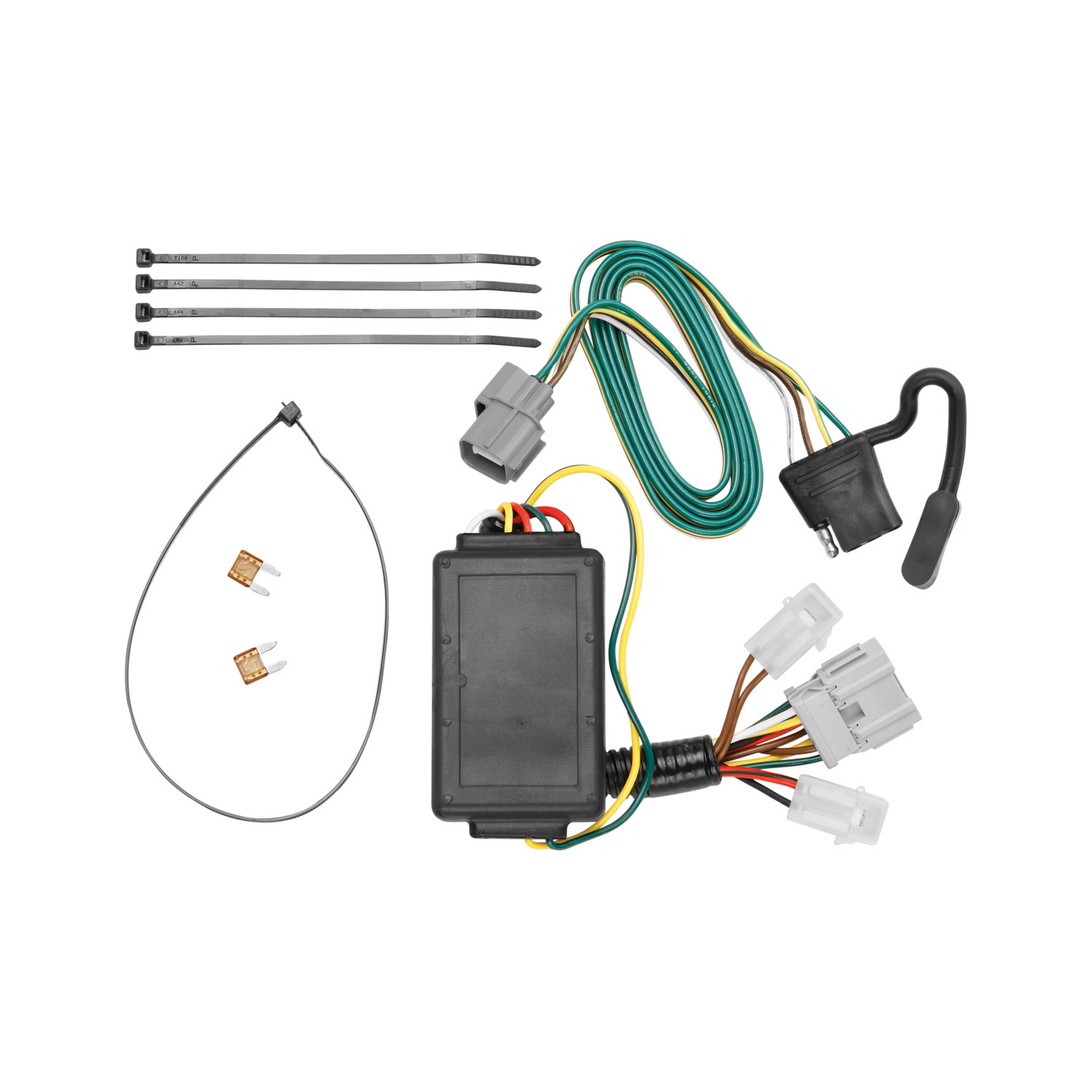

The kit includes a 10-Pin Tow Plug Adapter, a 4-Pin Tow Plug Adapter, a black converter box, supplied fuse holders with wires, double-sided tape or a 14" cable tie for mounting, and a 4-Flat connector for storage in the spare tire compartment when not in use.
No tools are required for installation. The installation uses only hand-tightening of connectors and mounting with supplied double-sided tape or cable tie.
The grey 10-Pin housing is located underneath the dash and to the left of the steering column. It is taped to another harness with blue tape and is accessed by removing the access panel underneath the steering wheel.
Turn the locking knobs 90 degrees counter-clockwise to remove the access panel underneath the steering wheel.
The factory 4-Pin tow harness connector is mounted on the driver's side threshold. It is accessed by opening the rear tailgate and removing cargo nets and the cargo floor hatch to reach the spare tire area.
Check that the mating surfaces of the vehicle harness connectors match the Tow Plug Adapter end. All connector surfaces should be clean and free of dirt before insertion.
Mount the black converter box up under the dash using either the supplied double-sided tape or a 14" cable tie. Position it to prevent damage or rattling, and carefully avoid any areas that would cut or pinch the wire.
If the fuses have not already been removed, remove them from the supplied fuse holders on the wires going from the T-Connector's 10-Pin Tow Plug Adapter to the black converter box before inserting the 10-Pin Tow Plug Adapter. Replace these fuses in step 7 after repositioning all access panels and trays.
Insert the 10-Pin Tow Plug Adapter into the grey 10-Pin housing and lock it into place. Be careful not to damage the locking tabs and ensure that the connector is fully inserted with locking tabs in place.
Insert the 4-Pin Tow Plug Adapter into the factory 4-Pin tow harness connector on the threshold and lock it into place. Be careful not to damage the locking tabs and ensure that the connector is fully inserted with locking tabs in place.
Wear safety glasses during installation. Use all safety precautions. Avoid cutting or pinching wires when mounting the converter box. Be careful not to damage connector locking tabs during insertion.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of the towing manufacturer rating or: maximum stop/turn light of 1 per side (2.1 amps) or maximum tail lights of 5.6 amps. Overloading the circuit can cause fires.
Store the 4-Flat connector in the spare tire compartment when not in use.
Yes, the T-Connector (118465-037) is designed specifically for Honda Element.
No tools are required. Installation uses hand-tightening of connectors and mounting with supplied double-sided tape or cable tie.
The manual does not specify battery disconnection. However, it does require resetting the vehicle electrical system by temporarily removing the key from the ignition for the initial test.
Maximum stop/turn light: 1 per side (2.1 amps); maximum tail lights: 5.6 amps. Do not exceed the lower of these ratings or the towing manufacturer rating, as overloading can cause fires.
