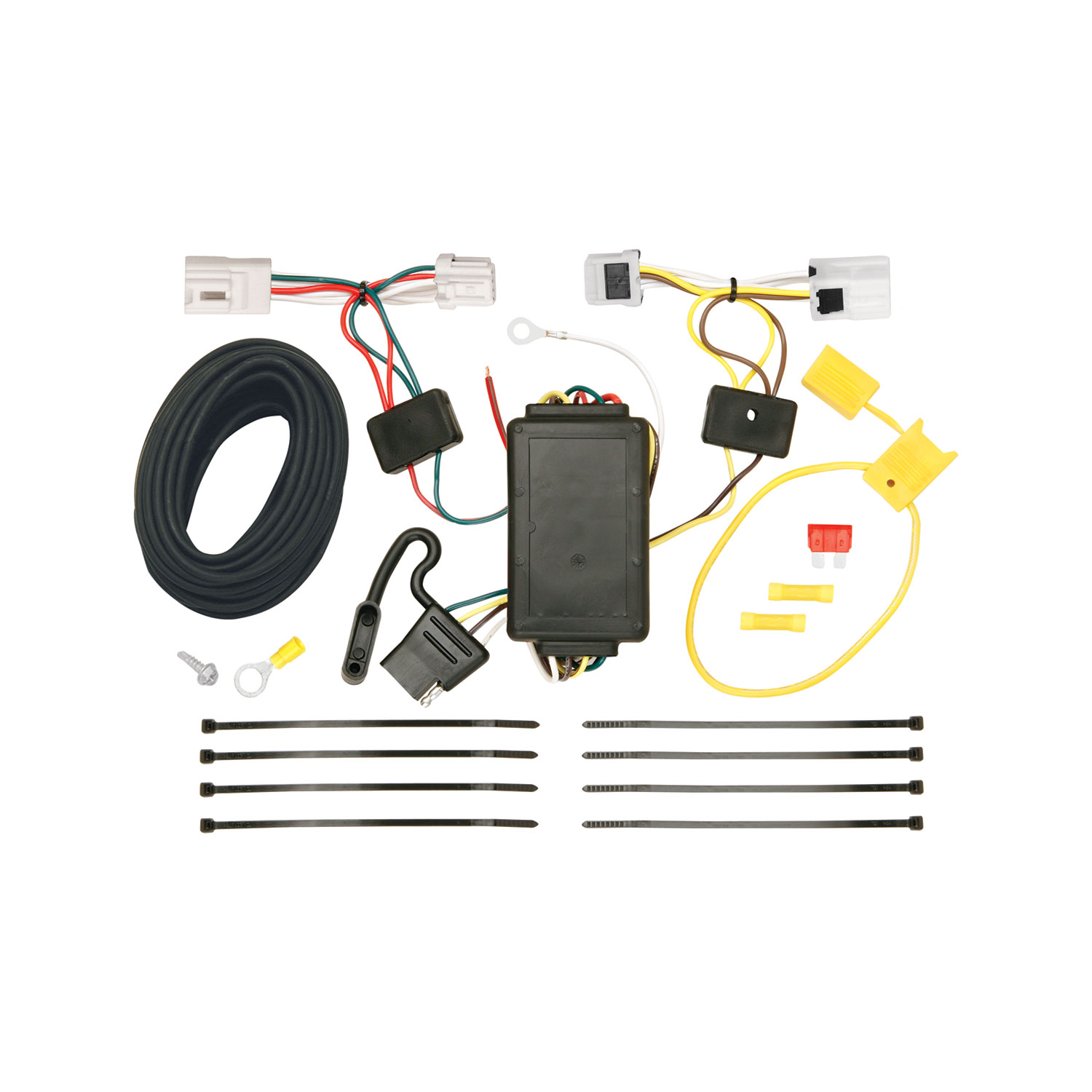

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118480 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.6 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2007 - 2008 | Infiniti G35 | Sedan · 4-Door | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2009 - 2013 | Infiniti G37 | Sedan · 4-Door | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2008 - 2020 | Nissan Rogue | — | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2014 - 2015 | Nissan Rogue Select | — | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118480 (Part #TK118480) fits the following vehicles: 2007-2008 Infiniti G35; 2009-2013 Infiniti G37; 2008-2020 Nissan Rogue; 2014-2015 Nissan Rogue Select. Always verify your specific year, make, and model before ordering.
Yes, the Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118480 (Part #TK118480) is designed to fit the 2007-2008 Infiniti G35.
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118480 (Part #TK118480) fits 2007-2008 Infiniti G35 models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118480 (Part #TK118480) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, the T-Connector is designed for both Nissan Rogue and Infiniti G35 vehicles. However, the installation steps differ slightly between the two models. For Nissan Rogue, you remove the rear hatch, threshold plate, storage covers, and floor covering, then access the taillight wiring through the rear interior trim panels. For Infiniti G35, you open the trunk, remove the threshold plate, and access the wiring through the felt trunk liner behind the taillights.
The T-Connector is a trailer wiring converter that taps into your vehicle's existing taillight wiring harness to provide trailer lighting connections. It uses a black converter box and a 4-flat connector to convert the vehicle's taillight signals for trailer use.
You will need: a drill with a 3/32" drill bit, a Philips head screwdriver, a test-probe, a trim panel puller, wire crimpers, and wire cutters.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the wiring to the battery. This is done in Step 4. After all wiring connections are complete, you reconnect the negative battery cable and install the 10 amp fuse in Step 5.
Yes. You must drill a 3/32" hole to secure the white ground wire to a suitable grounding point on the vehicle's frame or cross member. You must verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor or bed, and do not drill any exposed surfaces.
Yes. For Nissan Rogue, you must partially remove the rear interior trim panels on both the driver and passenger sides to access the taillight wiring harness. For Infiniti G35, you must partially remove the felt trunk liner behind the taillights. You will need a trim panel puller to remove these panels, and you must be careful not to damage them.
The T-Connector uses the following wire colors: yellow wire (driver's side T-Connector end), green wire (passenger's side T-Connector end), black 12 gauge wire (from the black converter box), red wire (from the black converter box), and white wire (ground wire). The yellow and green wires connect to the vehicle's taillight harness, while the black and red wires connect to the battery through a yellow fuse holder with a 10 amp fuse.
Locate the vehicle's taillight wiring harness on both the driver and passenger sides. The harness will have connection points matching the ends of the T-Connector. Separate the existing connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt. Insert the T-Connector end with the yellow wire on the driver's side between the vehicle wiring connectors and lock into place. Route the T-Connector end with the green wire to the passenger's side behind the panels and along the threshold, then repeat the connection process.
From inside the vehicle, connect the black 12 gauge wire and red wire from the T-Connector black box using the supplied yellow butt connector. You have two routing options: either route the black wire through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Whichever route you choose, avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
First, disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the supplied yellow butt connector. Then reconnect the negative battery cable and install the 10 amp fuse into the fuse holder. All connections must be complete for the T-Connector to function properly.
Install a 10 amp fuse into the yellow fuse holder provided with the T-Connector. This fuse protects the circuit from overload.
Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
On the driver's side, locate a flat surface in an out-of-the-way place and mount the T-Connector's black converter box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid any areas that would cut or pinch the wire.
After installation is complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of the towing manufacturer's rating or the following limits: maximum 1 stop/turn light per side (2.1 amps), and maximum tail lights (5.6 amps). Overloading the circuit can cause fires. Refer to your vehicle's owner's manual and instruction sheet for additional information.
Store the 4-flat connector in the rear cargo area when not in use.
Yes. When you locate the vehicle's taillight wiring harness and separate the existing connector, ensure all connector surfaces are clean and free of dirt before inserting the T-Connector ends.
Set aside all items removed during installation, being careful not to damage them. After completing the wiring installation, reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items that were removed, being careful not to pinch or cut the wires.
The T-Connector fits Nissan Rogue and Infiniti G35 vehicles. Installation procedures differ slightly between the two models.
You need a drill with 3/32" bit, Philips head screwdriver, test-probe, trim panel puller, wire crimpers, and wire cutters.
Yes, disconnect the negative battery cable before connecting the wiring. Reconnect it after all connections are complete and the 10 amp fuse is installed.
The T-Connector uses a 10 amp fuse in the yellow fuse holder provided.
Maximum 1 stop/turn light per side (2.1 amps) and maximum tail lights (5.6 amps). Do not exceed the lower of the towing manufacturer's rating or these limits.
Verify that all connections are complete. The manual states: 'All connections must be complete for the T-Connector to function properly.' Check that: (1) the T-Connector ends are fully inserted into the vehicle's taillight harness connectors with locking tabs in place, (2) the black 12 gauge wire and red wire are connected using the yellow butt connector, (3) the fuse holder is properly connected to the positive battery cable with the ring terminal, (4) the fuse holder is connected to the black wire using the yellow butt connector, (5) the white ground wire is secured to the vehicle's frame, and (6) the 10 amp fuse is installed in the fuse holder. Reset the vehicle's electrical system by temporarily removing the ignition key, then test with a test light or trailer.
