Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118482 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.7 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2014 - 2021 | Mitsubishi Outlander | — | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2011 - 2012 | Toyota Avalon | — | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2007 - 2011 | Toyota Camry | Sedan · 4-Door | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2009 - 2016 | Toyota Venza | — | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
Yes, the Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118482 (Part #TK118482) is designed to fit the 2014-2021 Mitsubishi Outlander.
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118482 (Part #TK118482) fits 2014-2021 Mitsubishi Outlander models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118482 (Part #TK118482) fits the following vehicles: 2014-2021 Mitsubishi Outlander; 2011-2012 Toyota Avalon; 2007-2011 Toyota Camry; 2009-2016 Toyota Venza. Always verify your specific year, make, and model before ordering.
The Tekonsha T-One T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118482 (Part #TK118482) Drilling is required for installation. Basic hand tools are typically all you need.
Yes. The T-Connector is designed for Toyota Venza, Mitsubishi Outlander, and Toyota Camry, including Camry Hybrid models. Installation procedures vary slightly by vehicle: Venza and Outlander require removal of threshold, trunk floor panels, trays, and cargo loops; Camry requires opening the trunk and partially removing corner felt trunk liner to expose the taillight wiring harness.

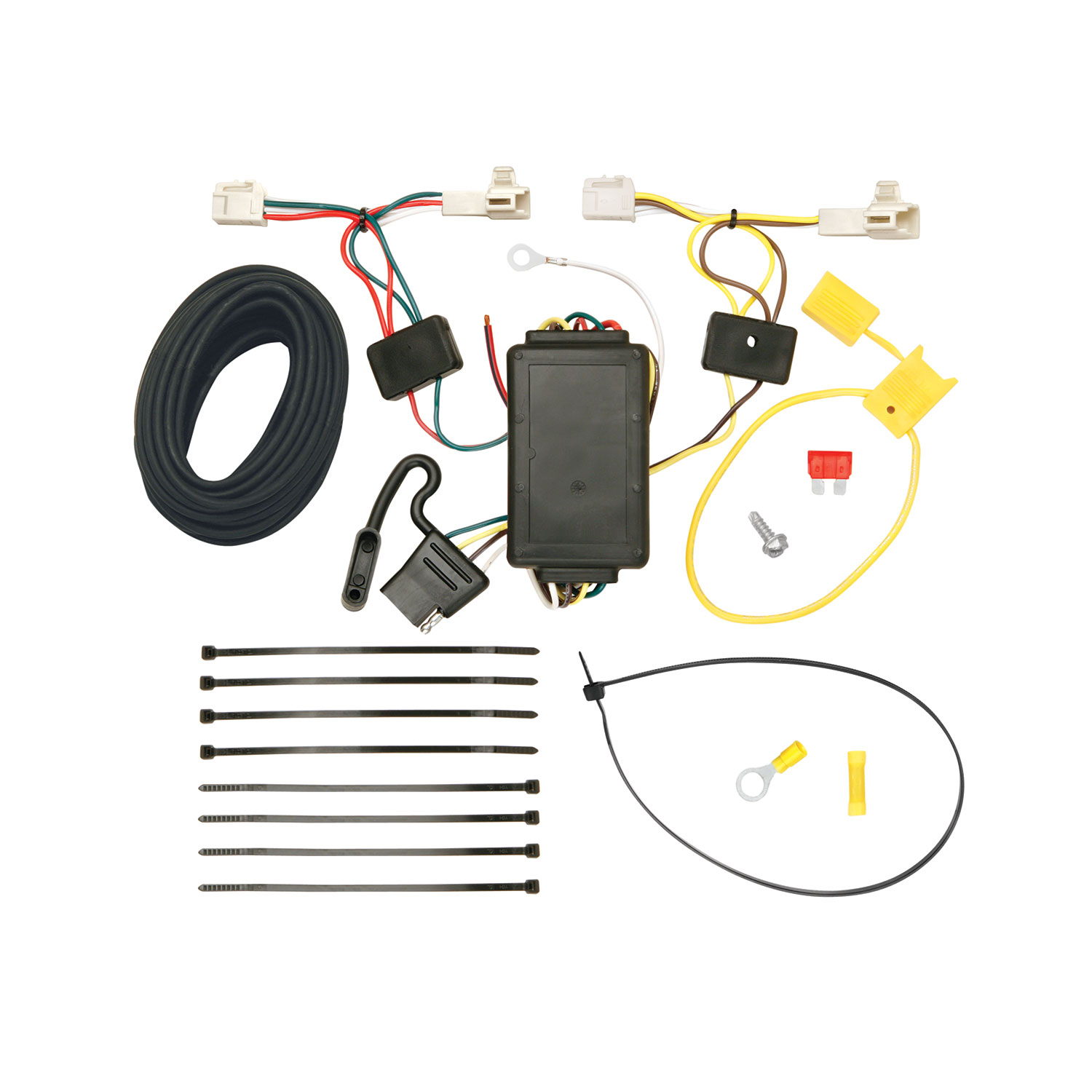

The T-Connector is a wiring harness that integrates with your vehicle's taillight system. It includes a converter box, wiring in multiple colours (yellow, brown, green, white, black, and red), a fuse holder with a 10 amp fuse, connectors, cable ties, double-sided tape, an eyelet, and a screw. It allows you to connect a trailer's electrical system to your vehicle's taillight circuit.
You will need: test-probe, trim panel puller, drill with 3/32" drill bit, 10mm socket, ratchet, wire cutter, wire crimper, and Phillips head screwdriver. Safety glasses are required during installation.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive (+) battery terminal. Reconnect the negative cable after the fuse holder is installed and the 10 amp fuse is in place.
Yes. You must drill a 3/32" hole to secure the white ground wire to a suitable grounding point (such as the vehicle's frame or cross member). Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces.
Mount the black converter box on the driver's side of the vehicle in a flat, out-of-the-way location using the double-sided tape provided. Ensure it is positioned where it will not interfere with vehicle operation or be easily damaged.
The T-Connector uses the following wires: yellow and brown wires connect to the driver's side taillight connector; green wire routes below the threshold cover to the passenger's side taillight housing; white wire grounds to the vehicle frame or cross member; red 12 ga. power wire comes from the converter box and connects to a black 12 ga. wire; the black wire routes to the vehicle's positive (+) battery terminal via a fuse holder and yellow butt connector.
The T-Connector uses a 10 amp fuse in the yellow fuse holder provided. Install the fuse after reconnecting the vehicle's negative battery cable.
Do not exceed the lower of your towing manufacturer's rating or: maximum 1 stop/turn light per side (2.1 amps) or maximum tail lights (5.6 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Route the black 12 ga. power wire either through a grommet and along the exterior vehicle frame, or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, and other pinch points.
Route the 4-flat connector through the driver's side trim panel into the side storage compartment and store it there when not in use.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. Reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, taking care not to pinch or cut the wires.
Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Yes. Check that the mating surfaces of the vehicle harness connectors match the T-Connector ends. All connector surfaces should be clean and free of dirt before connecting.
On a Toyota Camry Hybrid, the battery is located inside the vehicle's trunk, not in the engine compartment. This affects the routing of the black power wire during installation.
Set aside all items removed during installation (threshold, trunk floor panels, trays, cargo loops, felt trunk liner) being careful not to damage them. You will reinstall them at the end of the installation process.
On the driver's side, attach the T-Connector end containing yellow and brown wires first, ensuring connectors are fully inserted with locking tabs in place. Then route the T-Connector containing the green wire below the threshold cover to the passenger's side taillight housing and repeat the connection process with the green wire connectors.
Disconnect the vehicle's negative (−) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 10 amp fuse into the fuse holder.
Open the vehicle's rear tailgate. Remove the threshold, trunk floor panels, and trays. On both sides of the vehicle, remove cargo loops so that the trim panels can be carefully pulled away from the vehicle.
Open the trunk and remove the threshold panel. Partially remove the corner felt trunk liner on both sides, exposing the vehicle's taillight wiring harness.
Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area, drill a 3/32" hole, and secure the white wire using the eyelet and screw provided.
Toyota Venza, Mitsubishi Outlander, and Toyota Camry (including Hybrid).
Test-probe, trim panel puller, drill with 3/32" bit, 10mm socket, ratchet, wire cutter, wire crimper, and Phillips head screwdriver. Safety glasses required.
Yes. A 3/32" hole must be drilled for the ground wire. Verify what is behind the surface before drilling and do not drill into the vehicle floor, bed, or exposed surfaces.
Yes. Disconnect the negative battery cable before connecting the power wire. Reconnect after the fuse holder and 10 amp fuse are installed.
Do not exceed: 1 stop/turn light per side (2.1 amps) or tail lights (5.6 amps). Overloading can cause fires.
Route it through the driver's side trim panel into the side storage compartment and store it there.
Verify that all connections are complete. Test and verify installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Ensure the 10 amp fuse is installed in the fuse holder, the negative battery cable is reconnected, and all connector locking tabs are fully seated.
Check that the mating surfaces of the vehicle harness connectors match the T-Connector ends. All connector surfaces should be clean and free of dirt. Clean the connectors if necessary before attempting to connect them.
