Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118629 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 2 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2013 - 2016 | Scion FR-S | — | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2013 - 2020 | Subaru BRZ | — | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
| 2017 - 2024 | Subaru Impreza | Sedan | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes |
Yes, the 2013-2016 Scion FR-S, 2017-2024 Subaru Impreza, 2013-2020 Subaru BRZ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118629 (Part #TK118629) is designed to fit the 2013-2016 Scion FR-S.
The 2013-2016 Scion FR-S, 2017-2024 Subaru Impreza, 2013-2020 Subaru BRZ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118629 (Part #TK118629) fits the following vehicles: 2013-2016 Scion FR-S; 2013-2020 Subaru BRZ; 2017-2024 Subaru Impreza. Always verify your specific year, make, and model before ordering.
The 2013-2016 Scion FR-S, 2017-2024 Subaru Impreza, 2013-2020 Subaru BRZ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118629 (Part #TK118629) fits 2013-2016 Scion FR-S models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2013-2016 Scion FR-S, 2017-2024 Subaru Impreza, 2013-2020 Subaru BRZ Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118629 (Part #TK118629) Drilling is required for installation. Basic hand tools are typically all you need.
The T-One® T-Connector is a wiring harness that integrates a trailer connector into your vehicle's electrical system. It connects to your vehicle's taillight wiring harness on both sides and includes a black box that connects to the vehicle's battery, allowing you to safely power a trailer's lights and electrical systems.
Yes, the T-One® T-Connector part number 118629-037 is designed for the Scion FR-S. The manual confirms this is the correct application for this part number.
You will need: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. Safety glasses are also required.

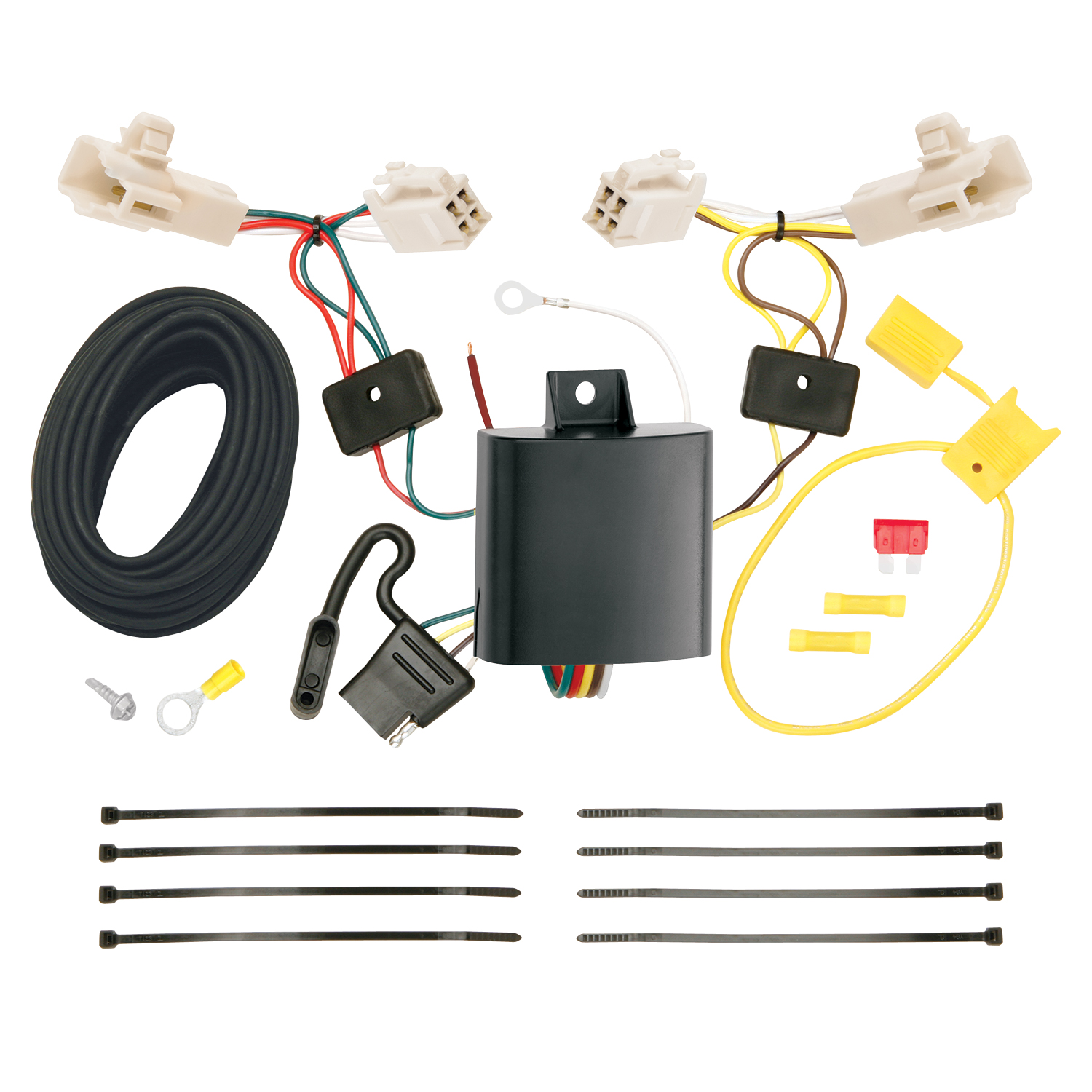

The kit includes: two T-Connector ends (one with yellow wire, one with green wire), a black box, double-sided tape for mounting the black box, cable ties for securing the harness, a white eyelet and screw for the ground connection, yellow butt connectors, a yellow fuse holder with fuse, and a ring terminal.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the fuse holder to the positive battery terminal. This is a required safety step in step 7 of the installation.
You must open the trunk and remove the threshold panel. You also need to partially remove the corner felt trunk liner on both sides to expose the vehicle's taillight wiring harness. These items must be reinstalled after installation.
Yes. You must drill one 3/32" hole on the driver's side near the taillight connectors to secure the white ground wire with an eyelet and screw. Before drilling, you must verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
On the driver's side, locate the taillight wiring harness connector in the trunk. Separate the vehicle's connector carefully without breaking the locking tabs. Insert the T-Connector end with the yellow wire between the vehicle's wiring connectors and lock it into place. Repeat this process on the passenger's side using the T-Connector end with the green wire, routing it below the threshold cover. Ensure all connector surfaces are clean and free of dirt, and that connectors are fully inserted with locking tabs in place.
Mount the T-One® black box on the driver's side near the taillight connectors using the double-sided tape provided. The tape is applied to the back of the black box to secure it to a suitable surface in the trunk area.
From inside the vehicle, connect the black 12 ga. wire and the red wire from the T-One® black box using the supplied yellow butt connector. Then route the black wire either through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, or other points that may pinch or break the wire.
Disconnect the vehicle's negative (−) battery cable first. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and secure it. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. This connection must be completed for the T-Connector to function properly.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. After securing the harness, reinstall all plastic trim panels, the threshold, storage covers, floor covering, and other items that were removed during installation, being careful not to pinch or cut the wires.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. Refer to the product label and your vehicle's owner's manual for the specific amperage rating.
Always wear safety glasses during installation. Read and follow all warnings and instructions printed on the tow vehicle's battery. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. When routing wires, avoid hot pipes, heat shields, the fuel tank, or other points that may pinch or break the wire. Ensure all connector surfaces are clean and free of dirt, and do not damage the locking tabs.
Store the 4-flat connector in the trunk area when not in use.
Yes, part 118629-037 is designed specifically for the Scion FR-S.
Trim panel remover, 10mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, test probe, and safety glasses.
Yes, you must disconnect the vehicle's negative battery cable before connecting the fuse holder to the positive battery terminal.
Yellow wire connects to the driver's side taillight harness, green wire connects to the passenger's side taillight harness, white wire is the ground connection, black 12 ga. wire connects to the battery positive terminal via the fuse holder, and red wire from the black box connects to the black wire using a yellow butt connector.
Do not exceed the lower of the towing manufacturer's rating or the specific amperage ratings stated on the product. Refer to the product label for the exact amperage specification.
Verify that all connections are complete. Check that the T-Connector ends are fully inserted into the taillight harness connectors with locking tabs in place on both sides. Ensure the white ground wire is securely fastened with the eyelet and screw. Verify that the black 12 ga. wire is properly connected to the fuse holder and that the fuse holder is securely attached to the vehicle's positive battery terminal with the ring terminal. Test the installation with a test light or trailer. Reset the vehicle's electrical system by temporarily removing the ignition key.
Ensure that the connector surfaces are clean and free of dirt. Do not force the connectors; they should insert smoothly. Verify that you are using the correct T-Connector end for each side: yellow wire on the driver's side, green wire on the passenger's side. Check that the vehicle's taillight connector mating surfaces match the T-Connector ends. Be careful not to damage the locking tabs during insertion. If the locking tabs are broken, the connector will not lock properly.
Route the black wire either through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, or other points that may pinch or break the wire. Secure the harness with the cable ties provided to prevent rattling and damage. Be careful not to pinch or cut the wires when reinstalling trim panels and other components.
