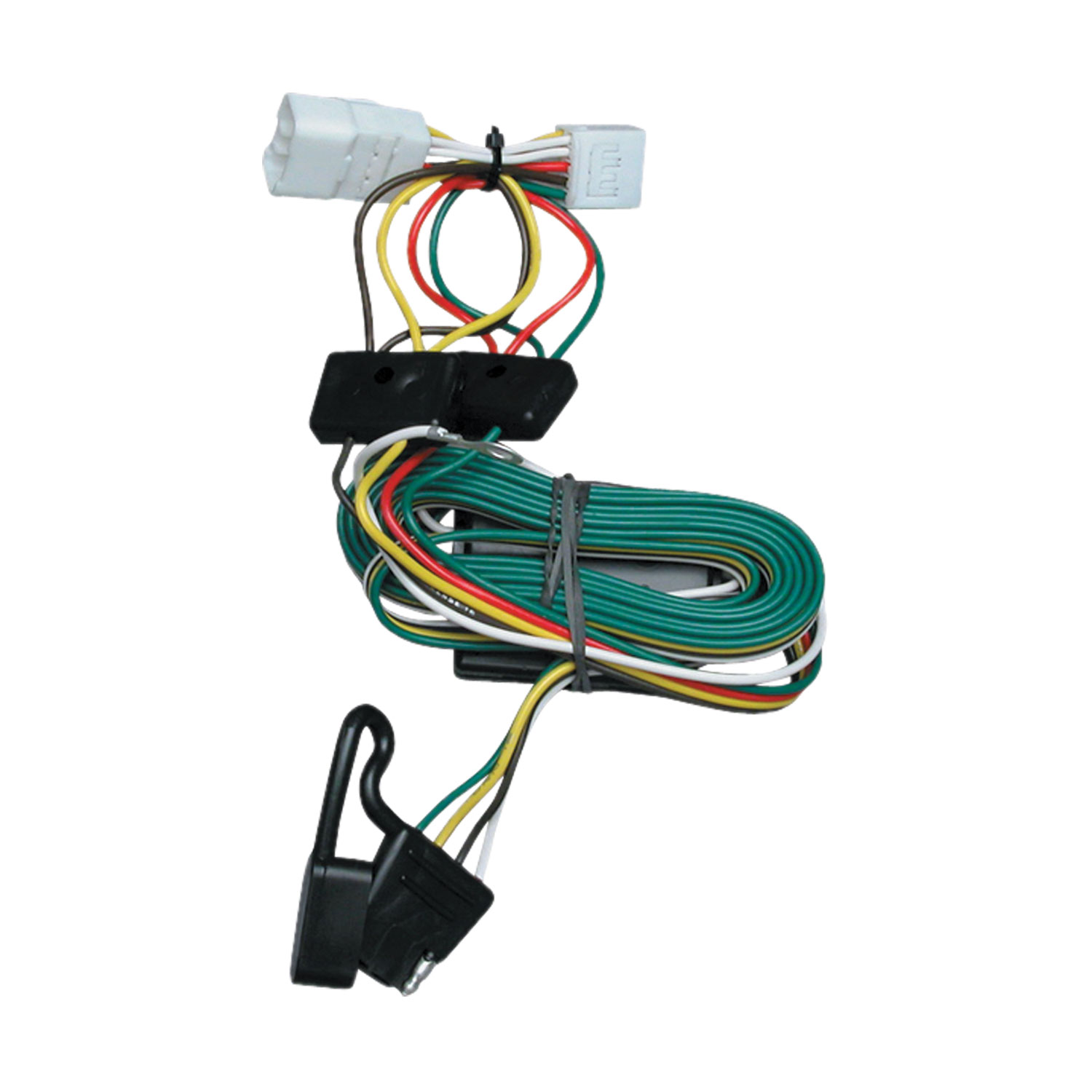

Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118354 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.74 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 16 GA. |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2001 | Jeep Cherokee | Tow Harness T: Connector Assembly Drilling Required Install Time is 20 minutes |
Yes, the 1997-2001 Jeep Cherokee Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118354 (Part #TK118354) is designed to fit the 1997-2001 Jeep Cherokee.
The 1997-2001 Jeep Cherokee Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118354 (Part #TK118354) fits the following vehicles: 1997-2001 Jeep Cherokee. Always verify your specific year, make, and model before ordering.
The 1997-2001 Jeep Cherokee Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118354 (Part #TK118354) fits 1997-2001 Jeep Cherokee models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1997-2001 Jeep Cherokee Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118354 (Part #TK118354) Drilling is required for installation. Basic hand tools are typically all you need.
The T-Connector is a tail light wiring adapter that connects between your vehicle's existing tail light wiring harness and a trailer. It allows you to tap into the vehicle's tail light circuits without cutting or permanently modifying the factory wiring. The unit is rated for 4 amps per circuit.
The T-Connector is designed to work with vehicle tail light wiring harnesses that have white rectangular connectors matching the ends of the T-Connector. You will need to locate your vehicle's tail light wiring harness and verify that the connectors match before purchasing. If your vehicle's connectors do not match, this adapter will not be compatible.
You will need a drill with a 3/32" drill bit. The manual does not specify additional tools, but you may find it helpful to have a screwdriver for removing and reattaching the rear quarter panel trim and spare tire, and a test light or access to a trailer for testing the installation.
The T-Connector kit includes an eyelet and screw for securing the white ground wire, and either a screw or cable tie for securing the black box to the vehicle.
The manual does not specify whether battery disconnection is required. Contact the manufacturer or a professional installer for guidance on this safety step.
Open the rear door of your vehicle. Temporarily remove the spare tire and rear quarter panel trim located on the driver's side. These items will be reattached after installation.
Locate the vehicle's tail light wiring harness with white rectangular connectors. Separate the harness connectors carefully, being careful not to break the locking tabs. Insert the T-Connector between the harness connectors and lock it into place. Ensure that the connectors are fully inserted and the locking tabs are in place.
Yes. You must drill a 3/32" hole in a suitable grounding point near the adapter to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed.
Drill a 3/32" hole (2.4 mm) at a suitable grounding point near the adapter. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
Locate a suitable grounding point near the adapter. The manual specifies that you must not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling the 3/32" hole.
The T-Connector is rated for 4 amps per circuit. Do not exceed this rating when connecting trailer lighting or other electrical loads.
The white wire is the ground wire and must be secured to a suitable grounding point using the eyelet and screw provided. The black box houses the connector and is secured to the vehicle using the screw or cable tie provided. The manual does not specify the function of other wire colors.
After installation, test the installation using a test light or trailer. This will verify that the tail light circuits are functioning correctly through the T-Connector before you reattach the rear quarter panel trim and spare tire.
After testing with a test light or trailer, secure the black box to the vehicle using the screw or cable tie provided. Then reattach the rear quarter panel trim and spare tire to their original positions.
Do not break the locking tabs on the harness connectors when separating them. Do not drill into the vehicle floor or bed when securing the ground wire. Do not exceed the 4 amp per circuit rating when connecting trailer loads.
The T-Connector works with vehicles that have tail light wiring harnesses with white rectangular connectors matching the T-Connector ends. Verify your vehicle's tail light connector type before purchasing.
Open the rear door and temporarily remove the spare tire and rear quarter panel trim on the driver's side.
Test the installation using a test light or trailer to verify that the tail light circuits are functioning correctly.
