Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2005 - 2025 Nissan Frontier
Confirmed to Fit
2005 - 2007 Nissan Pathfinder
Confirmed to Fit
2005 - 2015 Nissan Xterra
Confirmed to Fit
2009 - 2012 Suzuki Equator
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

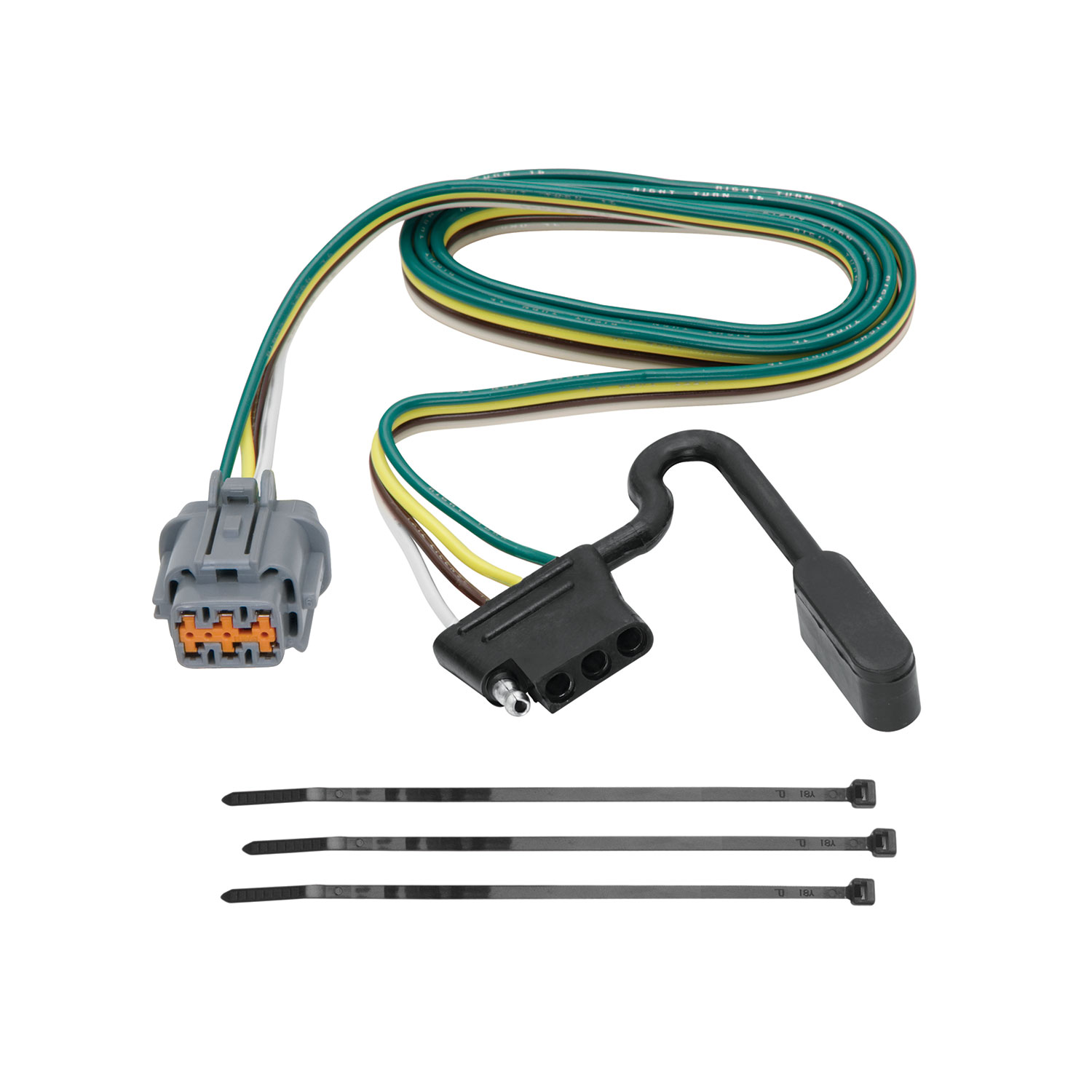

Tekonsha Tow Harnesses are the replacement for your factory electrical connector to the back of your vehicle. These harnesses are used to link the wiring from your vehicle to the trailer when towing. Tekonsha Tow Harnesses feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of Replacement Tow Harnesses. Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118263 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.35 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | NO |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2025 | Nissan Frontier | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 5 minutes 4: Flat Trailer Plug |
| 2005 - 2007 | Nissan Pathfinder | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 5 minutes 4: Flat Trailer Plug |
| 2005 - 2015 | Nissan Xterra | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 5 minutes May be equipped with Factory Tow Prep Plug 4: Flat Trailer Plug |
| 2009 - 2012 | Suzuki Equator | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 5 minutes May be equipped with Factory Tow Prep Plug 4: Flat Trailer Plug |
Yes, the Tekonsha Tow Harness, 4-Way Flat TK118263 (Part #TK118263) is designed to fit the 2005-2025 Nissan Frontier.
The Tekonsha Tow Harness, 4-Way Flat TK118263 (Part #TK118263) fits 2005-2025 Nissan Frontier models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Tekonsha Tow Harness, 4-Way Flat TK118263 (Part #TK118263) fits the following vehicles: 2005-2025 Nissan Frontier; 2005-2007 Nissan Pathfinder; 2005-2015 Nissan Xterra; 2009-2012 Suzuki Equator. Always verify your specific year, make, and model before ordering.
The Tekonsha Tow Harness, 4-Way Flat TK118263 (Part #TK118263) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the T-Connector is designed for Nissan Pathfinder, Xterra, and Frontier models. However, if you have a Nissan Xterra without a factory tow package, the taillight function on the tow plug will not work unless you purchase an OEM relay harness separately from a Nissan dealer.
The T-Connector will physically install on any Xterra, but taillight function will not work unless you purchase an OEM relay harness (not included) from a Nissan dealer. Contact your Nissan dealer for more information on obtaining the relay harness.
The T-Connector itself is included. The OEM relay harness required for taillight function on Xterra models without a tow package is not included and must be purchased separately from a Nissan dealer.
The gray 6-pin plug is located under the vehicle, behind the rear bumper on the driver's side, along the frame rail.
Yes. All connector surfaces must be clean and free of dirt before connecting the T-Connector. This applies whether you are replacing an existing OEM harness or performing a new installation.
Connect the T-Connector end to the vehicle's mating connector. Be careful not to damage the locking tabs and ensure that the connectors are fully inserted with locking tabs in place. All connections must be complete for the T-Connector to function properly.
Maximum stop/turn light is 1 per side at 7.5 amps. Maximum tail lights are 7.5 amps. Do not exceed the lower of your towing manufacturer's rating or these limits, as overloading the circuit can cause fires.
Test and verify the installation with a test light or by connecting an actual trailer once installed. All connections must be complete for the T-Connector to function properly.
Yes, the T-Connector fits all three models. Note: Xterra models without a factory tow package require a separate OEM relay harness (not included) for taillight function.
Yes, the T-Connector connects directly to the vehicle's existing 6-pin trailer harness connector behind the rear bumper. Ensure all connector surfaces are clean and the locking tabs are fully engaged.
Maximum 7.5 amps per stop/turn light (1 per side) and 7.5 amps for tail lights. Do not exceed the lower of your vehicle's towing manufacturer rating or these limits.
Yes, test and verify the installation with a test light or by connecting a trailer. All connections must be complete for proper function.
