Tekonsha Tow Harnesses are the replacement for your factory electrical connector to the back of your vehicle. These harnesses are used to link the wiring from your vehicle to the trailer when towing. Tekonsha Tow Harnesses feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of Replacement Tow Harnesses. Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118292 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.3 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | NO |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
The 2020-2023 Toyota Highlander Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118292 (Part #TK118292) fits 2020-2025 Toyota Highlander models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2023 Toyota Highlander Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118292 (Part #TK118292) fits the following vehicles: 2020-2025 Toyota Highlander. Always verify your specific year, make, and model before ordering.
Yes, the 2020-2023 Toyota Highlander Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118292 (Part #TK118292) is designed to fit the 2020-2025 Toyota Highlander.
The 2020-2023 Toyota Highlander Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118292 (Part #TK118292) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The T-One® Connector is a trailer harness adapter that connects to your tow vehicle's factory trailer harness connector. It converts the factory connector to a 4-Flat connector end for towing applications. The connector is located under the vehicle behind the rear bumper on the driver's side.
The T-One® Connector requires your vehicle to have a factory trailer harness connector located under the vehicle, behind the rear bumper, on the driver's side. The manual shows a Toyota Highlander as an example application. Check your vehicle's owner's manual or contact the manufacturer to confirm your specific vehicle has this factory connector before purchasing.
You will need a Trim Panel Puller and a Test-probe. These are the only tools specified in the installation instructions.

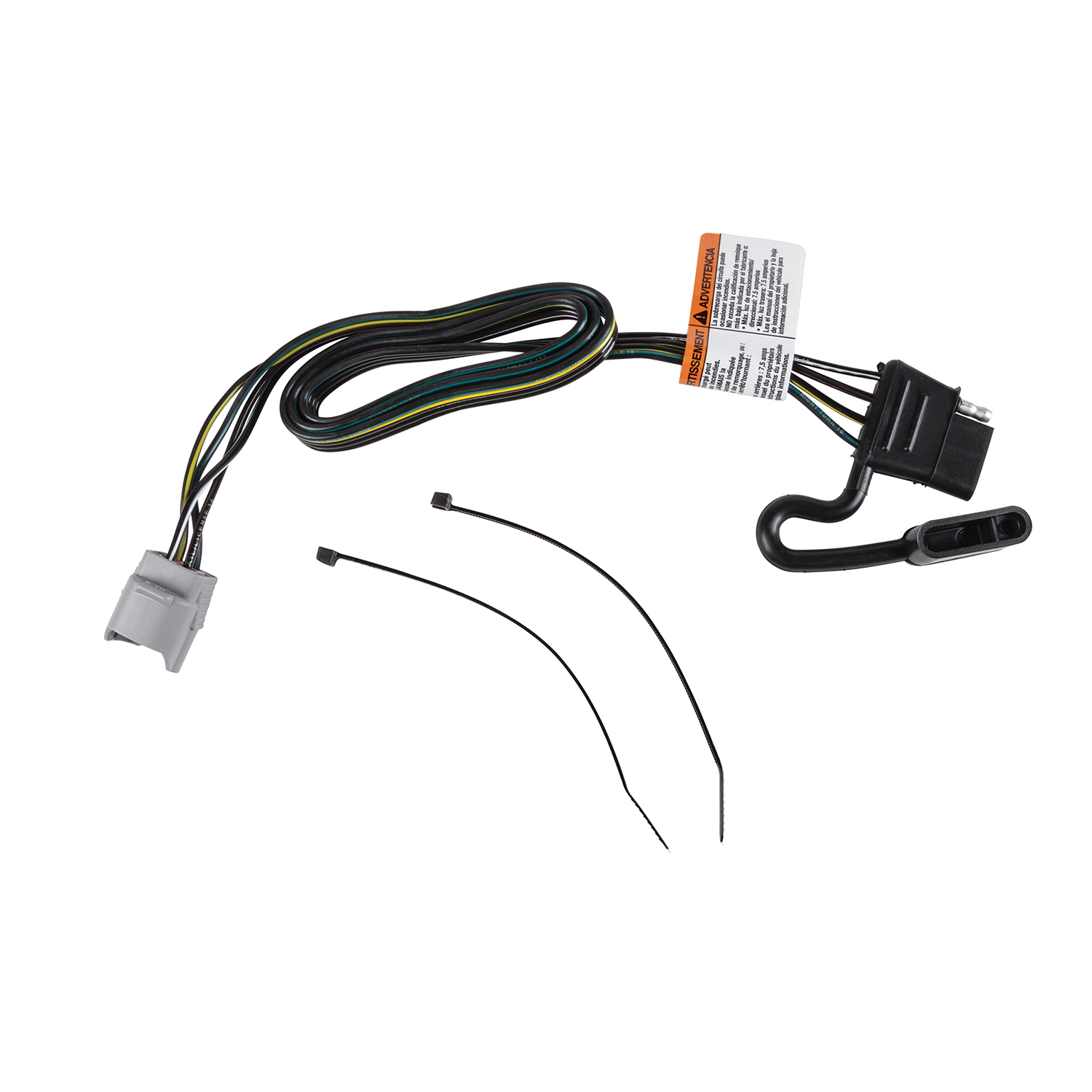

The package includes the T-One® Connector harness with a 6-Pin Tow-Plug Adapter, cable ties for securing the harness, and a protective cap. A mounting bracket or electrical box for the 4-Flat end is not included and must be purchased separately.
The factory trailer harness connector is located under the vehicle, behind the rear bumper, on the driver's side of the vehicle. It will have a protective cap that must be removed before installation.
Yes. Before inserting the 6-Pin Tow-Plug Adapter, check that the mating surfaces of the connectors are free of dirt and clean them if necessary. This ensures proper connection.

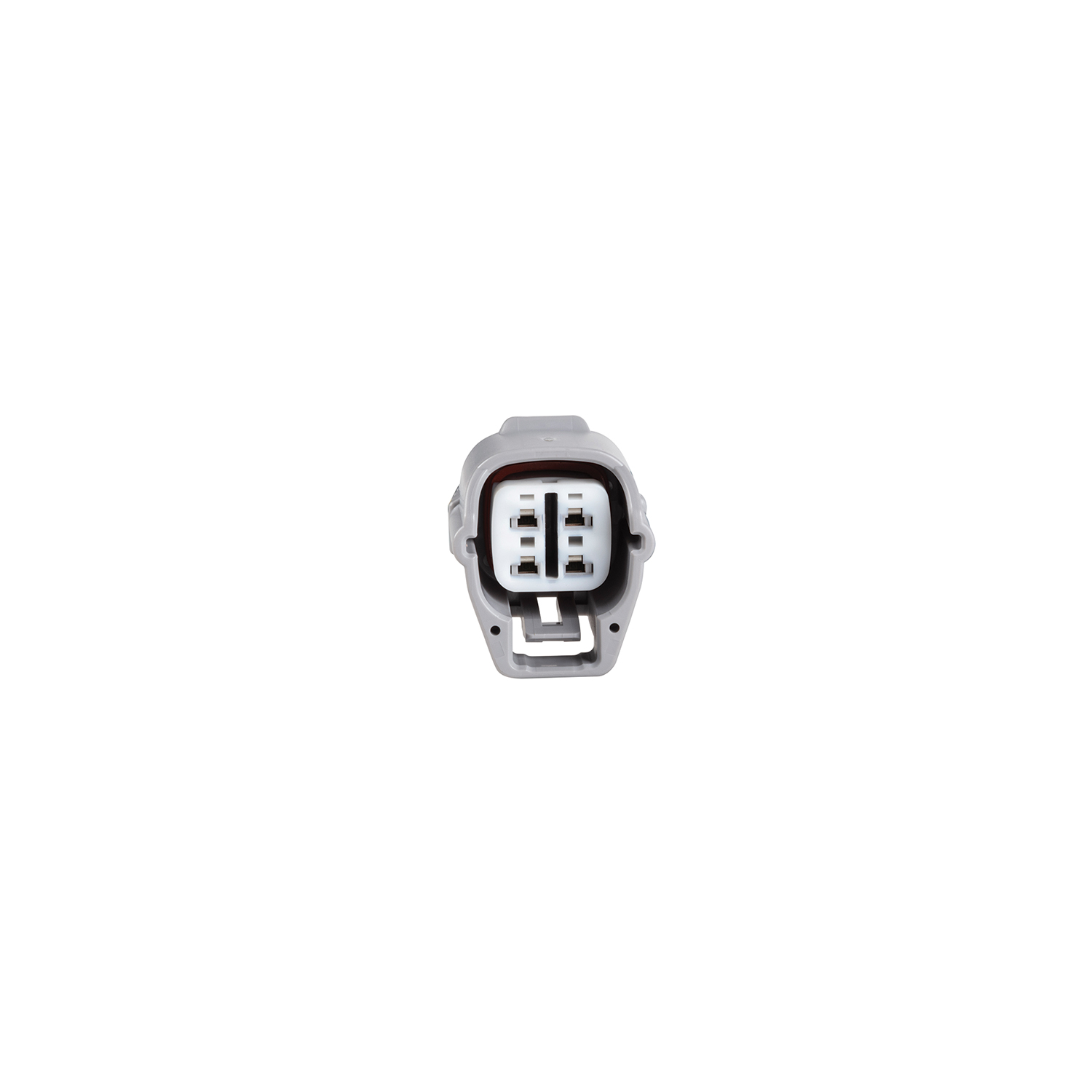

Remove the protective cap from the factory connector and store it in your glove compartment with the installation instructions. Insert the 6-Pin Tow-Plug Adapter into the factory connector and lock it into place. Ensure the connectors are fully inserted with the locking tabs in place.
Route the T-Connector harness rearward to the back of the fascia of the bumper. Secure the remainder of the harness with the cable ties provided. Be careful to avoid any areas that would pinch, cut or melt the wire, and prevent damage or rattling.
Mount the 4-Flat end in an accessible location using a bracket or electrical box. These mounting accessories are not included with the product and must be purchased separately.
All connections must be complete for the T-One® Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product itself. Overloading circuits can cause fires. Check the product label for the specific amperage rating.
Always wear safety glasses during installation. Follow all safety precautions. Read and follow all warnings and instructions included with the product before beginning installation. Read, understand and follow all warnings and instructions printed on the tow vehicle's battery.
No. Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
Yes. Your vehicle must have a factory trailer harness connector located under the vehicle behind the rear bumper on the driver's side. Check your vehicle's owner's manual to confirm.
No. The 4-Flat end mounting bracket or electrical box is not included and must be purchased separately.
The installation instructions do not mention drilling. However, you will need to mount the 4-Flat end using a bracket or electrical box (not included), which may require drilling depending on your chosen mounting location.
Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer's rating or the specific amperage ratings stated on the product.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Toyota Highlander | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 20 minutes |
